- 17-inch rack LCD console with integrated 16-port analog KVM switch — local console access to up to 16 connected servers from a single device

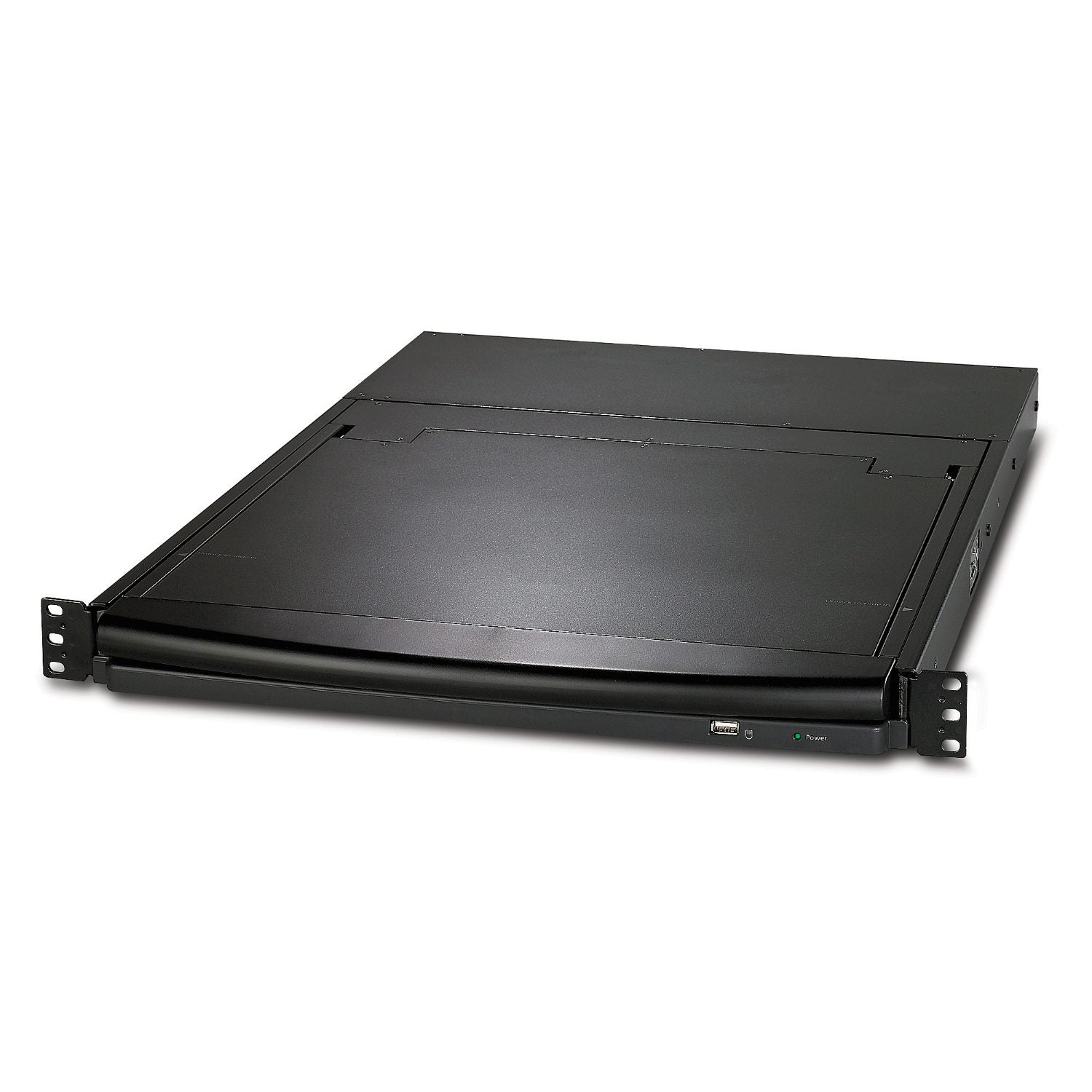

- 1U slide-out form factor with 1280 x 1024 LCD, integrated keyboard, and touchpad
- Multiple KVM switching options: hotkey shortcut, on-screen display (OSD), and pushbutton control
- Compatible with APC KVM cables (AP5821 6ft, AP5822 10ft, AP5823 17ft) for server connections
- Designed for mid-to-large server rooms where 16 servers concentrated in one or two adjacent racks need shared local console access
Product Highlights
Documents
Description

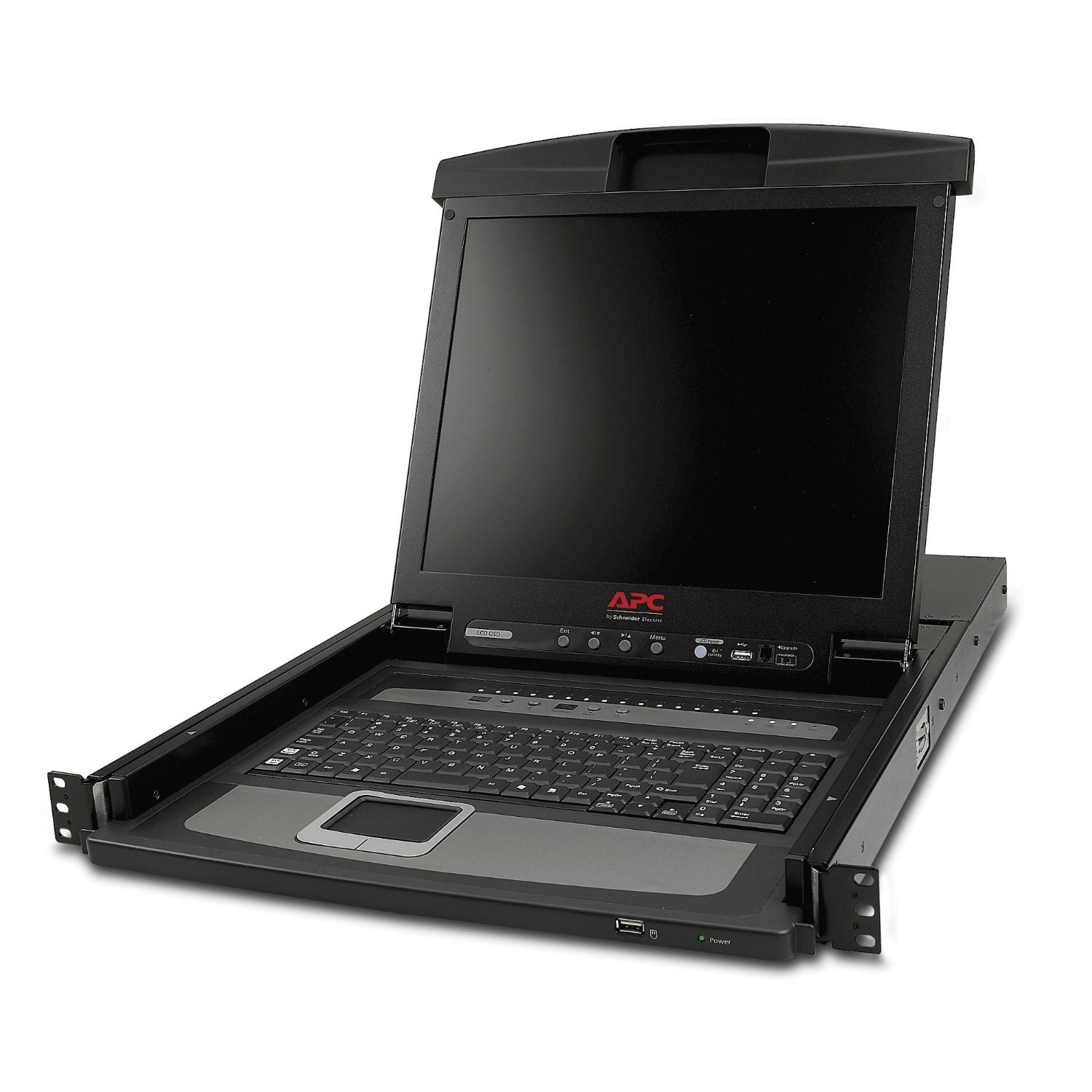

APC 17-Inch Rack LCD Console with 16-Port Analog KVM Switch — AP5816
Full APC Specification: 17" Rack LCD Console with Integrated 16 Port Analog KVM Switch
The AP5816 is the 16-port variant of APC's integrated console + KVM combination. Same 1U slide-out 17-inch LCD console as the AP5808 (and AP5717 standalone console), but with twice the KVM port count for mid-to-large server room deployments where 9-16 servers concentrated in adjacent racks need shared local console access.
8-Port vs. 16-Port Selection
The AP5808 (8 ports) and AP5816 (16 ports) share identical console hardware. The selection criterion is port count: 8 ports for small server rooms and single-rack deployments, 16 ports for mid-sized server rooms spanning multiple racks or higher-density single-rack deployments. Stacking multiple AP5808 units to reach 16 ports is generally less economical and operationally more complex than deploying a single AP5816.
Key Features
- 16-Port Integrated KVM: Switch between up to 16 connected servers from one console.
- Multiple Switching Methods: Hotkey shortcuts, on-screen display (OSD), and physical pushbutton control.
- 17-Inch LCD: 1280 x 1024 native resolution in 1U slide-out form factor.

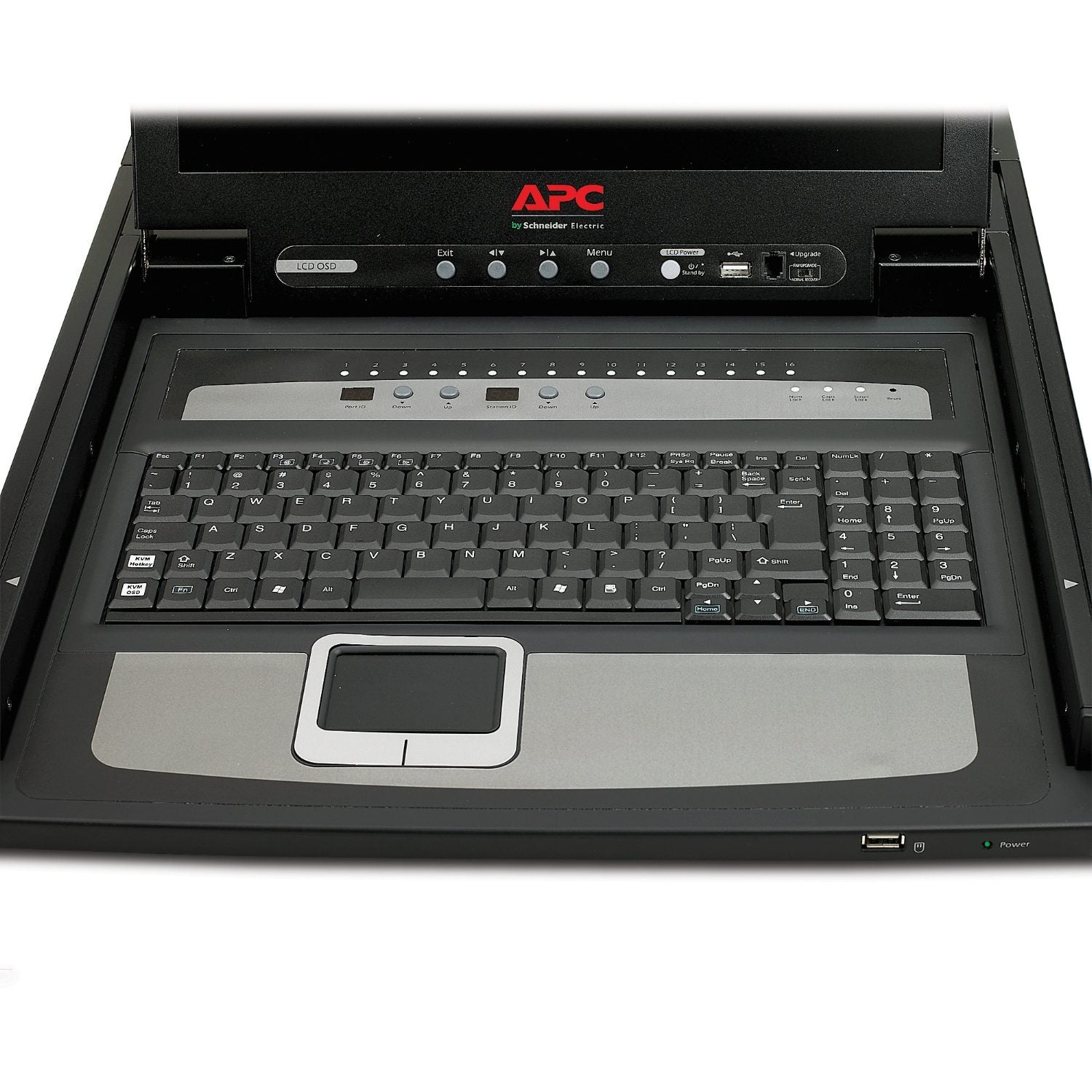

- Integrated Keyboard and Touchpad: Full-size keyboard with integrated touchpad.
- OSD-Based Server Naming: Label connected servers and select by name through the on-screen display.
- Compatible KVM Cables: Uses APC KVM cables AP5821/22/23 for server connections.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 17-inch LCD, 1280 x 1024 native |

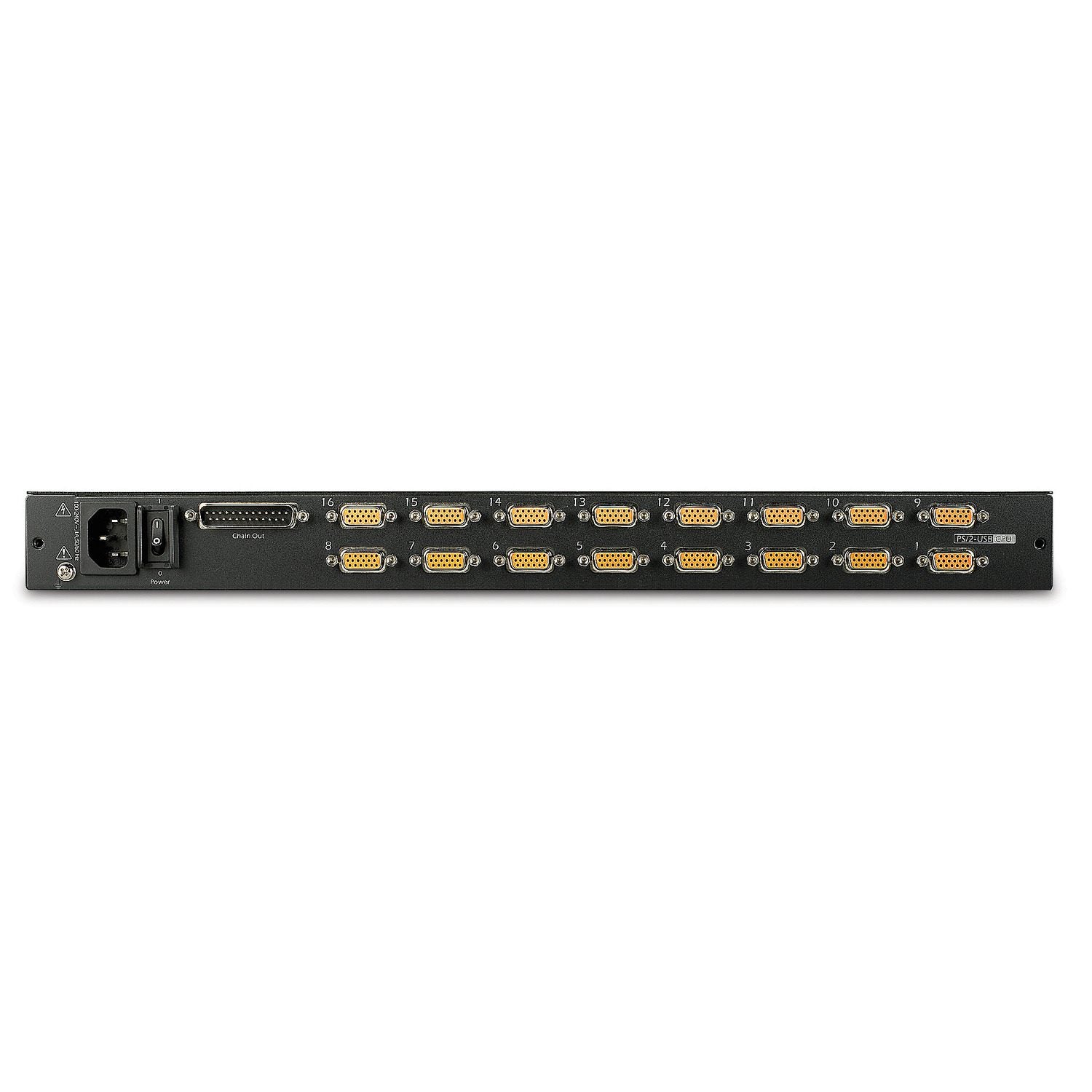

| KVM Ports | 16-port analog KVM |
| Switching Methods | Hotkey, OSD, Pushbutton |
| Form Factor | 1U slide-out rackmount |
| Keyboard/Pointer | Integrated full-size keyboard with touchpad |
| Server Cables | Requires AP5821/AP5822/AP5823 KVM cables (sold separately) |
| Warranty | 2-year |
Ideal Applications
- Mid-Size Server Rooms (9-16 Servers): Single console for all directly-managed servers in the room.
- Multi-Rack Server Deployments: Shared console + KVM serving servers across 2-3 adjacent racks.
- Lab and Development Environments: Switching between 16 test/dev servers from a single console.
- SMB Data Center Consolidation: Replacing multiple individual KVM units with a single integrated console.
Questyme: 16-Port KVM Cable Bundle
The AP5816 requires up to 16 KVM cables (one per connected server). Questyme can scope the right mix of AP5821/22/23 cables based on server-to-console distances and quote as a complete bundle. Contact our team.
Specifications
Overview
Model
17" Rack LCD Console with Integrated 16 Port Analog KVM Switch
Main
Input Voltage
120 12
Input Connection Type
IEC 60320 C14
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
KVM LCD AND SWITCHES
Shipping Dimensions
Height: 5.12Width: 32.52Length: 26.5
Shipping Weight
44.4 lb
UPC Code
731304278818
Lead time
Usually in Stock
Provided Equipment
USB KVM cableSingle user rack mount kitPS2 KVM cableNEMA 5-15 power cordInstallation guideFirmware upgrade cableDocumentation CDC13-C14 power cord
Standards
EN 60950
FCC Part 15 class A
IEC 60950
FCC Part 15 class A
IEC 60950
Product Certifications
cUL ListedC-tickCEIndustry CanadaKCCUL ListedVDETAA compliance
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
61
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
