APC SUA500PDR-S
Contact Questyme for product details and compatibility.
Specifications
Overview
Model

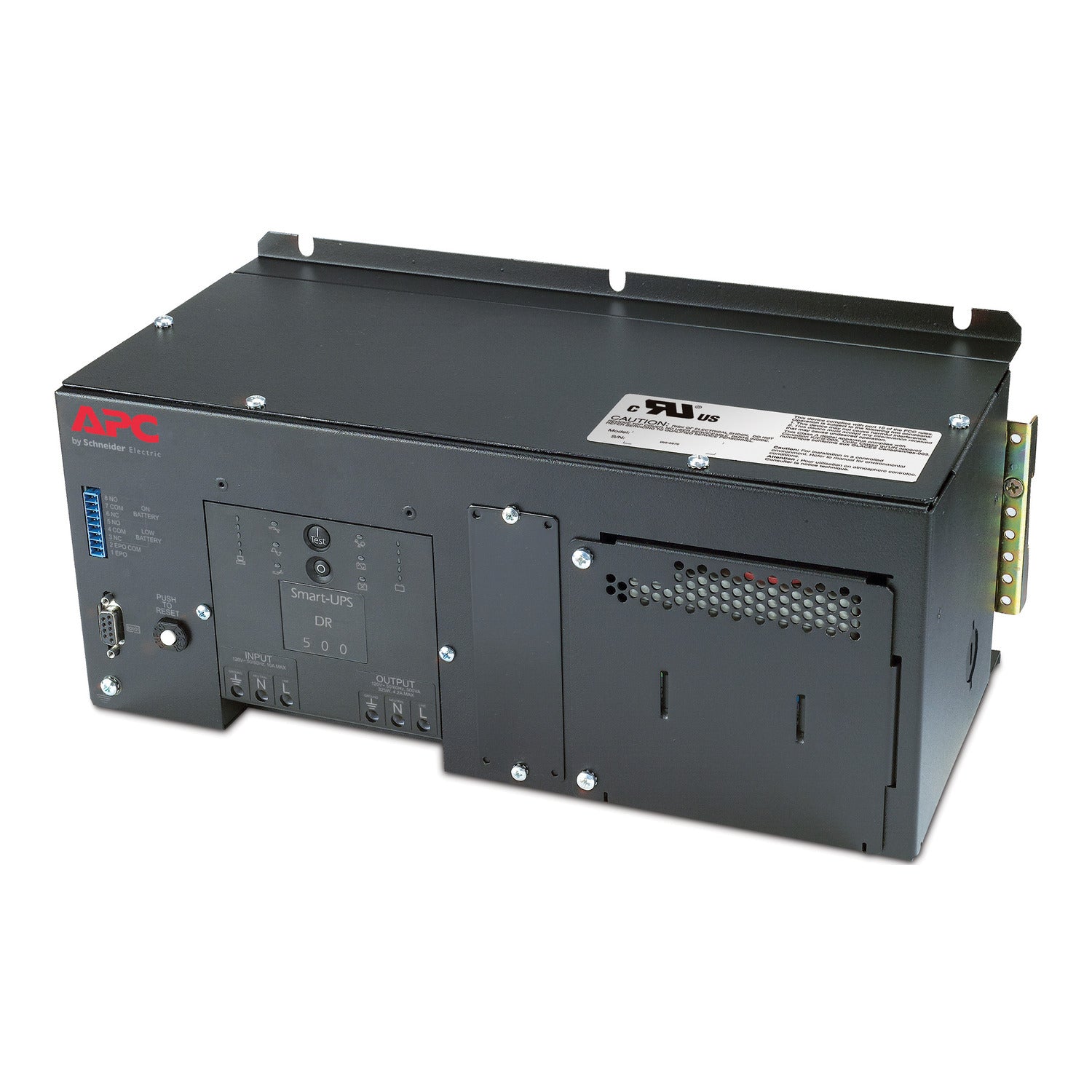

APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
325 W
Rated Power in VA
500
Output Connection Type
Hard Wire 3-wire (H N + E) 1
Max Configurable Power in VA
500 VA
Max Configurable Power in W
325 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Physical
Mounting Mode
Not rack-mountable
Mounting Preference
No preference
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 11.69Width: 18.94Length: 11.69
Shipping Weight
29.37 lb
UPC Code
731304733010
Lead time
Usually in Stock
Provided Equipment
CD with softwareDocumentation CDInstallation guideSmart UPS signalling RS-232 cable
Product Certifications
UL Recognized
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
499
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
