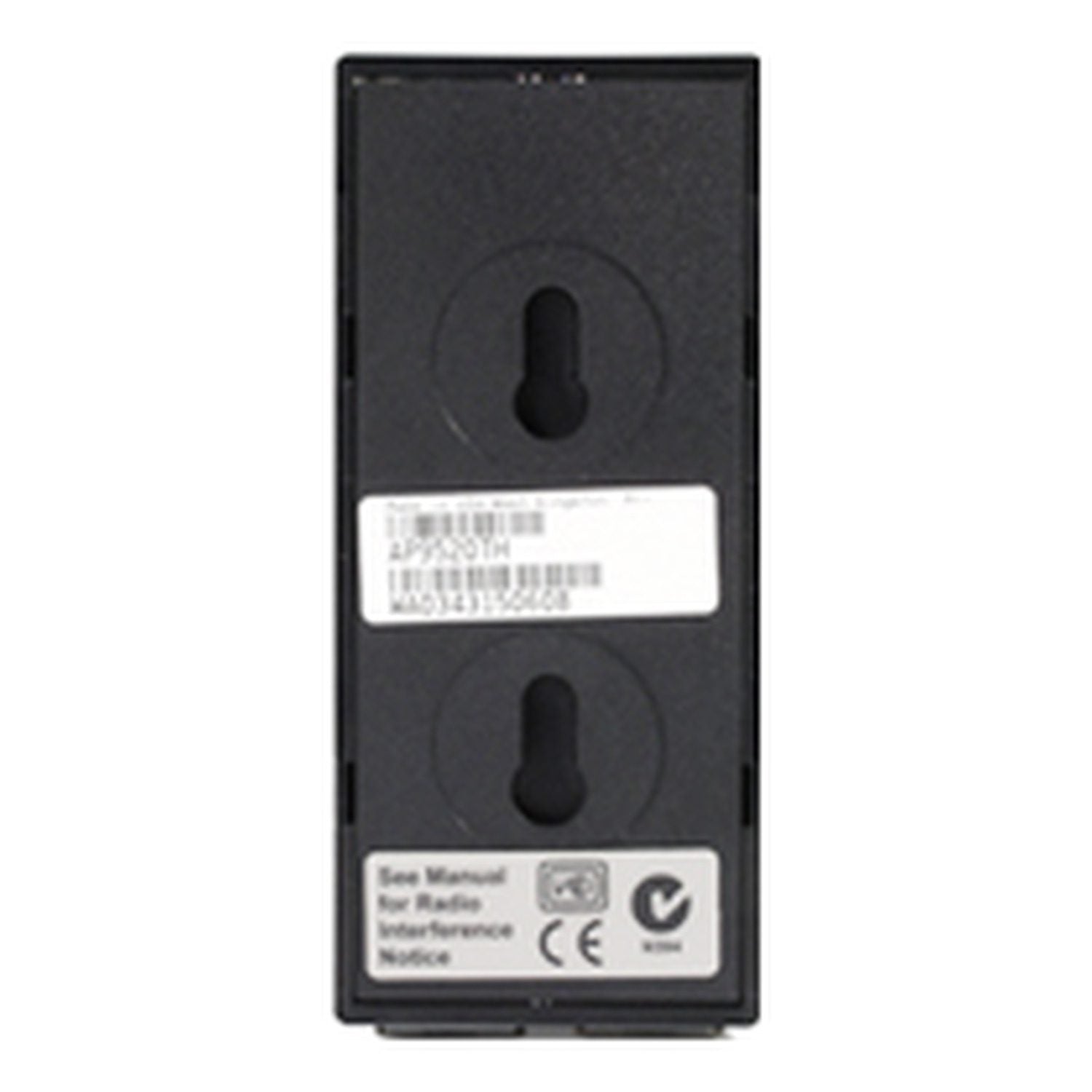

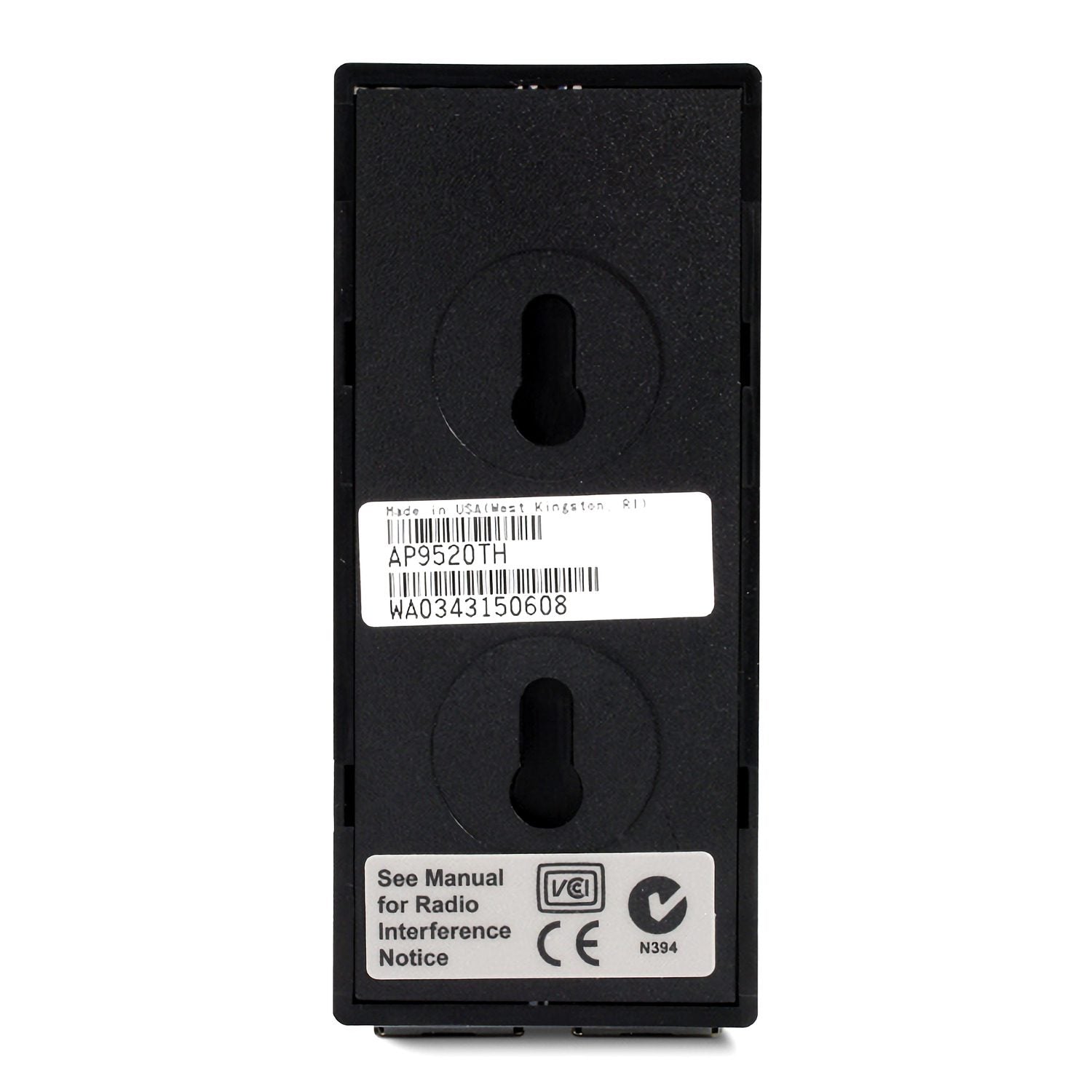

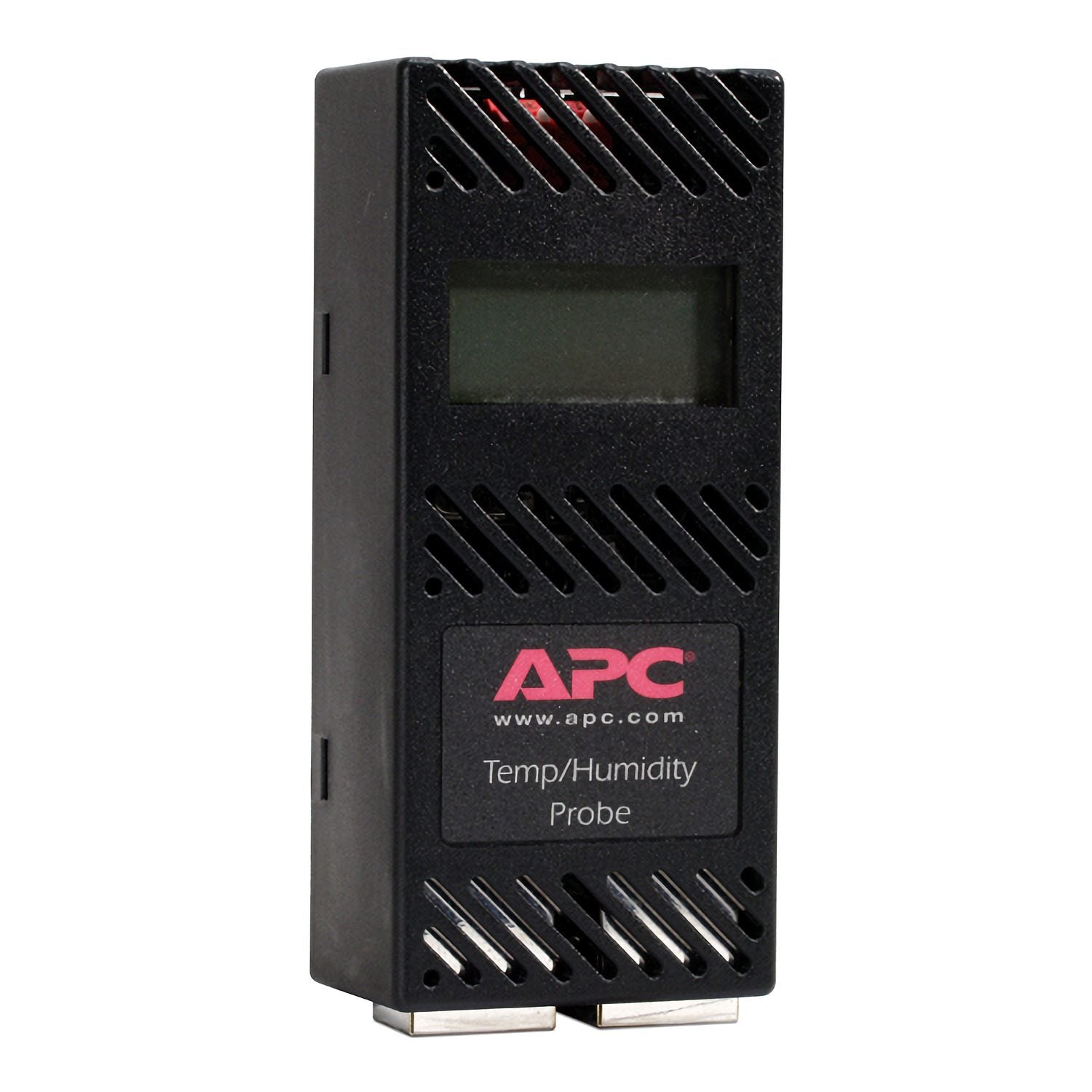

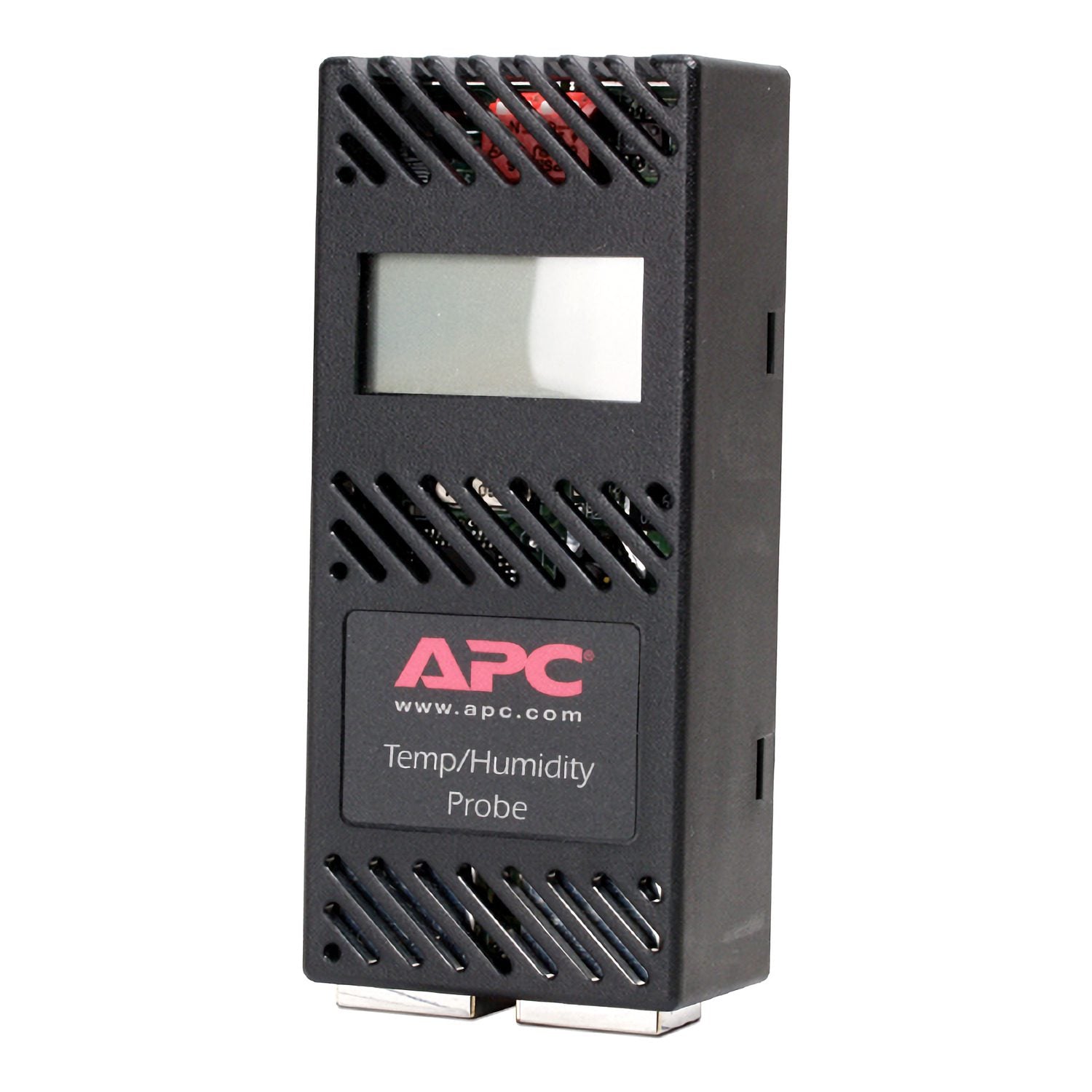

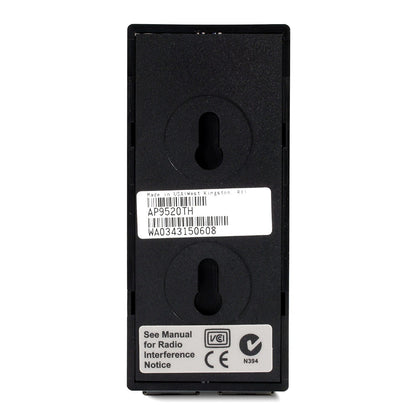

- APC NetBotz wired temperature and humidity sensor with on-board LCD display
- Provides real-time environmental visibility at the rack or device location
- Compatible with select APC NetBotz appliances and EcoStruxure IT

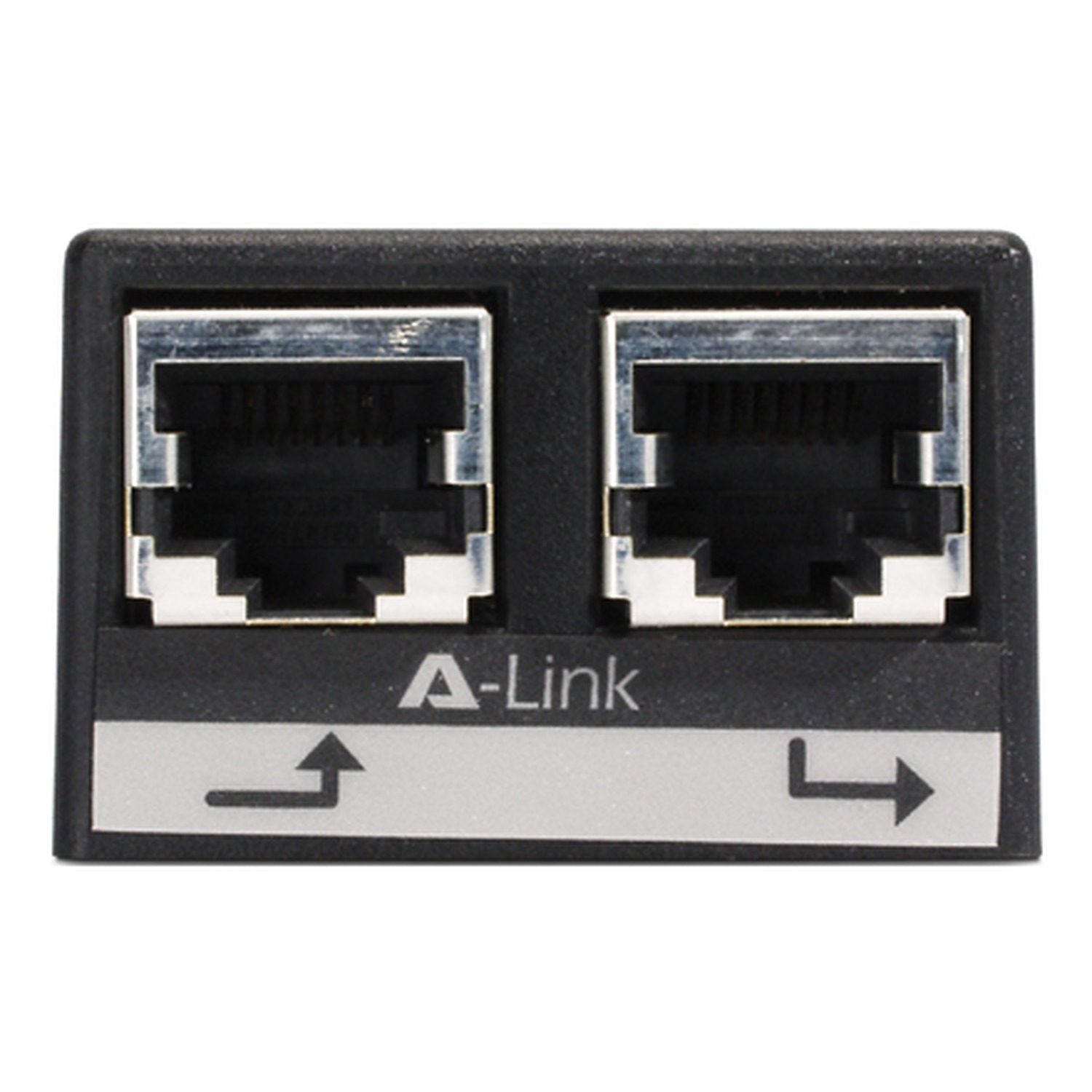

- RJ-45 connection for standard structured cabling
Product Highlights
Documents
Description
APC Temperature And Humidity Sensor With Lcd Display (AP9520TH)
The AP9520TH is a wired environmental sensor for APC management infrastructure — provides temperature and humidity sensor with LCD display monitoring for data centers, network closets, and IT infrastructure rooms.
Why Environmental Monitoring at the Rack Level
Environmental conditions inside racks vary significantly from room-level readings. Temperature near the top of a rack can be 10-20°F higher than at the bottom. Humidity drift causes equipment damage long before alarms trigger at the facility level. Rack-level sensors catch these conditions early.
Compatibility
Compatible with APC Network Management Cards (NMC2, NMC3) and select APC NetBotz appliances. RJ-45 connection for standard structured cabling.
Specifications
| Specification | Value |
|---|---|
| Sensor Type | Temperature And Humidity Sensor With Lcd Display |
| Connection | RJ-45 |
| Compatibility | APC NMC, NetBotz appliances |
Environmental Monitoring Planning
Questyme helps facilities engineers and IT teams design rack-level environmental monitoring as part of complete power infrastructure deployments. Contact our team.
Specifications
Overview
Model
APC Temperature & Humidity Sensor with Display
Physical
Color
Black
Mounting Mode
Not rack-mountable
Mounting Preference
No preference
Product Line
NETBOTZ SW ACCESSORIES
Shipping Dimensions
Height: 9.02Width: 2.01Length: 6.5
Shipping Weight
2.03 lb
UPC Code
731304206682
Lead time
Usually in Stock
Provided Equipment
Installation guide
Mounting pads
Mounting pads
Standards
EN 55022 Class A
EN 55024
FCC Part 15 class A
ICES-003
EN 55024
FCC Part 15 class A
ICES-003
Product Certifications
AS/NZS 3548 (C-Tick) Class A
CE
VCCI
CE
VCCI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
116
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-113 ?F
Ambient Air Temperature for Storage
'-40-149 ?F
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
