- Backplate kit for APC Smart-UPS Modular Ultra — 3x NEMA L6-20R
- Field-installable; allows reconfiguration of UPS output to match site outlet requirements
- Designed for in-rack installation without removing the host UPS from service
- Compatible with all SRYL Smart-UPS Modular Ultra models
Product Highlights
Documents
Description

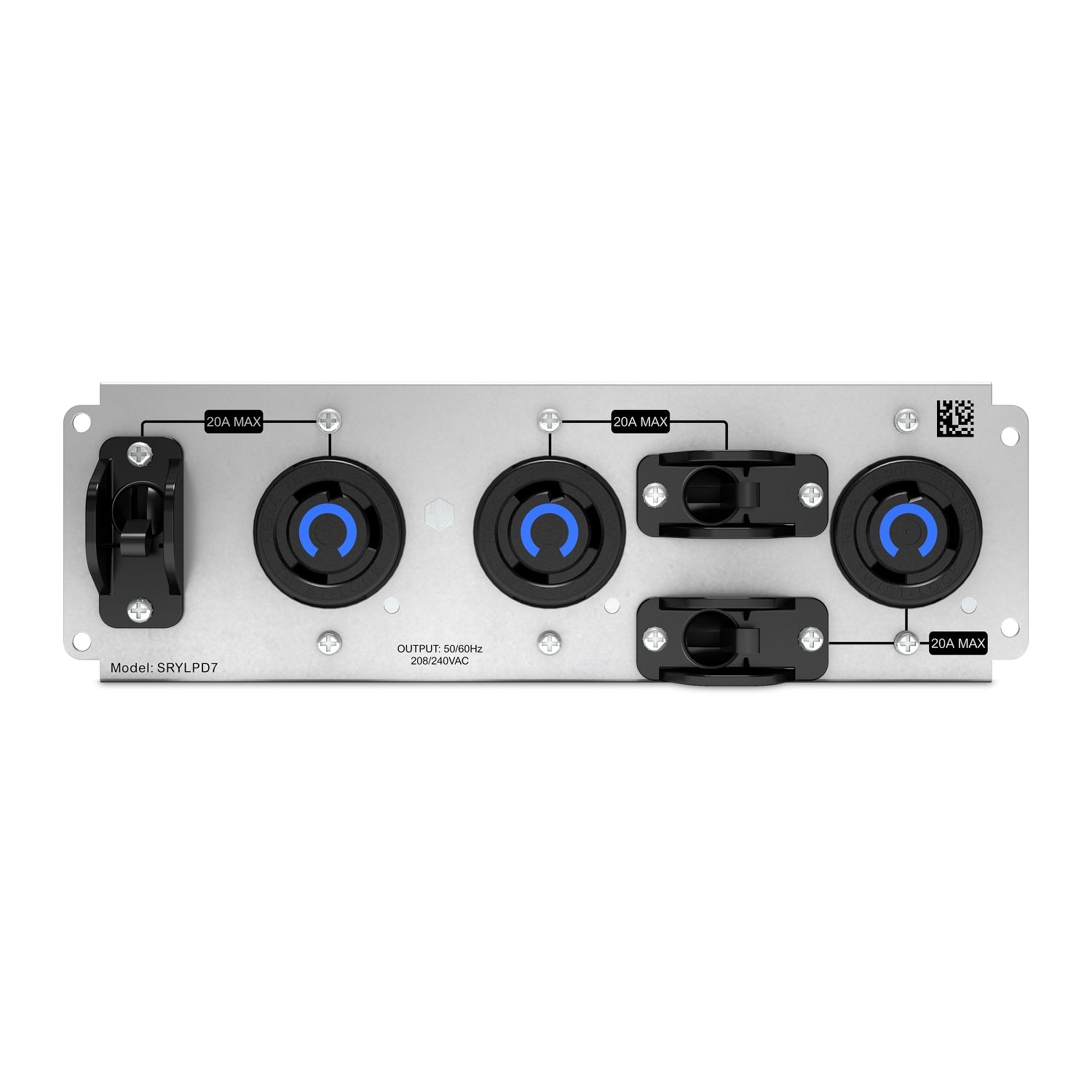

APC Smart-UPS Modular Ultra Backplate Kit — 3x NEMA L6-20R
The SRYLPD7 backplate kit reconfigures the output of an APC Smart-UPS Modular Ultra (SRYL) to match site-specific outlet requirements. Where standard rack PDUs fix outlet configuration at manufacture, the SRYL platform supports field-installable backplate kits — meaning a single UPS SKU can be deployed across environments with different outlet needs.
Why Field-Configurable Outlets
Data centers, branch sites, and edge compute environments rarely have identical outlet requirements. The SRYL backplate ecosystem lets a single base UPS serve sites needing L6-30R high-current outlets and sites needing L6-20R standard outlets — without separate SKUs or distribution panels.
Compatibility
- All APC Smart-UPS Modular Ultra (SRYL) UPS models
- Field-installable; reconfiguration possible without replacing the UPS itself
Questyme Helps Pre-Configure Sites
For multi-site deployments, Questyme can pre-configure backplate kits to match each location's outlet requirements before shipment, reducing installation time. Contact our team for staging and pre-configuration services.
Specifications
Overview
Model
APC Backplate Kit w/ Qty. 3 L6-20R for Smart-UPS Modular Ultra SRYL
Main
Input Connection Type
NEMA
Output Connection Type
3 NEMA L6-20R
Physical
Product Line
SYMMETRA (1PHASE)
Shipping Dimensions
Height: 5.51Width: 9.21Length: 10.55
Shipping Weight
3.09 lb
UPC Code
731304420804
Lead time
Usually in Stock
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
