- Hot-swappable lithium-ion battery module for APC Smart-UPS Modular Ultra
- Field-replaceable — add capacity or replace aged modules without taking the UPS offline
- 10-year lithium-ion service life with minimal maintenance overhead
- Compatible with all SRYL Smart-UPS Modular Ultra UPS units
Product Highlights
Documents
Description

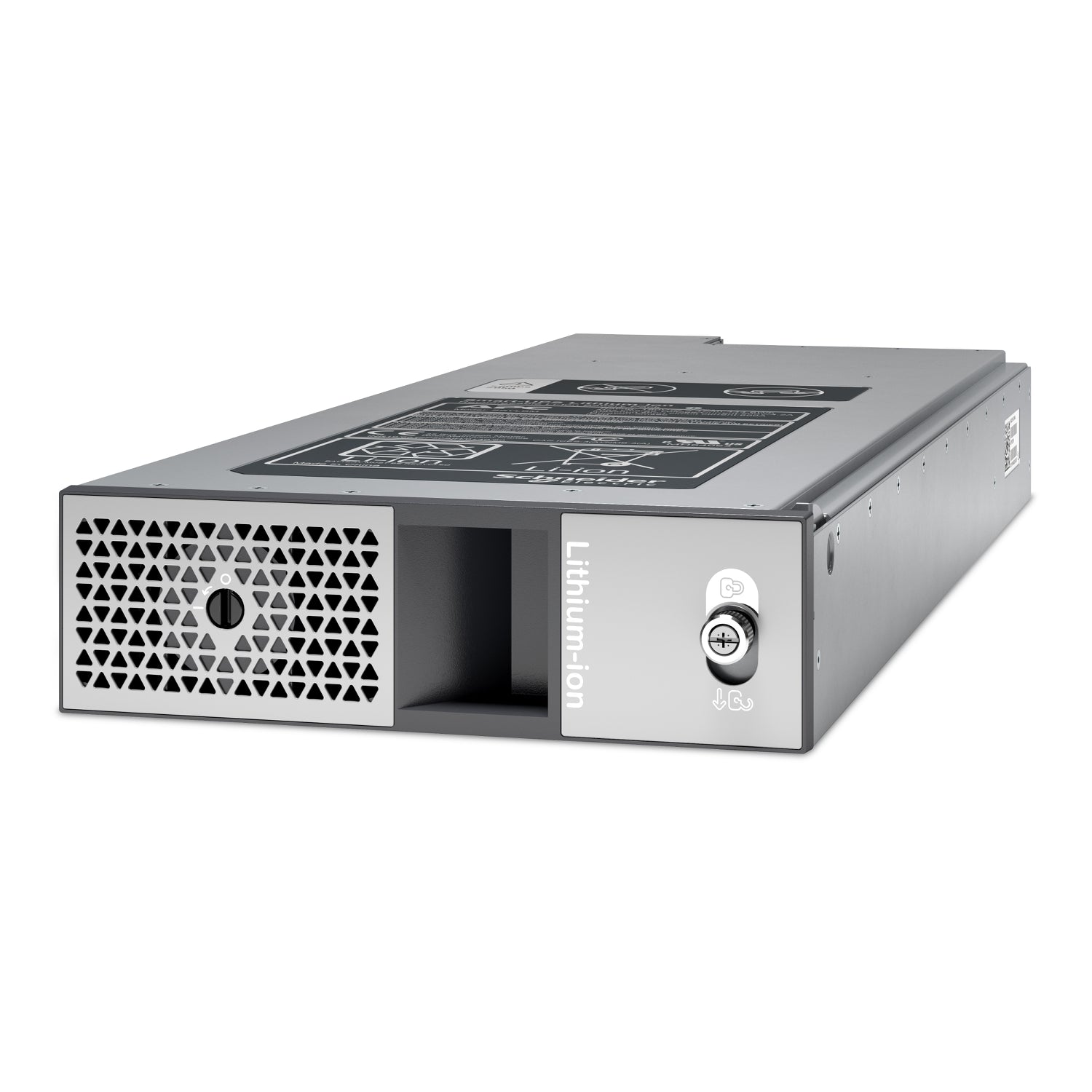

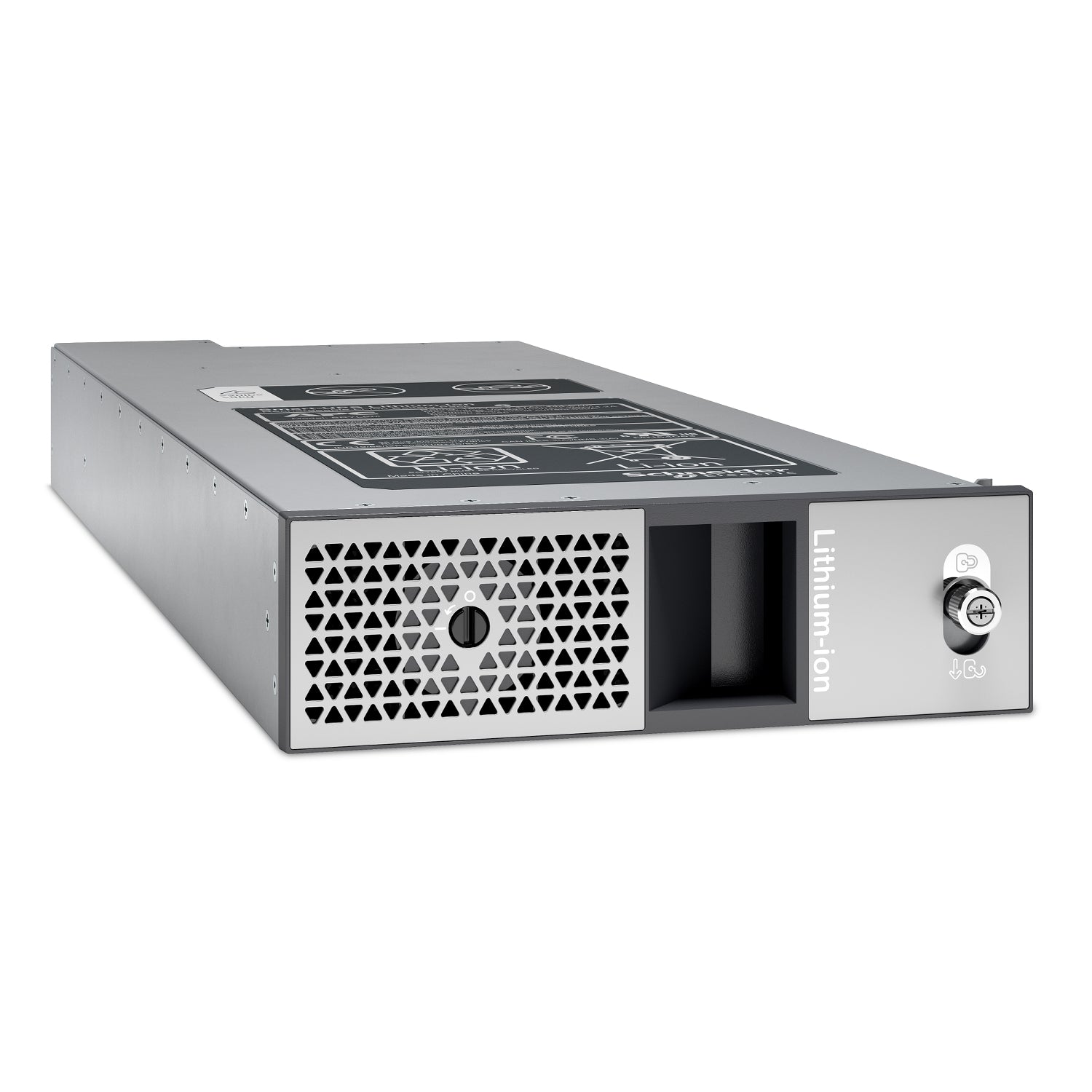

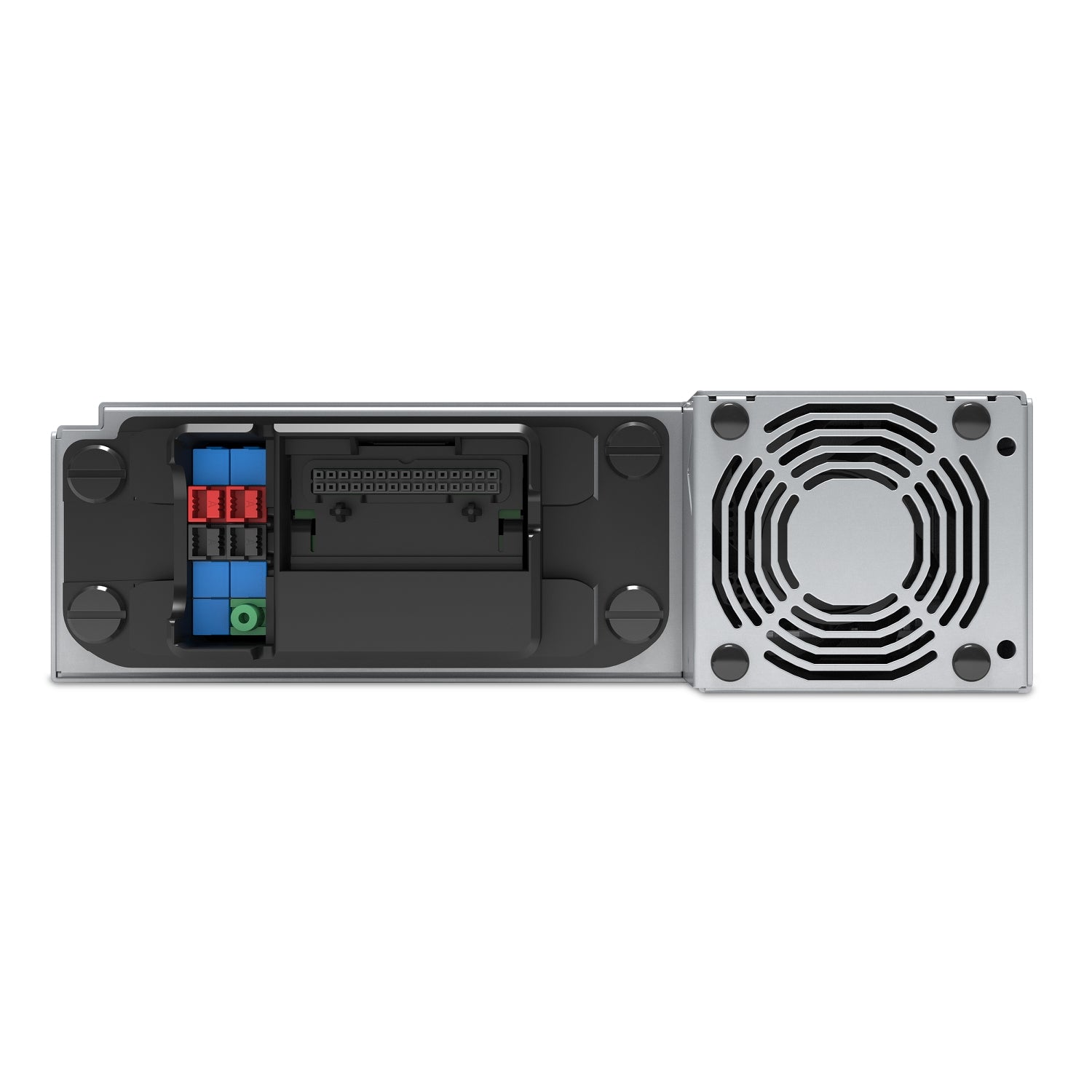

APC Smart-UPS Modular Ultra Battery Module — Hot-Swappable Lithium-Ion
The SRYLBM is a single hot-swappable lithium-ion battery module for APC Smart-UPS Modular Ultra (SRYL) systems. It's the building block that gives the SRYL platform its modular, scalable runtime architecture.
Hot-Swap, Field-Replaceable
Battery modules can be added, removed, or replaced individually without taking the UPS offline. This eliminates the traditional UPS battery maintenance pattern of scheduled downtime windows every 3-5 years to swap an entire battery cabinet.
Key Features
- Lithium-Ion Chemistry: 10-year service life with minimal maintenance.
- Per-Module Monitoring: State-of-charge, state-of-health, and temperature reported per module.
- Field-Installable: No service technician dispatch required for module replacement.
- Universal SRYL Compatibility: Works across the entire Smart-UPS Modular Ultra line.
Capacity Planning
Questyme helps facilities engineers and data center managers plan module count for current load and projected growth. Contact our team for capacity planning support.
Specifications
Overview
Model
APC Smart-UPS Modular Ultra Lithium-ion Battery Module
Main
Battery Type
Li-Ion (Lithium Ion)
Physical
Color
Silver
Mounting Preference
No preference
Product Line
SYMMETRA (1PHASE)
Shipping Dimensions
Height: 6.1Width: 10.98Length: 28.78
Shipping Weight
25.4 lb
UPC Code
731304420484
Lead time
Usually in Stock
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-122 ?F (0-50 ?C)
Ambient Air Temperature for Storage
'-4-140 ?F (-20-60 ?C)
Operating Altitude
0-9842.52 ft (0-3000 m)
Storage Altitude
0.0000000000-49212.6 ft (0-15000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
