- Maintenance bypass unit for APC Smart-UPS Modular Ultra — bypass the UPS for service without interrupting connected loads
- Lock-Out / Tag-Out (LOTO) feature prevents unintended bypass condition during routine work
- Hardwire input and output — designed for permanent rack installation alongside the SRYL UPS
- 5-year repair-or-replace warranty
Product Highlights
Description

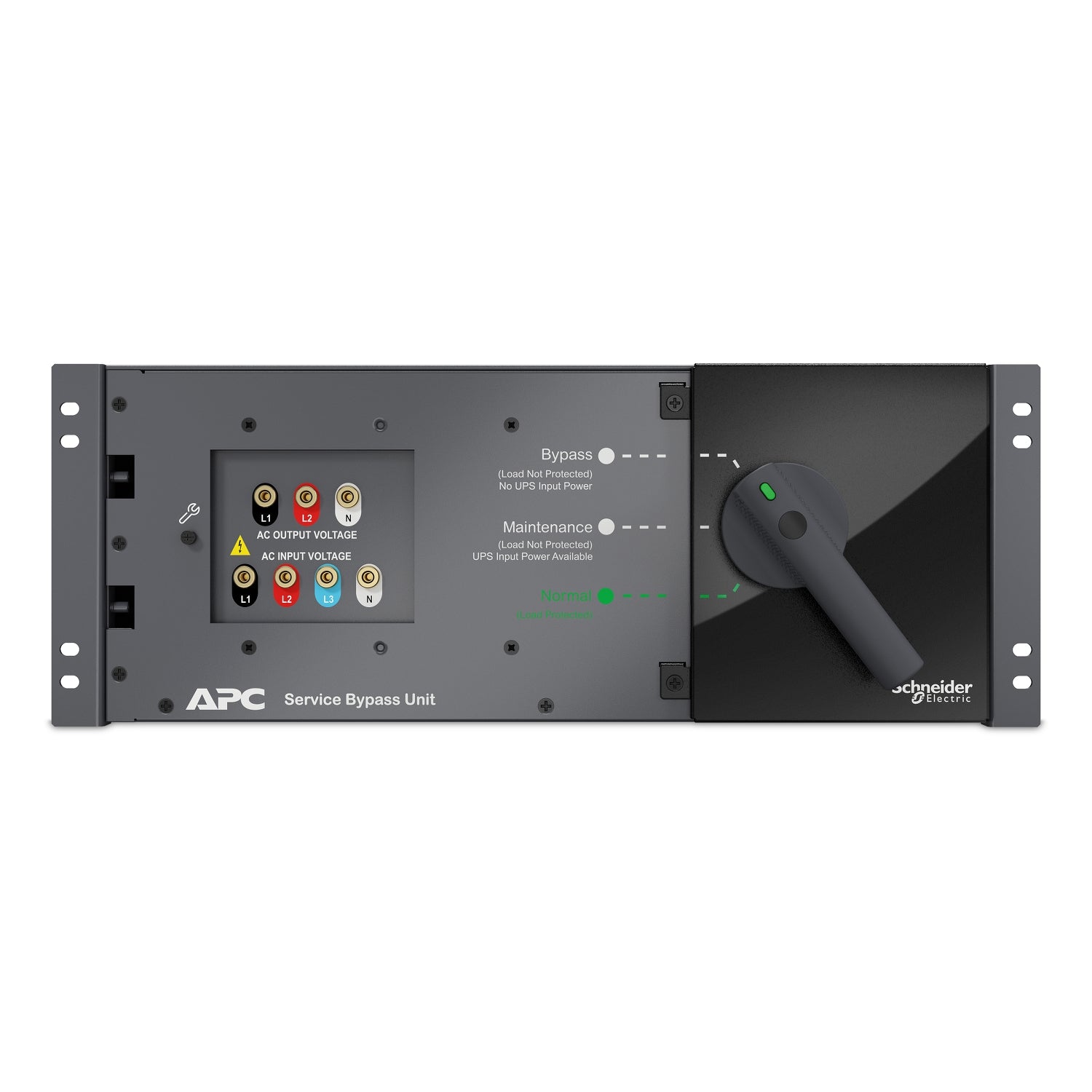

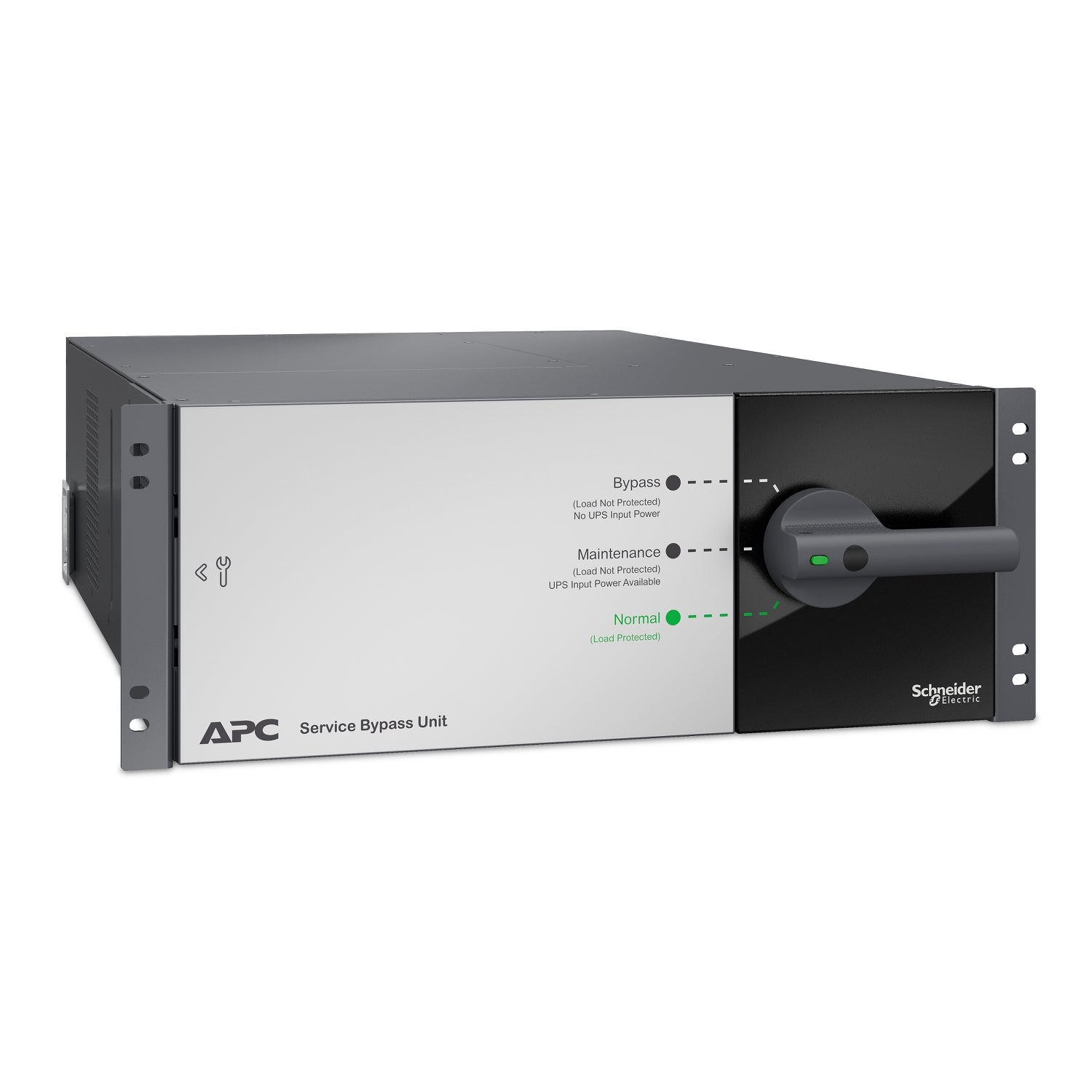

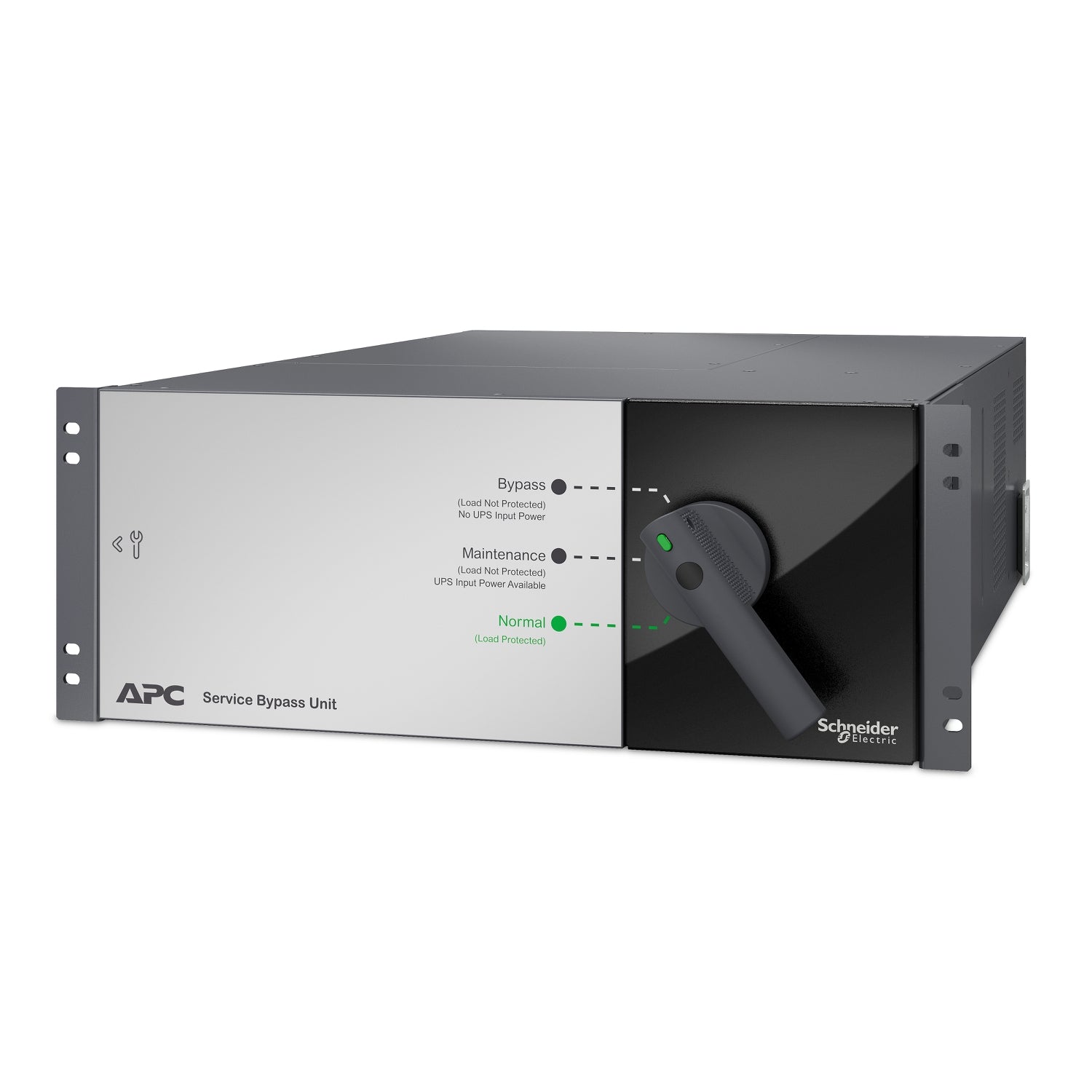

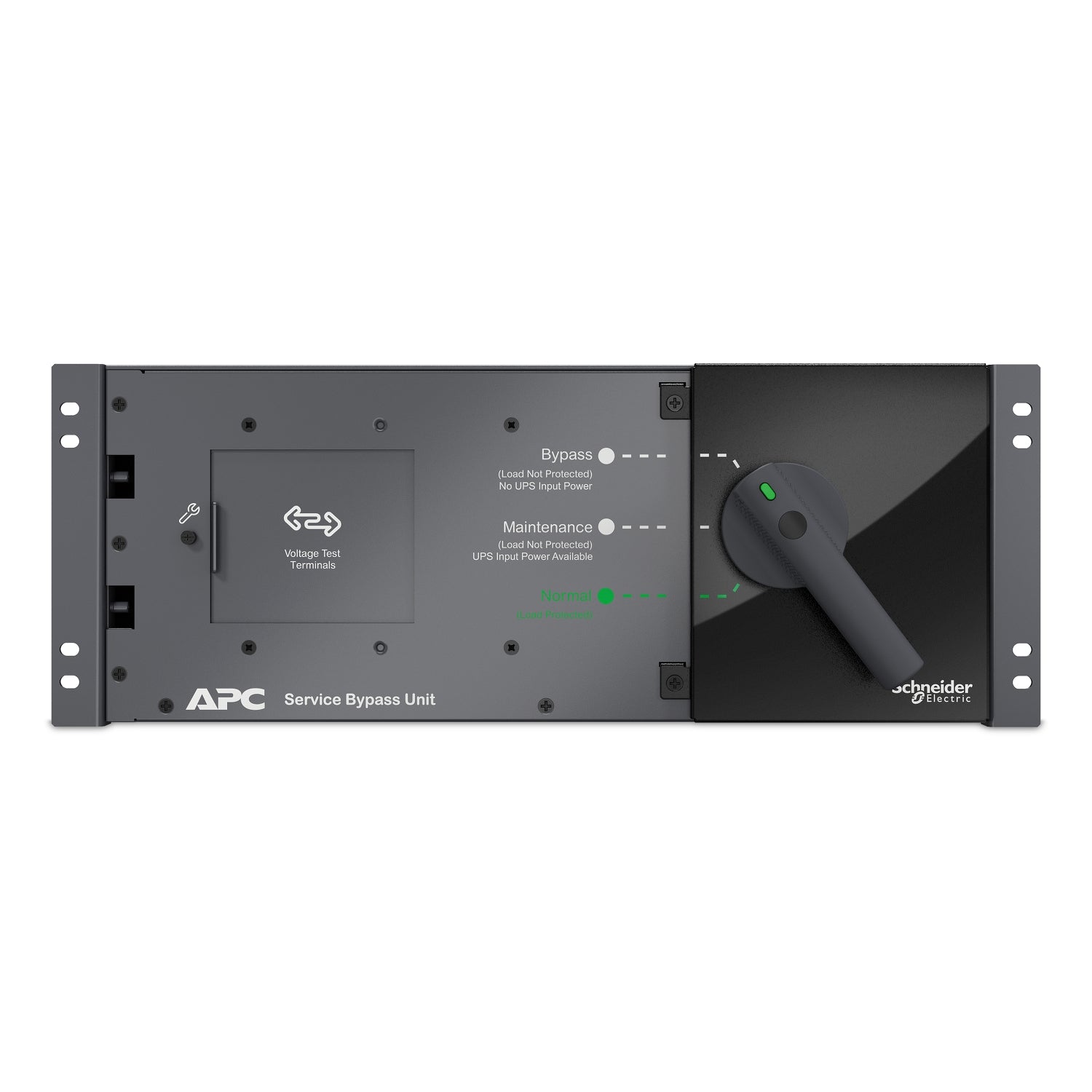

APC Smart-UPS Modular Ultra Service Bypass Unit —
The SRYLSBP20KP is a maintenance bypass unit (MBB) for APC Smart-UPS Modular Ultra (SRYL) systems at the capacity. It allows utility power to bypass the UPS so service technicians can perform maintenance on the UPS itself — module replacements, firmware updates, internal diagnostics — without taking connected loads offline.
Why a Maintenance Bypass Matters
In production environments running modular UPS systems, scheduled maintenance is a recurring activity. Without an MBB, every maintenance window requires either downtime or a fully redundant UPS to absorb the load. The MBB provides a third option: utility power passes through to the load while the UPS is temporarily taken out of the power path for service.
Key Features
- Lock-Out / Tag-Out (LOTO) Compliant: Prevents accidental bypass activation during routine work; supports plant safety protocols.
- Hardwire Input / Output: Permanent installation alongside the SRYL UPS in the same rack or adjacent enclosure.
- Compatible with All SRYL Models: Standard accessory for the Smart-UPS Modular Ultra platform.
- 5-Year Repair or Replace Warranty: Matched to the SRYL service lifecycle.
Specifications
| Specification | Value |
|---|---|
| Compatible Capacity | |
| Voltage Range | 200/208/230/240V |

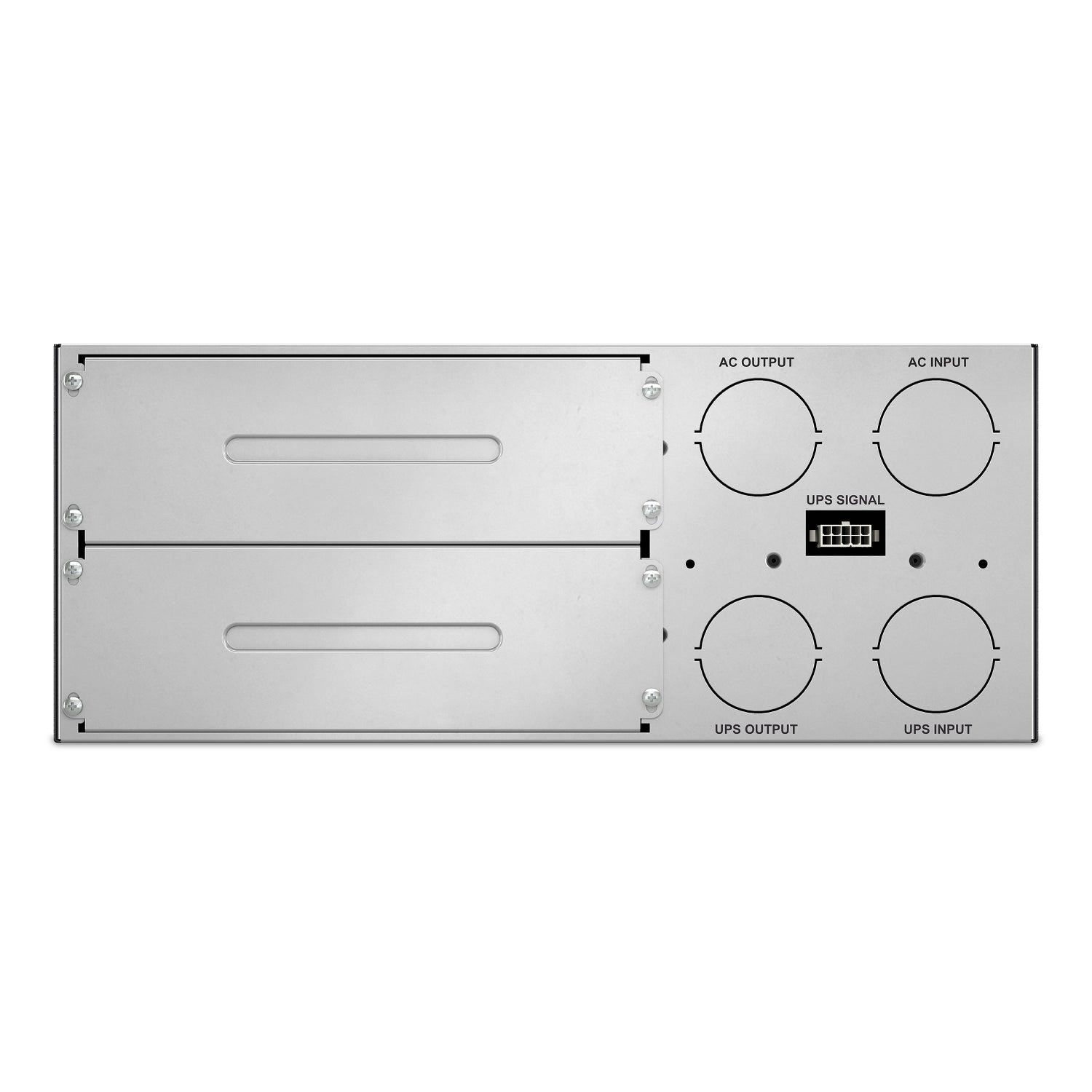

| Connection | Hardwire Input / Output |
| Warranty | 5-year repair or replace |
Designing a Maintenance-Friendly Power Architecture
The MBB is one element of a complete modular UPS deployment. Questyme can help scope the right combination of base UPS, battery modules, MBB, and backplate kit for your installation. Contact our team for deployment planning.
Specifications
Overview
Model
APC Service Bypass Unit for SRYL, 200/208/230/240V, 125A, MBB, Hardwire Input/Output
Physical
Color
Black and silver
Mounting Mode
Rack-mounted
Product Line
SYMMETRA (1PHASE)
Shipping Dimensions
Height: 11.81Width: 22.83Length: 38.19
Shipping Weight
71.7 lb
UPC Code
731304434702
Lead time
Usually in Stock
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
'-22-158 ?F (-30-70 ?C)
Operating Altitude
0-9842.52 ft (0-3000 m)
Storage Altitude
0.0000000000-49212.6 ft (0-15000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
