- 500VA Smart-UPS SC in a compact 1U rackmount/tower convertible chassis
- 120V NEMA 5-15R outlets — basic protection for small server and network applications
- USB connectivity for graceful shutdown via PowerChute
- Entry-level Smart-UPS topology — for environments with smaller load requirements
Product Highlights
Description

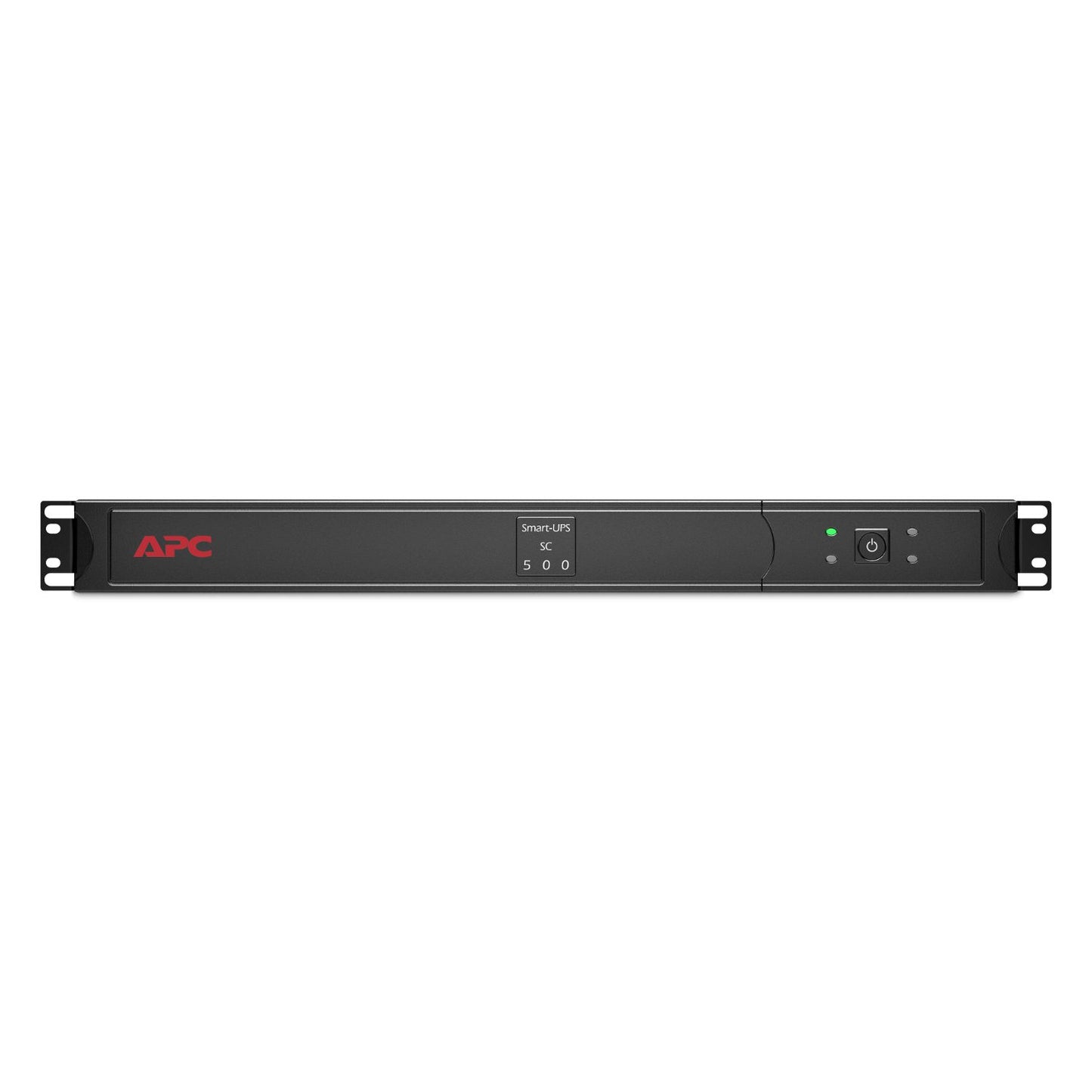

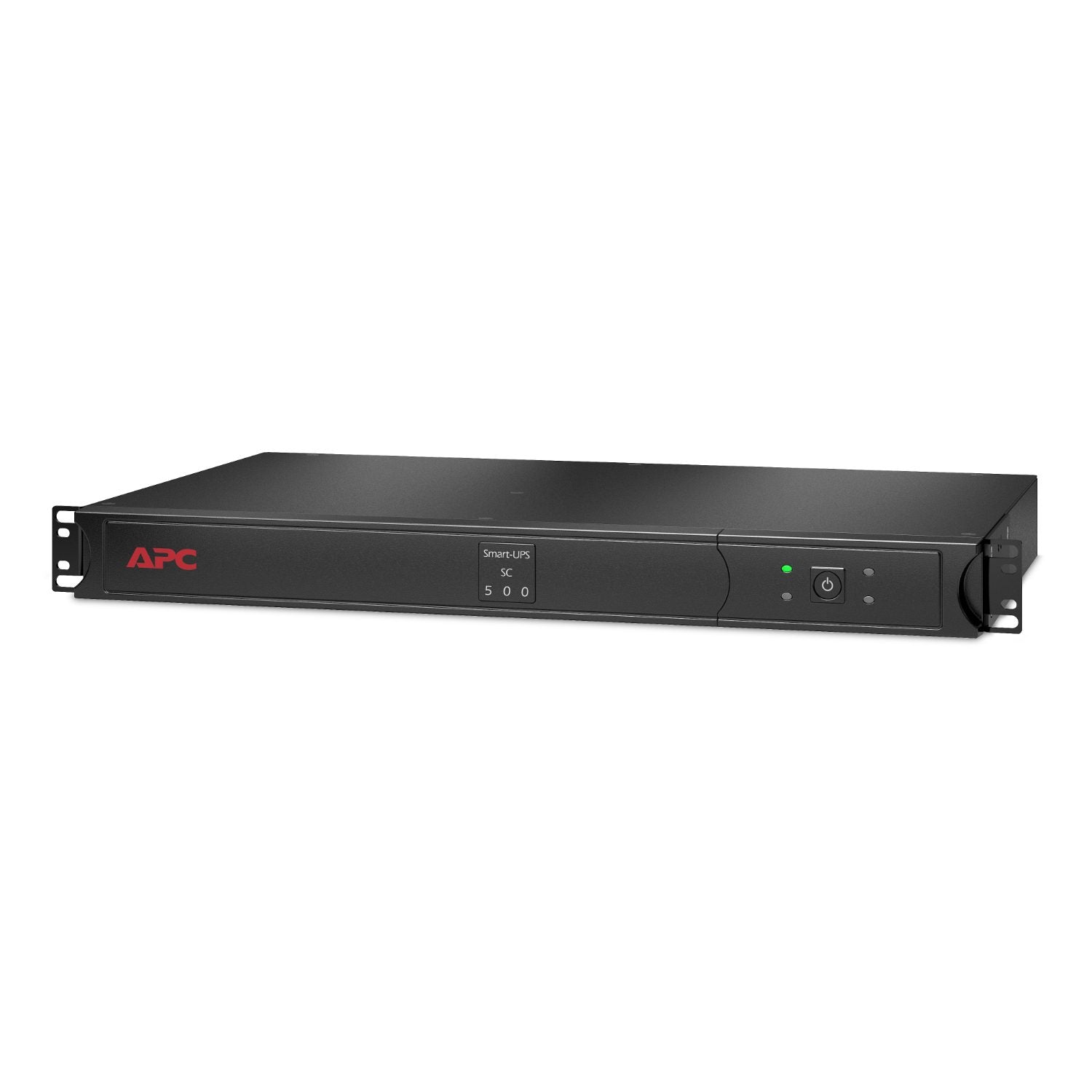

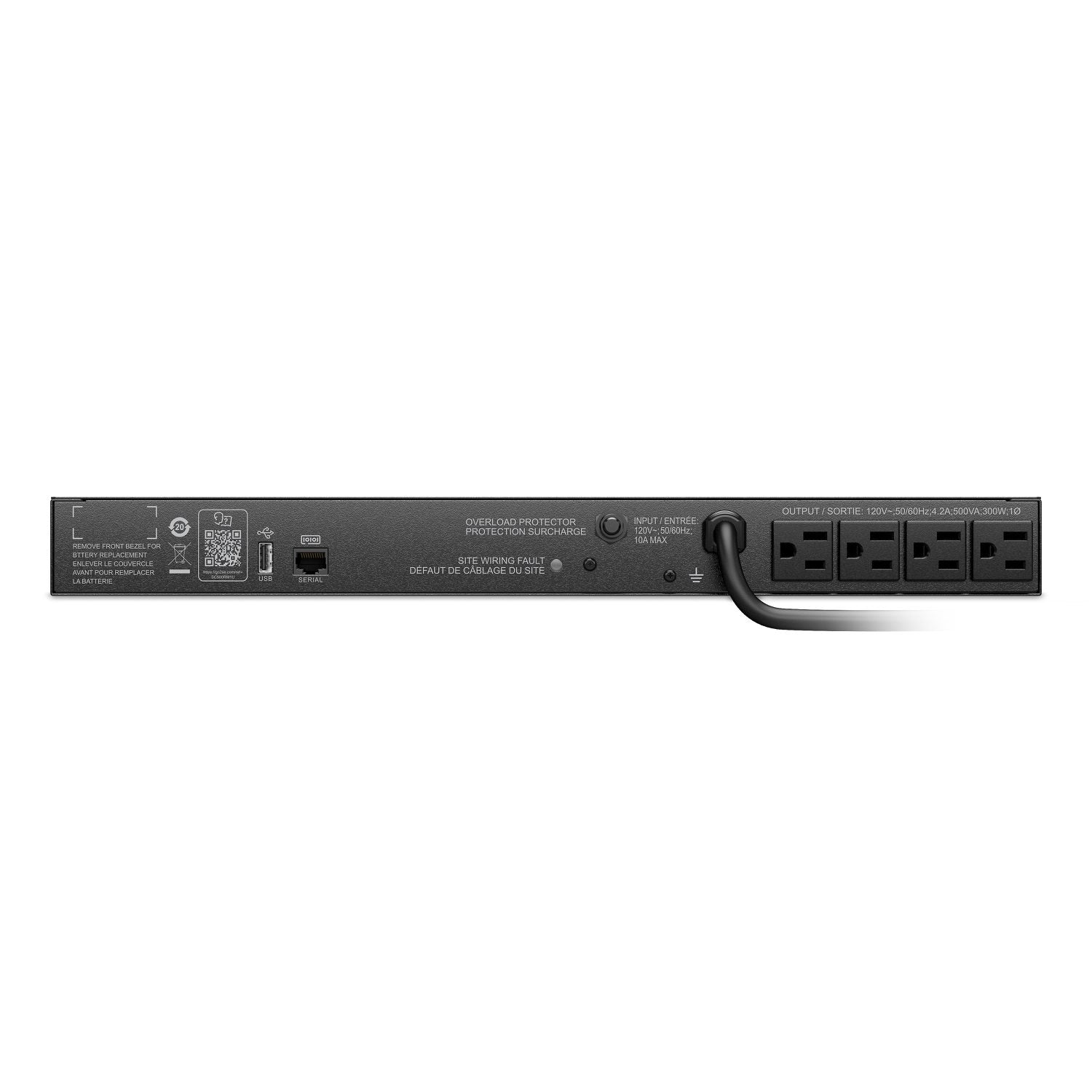

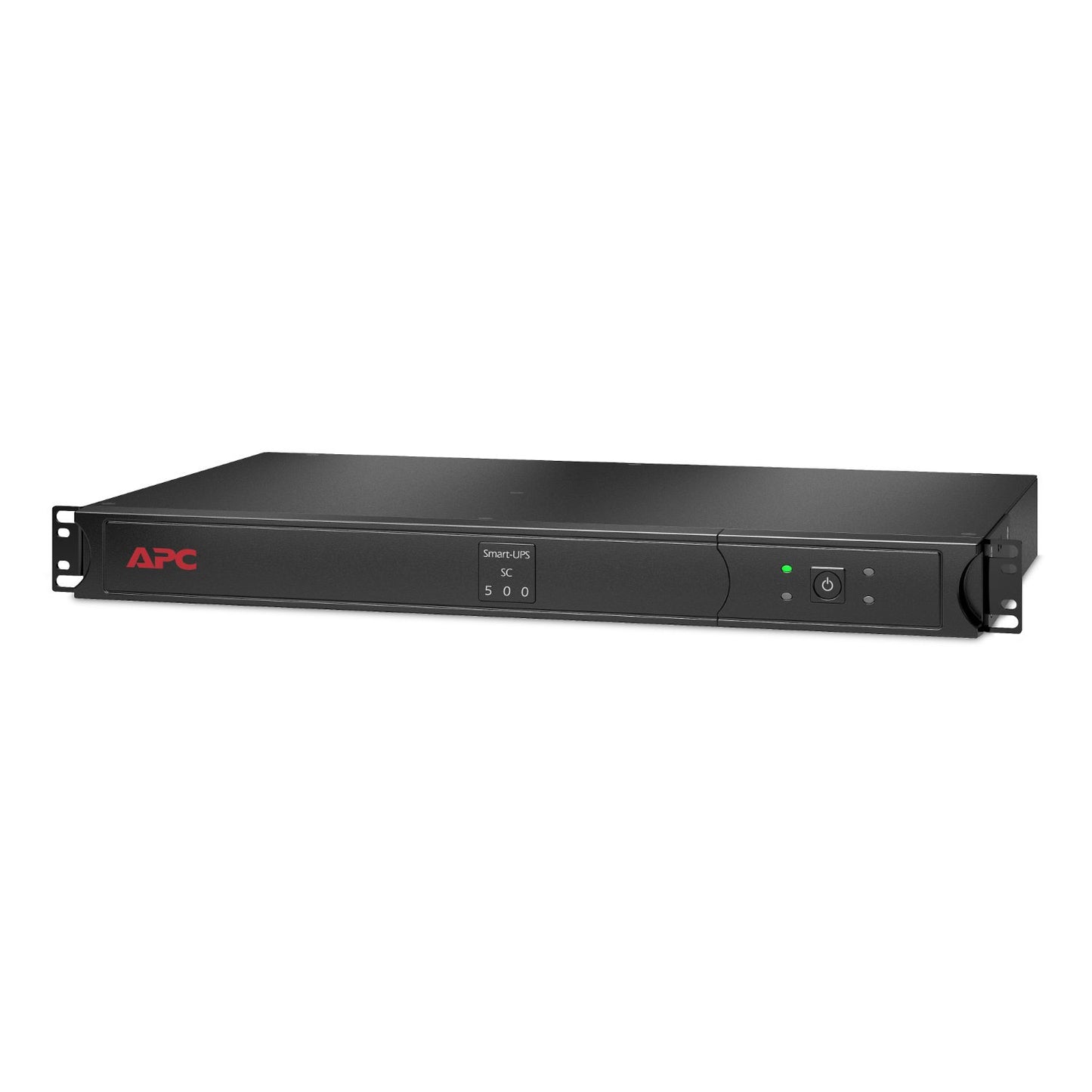

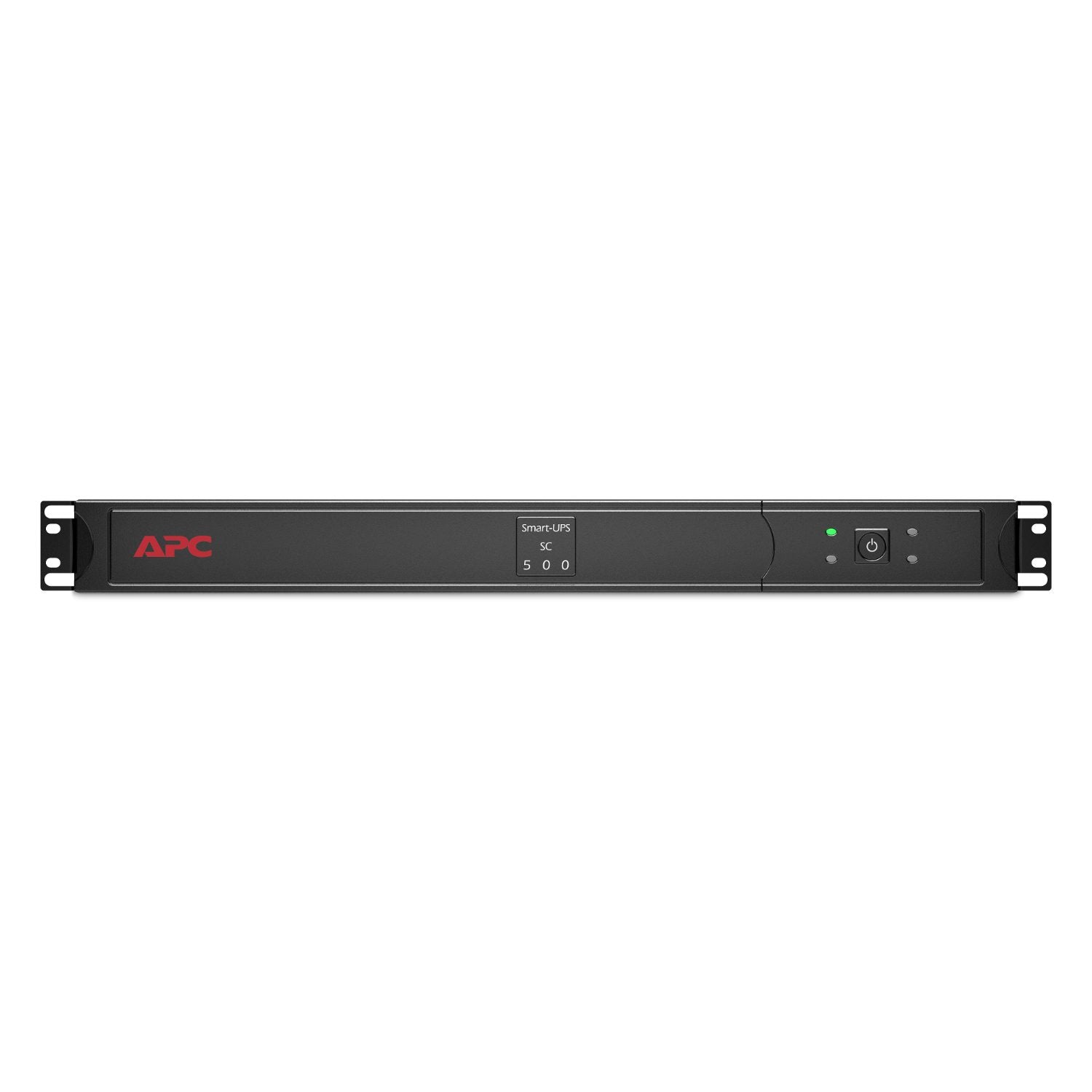

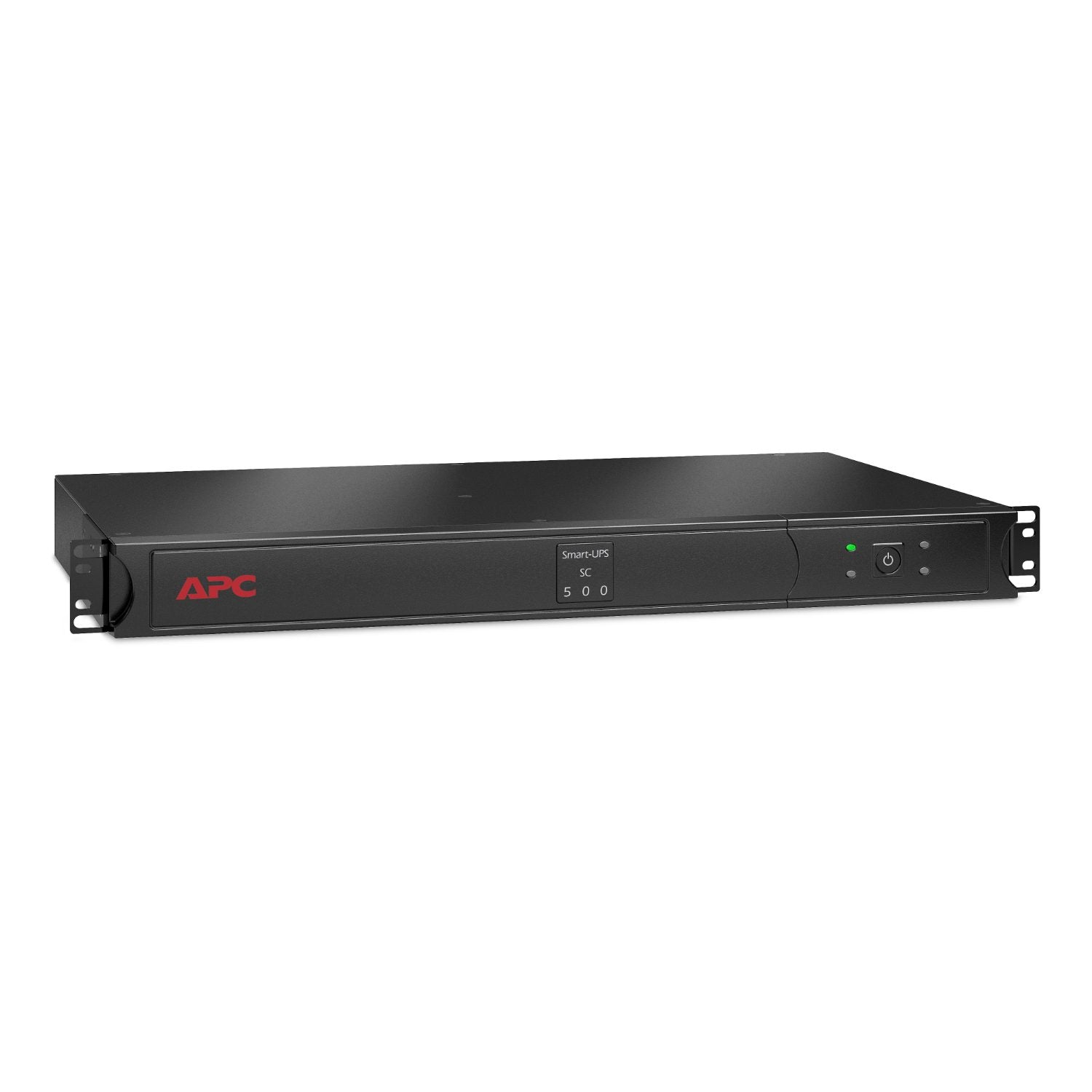

APC Smart-UPS SC 500VA 1U Rackmount/Tower UPS
The SC500RM1U is APC's compact 1U rackmount/tower convertible Smart-UPS for small server and network applications. It delivers basic Smart-UPS line-interactive protection in a form factor that fits standard 19-inch racks or stands as a tower.
Specifications
| Specification | Value |
|---|---|
| VA | 500VA |
| Topology | Line Interactive |
| Voltage | 120V |
| Form Factor | 1U Rackmount / Tower Convertible |
| Outlets | NEMA 5-15R |
| Connectivity | USB |
| Warranty | 2-year |
Questyme Stocks Compact UPS for Small Deployments
Need basic UPS protection for a small server, network switch, or workstation? Questyme can help match the right model to your specific load. Contact our team.
Specifications
Overview
Model
APC Smart-UPS SC 500VA 120V - 1U Rackmount
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
300 W
Rated Power in VA
500
Input Connection Type
NEMA 5-15P
Output Connection Type
4 NEMA 5-15R
Max Configurable Power in VA
500 VA
Max Configurable Power in W
300 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Stepped approximation to a sinewave
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 5.51Width: 19.69Length: 13.11
Shipping Weight
19.2 lb
UPC Code
731304452447
Lead time
Usually in Stock
Product Certifications
FCC part 15 class B
UL 1778
cTUVus
ENERGY STAR V2.0 (USA)
UL 1778
cTUVus
ENERGY STAR V2.0 (USA)
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
403
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
40 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
