- 500VA / 360W line-interactive UPS in an ultra-compact 1U short-depth chassis (under 14 inches deep)
- 120V — purpose-built for shallow wall-mount enclosures, micro data centers, and branch office network closets
- SmartConnect cloud monitoring port + Network Card included
- Pure sine wave output, AVR, LCD — same Smart-UPS power quality in a fraction of the rack depth
- 3-year UPS warranty; user-replaceable battery available from Questyme
Product Highlights
Documents
Description

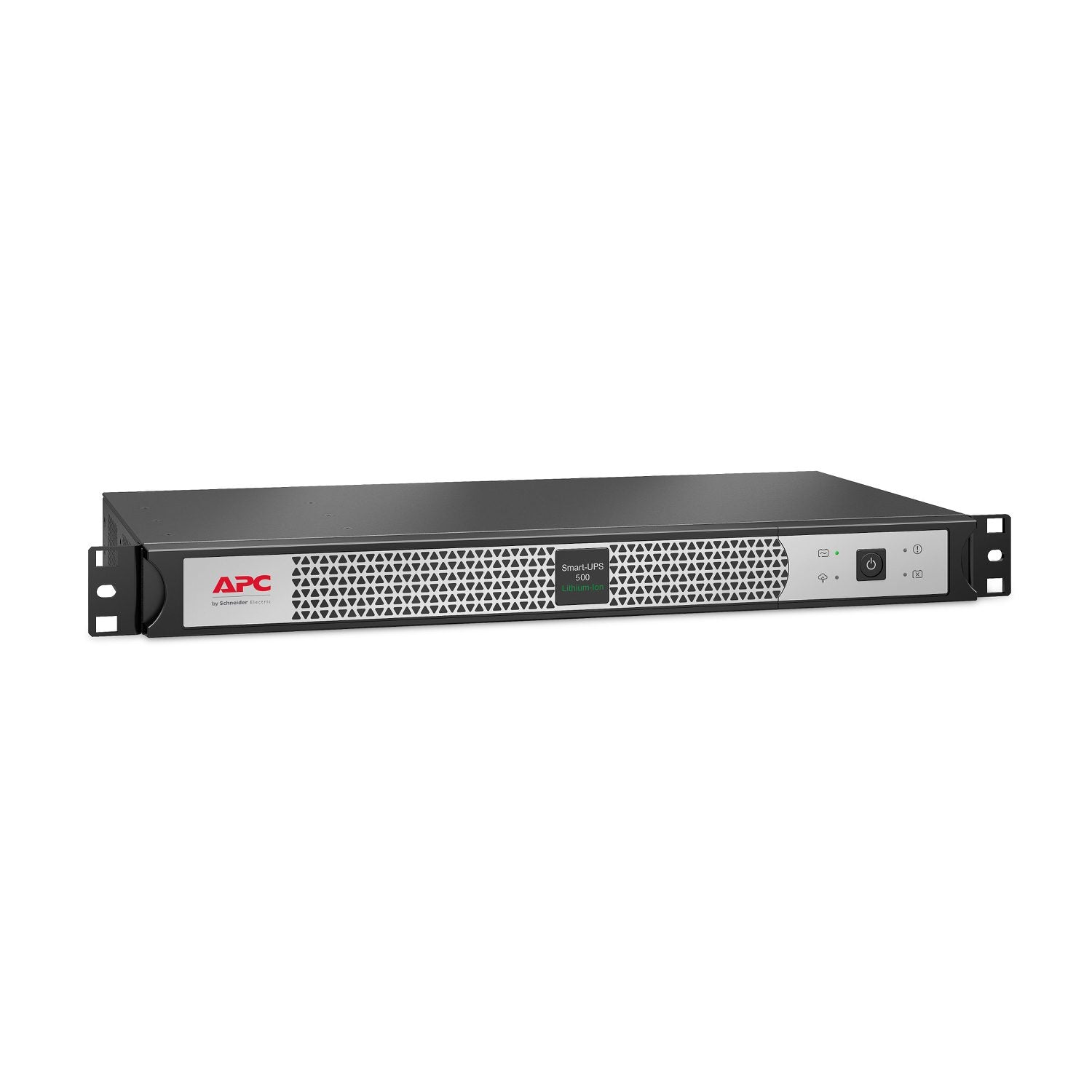

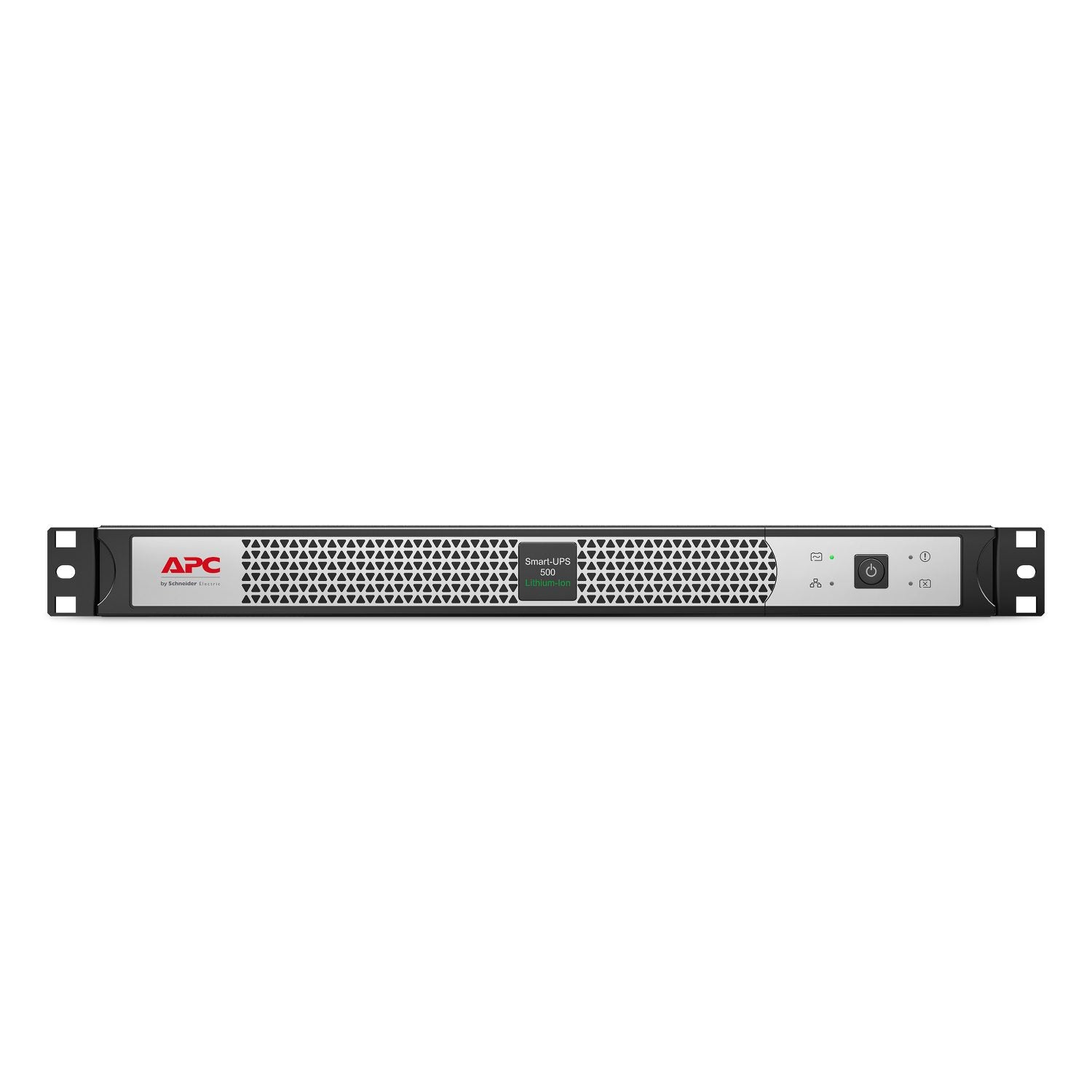

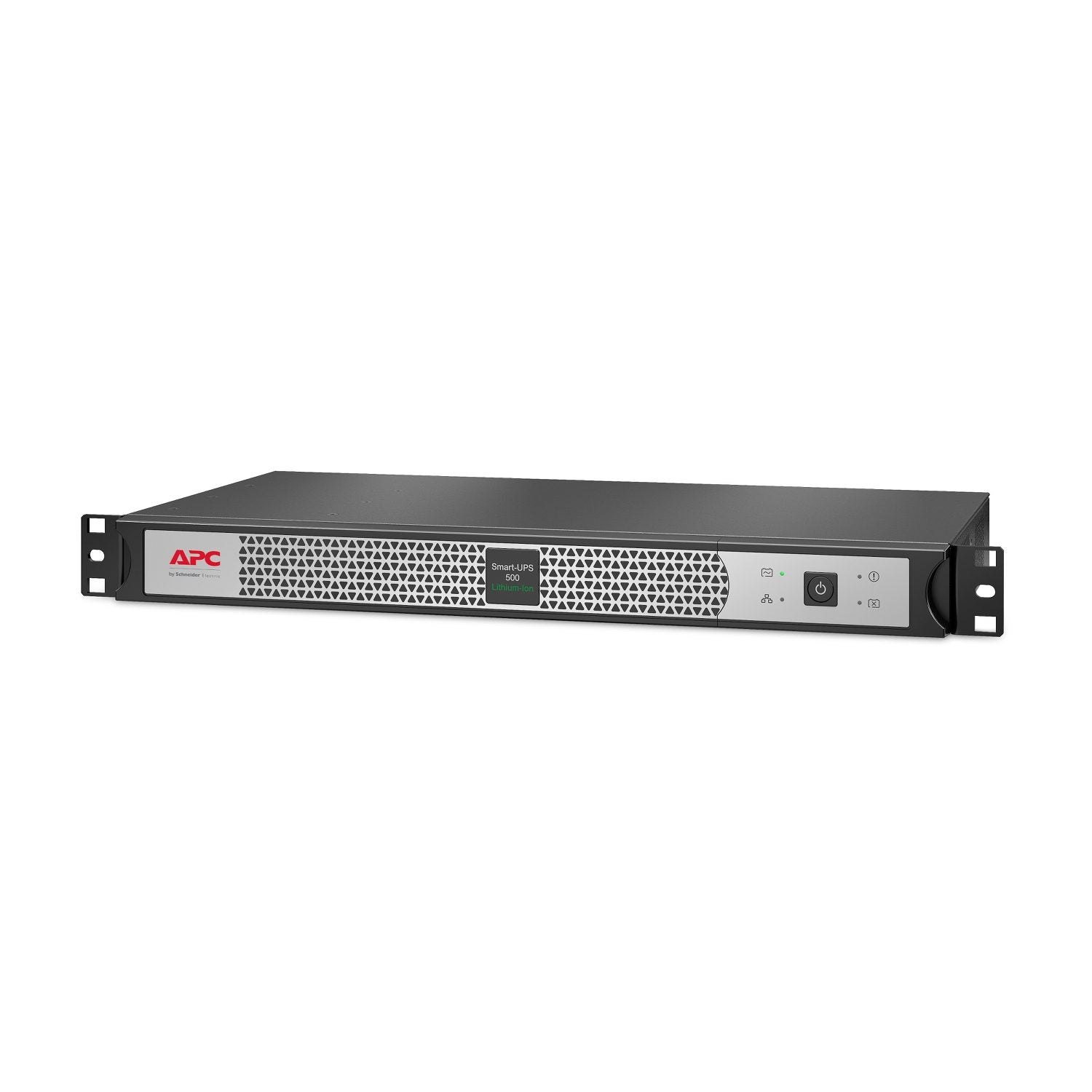

APC Smart-UPS SCL SCL500RM1UNC — 500VA 1U Short-Depth Rackmount UPS
The SCL500RM1UNC is a purpose-built short-depth UPS for environments where standard 2U rackmount units physically do not fit. The 1U chassis measures under 14 inches deep — designed for shallow wall-mount enclosures, micro data centers, branch office network closets, and any rack space where conventional UPS depths cause clearance problems.
Why Short-Depth Matters
Most server racks accommodate 30-inch deep UPS units. Network closets, wall-mount enclosures, and edge compute racks frequently do not. The SCL series solves this with a compressed chassis that delivers full Smart-UPS power quality (pure sine wave, AVR, LCD) in a depth that fits where standard UPS units cannot.
Key Features
- Sub-14-Inch Chassis Depth: Fits shallow rack enclosures where standard UPS units exceed available space.
- Pure Sine Wave Output: Pure sine wave output reproduces the smooth waveform of utility power, which sensitive electronics — active power-factor-corrected (PFC) server power supplies in particular — require to operate without errors or premature failure.
- Automatic Voltage Regulation: Automatic Voltage Regulation corrects undervoltage (brownouts) and overvoltage events without transferring to battery, conserving battery life for true outages and extending overall service life of the unit.
- APC SmartConnect Cloud Port: The SmartConnect port enables cloud-based monitoring via the APC SmartConnect portal — receive proactive email alerts for events, view UPS status remotely from any browser, and access firmware update notifications without deploying a Network Management Card.
- AP9641 Network Management Card 3 Included: Out-of-box SNMP/web/CLI management and EcoStruxure IT integration.
- LCD Diagnostic Display: A multi-line LCD shows real-time load percentage, battery runtime remaining, input/output voltage, and event history without requiring network access — useful for on-the-spot troubleshooting and pre-purchase load verification.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 500VA / 360W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Voltage | 120V |
| Form Factor | 1U Short-Depth Rackmount |
| Management | SmartConnect + AP9641 NMC3 |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications
- Wall-Mount Network Enclosures: Shallow IDF/MDF cabinets common in retail, restaurant, and branch office deployments.
- Edge Compute Racks: Small remote-site server racks at remote offices, manufacturing floors, or distribution centers.
- Healthcare Network Closets: Clinic and exam-room network gear backup in shallow wall-mount enclosures.
- Retail POS Backrooms: Point-of-sale network gear in tight back-office spaces.
- Surveillance Headends: NVR and switch backup at shallow security cabinet installations.
Not Sure if Short-Depth Fits Your Rack?
Questyme can confirm chassis dimensions against your specific rack enclosure before you order. Returning a UPS because it didn't fit the rack is expensive — we'd rather prevent that. Contact Questyme with your rack details.
Specifications
Overview
Model
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 120V with Network Management Card
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
400 W
Rated Power in VA
500

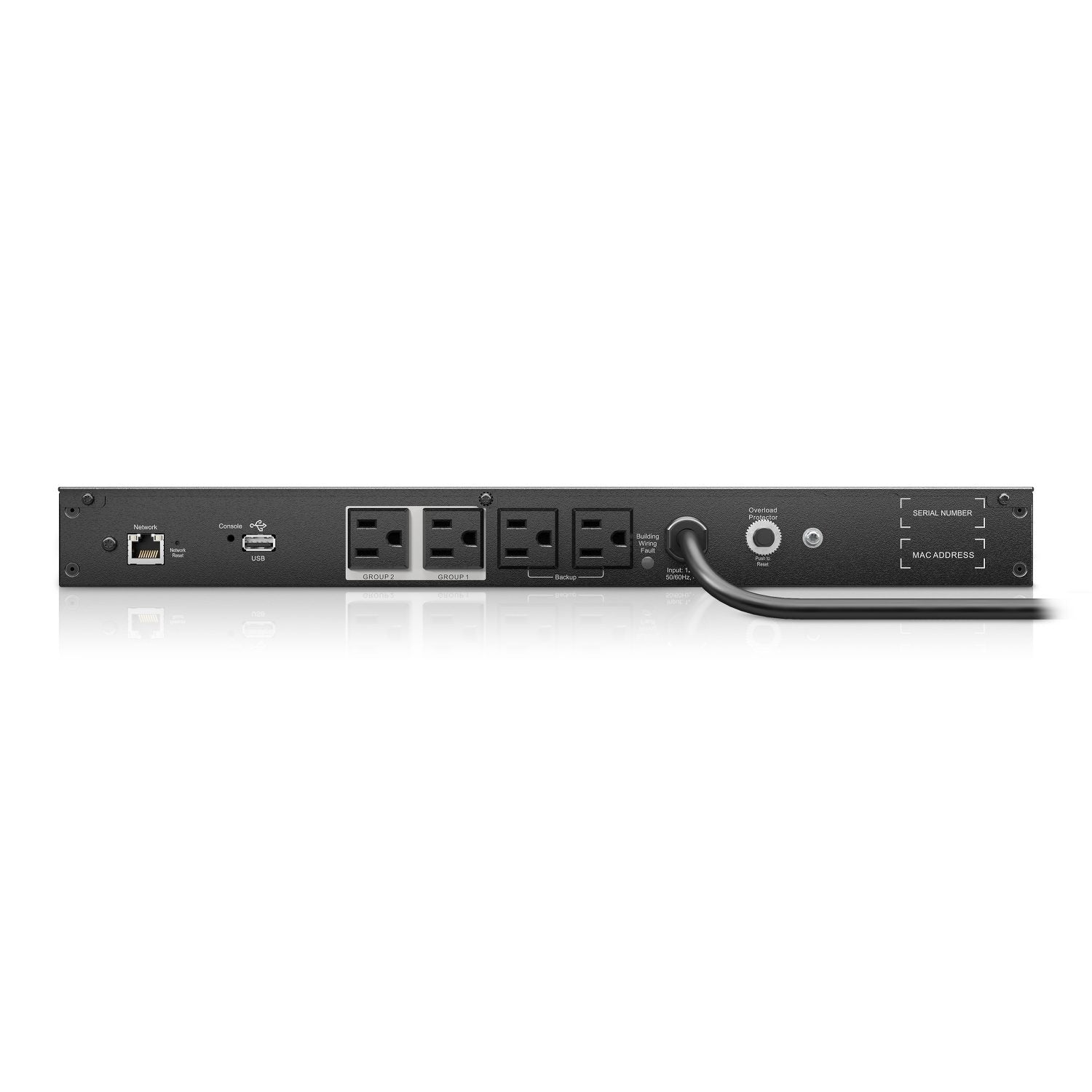

Input Connection Type
NEMA 5-15P
Output Connection Type
4 NEMA 5-15
Max Configurable Power in VA
500 VA
Max Configurable Power in W
400 W
Topology
Line Interactive
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Number of Cables
1
Physical
Color
Black with silver front bezel
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 6.61Width: 13.27Length: 23.23
Shipping Weight
14.31 lb
UPC Code
731304344568
Lead time
Usually in Stock
Provided Equipment
CD with software
Documentation CD
Installation guide
Rack Mounting support rails
USB cable
Documentation CD
Installation guide
Rack Mounting support rails
USB cable
Product Certifications
cULus
NOM
NOM
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
603
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
45 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-25000 ft (0.0000000000-7620.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
