- 500VA / 360W line-interactive UPS in an ultra-compact 1U short-depth chassis (under 14 inches deep)
- 120V — purpose-built for shallow wall-mount enclosures, micro data centers, and branch office network closets
- SmartConnect cloud monitoring port + SmartSlot
- Pure sine wave output, AVR, LCD — same Smart-UPS power quality in a fraction of the rack depth
- 3-year UPS warranty; user-replaceable battery available from Questyme
Product Highlights
Documents
Description

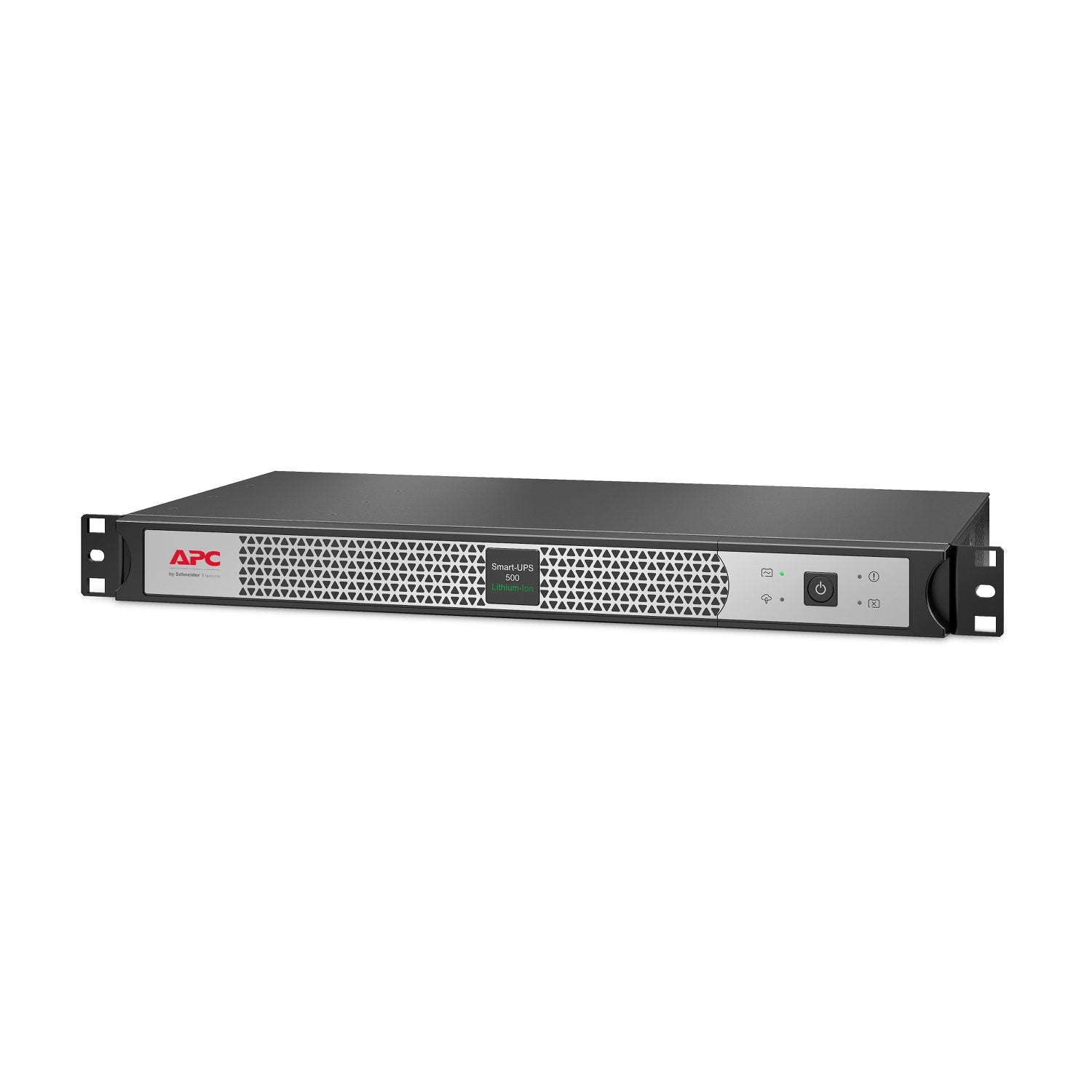

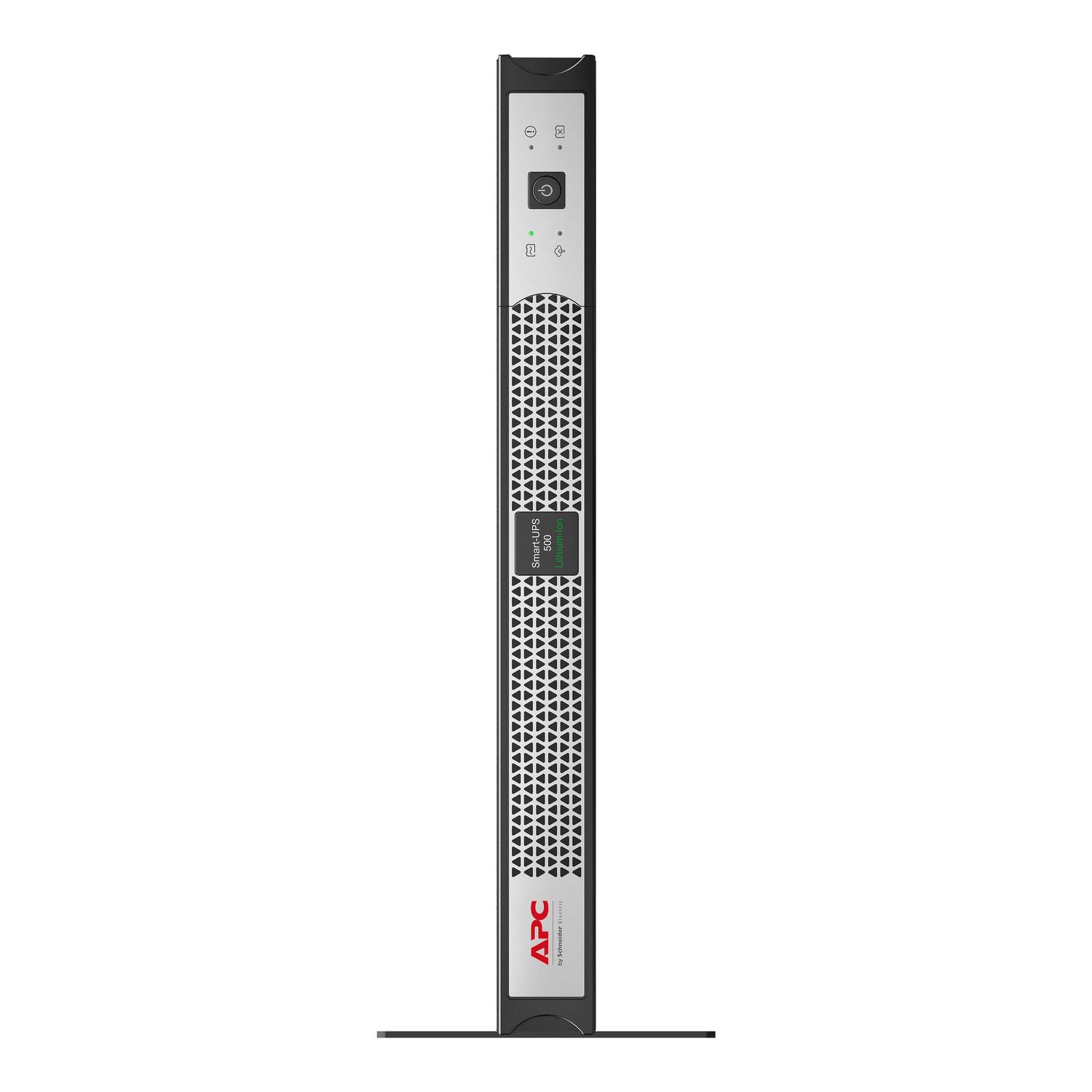

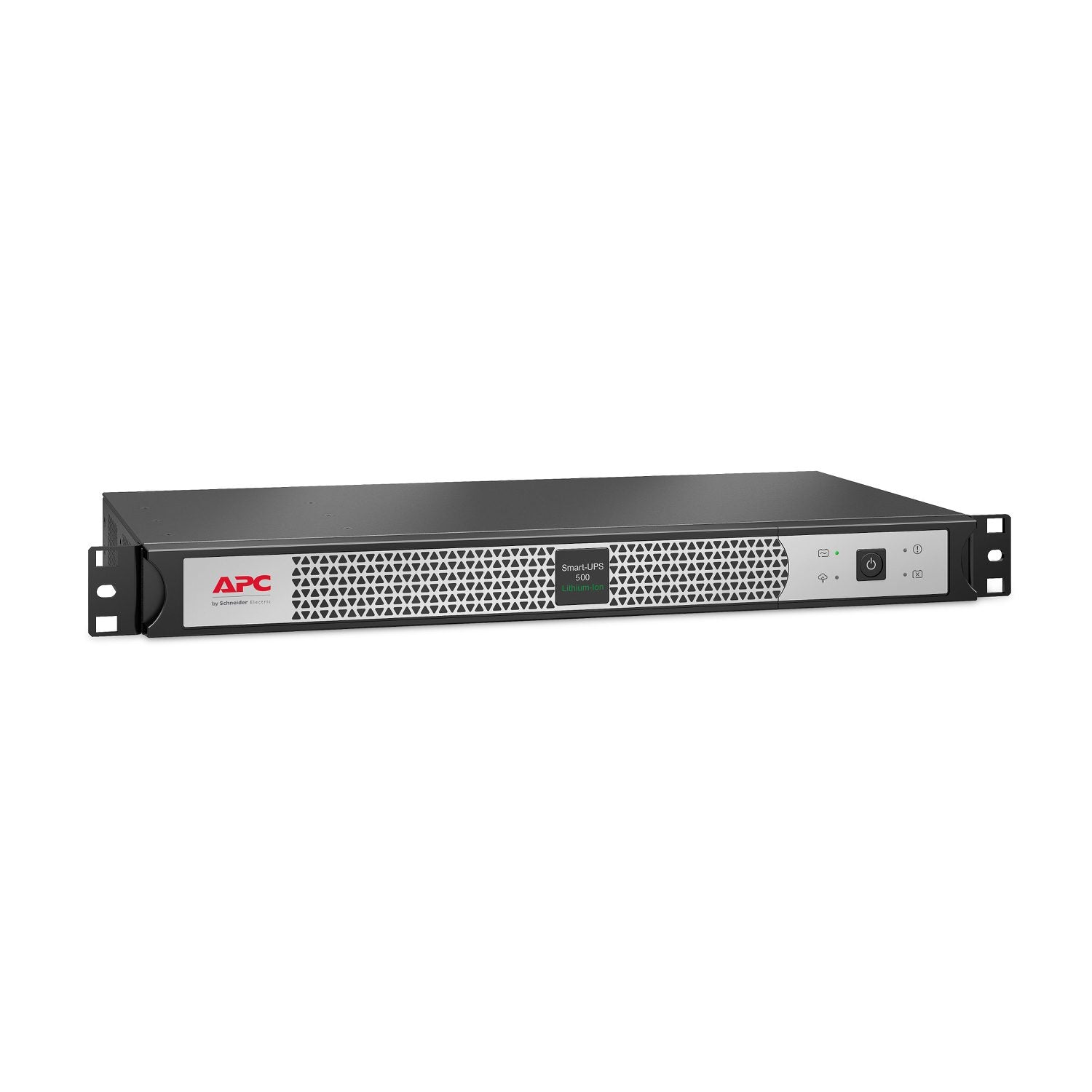

APC Smart-UPS SCL SCL500RM1UC — 500VA 1U Short-Depth Rackmount UPS
The SCL500RM1UC is a purpose-built short-depth UPS for environments where standard 2U rackmount units physically do not fit. The 1U chassis measures under 14 inches deep — designed for shallow wall-mount enclosures, micro data centers, branch office network closets, and any rack space where conventional UPS depths cause clearance problems.
Why Short-Depth Matters
Most server racks accommodate 30-inch deep UPS units. Network closets, wall-mount enclosures, and edge compute racks frequently do not. The SCL series solves this with a compressed chassis that delivers full Smart-UPS power quality (pure sine wave, AVR, LCD) in a depth that fits where standard UPS units cannot.
Key Features
- Sub-14-Inch Chassis Depth: Fits shallow rack enclosures where standard UPS units exceed available space.
- Pure Sine Wave Output: Delivers a clean pure sine wave to connected equipment. Active PFC power supplies common in modern servers and storage arrays will throw errors or shut down on the simulated/stepped-wave output produced by entry-level UPS units; pure sine eliminates that risk.
- Automatic Voltage Regulation: AVR uses a buck-and-boost transformer stage to bring out-of-range utility voltage back to nominal levels in real time. The UPS only transitions to battery for true outages, which significantly extends battery service life.
- APC SmartConnect Cloud Port: SmartConnect cloud connectivity provides remote status visibility, event alerts, and firmware update notifications through the APC SmartConnect web portal. Useful for distributed sites where deploying a dedicated NMC is impractical.
- SmartSlot Expansion: The SmartSlot bay accepts APC accessory cards including the AP9641 Network Management Card 3 for SNMP/web management, environmental monitoring modules, and dry-contact modules for building automation integration.
- LCD Diagnostic Display: The intuitive LCD interface displays load, runtime, voltage, frequency, and historical events. Technicians can verify operating conditions and adjust thresholds directly at the unit.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 500VA / 360W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Voltage | 120V |
| Form Factor | 1U Short-Depth Rackmount |
| Management | SmartConnect + SmartSlot |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications
- Wall-Mount Network Enclosures: Shallow IDF/MDF cabinets common in retail, restaurant, and branch office deployments.
- Edge Compute Racks: Small remote-site server racks at remote offices, manufacturing floors, or distribution centers.
- Healthcare Network Closets: Clinic and exam-room network gear backup in shallow wall-mount enclosures.
- Retail POS Backrooms: Point-of-sale network gear in tight back-office spaces.
- Surveillance Headends: NVR and switch backup at shallow security cabinet installations.
Not Sure if Short-Depth Fits Your Rack?
Questyme can confirm chassis dimensions against your specific rack enclosure before you order. Returning a UPS because it didn't fit the rack is expensive — we'd rather prevent that. Contact Questyme with your rack details.
Specifications
Overview
Model
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 120V with SmartConnect
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
400 W
Rated Power in VA
500
Input Connection Type
NEMA 5-15P
Output Connection Type

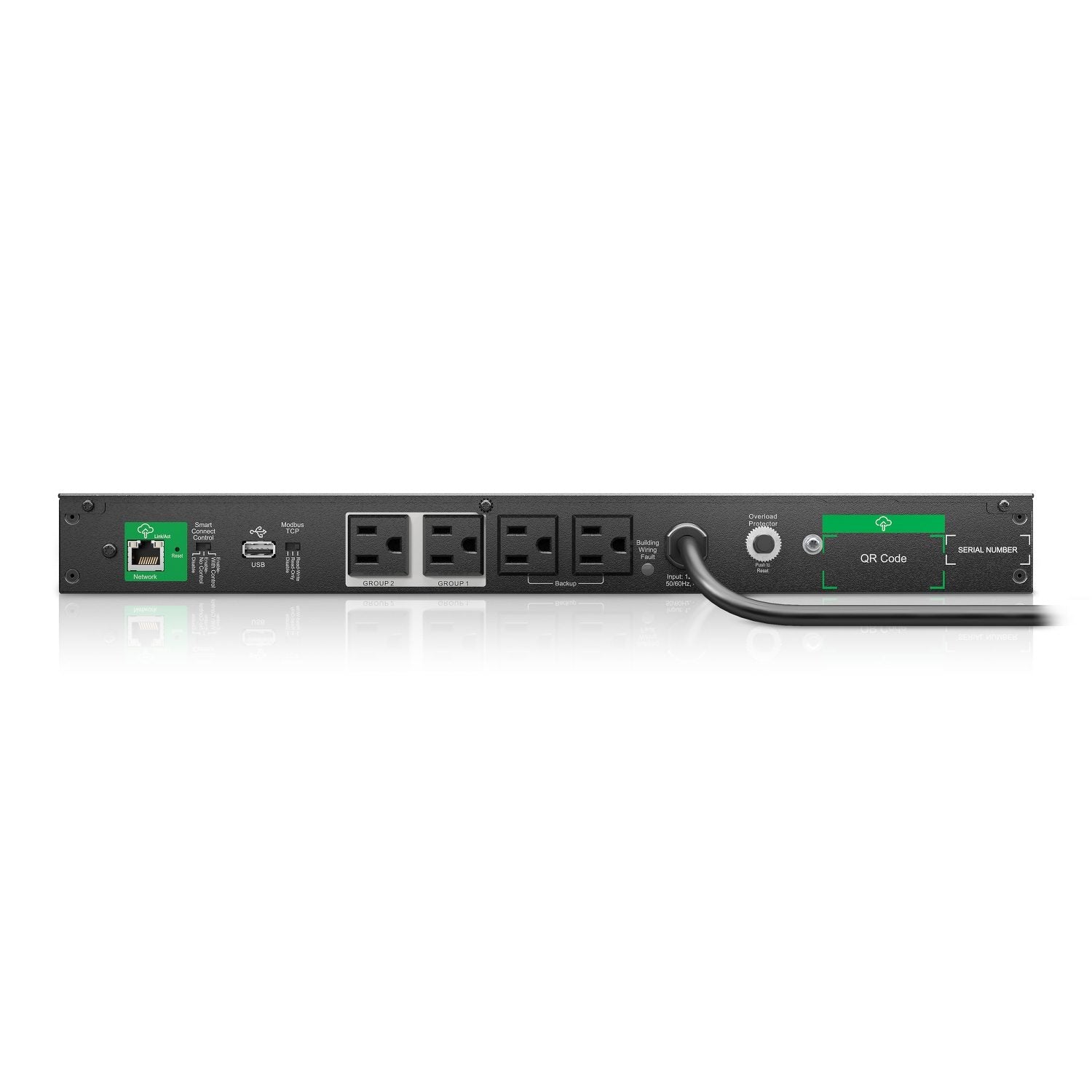

4 NEMA 5-15R
Max Configurable Power in VA
500 VA
Max Configurable Power in W
400 W
Topology
Line Interactive
Battery Type
Li-Ion (Lithium Ion)
Wave Type
Sine wave
Number of Cables
1
Physical
Color
Black with silver front bezel
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 6.61Width: 13.27Length: 23.23
Shipping Weight
13.2 lb
UPC Code
731304344551
Lead time
Usually in Stock
Provided Equipment
CD with software
Documentation CD
Installation guide
Rack Mounting support rails
USB cable
Documentation CD
Installation guide
Rack Mounting support rails
USB cable
Product Certifications
cULus
NOM
NOM
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
596
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
45 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-25000 ft (0.0000000000-7620.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
