- 500VA / 360W line-interactive UPS in an ultra-compact 1U short-depth chassis (under 14 inches deep)
- 230V — purpose-built for shallow wall-mount enclosures, micro data centers, and branch office network closets
- SmartConnect cloud monitoring port + SmartSlot
- Pure sine wave output, AVR, LCD — same Smart-UPS power quality in a fraction of the rack depth
- 3-year UPS warranty; user-replaceable battery available from Questyme
Product Highlights
Documents
Description

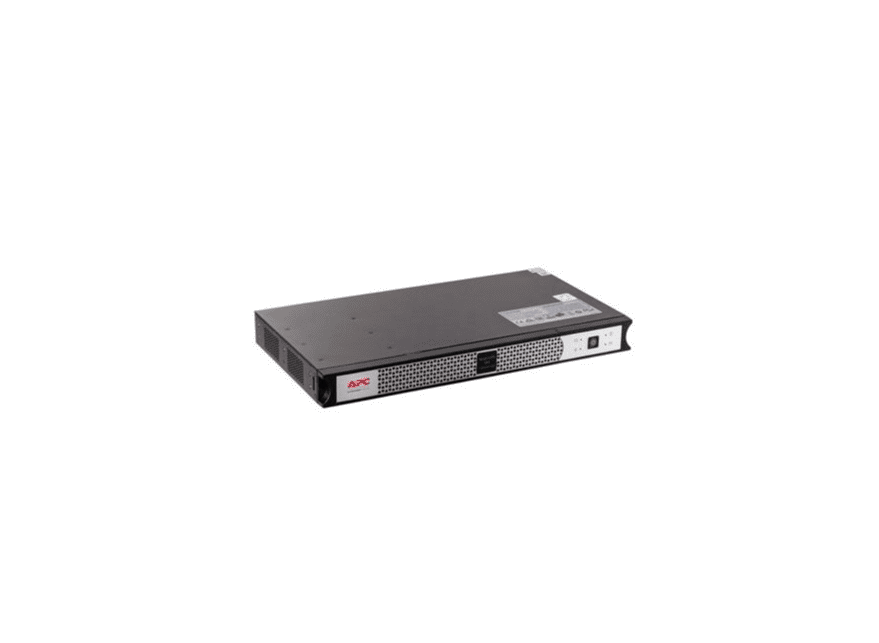

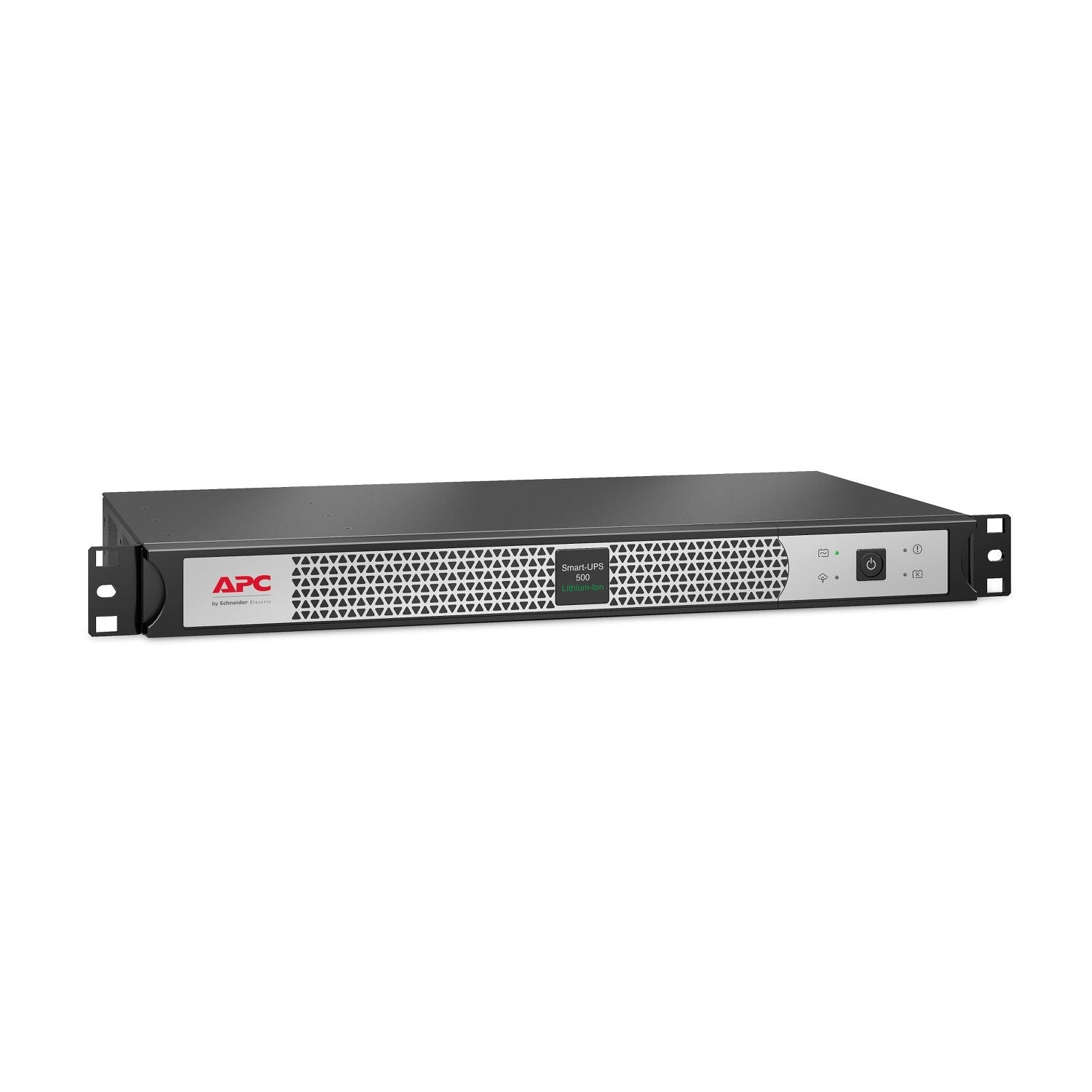

APC Smart-UPS SCL SCL500RMI1UC — 500VA 1U Short-Depth Rackmount UPS
The SCL500RMI1UC is a purpose-built short-depth UPS for environments where standard 2U rackmount units physically do not fit. The 1U chassis measures under 14 inches deep — designed for shallow wall-mount enclosures, micro data centers, branch office network closets, and any rack space where conventional UPS depths cause clearance problems.
Why Short-Depth Matters
Most server racks accommodate 30-inch deep UPS units. Network closets, wall-mount enclosures, and edge compute racks frequently do not. The SCL series solves this with a compressed chassis that delivers full Smart-UPS power quality (pure sine wave, AVR, LCD) in a depth that fits where standard UPS units cannot.
Key Features
- Sub-14-Inch Chassis Depth: Fits shallow rack enclosures where standard UPS units exceed available space.
- Pure Sine Wave Output: Pure sine wave output reproduces the smooth waveform of utility power, which sensitive electronics — active power-factor-corrected (PFC) server power supplies in particular — require to operate without errors or premature failure.
- Automatic Voltage Regulation: Automatic Voltage Regulation corrects undervoltage (brownouts) and overvoltage events without transferring to battery, conserving battery life for true outages and extending overall service life of the unit.
- APC SmartConnect Cloud Port: The SmartConnect port enables cloud-based monitoring via the APC SmartConnect portal — receive proactive email alerts for events, view UPS status remotely from any browser, and access firmware update notifications without deploying a Network Management Card.
- SmartSlot Expansion: A SmartSlot accessory bay accepts optional Network Management Cards (AP9641, AP9643), environmental sensors, and dry-contact relay modules — useful for facilities that require SNMP integration, building management system tie-in, or PowerChute Network Shutdown of virtualized workloads.
- LCD Diagnostic Display: A multi-line LCD shows real-time load percentage, battery runtime remaining, input/output voltage, and event history without requiring network access — useful for on-the-spot troubleshooting and pre-purchase load verification.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 500VA / 360W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Voltage | 230V |
| Form Factor | 1U Short-Depth Rackmount |
| Management | SmartConnect + SmartSlot |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications
- Wall-Mount Network Enclosures: Shallow IDF/MDF cabinets common in retail, restaurant, and branch office deployments.
- Edge Compute Racks: Small remote-site server racks at remote offices, manufacturing floors, or distribution centers.
- Healthcare Network Closets: Clinic and exam-room network gear backup in shallow wall-mount enclosures.
- Retail POS Backrooms: Point-of-sale network gear in tight back-office spaces.
- Surveillance Headends: NVR and switch backup at shallow security cabinet installations.
Not Sure if Short-Depth Fits Your Rack?
Questyme can confirm chassis dimensions against your specific rack enclosure before you order. Returning a UPS because it didn't fit the rack is expensive — we'd rather prevent that. Contact Questyme with your rack details.
Specifications
Overview
Model
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with SmartConnect
Main
Input Voltage
230
Output Voltage
230
Rated Power in W
400 W
Rated Power in VA
500
Input Connection Type
IEC 60320 C14
Output Connection Type
4 IEC 60320 C13
Max Configurable Power in VA
500 VA
Max Configurable Power in W
400 W
Topology
Line Interactive
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Physical
Color
Black with silver front bezel
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 6.61Width: 13.27Length: 23.23
Shipping Weight
13.2 lb
UPC Code
731304402558
Lead time
Usually in Stock
Provided Equipment
Installation guide
Rack Mounting support rails
USB cable
Rack Mounting support rails
USB cable
Standards
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
EN/IEC 62040-2:2018
Product Certifications
C-tick
CE
EAC
RCM
UK PSTI
CE
EAC
RCM
UK PSTI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
596
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
45 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-25000 ft (0.0000000000-7620.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
