- 1500VA pure sine wave SHIPBOARD-certified UPS — designed for naval vessels, offshore platforms, and shipboard control rooms with high vibration and electrical noise environments
- Meets shipboard certification standards for marine power protection applications
- 120V input/output — multiple outlets for rack-mounted or desktop equipment
- SmartSlot bay for optional Network Management Card
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Documents
Description

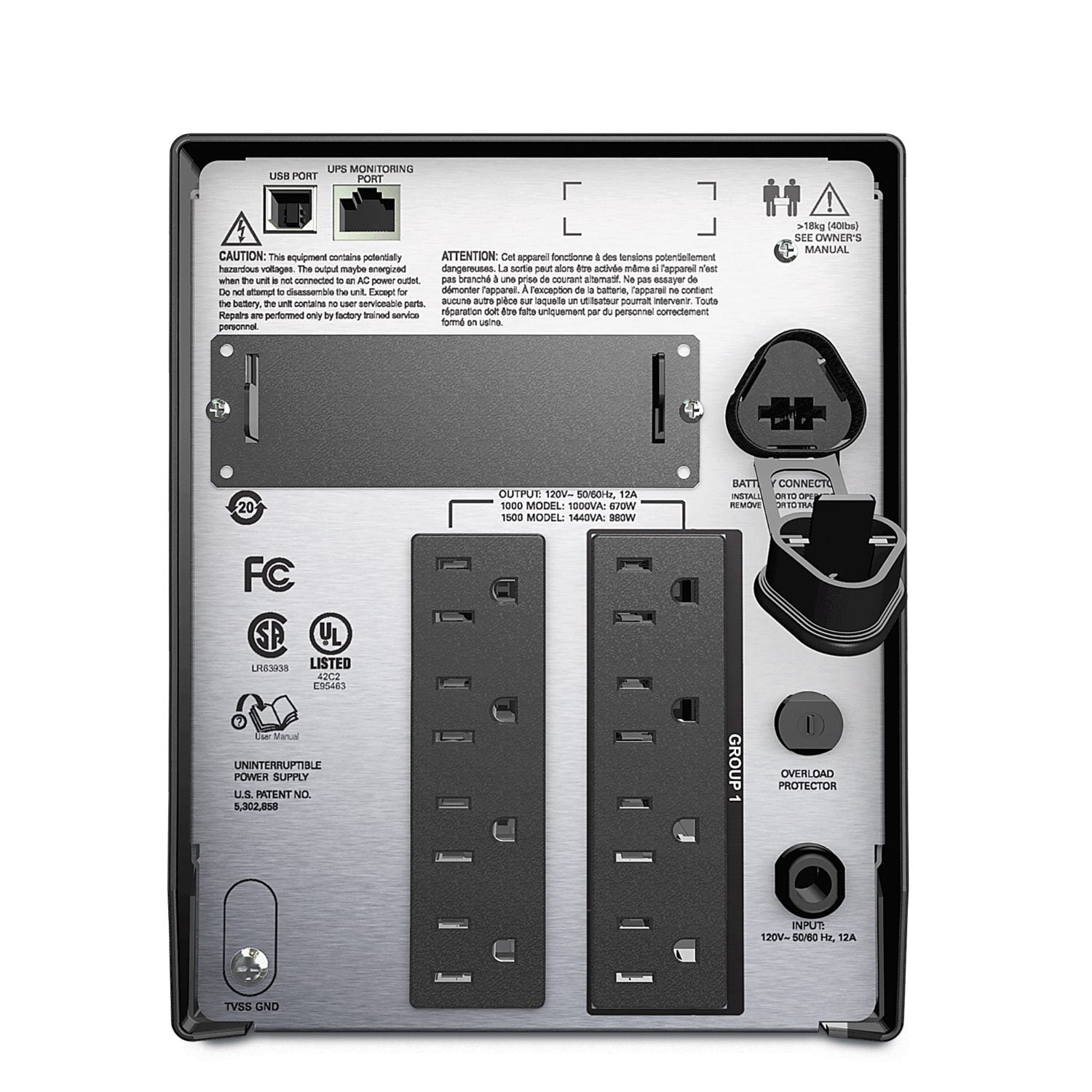

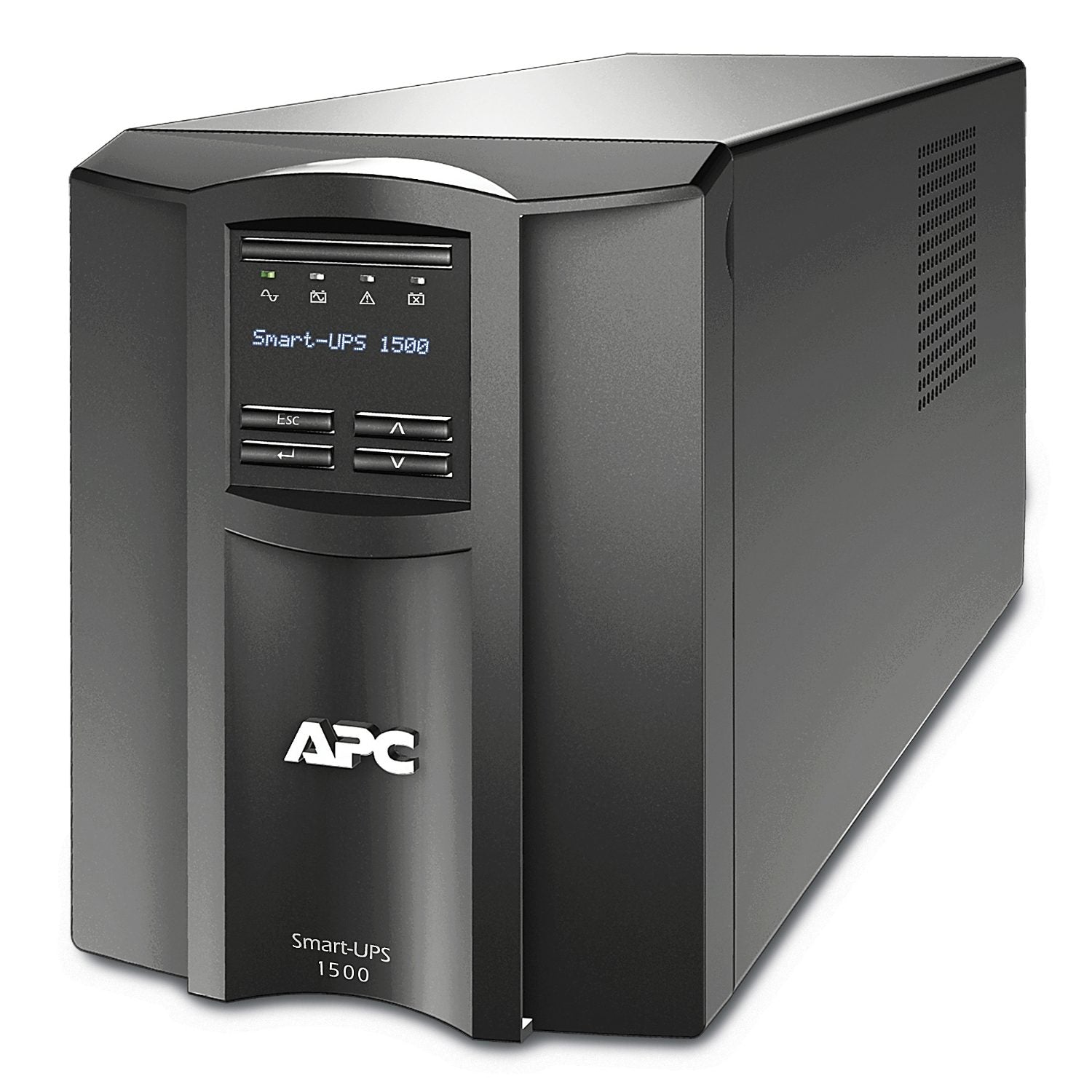

APC Smart-UPS SMT1500X93 — Marine and Shipboard-Certified Power Protection
The SMT1500X93 is a SHIPBOARD-certified Smart-UPS designed for naval vessels, offshore platforms, commercial shipping, and shore-side military installations where standard UPS units do not meet vibration, EMI, or environmental certification requirements. Built on the proven Smart-UPS line-interactive platform, it provides clean pure sine wave power to critical equipment in environments where utility power quality is unpredictable.
Built for Marine Environments
SHIPBOARD-certified UPS units undergo additional vibration, shock, and electromagnetic interference testing not required of standard commercial UPS. The SMT1500X93 carries Navy and commercial marine certifications appropriate for installation on combat vessels, support ships, drilling platforms, and naval shore facilities.
Key Features
- Marine-Grade Construction: Vibration-tolerant chassis and connectors built to withstand the operational realities of shipboard installation.
- Pure Sine Wave Output: Delivers a clean pure sine wave to connected equipment. Active PFC power supplies common in modern servers and storage arrays will throw errors or shut down on the simulated/stepped-wave output produced by entry-level UPS units; pure sine eliminates that risk.
- Automatic Voltage Regulation (AVR): AVR uses a buck-and-boost transformer stage to bring out-of-range utility voltage back to nominal levels in real time. The UPS only transitions to battery for true outages, which significantly extends battery service life.
- SmartSlot Expansion: The SmartSlot bay accepts APC accessory cards including the AP9641 Network Management Card 3 for SNMP/web management, environmental monitoring modules, and dry-contact modules for building automation integration.
- LCD Diagnostic Display: The intuitive LCD interface displays load, runtime, voltage, frequency, and historical events. Technicians can verify operating conditions and adjust thresholds directly at the unit.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 1500VA / 1000W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 120V |
| Form Factor | Tower |
| Certification | SHIPBOARD Certified |
| Management | SmartSlot (NMC accessory available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications
- Naval Vessels and Combat Ships: Backup power for command-and-control workstations, sensor systems, and shipboard communications.
- Offshore Platforms and Drilling Rigs: Protection for SCADA, monitoring instrumentation, and process control workstations.
- Commercial Shipping and Maritime Operations: Continuous power for navigation systems, satellite communications, and onboard IT infrastructure.
- Naval Shore Installations: Backup for base-side IT equipment specified under military marine procurement standards.
Questyme Helps You Specify Correctly the First Time
Returning the wrong UPS is expensive — wrong voltage, wrong outlets, wrong form factor for the rack you have. Questyme's power specialists walk through your specific environment before you place an order, so the unit fits the deployment on day one. Speak with a Questyme expert.
Specifications
Overview
Model
APC Smart-UPS 1500VA 120V Shipboard
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
1000 W
Rated Power in VA
1440
Input Connection Type
NEMA 5-15P
Output Connection Type
8 NEMA 5-15R
Max Configurable Power in VA
1440 VA
Max Configurable Power in W
1000 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Number of Cables
1
Physical
Mounting Mode
Not rack-mountable
Mounting Preference
No preference
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 12.99Width: 23.23Length: 12.99
Shipping Weight
54.2 lb
UPC Code
731304433644
Lead time
Usually in Stock
Provided Equipment
User Manual
Product Certifications
CSA C22.2 No 107.1
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
'-4-131 ?F (-20-55 ?C)
Acoustic Level
45 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-9842.52 ft (0-3000 m)
Storage Altitude
0.0000000000-49212.6 ft (0-15000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant
