- 1000VA / 700W line-interactive pure sine wave 2u rackmount UPS with Automatic Voltage Regulation
- 230V input/output — 4x IEC C13 for rack-mounted or desktop equipment
- SmartSlot bay for optional Network Management Card
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Documents
Description

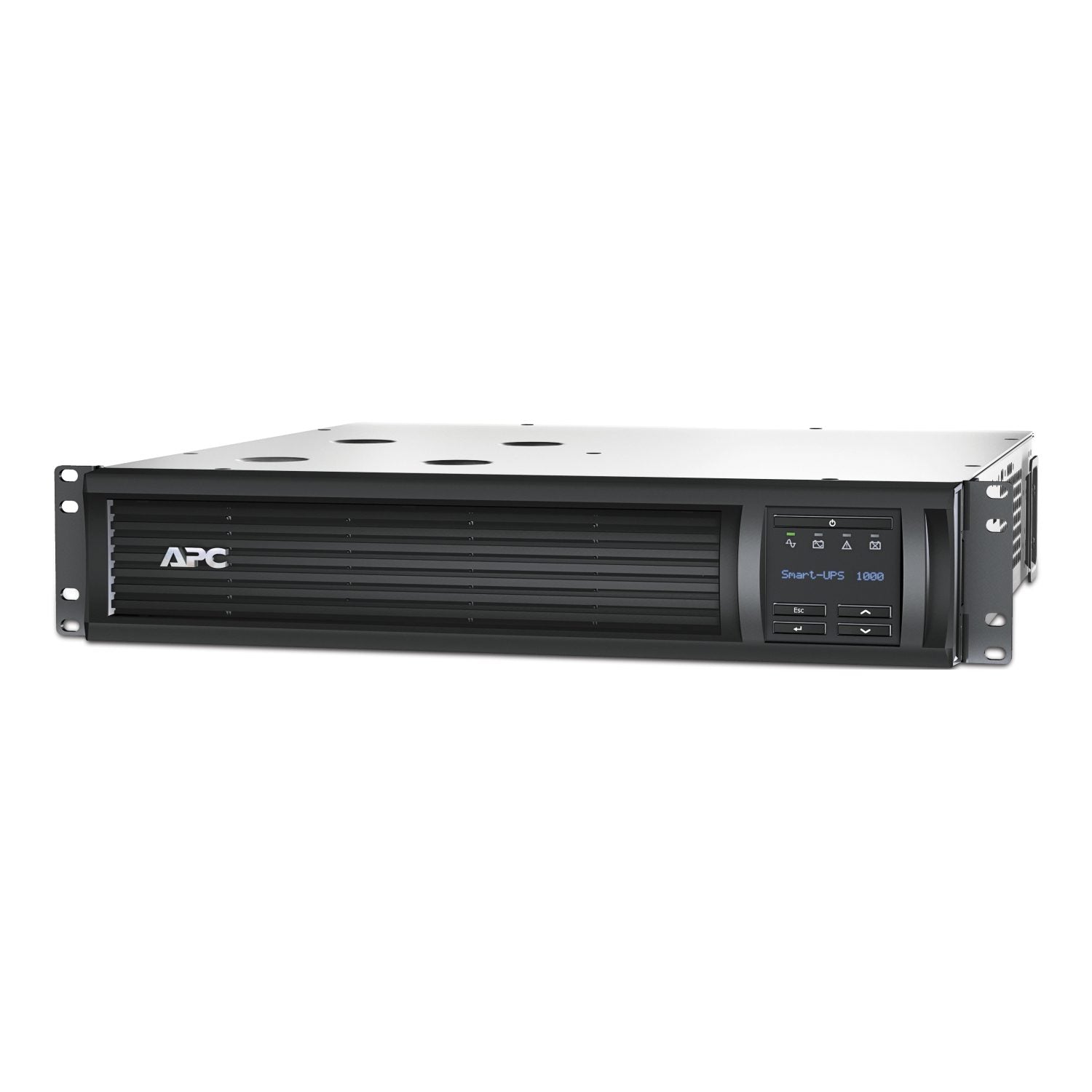

APC Smart-UPS SMT1000RMI2U — 1kVA 2U Rackmount Line-Interactive UPS
The SMT1000RMI2U delivers 1000VA / 700W of clean pure sine wave power in a 2u rackmount form factor designed for 230V environments. As part of APC's Smart-UPS line-interactive series, it provides Automatic Voltage Regulation to correct utility brownouts and surges without unnecessary battery cycling — the practical difference between a UPS that lasts five years and one that needs new batteries in two.
Why Line-Interactive UPS for This Load Range?
Line-interactive topology sits between basic standby UPS (no voltage regulation) and double-conversion on-line UPS (continuous inverter operation). For loads in the 1kVA range serving servers, network equipment, and VoIP infrastructure, line-interactive provides the right balance of power quality, energy efficiency, and acquisition cost. Connected equipment sees clean pure sine wave output during voltage events, but the unit doesn't waste energy or battery life converting power continuously when utility power is acceptable.
Key Features
- Pure Sine Wave Output: The pure sine wave inverter matches the waveform of utility power, ensuring compatibility with active PFC server power supplies, medical-grade equipment, and other devices that reject approximated waveforms.
- Automatic Voltage Regulation (AVR): When utility voltage drifts outside acceptable thresholds, AVR corrects the output without engaging the battery, reducing battery cycling and extending replacement intervals — a practical TCO benefit over the life of the UPS.
- SmartSlot Expansion Bay: SmartSlot expansion allows post-purchase addition of network management, environmental sensors, or contact closure modules without replacing the UPS.
- LCD Diagnostic Display: LCD displays load percentage, estimated runtime, input and output voltages, and recent event history for at-the-rack diagnostics.
- User-Replaceable Battery: Field-replaceable battery cartridges allow internal IT teams to perform routine battery refreshes. Questyme keeps compatible replacement cartridges in inventory.
- PowerChute Compatibility: Graceful shutdown of physical servers, hypervisor hosts, and HCI clusters through PowerChute Business Edition or PowerChute Network Shutdown.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 1000VA / 700W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input / Output Voltage | 230V |

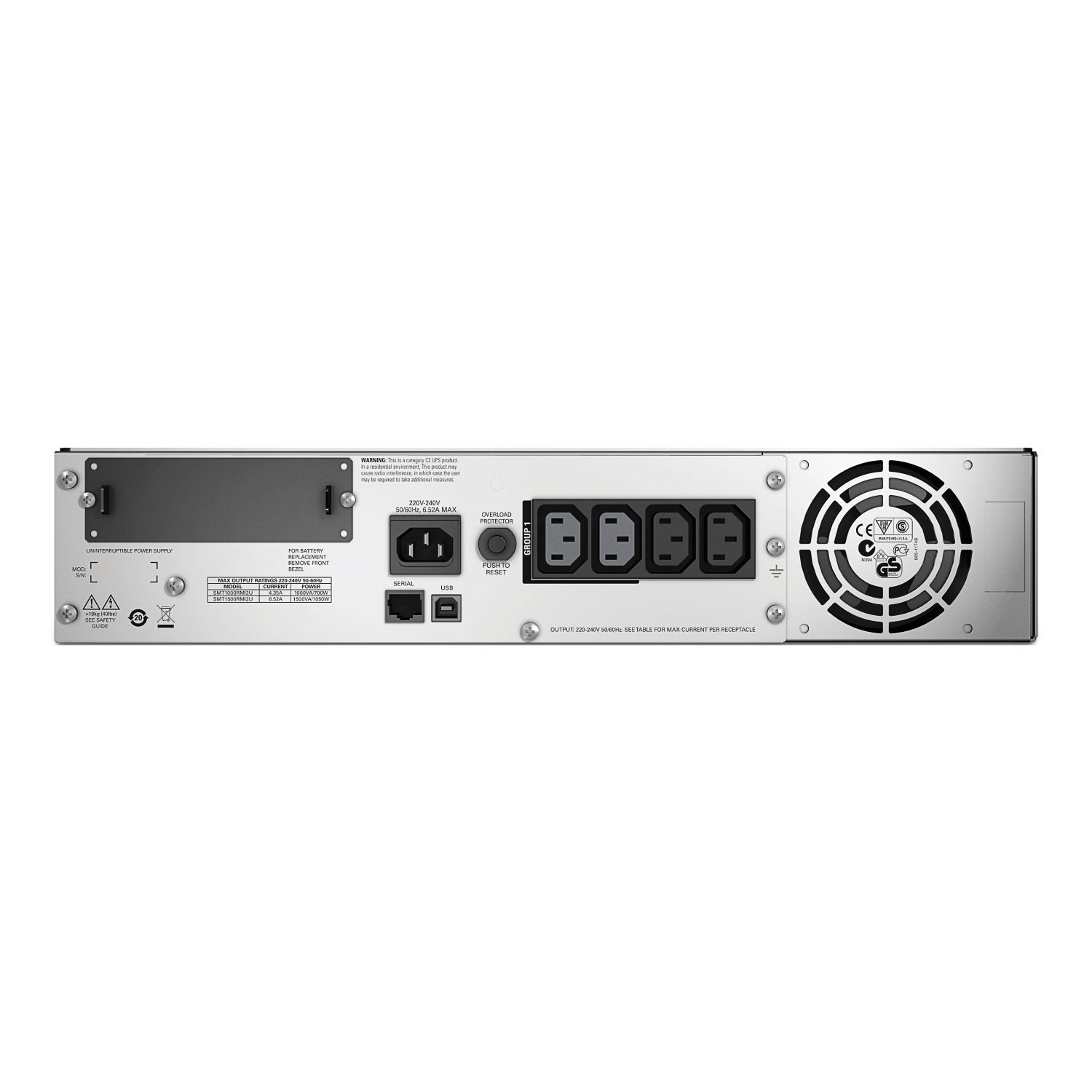

| Output Outlets | 4x IEC C13 |
| Form Factor | 2U Rackmount |
| Management | SmartSlot bay |
| Communication Ports | USB, Serial (RS-232) |
| TAA Compliance | Standard model (TAA variant available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Enterprise IT and Virtualization Hosts: Coordinates graceful shutdown of physical and virtual servers through PowerChute Network Shutdown when extended outages exceed runtime.
- Healthcare Diagnostic Equipment: Reliable backup power for imaging workstations, telemetry hubs, and lab analyzers where data integrity depends on clean shutdowns.
- Federal, State, and Local Government: Meets specification requirements for U.S.-aligned procurement programs; TAA-compliant variants available where required.
- Manufacturing and Industrial Controls: Powers PLCs, HMIs, and supervisory control workstations that cannot tolerate the brief voltage dips common to industrial environments.
- Retail Point-of-Sale and Hospitality: Keeps POS terminals, payment processors, and front-of-house systems online during transient power disturbances.
Multi-Site Deployment? Questyme Handles the Coordination.
Rolling out UPS units across multiple branches, clinics, or remote sites adds logistics complexity. Questyme can stage units, pre-configure network cards, and ship to multiple locations with consolidated documentation. Contact our team to plan your deployment.
Specifications
Overview
Model
APC Smart-UPS 1000VA LCD RM 2U 230V
Main
Input Voltage
230
Output Voltage
230
Rated Power in W
700 W
Rated Power in VA
1000
Input Connection Type
IEC 320 C14
Output Connection Type
4 IEC 320 C13, 2 IEC Jumpers
Max Configurable Power in VA
1000 VA
Max Configurable Power in W
700 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Optional
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 9.84Width: 23.62Length: 23.62
Shipping Weight
67.021 lb
UPC Code
731304284741
Lead time
Usually in Stock
Provided Equipment
USB cable
Documentation CD
Installation guide
Rack Mounting support rails
Smart UPS signalling RS-232 cable
Documentation CD
Installation guide
Rack Mounting support rails
Smart UPS signalling RS-232 cable
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Product Certifications
CSA
EAC
RCM
VDE
EAC
RCM
VDE
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
1250
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
45 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Take-back
Yes
