- 2200VA / 1980W line-interactive pure sine wave 2U rackmount UPS with Automatic Voltage Regulation and auto-sensing 120V/230V input
- Protects rack-mounted servers, network switches, and telecommunications equipment from power outages and voltage disturbances
- Auto-sensing voltage (120V/230V) enables deployment in domestic or international facilities without hardware modification
- SmartSlot expansion bay supports optional APC network management cards for SNMP monitoring and EcoStruxure IT integration
- User-replaceable battery with 3-year UPS warranty; Questyme stocks replacement batteries for same-week fulfillment
Product Highlights
Documents
Description

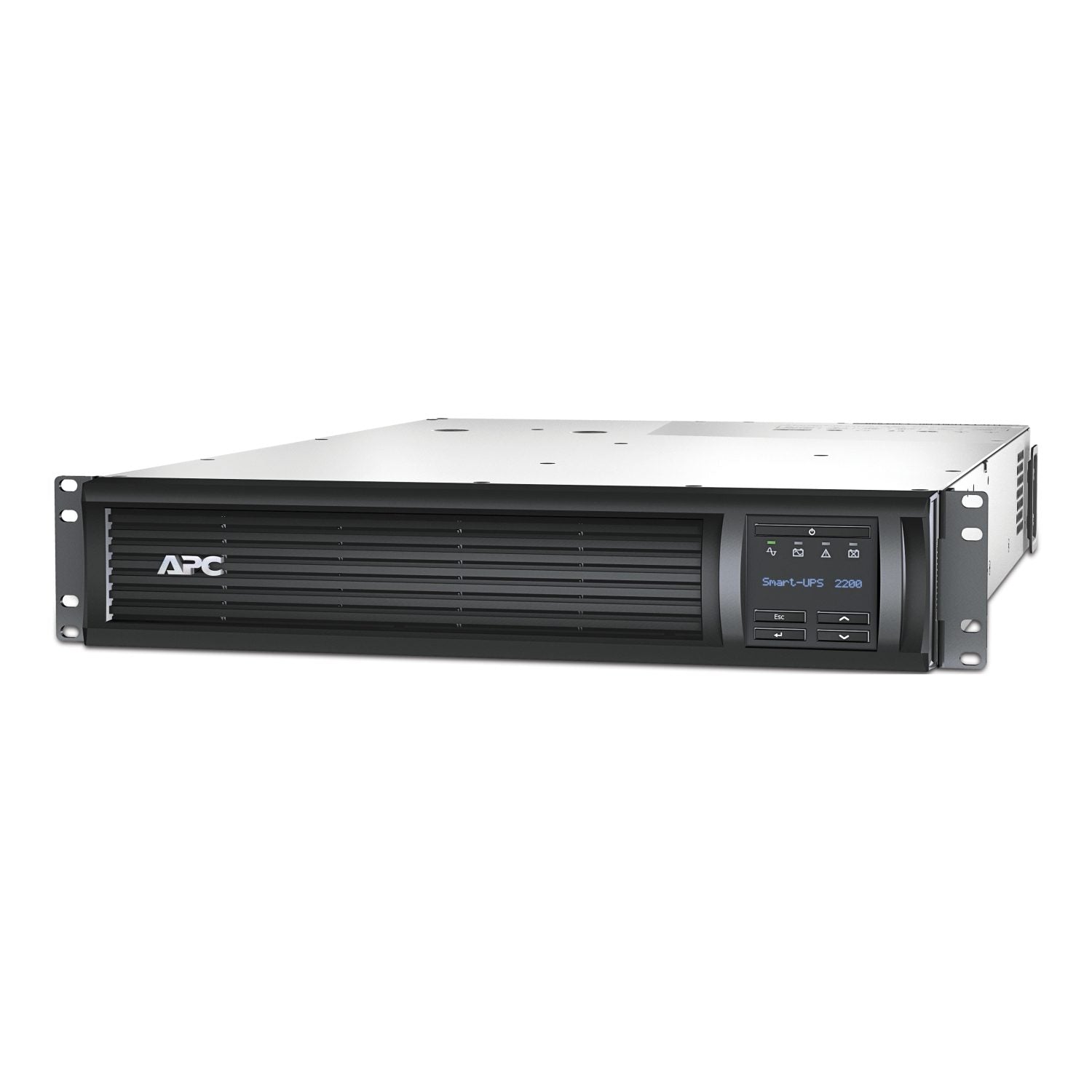

APC Smart-UPS SMT2200R2X167 — Dual-Voltage Rackmount UPS for Flexible Global Deployments
The SMT2200R2X167 stands apart from standard 2200VA rackmount units with its automatic 120V/230V voltage sensing, allowing IT teams to deploy the same hardware model across domestic and international facilities without reconfiguration. Delivering 1980W of pure sine wave output in a 2U rackmount form factor, it is engineered for environments running multiple rack-mounted servers, storage controllers, and network infrastructure simultaneously. The SmartSlot expansion bay provides a clear upgrade path to full network management without replacing the unit.
Key Features
- Pure Sine Wave Output: Generates true utility-grade sine wave power that active PFC power supplies in modern rack servers demand, preventing hardware stress and instability caused by modified sine wave output.
- Auto-Sensing 120V/230V Input: Automatically detects and adapts to incoming voltage, enabling a single SKU to serve both North American and international rack environments — simplifying global procurement and spare-parts management.
- Automatic Voltage Regulation (AVR): Boosts under-voltages and trims over-voltages without battery intervention, protecting equipment from the sustained voltage sags that shorten server power supply lifespan.
- SmartSlot Expansion Bay: Accepts APC AP9640/AP9641 network management cards for SNMP-based remote monitoring, PowerChute Network Shutdown integration, and EcoStruxure IT dashboard visibility.
- LCD Status Display: Provides at-a-glance readout of load level, runtime remaining, input/output voltage, and battery status — essential for quick health checks during rack audits.
- 10-Outlet Configuration: Ten NEMA 5-15R outlets allow broad device coverage across a full rack without daisy-chaining PDUs, reducing single points of failure.
- Intelligent Battery Management: Temperature-compensated charging and automatic battery self-tests extend battery service life and provide advance notice of capacity degradation before a failure occurs.
Technical Specifications
| Specification | Value |
|---|---|
| Output VA Rating | 2200VA / 1980W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 120V / 230V Auto-Sensing |
| Output Outlets | 10x NEMA 5-15R (battery backed) |
| Form Factor | 2U Rackmount |
| Management | SmartSlot (optional network card) |
| Communication Ports | USB, Serial (RS-232) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
The dual-voltage auto-sensing capability makes the SMT2200R2X167 an ideal choice for multinational organizations standardizing on a single UPS platform across facilities in different countries. At 1980W, it handles mid-density rack configurations comfortably.
- Data Centers and Server Rooms: Powers mid-density racks containing dual-socket servers, fiber channel switches, and attached storage in both 120V and 230V environments.
- Healthcare and Medical Facilities: Supports clinical information systems and EMR servers across international hospital networks with a single hardware SKU, simplifying compliance documentation.
- Government and TAA-Compliant Deployments: TAA-compliant variants are available in the SMT2200 family; Questyme can confirm compliance status for specific procurement requirements.
- Network Closets and Branch Offices: Protects routers, switches, and voice gateways in international branch locations without requiring locally sourced UPS hardware.
- Financial Services and Banking: Maintains uptime for transaction processing servers and network infrastructure in global banking operations.
- Retail and Point-of-Sale: Supports back-office servers and POS infrastructure in retail chains operating across different national power standards.
Not Sure Which SMT Model Is Right for Your Environment?
Questyme's power specialists work with IT teams, facilities managers, and procurement officers to identify the right UPS for specific load profiles, runtime requirements, and rack configurations. Whether you need a single unit for a network closet or a fleet of UPS systems for a multi-site deployment, our team calculates load requirements, runtime charts, and total cost of ownership before you commit to a purchase. Contact Questyme to speak with a power expert — not a sales representative.
Specifications
Overview
Model
APC Smart-UPS 2200VA RM2U w/Auto Sense Input Voltage 120V/230V In 120V Out
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
1980 W
Rated Power in VA
2200
Input Connection Type
NEMA 5-15P, Schuko CEE 7 / EU1-16P, BS1363A British, CEI 23-16 Italian
Output Connection Type
10 NEMA 5-15R
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
1980 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Optional
Number of Cables
4
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 10Width: 38.58Length: 23.62
Shipping Weight
109.64 lb
UPC Code
731304423393
Lead time
Usually in Stock
Provided Equipment
User Manual
Product Certifications
CSA
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
'-4-131 ?F
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-9842.52 ft
Storage Altitude
0.0000000000-49212.6 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
