- 2200VA / 1980W line-interactive pure sine wave 2U rackmount UPS with Automatic Voltage Regulation and NEMA L5-20P twist-lock input
- Protects rack-mounted servers, storage systems, and network switches from outages, voltage sags, and surges
- SmartSlot expansion bay supports optional APC network management cards for remote SNMP monitoring and automated shutdown

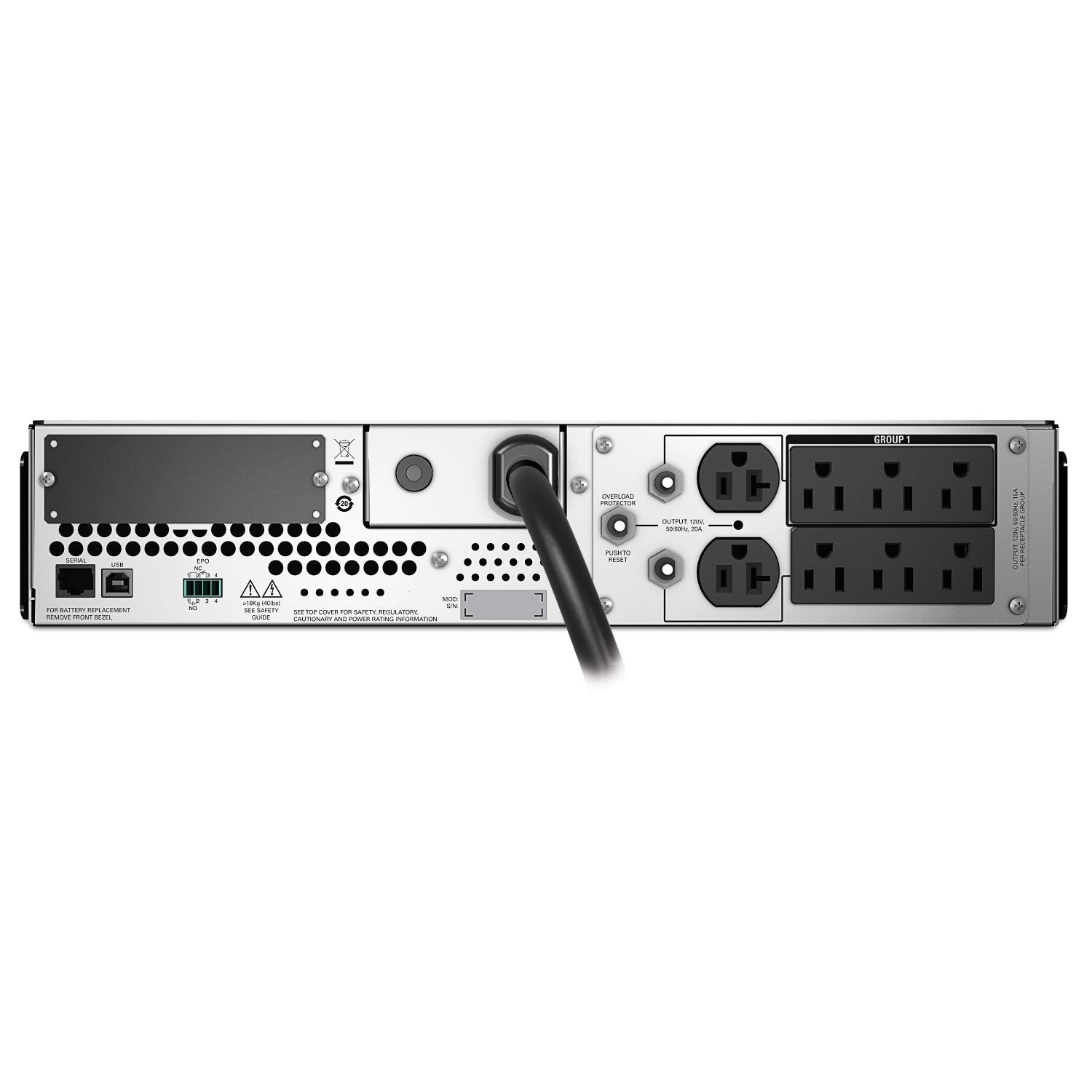

- Six NEMA 5-15R plus two NEMA 5-20R outlets accommodate standard and higher-draw rack devices on a single circuit
- User-replaceable battery with 3-year UPS warranty; Questyme stocks compatible replacement batteries
Product Highlights
Documents
Description

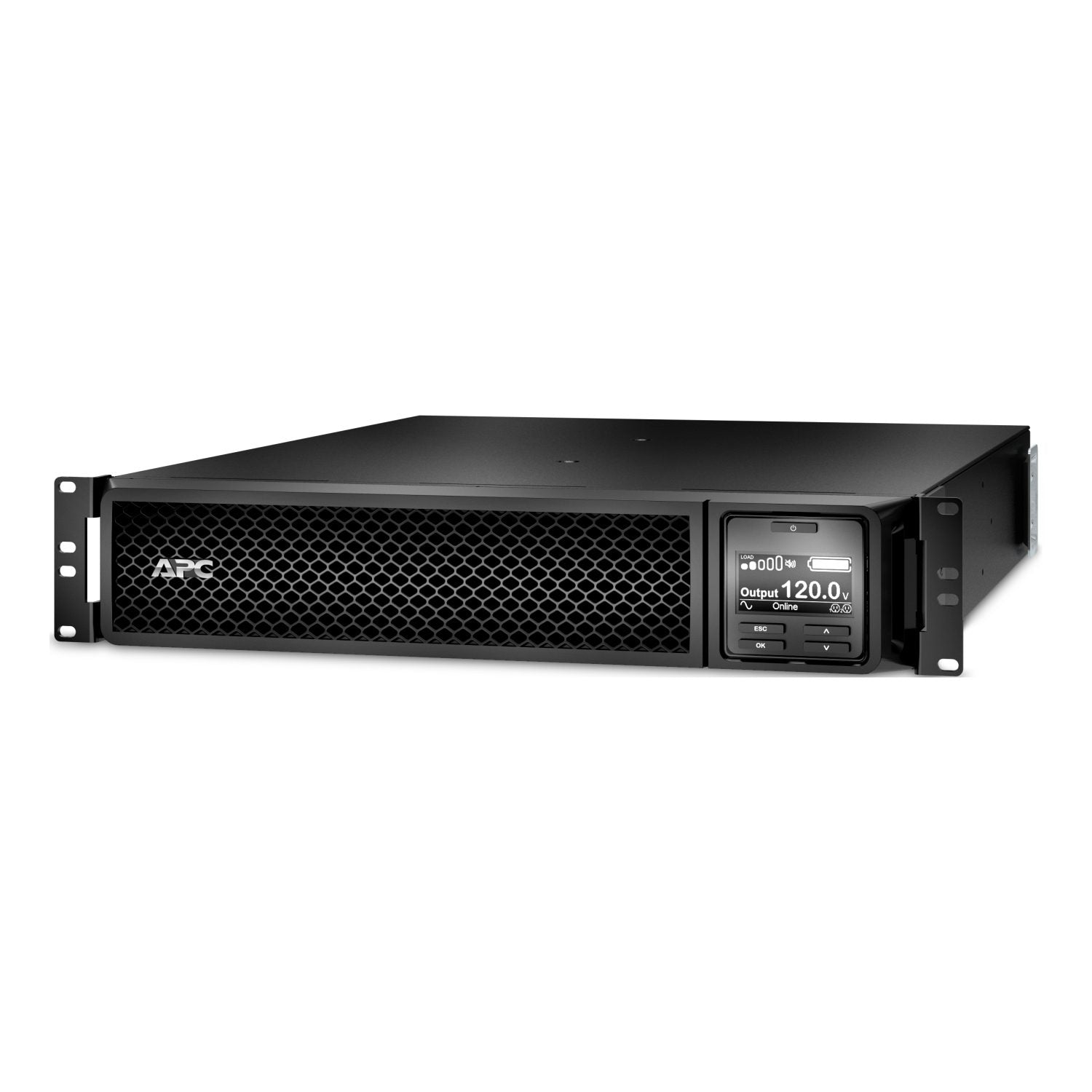

APC Smart-UPS SMT2200R2X106 — 2200VA 2U Rackmount with L5-20P Input for Dedicated Circuits
The SMT2200R2X106 is configured with a NEMA L5-20P twist-lock input plug, designed for facilities that have provisioned dedicated 20-amp twist-lock circuits for UPS equipment — a common practice in purpose-built data centers and server rooms where branch circuit management is a priority. Delivering 1980W of pure sine wave output across eight mixed outlets in a 2U rackmount chassis, it protects mid-density server and storage racks from the full spectrum of power quality problems. The SmartSlot bay provides an upgrade path to network management card integration without unit replacement.
Key Features
- Pure Sine Wave Output: Delivers clean power that active PFC server power supplies require for stable, specification-compliant operation — unlike modified sine wave UPS units that can trigger power supply protection faults.
- NEMA L5-20P Twist-Lock Input: Designed for connection to dedicated 20A twist-lock circuits, providing a secure, vibration-resistant connection suited to data center and industrial rack environments.
- Automatic Voltage Regulation (AVR): Actively corrects incoming voltage without consuming battery power, protecting connected equipment from brownouts and over-voltages that damage power supply components over time.
- SmartSlot Expansion Bay: Optional AP9640 or AP9641 network management card enables SNMP monitoring, remote reboot control, and integration with EcoStruxure IT and PowerChute Network Shutdown.

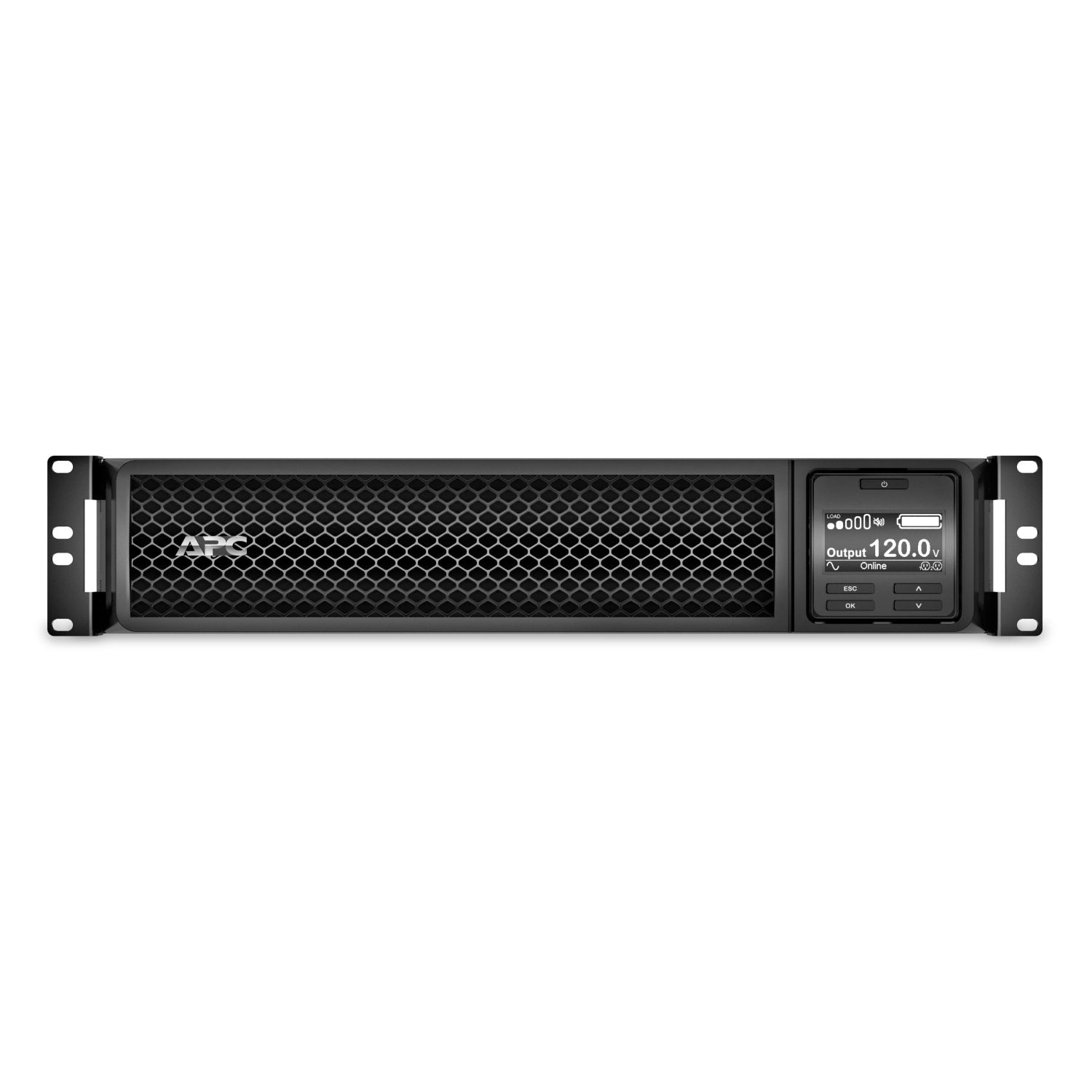

- LCD Status Display: Front-panel display provides real-time load, runtime, and voltage readings — critical for capacity planning and routine maintenance checks.
- Mixed Outlet Bank: Six NEMA 5-15R and two NEMA 5-20R outlets support a broad range of server and networking hardware within a single protected circuit.
- Intelligent Battery Self-Test: Automated battery diagnostics detect capacity degradation before it becomes a failure event, giving operations teams advance warning to schedule replacement during planned maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Output VA Rating | 2200VA / 1980W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 120V AC |
| Input Plug | NEMA L5-20P (twist-lock) |
| Output Outlets | 6x NEMA 5-15R + 2x NEMA 5-20R (8 total, battery backed) |
| Form Factor | 2U Rackmount |
| Management | SmartSlot (optional network card) |
| Communication Ports | USB, Serial (RS-232) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
The L5-20P input configuration targets facilities where twist-lock branch circuits are the standard — including colocation data centers, purpose-built server rooms, and industrial environments where standard NEMA 5-20P plugs are not used for rack power. At 1980W, it supports mid-density server configurations effectively.
- Data Centers and Server Rooms: Integrates cleanly into purpose-built facilities with dedicated twist-lock branch circuits and structured power distribution plans.
- Healthcare and Medical Facilities: Protects clinical servers and medical imaging infrastructure in facilities with dedicated hospital-grade branch circuits.
- Government and TAA-Compliant Deployments: TAA-compliant variants are available in the SMT2200 family; Questyme can verify compliance for specific contract requirements.
- Network Closets and Branch Offices: Supports network switches, routers, and communication servers in facilities with structured 20A twist-lock power distribution.
- Financial Services and Banking: Protects transaction servers and trading systems in purpose-built financial data centers with managed branch circuit infrastructure.
- Manufacturing and Industrial Facilities: Suitable for industrial control rooms where twist-lock outlets are the prevailing power connection standard.
Not Sure Which SMT Model Is Right for Your Environment?
Questyme's power specialists work with IT teams, facilities managers, and procurement officers to identify the right UPS for specific load profiles, runtime requirements, and rack configurations. Whether you need a single unit for a network closet or a fleet of UPS systems for a multi-site deployment, our team calculates load requirements, runtime charts, and total cost of ownership before you commit to a purchase. Contact Questyme to speak with a power expert — not a sales representative.
Specifications
Overview
Model
APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
1920 W
Rated Power in VA
1920
Input Connection Type
NEMA L5-20P
Output Connection Type
6 NEMA 5-15R, 2 NEMA 5-20R
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
1980 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 10Width: 38.58Length: 23.62
Shipping Weight
109.64 lb
UPC Code
731304294085
Lead time
Usually Ships within 3 Weeks
Provided Equipment
CD with softwareDocumentation CDRack Mounting bracketsRack Mounting support railsSmart UPS signalling RS-232 cableUSB cable
Product Certifications
CSA
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
