- 2200VA / 1980W line-interactive pure sine wave 2u rackmount UPS with Automatic Voltage Regulation
- 120V input/output — 6x NEMA 5-15R+2x NEMA 5-20R for rack-mounted or desktop equipment
- APC SmartConnect cloud monitoring port
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Documents
Description

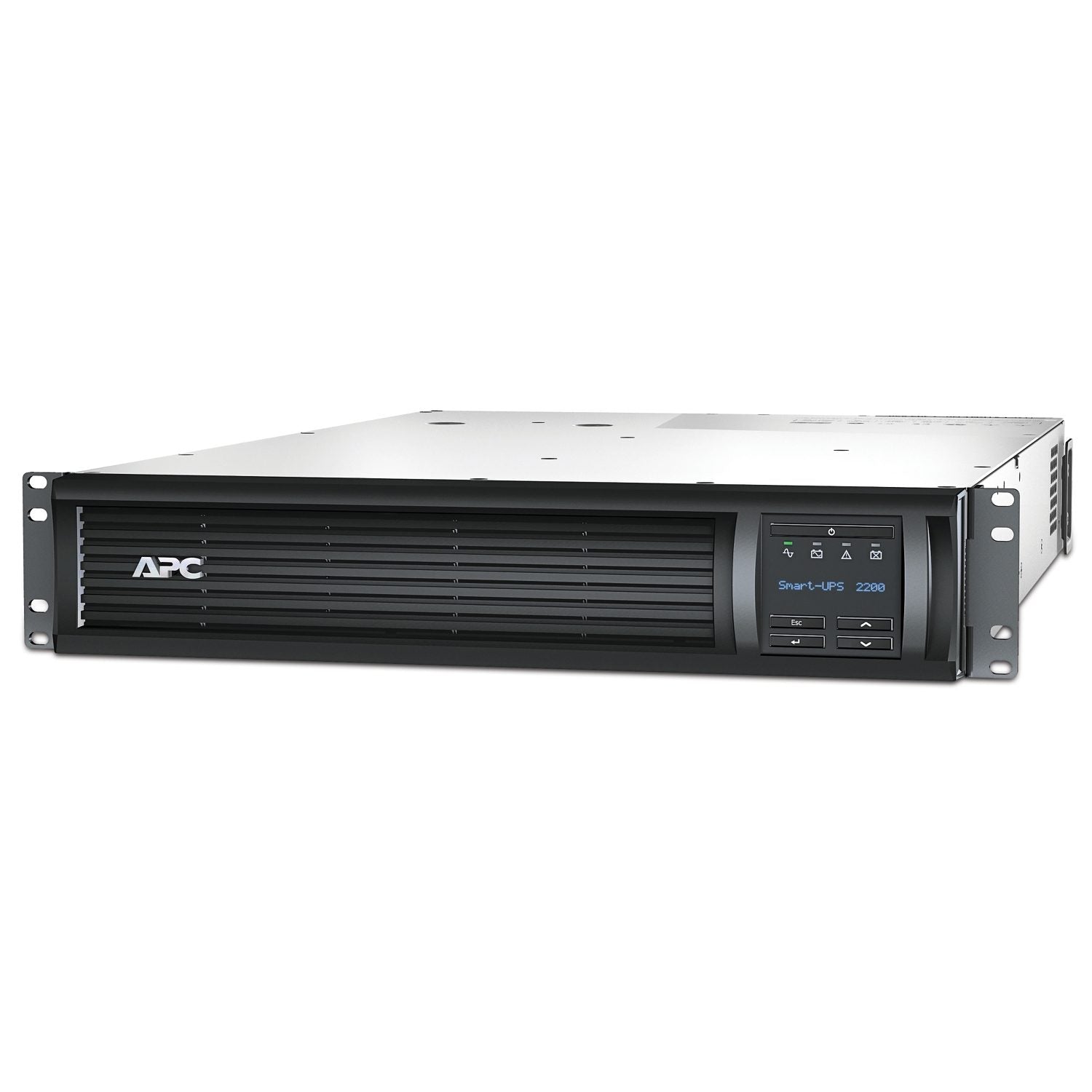

APC Smart-UPS SMT2200RM2UC — 2200VA 2U Rackmount Line-Interactive UPS
The SMT2200RM2UC delivers 2200VA / 1980W of clean pure sine wave power in a 2u rackmount form factor designed for 120V environments. As part of APC's Smart-UPS line-interactive series, it provides Automatic Voltage Regulation to correct utility brownouts and surges without unnecessary battery cycling — the practical difference between a UPS that lasts five years and one that needs new batteries in two.
Why Line-Interactive UPS for This Load Range?
Line-interactive topology sits between basic standby UPS (no voltage regulation) and double-conversion on-line UPS (continuous inverter operation). For loads in the 2200VA range serving servers, network equipment, and VoIP infrastructure, line-interactive provides the right balance of power quality, energy efficiency, and acquisition cost. Connected equipment sees clean pure sine wave output during voltage events, but the unit doesn't waste energy or battery life converting power continuously when utility power is acceptable.
Key Features
- Pure Sine Wave Output: The pure sine wave inverter matches the waveform of utility power, ensuring compatibility with active PFC server power supplies, medical-grade equipment, and other devices that reject approximated waveforms.
- Automatic Voltage Regulation (AVR): When utility voltage drifts outside acceptable thresholds, AVR corrects the output without engaging the battery, reducing battery cycling and extending replacement intervals — a practical TCO benefit over the life of the UPS.
- APC SmartConnect Cloud Port: Cloud-based remote management through the APC SmartConnect portal eliminates the need for VPN access to monitor individual UPS units across multiple sites.
- SmartSlot Expansion Bay: SmartSlot expansion allows post-purchase addition of network management, environmental sensors, or contact closure modules without replacing the UPS.
- LCD Diagnostic Display: LCD displays load percentage, estimated runtime, input and output voltages, and recent event history for at-the-rack diagnostics.
- User-Replaceable Battery: Field-replaceable battery cartridges allow internal IT teams to perform routine battery refreshes. Questyme keeps compatible replacement cartridges in inventory.
- PowerChute Compatibility: Graceful shutdown of physical servers, hypervisor hosts, and HCI clusters through PowerChute Business Edition or PowerChute Network Shutdown.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 2200VA / 1980W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input / Output Voltage | 120V |

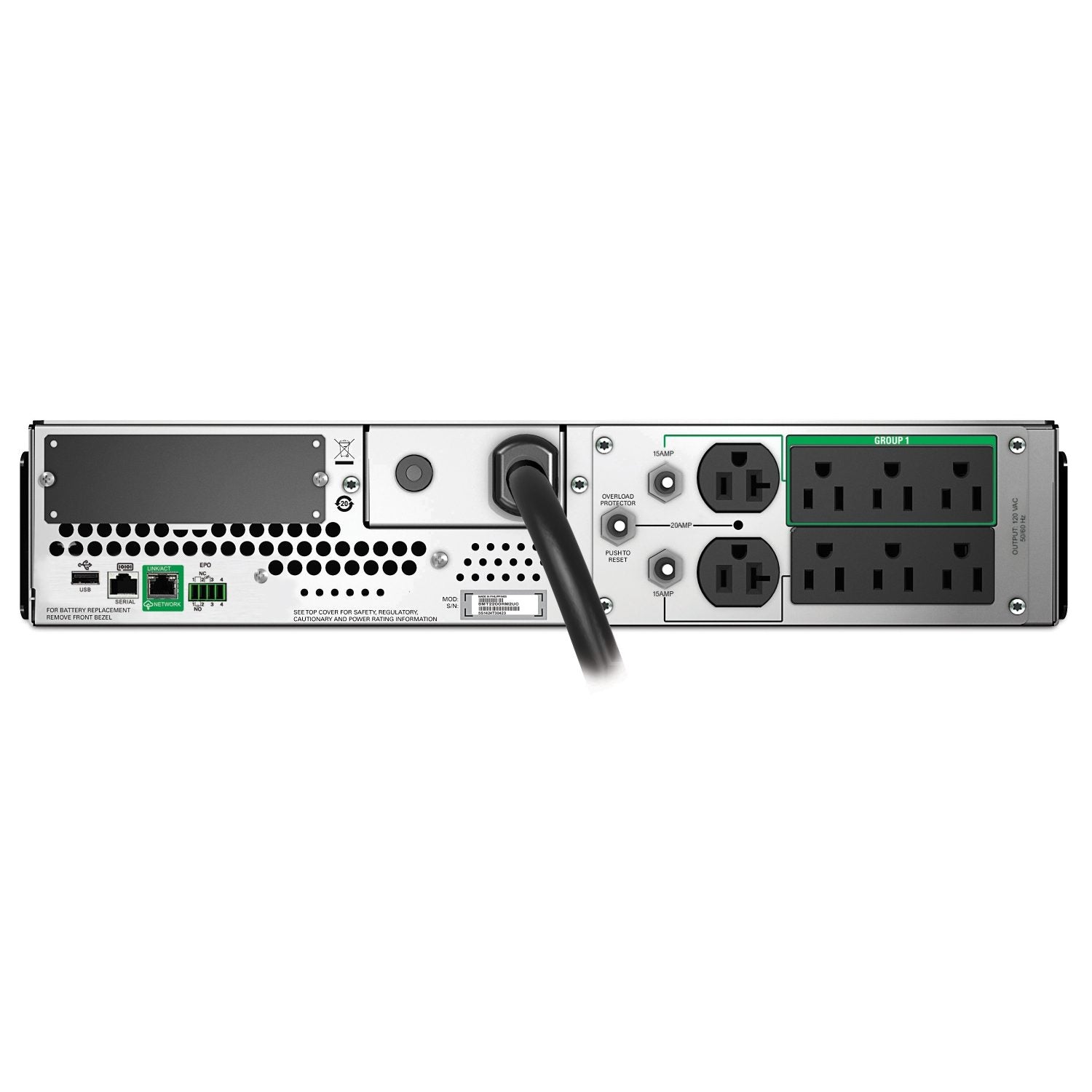

| Output Outlets | 6x NEMA 5-15R+2x NEMA 5-20R |
| Form Factor | 2U Rackmount |
| Management | SmartConnect + SmartSlot |
| Communication Ports | USB, Serial (RS-232) |
| TAA Compliance | Standard model (TAA variant available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Mid-Sized Data Centers and Edge Compute Sites: Rack-density appropriate for 4-12 server racks where mid-tier UPS units provide cost-effective protection.
- Clinical Labs and Pharmacy Systems: Backup for refrigerated storage monitoring, automated dispensing systems, and analyzer instrumentation.
- Public Safety and Emergency Operations Centers: Continuous power for 911 dispatch terminals, radio consoles, and CAD systems that cannot lose state during a power event.
- Cryptocurrency and High-Density Compute: Protection for mining rigs, GPU workstations, and validator nodes where downtime represents direct financial loss.
- Educational and Research Networks: Powers campus network closets, classroom AV controllers, and research lab instrumentation.
Multi-Site Deployment? Questyme Handles the Coordination.
Rolling out UPS units across multiple branches, clinics, or remote sites adds logistics complexity. Questyme can stage units, pre-configure network cards, and ship to multiple locations with consolidated documentation. Contact our team to plan your deployment.
Specifications
Overview
Model
APC Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
1920 W
Rated Power in VA
1920
Input Connection Type
NEMA 5-20P
Output Connection Type
6 NEMA 5-15R, 2 NEMA 5-20R
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
1980 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS OVER 1.5 KVA
Shipping Dimensions
Height: 10Width: 38.58Length: 23.62
Shipping Weight
109.64 lb
UPC Code
731304331056
Lead time
Usually Ships within 3 Weeks
Provided Equipment
Rack Mounting brackets
Rack Mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Rack Mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Product Certifications
cULus
ENERGY STAR V2.0 (USA)
ENERGY STAR V2.0 (USA)
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
3409
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
