- 2200VA / 1980W line-interactive pure sine wave 2u rackmount UPS with Automatic Voltage Regulation
- 120V input/output — 6 NEMA 5-15R+2 NEMA 5-20R for rack-mounted or desktop equipment
- APC SmartConnect cloud monitoring port; AP9641 Network Management Card 3 included
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- TAA compliant — eligible for U.S. federal procurement and GSA Schedule purchasing
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Documents
Description

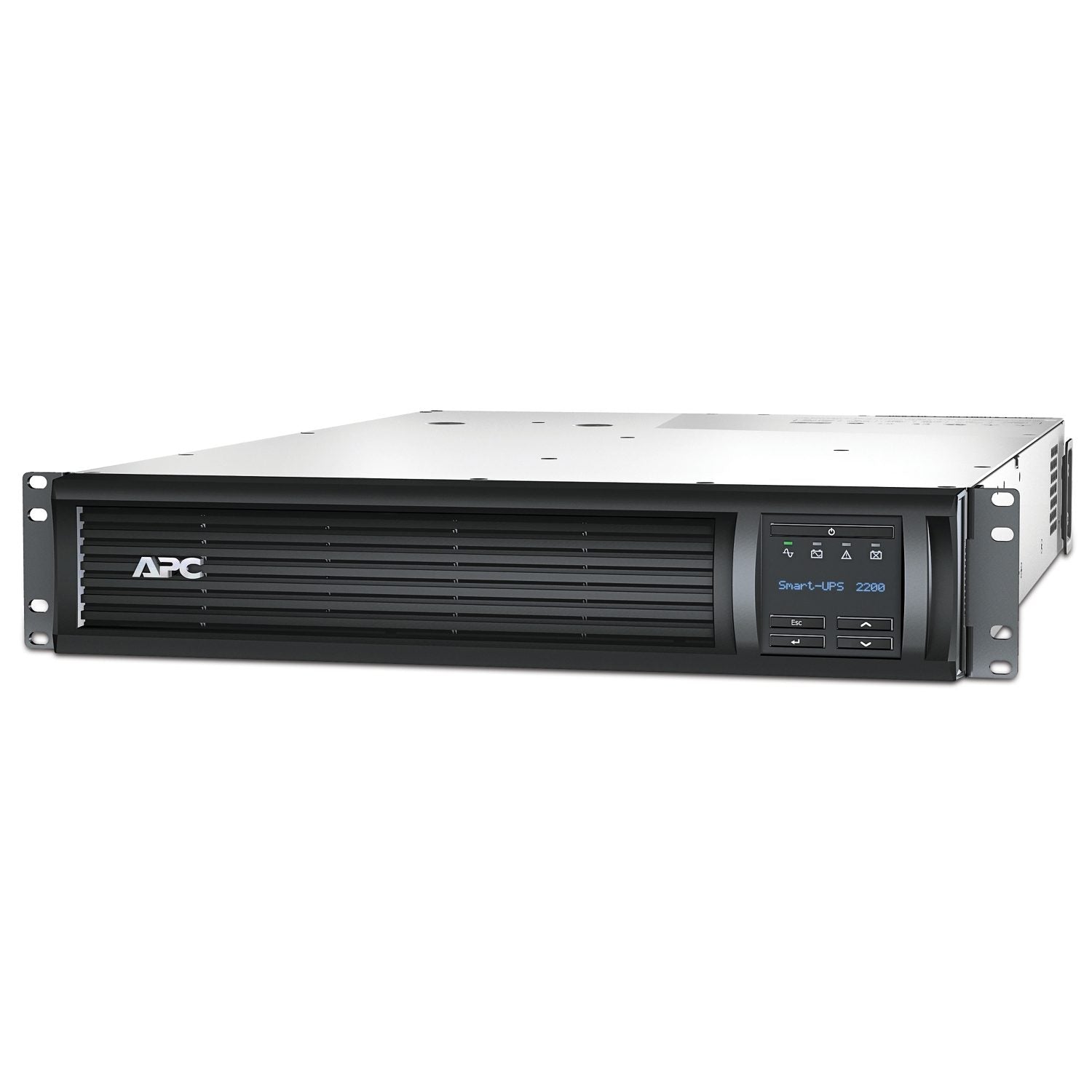

APC Smart-UPS SMT2200RM2UNCUS — 2200VA 2U Rackmount Line-Interactive UPS
The SMT2200RM2UNCUS delivers 2200VA / 1980W of clean pure sine wave power in a 2u rackmount form factor designed for 120V environments. As part of APC's Smart-UPS line-interactive series, it provides Automatic Voltage Regulation to correct utility brownouts and surges without unnecessary battery cycling — the practical difference between a UPS that lasts five years and one that needs new batteries in two.
Why Line-Interactive UPS for This Load Range?
Line-interactive topology sits between basic standby UPS (no voltage regulation) and double-conversion on-line UPS (continuous inverter operation). For loads in the 2200VA range serving servers, network equipment, and VoIP infrastructure, line-interactive provides the right balance of power quality, energy efficiency, and acquisition cost. Connected equipment sees clean pure sine wave output during voltage events, but the unit doesn't waste energy or battery life converting power continuously when utility power is acceptable.
Key Features
- Pure Sine Wave Output: Delivers a clean pure sine wave to connected equipment. Active PFC power supplies common in modern servers and storage arrays will throw errors or shut down on the simulated/stepped-wave output produced by entry-level UPS units; pure sine eliminates that risk.
- Automatic Voltage Regulation (AVR): AVR uses a buck-and-boost transformer stage to bring out-of-range utility voltage back to nominal levels in real time. The UPS only transitions to battery for true outages, which significantly extends battery service life.
- APC SmartConnect Cloud Port: SmartConnect cloud connectivity provides remote status visibility, event alerts, and firmware update notifications through the APC SmartConnect web portal. Useful for distributed sites where deploying a dedicated NMC is impractical.
- AP9641 Network Management Card 3 Included: Out-of-the-box SNMP v3, web/CLI, and EcoStruxure IT integration. No accessory purchase required to begin centralized management.
- LCD Diagnostic Display: The intuitive LCD interface displays load, runtime, voltage, frequency, and historical events. Technicians can verify operating conditions and adjust thresholds directly at the unit.
- User-Replaceable Battery: The battery cartridge is field-replaceable by IT staff — no service technician dispatch required. Questyme stocks compatible genuine APC replacement cartridges for fast turnaround.
- PowerChute Compatibility: Graceful shutdown of physical servers, hypervisor hosts, and HCI clusters through PowerChute Business Edition or PowerChute Network Shutdown.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 2200VA / 1980W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input / Output Voltage | 120V |

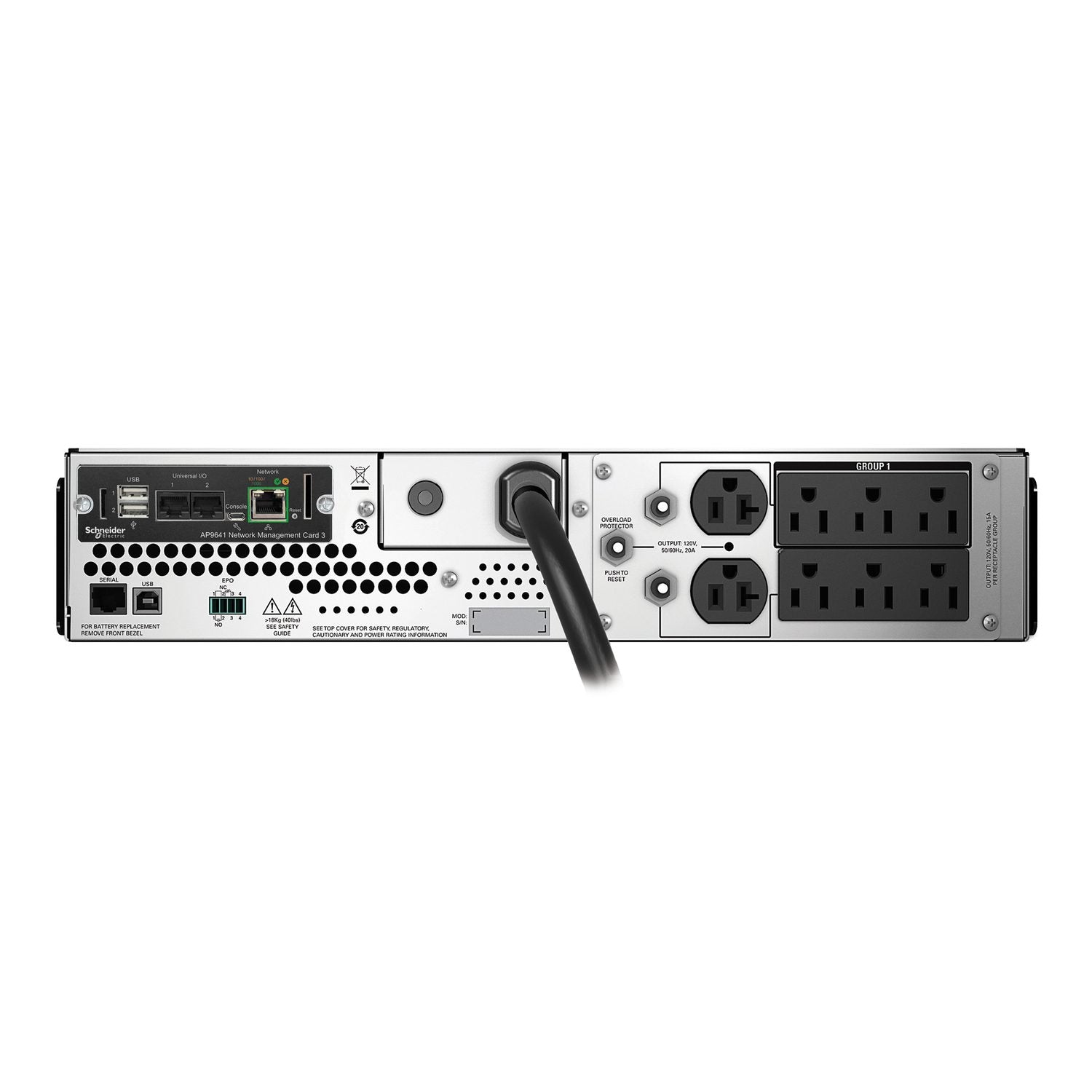

| Output Outlets | 6 NEMA 5-15R+2 NEMA 5-20R |

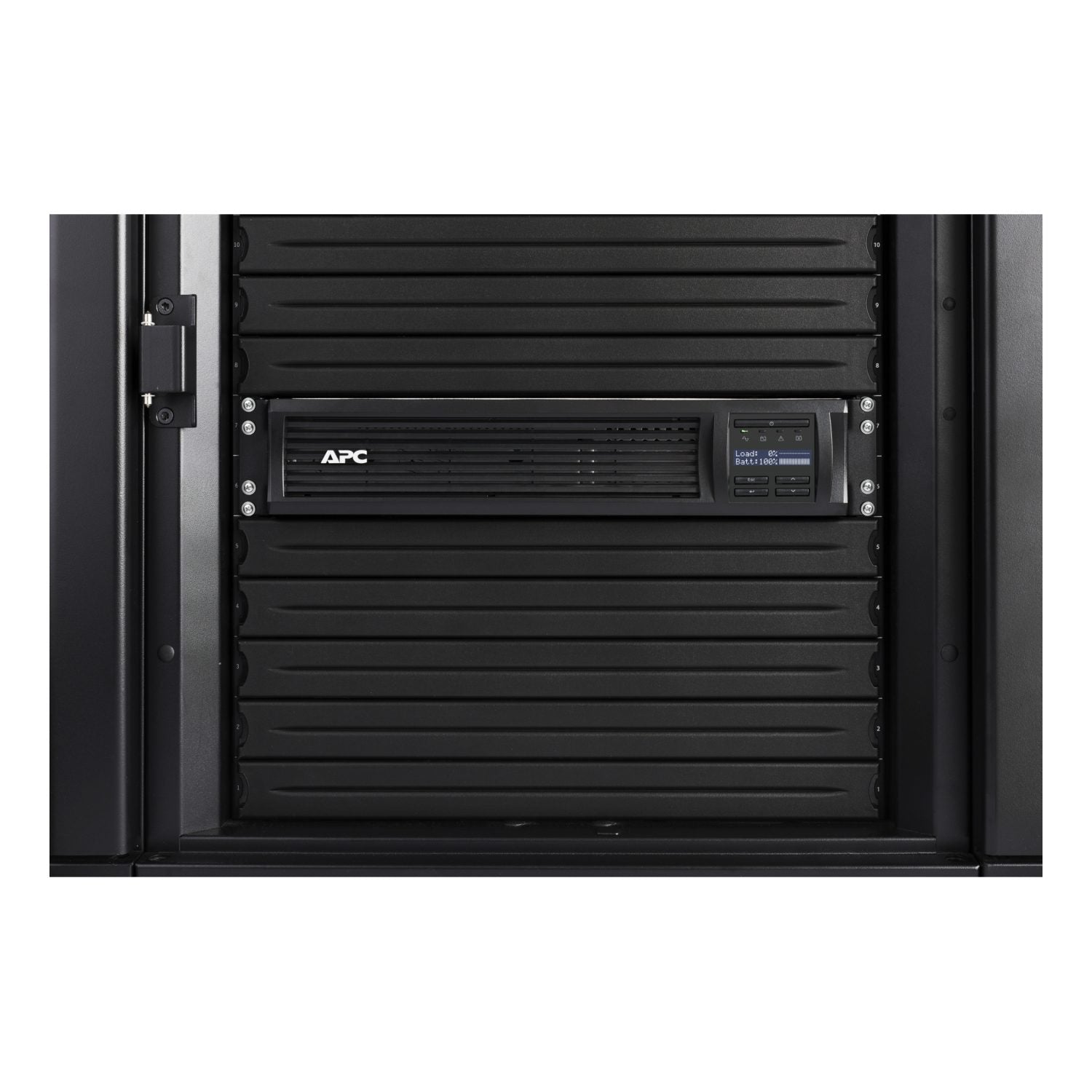

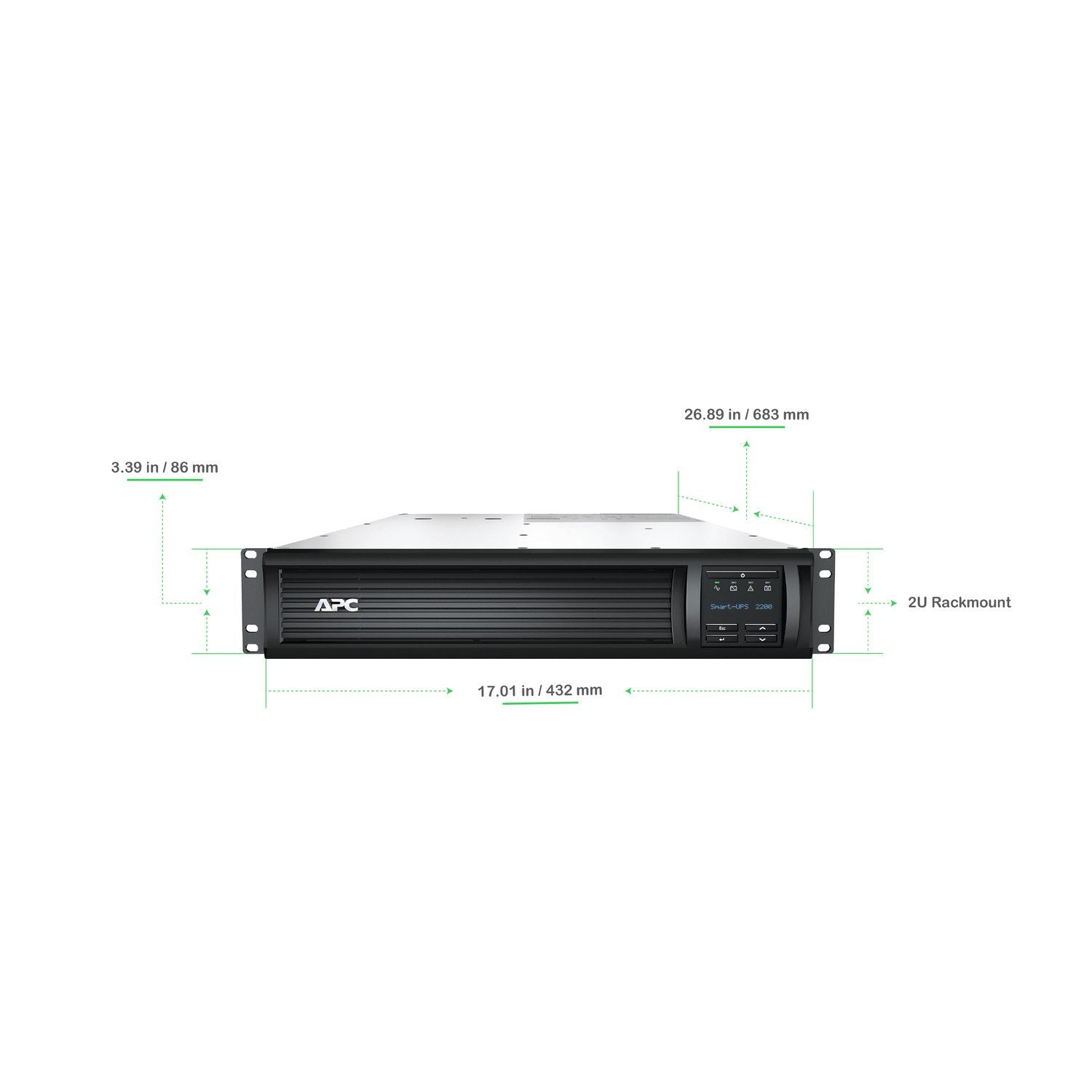

| Form Factor | 2U Rackmount |
| Management | SmartConnect + AP9641 NMC3 |
| Communication Ports | USB, Serial (RS-232) |
| TAA Compliance | Yes — eligible for U.S. federal procurement |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Mid-Sized Data Centers and Edge Compute Sites: Rack-density appropriate for 4-12 server racks where mid-tier UPS units provide cost-effective protection.
- Clinical Labs and Pharmacy Systems: Backup for refrigerated storage monitoring, automated dispensing systems, and analyzer instrumentation.
- Public Safety and Emergency Operations Centers: Continuous power for 911 dispatch terminals, radio consoles, and CAD systems that cannot lose state during a power event.
- Cryptocurrency and High-Density Compute: Protection for mining rigs, GPU workstations, and validator nodes where downtime represents direct financial loss.
- Educational and Research Networks: Powers campus network closets, classroom AV controllers, and research lab instrumentation.
Power Expert Consultation Available
Questyme has been an APC authorized reseller since 2009. Our team can verify compatibility with your existing rack hardware, recommend appropriate runtime configurations, and provide TAA and procurement documentation when needed. Request a consultation before specifying.
Specifications
Overview
Model
APC Smart-UPS 2200VA LCD RM 2U 120V SmartConnect and Network Card TAA-Compliant
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
1920 W
Rated Power in VA
1920
Input Connection Type
NEMA 5-20P
Output Connection Type
6 NEMA 5-15R, 2 NEMA 5-20R
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
1920 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS OVER 1.5 KVA
Shipping Dimensions
Height: 10Width: 38.58Length: 23.62
Shipping Weight
109.61 lb
UPC Code
731304740513
Lead time
Usually in Stock
Provided Equipment
CD with software
Product Certifications
CSA
ENERGY STAR V2.0 (USA)
TAA compliance
ENERGY STAR V2.0 (USA)
TAA compliance
Environmental
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
