- 750VA pure sine wave SHIPBOARD-certified UPS — designed for naval vessels, offshore platforms, and shipboard control rooms with high vibration and electrical noise environments
- Meets shipboard certification standards for marine power protection applications
- 120V input/output — multiple outlets for rack-mounted or desktop equipment
- SmartSlot bay for optional Network Management Card
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Documents
Description

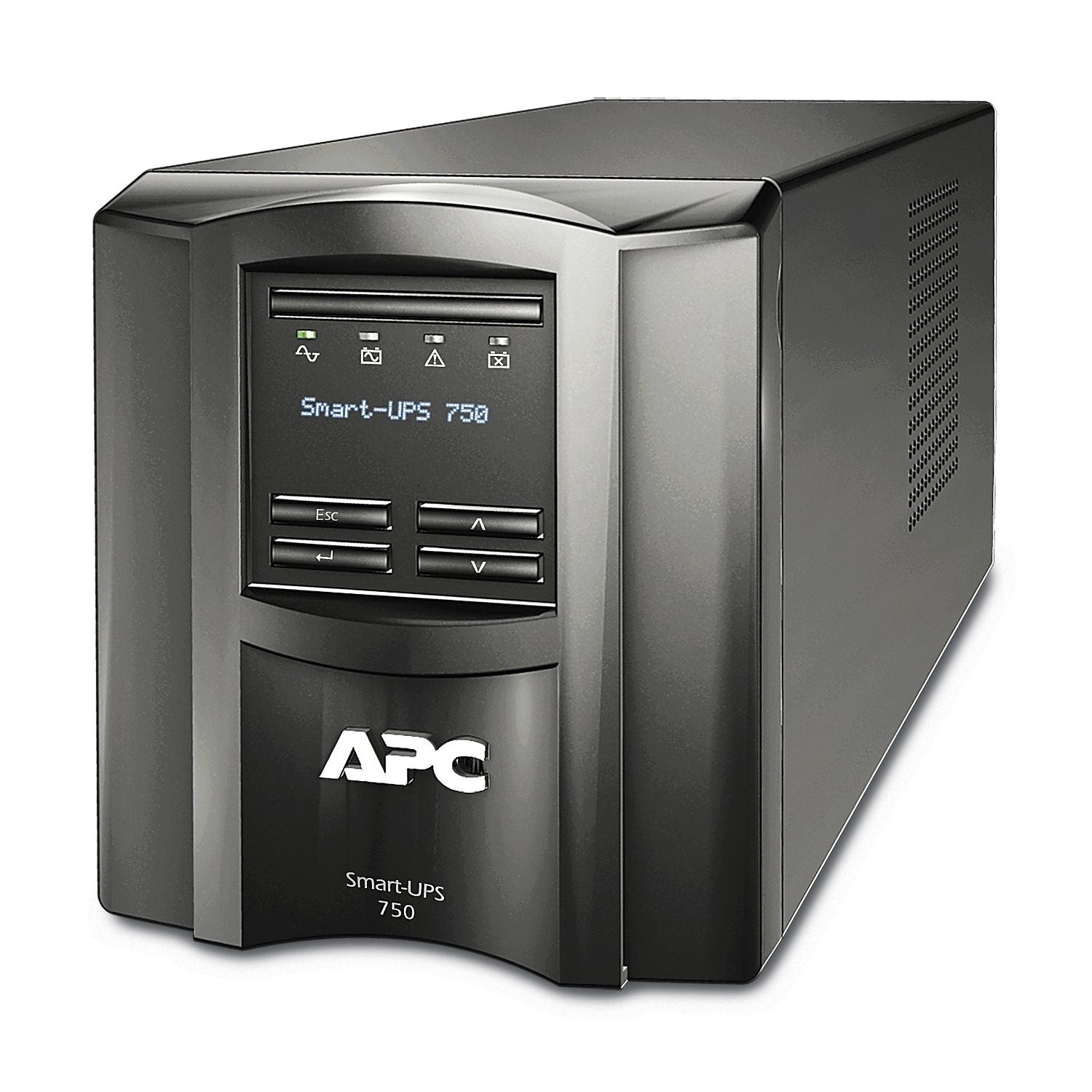

APC Smart-UPS SMT750X93 — Marine and Shipboard-Certified Power Protection
The SMT750X93 is a SHIPBOARD-certified Smart-UPS designed for naval vessels, offshore platforms, commercial shipping, and shore-side military installations where standard UPS units do not meet vibration, EMI, or environmental certification requirements. Built on the proven Smart-UPS line-interactive platform, it provides clean pure sine wave power to critical equipment in environments where utility power quality is unpredictable.
Built for Marine Environments
SHIPBOARD-certified UPS units undergo additional vibration, shock, and electromagnetic interference testing not required of standard commercial UPS. The SMT750X93 carries Navy and commercial marine certifications appropriate for installation on combat vessels, support ships, drilling platforms, and naval shore facilities.
Key Features
- Marine-Grade Construction: Vibration-tolerant chassis and connectors built to withstand the operational realities of shipboard installation.
- Pure Sine Wave Output: Pure sine wave output reproduces the smooth waveform of utility power, which sensitive electronics — active power-factor-corrected (PFC) server power supplies in particular — require to operate without errors or premature failure.
- Automatic Voltage Regulation (AVR): Automatic Voltage Regulation corrects undervoltage (brownouts) and overvoltage events without transferring to battery, conserving battery life for true outages and extending overall service life of the unit.
- SmartSlot Expansion: A SmartSlot accessory bay accepts optional Network Management Cards (AP9641, AP9643), environmental sensors, and dry-contact relay modules — useful for facilities that require SNMP integration, building management system tie-in, or PowerChute Network Shutdown of virtualized workloads.
- LCD Diagnostic Display: A multi-line LCD shows real-time load percentage, battery runtime remaining, input/output voltage, and event history without requiring network access — useful for on-the-spot troubleshooting and pre-purchase load verification.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 750VA / 500W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 120V |
| Form Factor | Tower |
| Certification | SHIPBOARD Certified |
| Management | SmartSlot (NMC accessory available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications
- Naval Vessels and Combat Ships: Backup power for command-and-control workstations, sensor systems, and shipboard communications.
- Offshore Platforms and Drilling Rigs: Protection for SCADA, monitoring instrumentation, and process control workstations.
- Commercial Shipping and Maritime Operations: Continuous power for navigation systems, satellite communications, and onboard IT infrastructure.
- Naval Shore Installations: Backup for base-side IT equipment specified under military marine procurement standards.
Talk to a Questyme Power Specialist Before You Buy
UPS sizing involves more than matching VA ratings to nameplate loads. Power factor, future expansion, generator coordination, and acceptable runtime windows all factor in. Questyme's team builds a sizing model for your specific environment — not a generic recommendation. Get a power assessment from Questyme.
Specifications
Overview
Model
APC Smart-UPS 750VA 120V Shipboard
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
500 W
Rated Power in VA
750
Input Connection Type
NEMA 5-15P
Output Connection Type
6 NEMA 5-15R
Max Configurable Power in VA
750 VA
Max Configurable Power in W
500 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Number of Cables
1
Physical
Mounting Mode
Not rack-mountable
Mounting Preference
No preference
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 11.85Width: 19.65Length: 10.94
Shipping Weight
30.91 lb
UPC Code
731304433637
Lead time
Usually in Stock
Provided Equipment
User Manual
Product Certifications
CSA C22.2 No 107.1
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
649
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
'-4-131 ?F (-20-55 ?C)
Acoustic Level
41 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-9842.52 ft (0-3000 m)
Storage Altitude
0.0000000000-49212.6 ft (0-15000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant
