- 750VA / 500W line-interactive pure sine wave tower UPS with Automatic Voltage Regulation
- 120V input/output — 6x NEMA 5-15R for rack-mounted or desktop equipment
- APC SmartConnect cloud monitoring port
- Compatible with APC PowerChute for graceful server shutdown and EcoStruxure IT for centralized monitoring
- TAA compliant — eligible for U.S. federal procurement and GSA Schedule purchasing
- 3-year UPS warranty with 2-year battery; genuine APC replacement battery cartridges stocked by Questyme
Product Highlights
Description

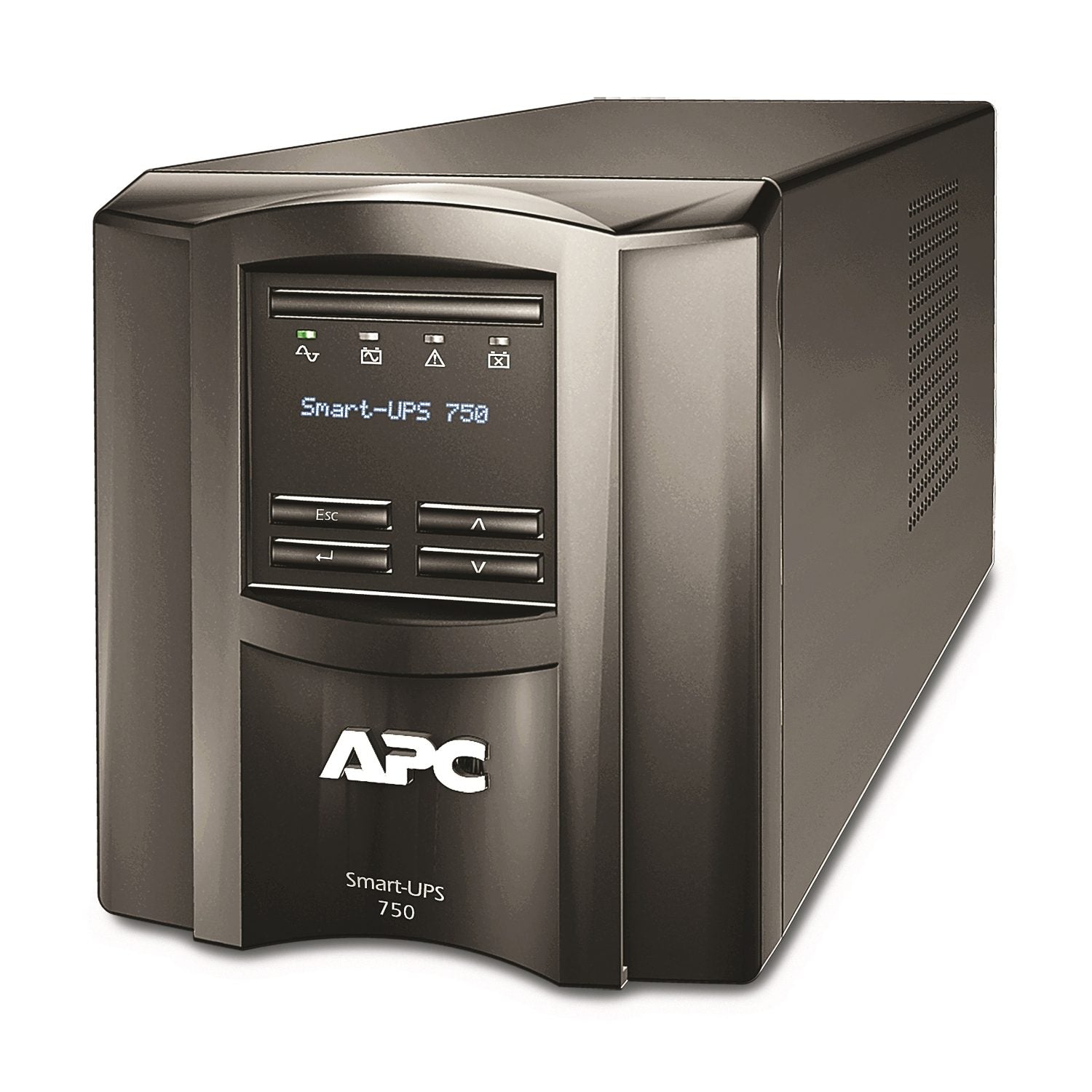

APC Smart-UPS SMT750CUS — 750VA Tower Line-Interactive UPS
The SMT750CUS delivers 750VA / 500W of clean pure sine wave power in a tower form factor designed for 120V environments. As part of APC's Smart-UPS line-interactive series, it provides Automatic Voltage Regulation to correct utility brownouts and surges without unnecessary battery cycling — the practical difference between a UPS that lasts five years and one that needs new batteries in two.
Why Line-Interactive UPS for This Load Range?
Line-interactive topology sits between basic standby UPS (no voltage regulation) and double-conversion on-line UPS (continuous inverter operation). For loads in the 750VA range serving servers, network equipment, and VoIP infrastructure, line-interactive provides the right balance of power quality, energy efficiency, and acquisition cost. Connected equipment sees clean pure sine wave output during voltage events, but the unit doesn't waste energy or battery life converting power continuously when utility power is acceptable.
Key Features
- Pure Sine Wave Output: The pure sine wave inverter matches the waveform of utility power, ensuring compatibility with active PFC server power supplies, medical-grade equipment, and other devices that reject approximated waveforms.
- Automatic Voltage Regulation (AVR): When utility voltage drifts outside acceptable thresholds, AVR corrects the output without engaging the battery, reducing battery cycling and extending replacement intervals — a practical TCO benefit over the life of the UPS.
- APC SmartConnect Cloud Port: Cloud-based remote management through the APC SmartConnect portal eliminates the need for VPN access to monitor individual UPS units across multiple sites.
- SmartSlot Expansion Bay: SmartSlot expansion allows post-purchase addition of network management, environmental sensors, or contact closure modules without replacing the UPS.
- LCD Diagnostic Display: LCD displays load percentage, estimated runtime, input and output voltages, and recent event history for at-the-rack diagnostics.
- User-Replaceable Battery: Field-replaceable battery cartridges allow internal IT teams to perform routine battery refreshes. Questyme keeps compatible replacement cartridges in inventory.
- PowerChute Compatibility: Graceful shutdown of physical servers, hypervisor hosts, and HCI clusters through PowerChute Business Edition or PowerChute Network Shutdown.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 750VA / 500W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Input / Output Voltage | 120V |
| Output Outlets | 6x NEMA 5-15R |
| Form Factor | Tower |
| Management | SmartConnect + SmartSlot |
| Communication Ports | USB, Serial (RS-232) |
| TAA Compliance | Yes — eligible for U.S. federal procurement |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Data Centers and Server Rooms: Protects rack-mounted servers, switches, and storage arrays from utility events that cause unplanned shutdowns, file system corruption, or hardware damage.
- Healthcare and Medical Facilities: Supports patient monitoring systems, laboratory equipment, and EMR infrastructure where NFPA 99 essential power requirements demand reliable battery-backed operation.
- Government and TAA-Compliant Deployments: Specify-friendly UPS for federal, state, and local IT environments where procurement requires verified country-of-origin compliance.
- Financial Services and Banking: Maintains transaction processing systems, ATM controllers, and branch office networks through brownouts and brief outages.
- Network Closets and Branch Offices: Quiet, compact protection for distributed network infrastructure where on-site IT support is limited.
Power Expert Consultation Available
Questyme has been an APC authorized reseller since 2009. Our team can verify compatibility with your existing rack hardware, recommend appropriate runtime configurations, and provide TAA and procurement documentation when needed. Request a consultation before specifying.
Specifications
Overview
Model
APC Smart-UPS 750VA LCD 120V with SmartConnect TAA-Compliant
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
500 W
Rated Power in VA
750
Input Connection Type
NEMA 5-15P
Output Connection Type
6 NEMA 5-15R
Max Configurable Power in VA
750 VA
Max Configurable Power in W
500 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Physical
Color
Black
Mounting Mode
Not rack-mountable
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 11.85Width: 19.65Length: 10.94
Shipping Weight
30.91 lb
UPC Code
731304424406
Lead time
Usually in Stock
Provided Equipment
CD with software
Product Certifications
cULus
ENERGY STAR V2.0 (USA)
TAA compliance
ENERGY STAR V2.0 (USA)
TAA compliance
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
457
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
