- Converts Smart-UPS SRT 1kVA, 1.5kVA, 2.2kVA, and 3kVA tower models to standard 19-inch 4-post rackmount
- Designed for EIA-310 standard 19-inch rack enclosures — fits most server rack brands
- Sliding rail design allows full UPS extension for rear-panel access without removal from rack
- Includes all mounting hardware — no additional tools or adapters required
- Compatible with both 2-post and 4-post rack configurations when used with appropriate rail kit
Product Highlights
Documents
Description

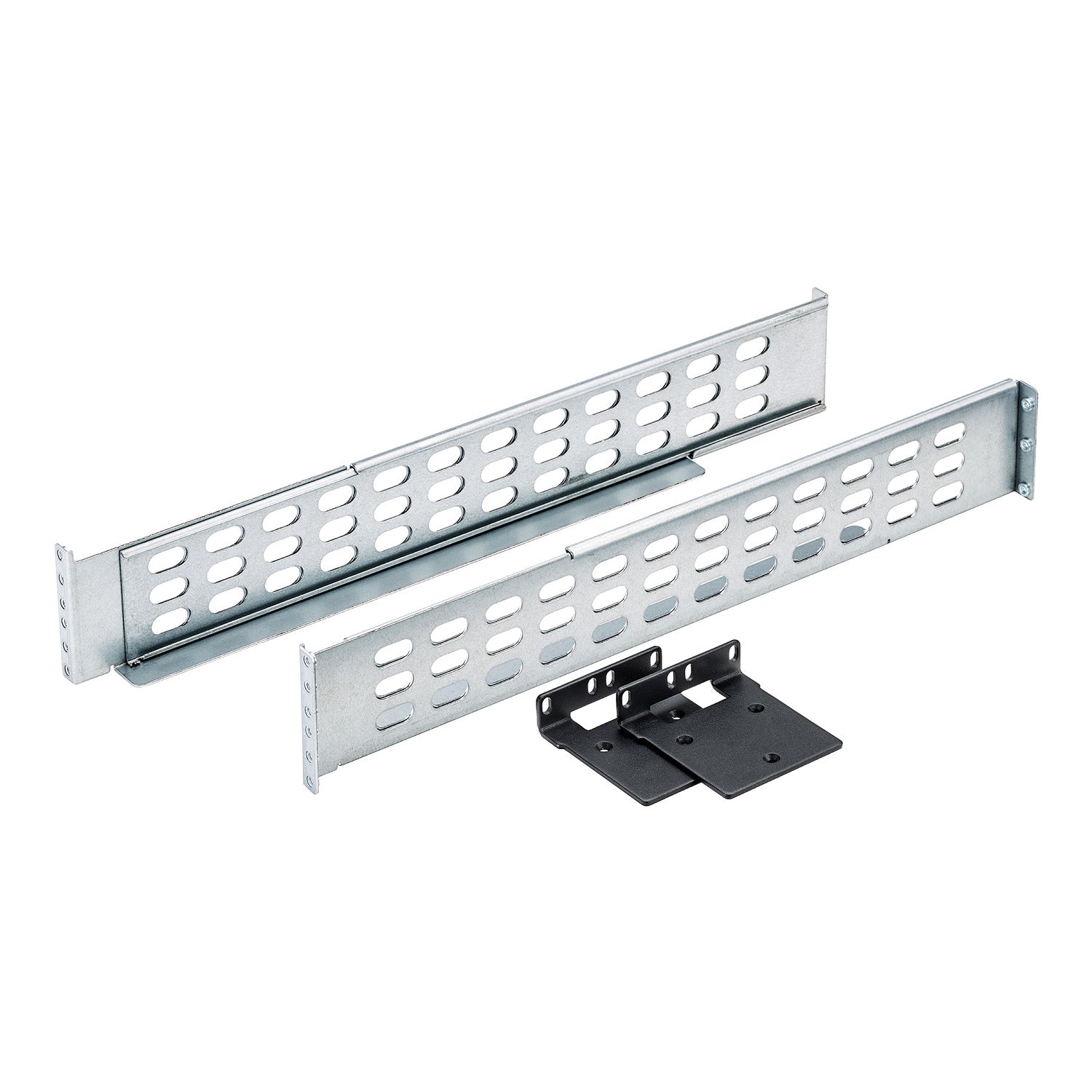

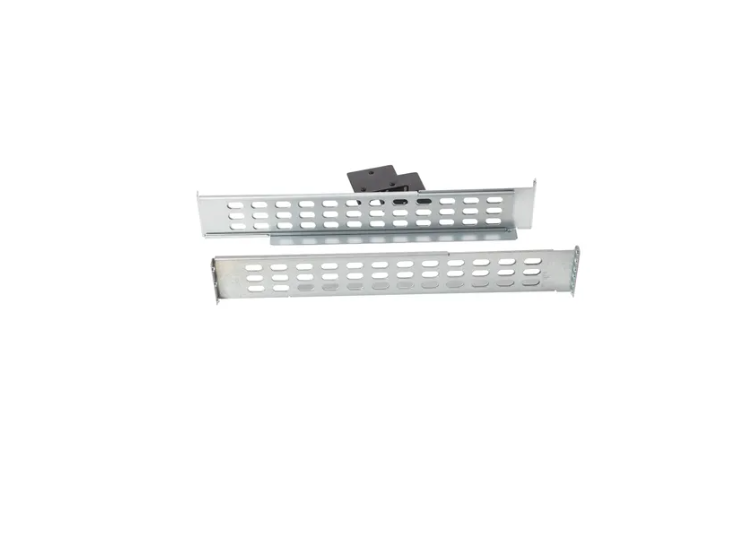

APC Smart-UPS SRT 19-Inch Rail Kit — 1/1.5/2.2/3kVA Models (SRTRK4)
The SRTRK4 rail kit enables rack integration of APC Smart-UPS SRT 1kVA, 1.5kVA, 2.2kVA, and 3kVA UPS units into standard 19-inch, 4-post rack enclosures. If you purchased an SRT tower model or need to re-deploy an existing unit into a rack environment, this kit provides the hardware to complete that transition cleanly — without purchasing a separate rackmount SKU. The result is a properly secured, slide-out UPS installation that allows rear-panel access without full unit removal.
Compatibility
- SRT1000XLA, SRT1000RMXLA, and related 1kVA SRT variants
- SRT1500XLA, SRT1500RMXLA, and related 1.5kVA SRT variants
- SRT2200XLA, SRT2200RMXLA, SRT2200XLAUS, and related 2.2kVA SRT variants
- SRT3000XLA, SRT3000RMXLA, SRT3000XLAUS, and related 3kVA SRT variants
Specifications
| Specification | Detail |
|---|---|
| Rack Width | 19-inch EIA-310 standard |
| Post Configuration | 4-post (square hole or round hole) |
| Mounting Type | Sliding rail with full UPS extension |
| Hardware Included | Yes — all rack screws and brackets included |
| Compatible UPS Sizes | 1kVA, 1.5kVA, 2.2kVA, 3kVA SRT models |
Need Help Configuring Your SRT Rackmount Deployment?
Questyme's power infrastructure team works with IT managers and facilities teams to plan SRT rackmount deployments from the ground up — including rail kit selection, rack positioning, battery pack cabling, and management card configuration. Whether you are consolidating a single row or deploying across multiple sites, we help you get the configuration right the first time. Contact Questyme for a no-obligation consultation.
Specifications
Overview
Model
"APC Smart-UPS SRT 19" Rail Kit for SRT 1/1.5/2.2/3kVA"
Physical
Mounting Mode
Rack-mounted
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 2.76Width: 7.28Length: 27.36
Shipping Weight
7.39 lb
UPC Code
731304322436
Lead time
Usually in Stock
Provided Equipment
Installation guide
Mounting Hardware
Rack Mounting brackets
Mounting Hardware
Rack Mounting brackets
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
'-105-284 ?F (-76-140 ?C)
Ambient Air Temperature for Storage
'-105-284 ?F (-76-140 ?C)
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-10000 ft (0.0000000000-3048.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
