- External 192V battery pack for APC Smart-UPS SRT series — extends backup runtime well beyond the standard internal battery
- Tower form factor matching the host SRT UPS chassis
- Hot-pluggable — connect or replace without taking the UPS offline
- Questyme can run runtime calculations to determine the right battery pack count for your connected load
Product Highlights
Documents
Description

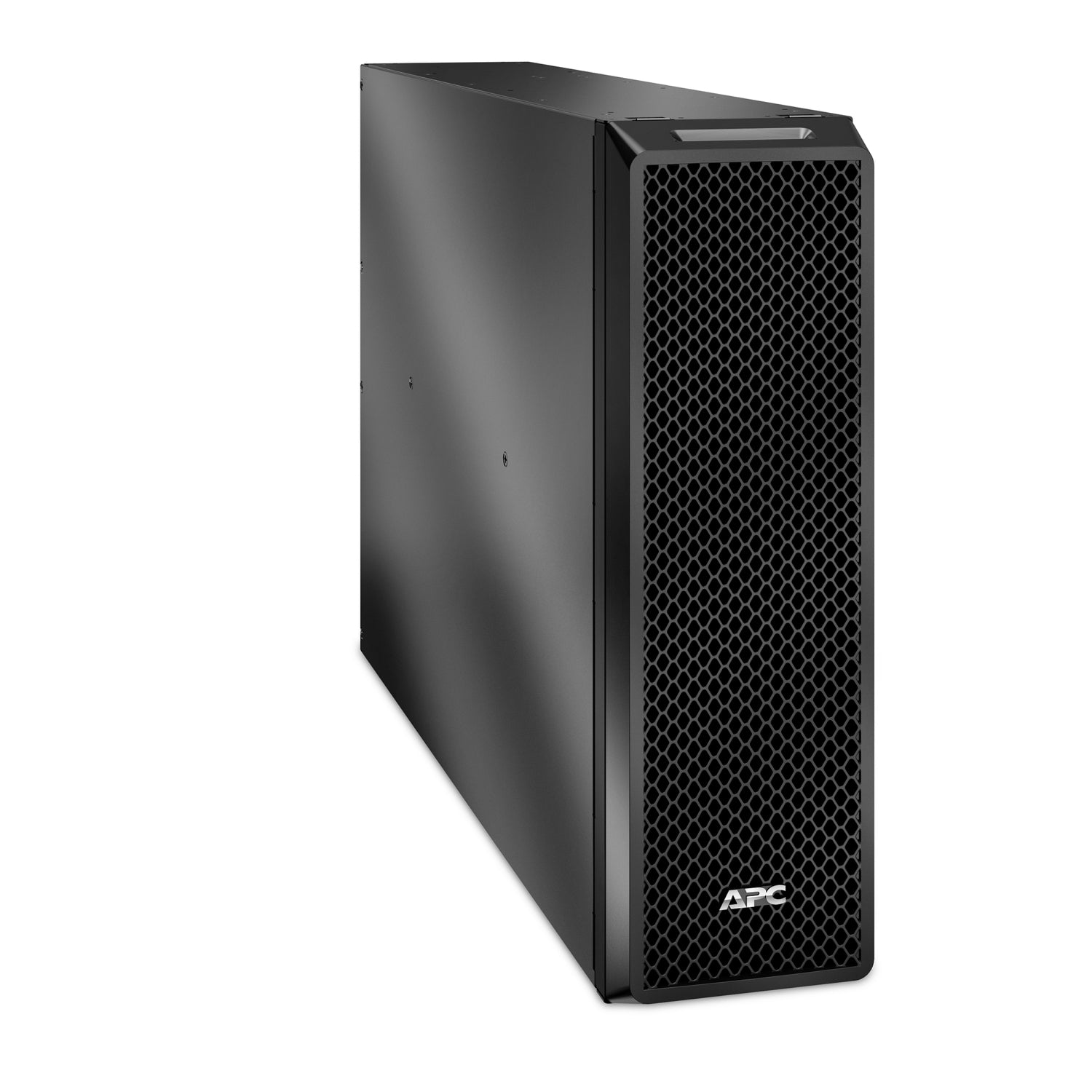

APC Smart-UPS SRT External Battery Pack — 192V, Extended Runtime for 5/6kVA
The SRT192BP is an external battery pack that extends the backup runtime of compatible APC Smart-UPS SRT on-line UPS units. Where the SRT's internal battery delivers minutes of runtime under typical load, attaching external battery packs extends that to hours — critical for environments without standby generators or where transfer time exceeds the standard runtime envelope.
Compatibility
- APC Smart-UPS SRT series at the 192V battery voltage
- Compatible with 5/6kVA SRT models
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 192V |
| Form Factor | Tower |
| Compatibility | 5/6kVA SRT UPS |
| Hot-Swap | Yes — no UPS downtime to add or replace |
| Warranty | 2-year |
Right-Sizing Runtime — Talk to a Questyme Specialist
The right number of external battery packs depends on actual connected load, runtime target, and generator coordination plans. Adding too many packs is expensive overhead; too few defeats the purpose. Questyme builds a runtime model for your specific environment before recommending pack count. Contact Questyme for a runtime assessment.
Specifications
Overview
Model
APC Smart-UPS SRT 192V 5kVA and 6kVA Battery Pack
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Physical
Color
Black
Mounting Mode
Rack-mounted with kit
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 16.54Width: 23.62Length: 39.37
Shipping Weight
223.769 lb
UPC Code
731304301769
Lead time
Usually in Stock
Provided Equipment
Documentation CD
Installation guide
Warranty card
Installation guide
Warranty card
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
749
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-15000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance
