- External 192V battery pack for APC Smart-UPS SRT series — extends backup runtime well beyond the standard internal battery
- Rackmount form factor matching the host SRT UPS chassis
- Hot-pluggable — connect or replace without taking the UPS offline
- TAA compliant for U.S. federal procurement
- Questyme can run runtime calculations to determine the right battery pack count for your connected load
Product Highlights
Description

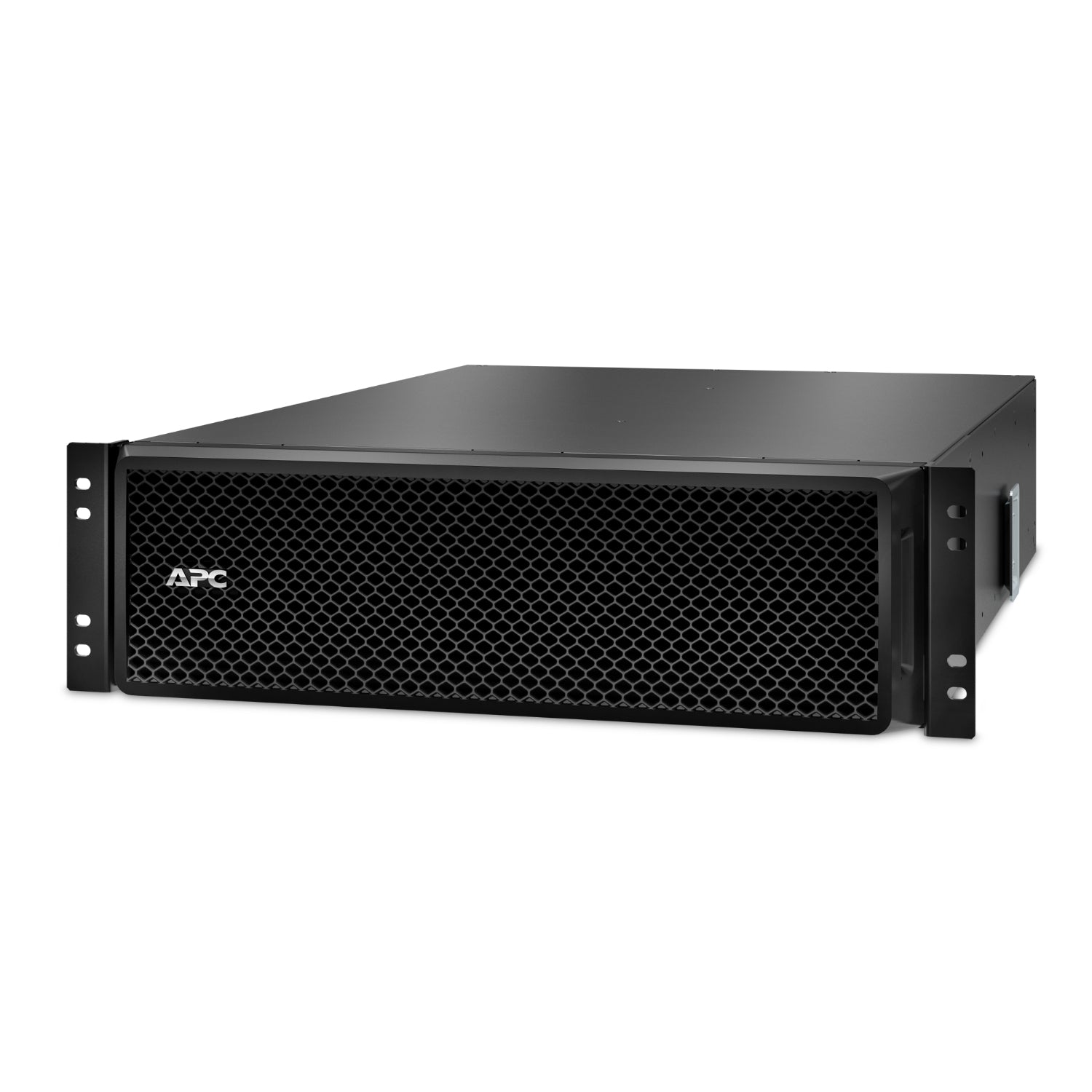

APC Smart-UPS SRT External Battery Pack — 192V, Extended Runtime for 5kVA
The SRT192RMBPUS is an external battery pack that extends the backup runtime of compatible APC Smart-UPS SRT on-line UPS units. Where the SRT's internal battery delivers minutes of runtime under typical load, attaching external battery packs extends that to hours — critical for environments without standby generators or where transfer time exceeds the standard runtime envelope.
Compatibility
- APC Smart-UPS SRT series at the 192V battery voltage
- Compatible with 5kVA SRT models
- TAA compliant — eligible for U.S. federal procurement and GSA Schedule
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 192V |
| Form Factor | Rackmount |
| Compatibility | 5kVA SRT UPS |
| Hot-Swap | Yes — no UPS downtime to add or replace |
| Warranty | 2-year |
Right-Sizing Runtime — Talk to a Questyme Specialist
The right number of external battery packs depends on actual connected load, runtime target, and generator coordination plans. Adding too many packs is expensive overhead; too few defeats the purpose. Questyme builds a runtime model for your specific environment before recommending pack count. Contact Questyme for a runtime assessment.
Specifications
Overview
Model
APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack TAA
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Physical
Color
Black
Mounting Mode
Not rack-mountable
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 16.54Width: 39.37Length: 23.62
Shipping Weight
232.1 lb
UPC Code
731304379898
Lead time
Usually in Stock
Provided Equipment
Installation guide
Warranty card
Warranty card
Environmental
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
