- 3.0kVA / 2.9kW true double-conversion on-line UPS — zero transfer time to battery, full isolation from utility power events
- 120V input/output — 2u rackmount, compatible with standard 19-inch racks (rail kit included)
- Network Management Card included — SNMP, web management, EcoStruxure IT integration, environmental monitoring out of the box
- Extended runtime capable through APC SRT external battery packs — sized for your specific runtime requirement
- 3-year UPS warranty; Questyme can scope generator coordination, runtime targets, and bypass requirements before specification
Product Highlights
Documents
Description

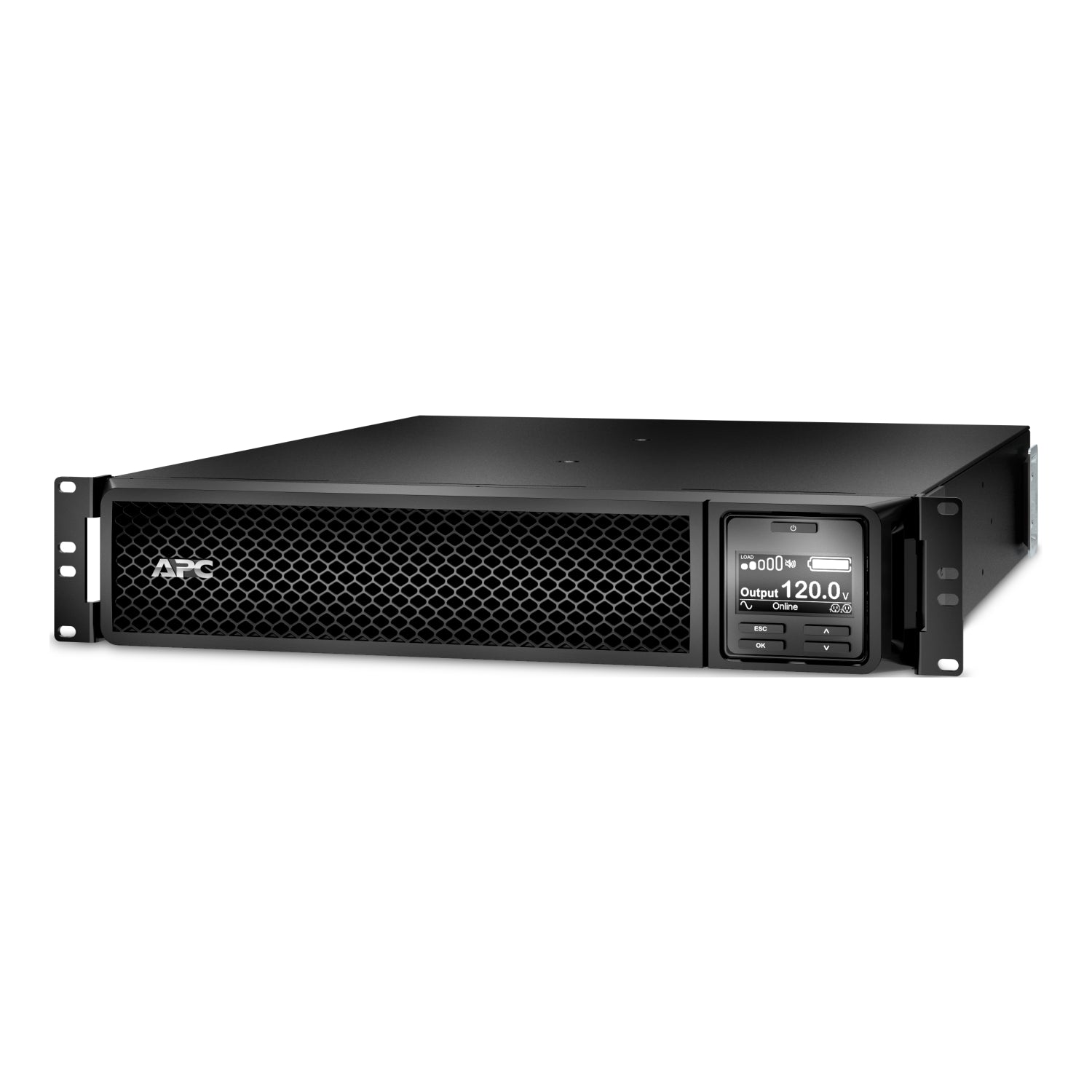

APC Smart-UPS SRT SRT3000RMXLA-NC — 3.0kVA / 2.9kW 2U Rackmount Double-Conversion On-Line UPS
The SRT3000RMXLA-NC is a double-conversion on-line UPS in the 3.0kVA class — the highest level of power protection APC offers in this size range. Unlike line-interactive UPS units that bypass utility power when it falls within acceptable bounds, the SRT continuously converts incoming AC to DC and back to AC through its inverter. The connected equipment never sees raw utility power and the transition to battery is instantaneous (zero milliseconds transfer time).
Why Double-Conversion On-Line Matters at This Capacity
For loads in the 3.0kVA range serving rack-scale data center workloads, healthcare diagnostic equipment, financial transaction infrastructure, or government mission systems, the cost premium of an on-line UPS over a line-interactive UPS is justified by what double-conversion eliminates: no transfer events, no voltage waveform distortion passed to equipment, no failed transfers from neutral-shifted or low-frequency utility events. The SRT continuously regenerates clean pure sine wave power.
Key Features
- True Double-Conversion On-Line Topology: Continuous AC-DC-AC inverter operation. Connected equipment is always on inverter power, never raw utility.
- Zero Transfer Time to Battery: Power events of any duration are absorbed without a transfer event reaching connected equipment.
- Extended Runtime Capable: Supports APC SRT external battery packs for runtime extension well beyond internal battery capacity.
- AP9641 Network Management Card 3 Included: Out-of-box SNMP/web/CLI management, environmental monitoring port, EcoStruxure IT integration.
- Wide Input Voltage Window: Accepts a broader input range than line-interactive UPS, reducing battery cycling on marginal utility power.
- Pure Sine Wave Output: Compatible with all modern active power-factor-corrected loads — servers, blade chassis, network equipment, medical-grade devices.
Technical Specifications
| Specification | Value |
|---|---|
| kVA / kW | 3.0kVA / 2.9kW |
| Topology | Double-Conversion On-Line |
| Output Waveform | Pure Sine Wave (Continuous) |
| Input / Output Voltage | 120V |

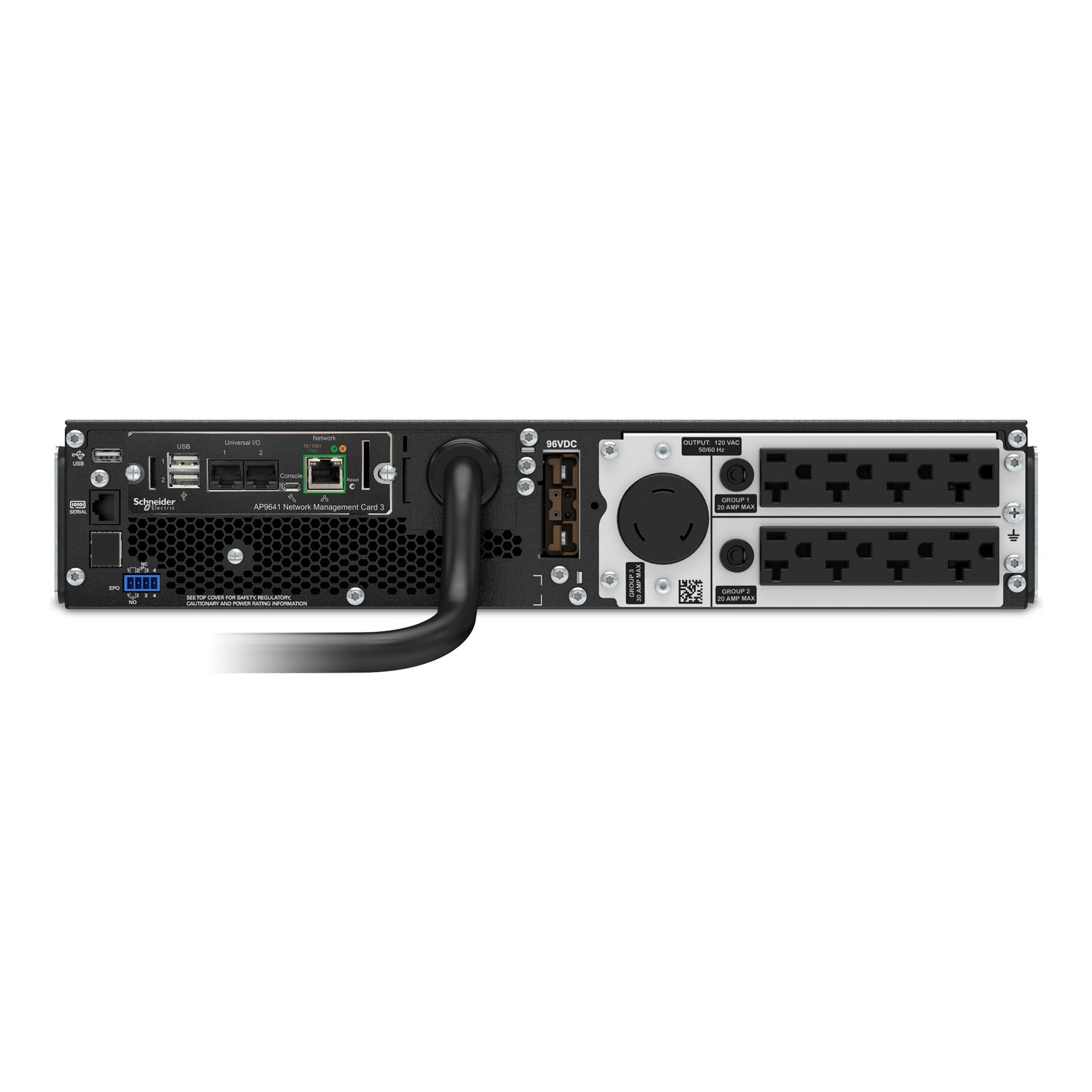

| Output Outlets | 8x 5-20R+1x L5-30R |
| Form Factor | 2U Rackmount |
| Management | AP9641 NMC3 included |
| Extended Runtime | Supports APC SRT external battery packs |
| TAA Compliance | Standard model (TAA variant available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Mission-Critical Data Centers: Rack-scale on-line protection for tier-aligned data center power architectures where any transfer event is unacceptable.
- Healthcare and Medical Imaging: Type 1 Essential Electrical System equipment, MRI control systems, CT scanners, and patient monitoring infrastructure under NFPA 99.
- Financial Services and Trading Infrastructure: Trading floor workstations, transaction processing servers, ATM controllers, and banking branch infrastructure.
- Government Facilities : Federal IT systems, emergency operations centers, 911 dispatch infrastructure, and continuity-of-operations sites.
- Manufacturing and Industrial Process Controls: SCADA workstations, DCS controllers, robotic cell controllers, and quality lab instrumentation.
- Broadcast, Production, and Media Infrastructure: Master control rooms, production switchers, and post-production rendering systems where audio/video frame drops are unacceptable.
Specifying a Double-Conversion UPS Correctly
On-line UPS selection at this capacity involves more than VA matching: input voltage and circuit availability, output voltage and outlet types, generator coordination, bypass panel requirements, and runtime targets all factor in. Questyme's power specialists have worked with healthcare engineers, data center architects, and government procurement officers to specify SRT deployments that fit both technical requirements and procurement constraints. Speak with a Questyme power expert before finalizing specification.
Specifications
Overview
Model
APC Smart-UPS SRT 3000VA RM 120V Network Card
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
2700 W
Rated Power in VA
3000
Input Connection Type
NEMA L5-30P
Output Connection Type
8 NEMA 5-20R, 1 NEMA L5-30R
Max Configurable Power in VA
3000 VA
Max Configurable Power in W
2700 W
Topology
Double Conversion Online
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 9.69Width: 34.29Length: 23.58
Shipping Weight
88.009 lb
UPC Code
731304325178
Lead time
Usually in Stock
Provided Equipment
CD with softwareDocumentation CDInstallation guideNetwork Management CardRack Mounting bracketsRack Mounting support railsUSB cableWarranty card
Product Certifications
ENERGY STAR V2.0 (USA)
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
4974
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
