- External 72V battery pack for APC Smart-UPS SRT series — extends backup runtime well beyond the standard internal battery
- Rackmount form factor matching the host SRT UPS chassis
- Hot-pluggable — connect or replace without taking the UPS offline
- Questyme can run runtime calculations to determine the right battery pack count for your connected load
Product Highlights
Documents
Description

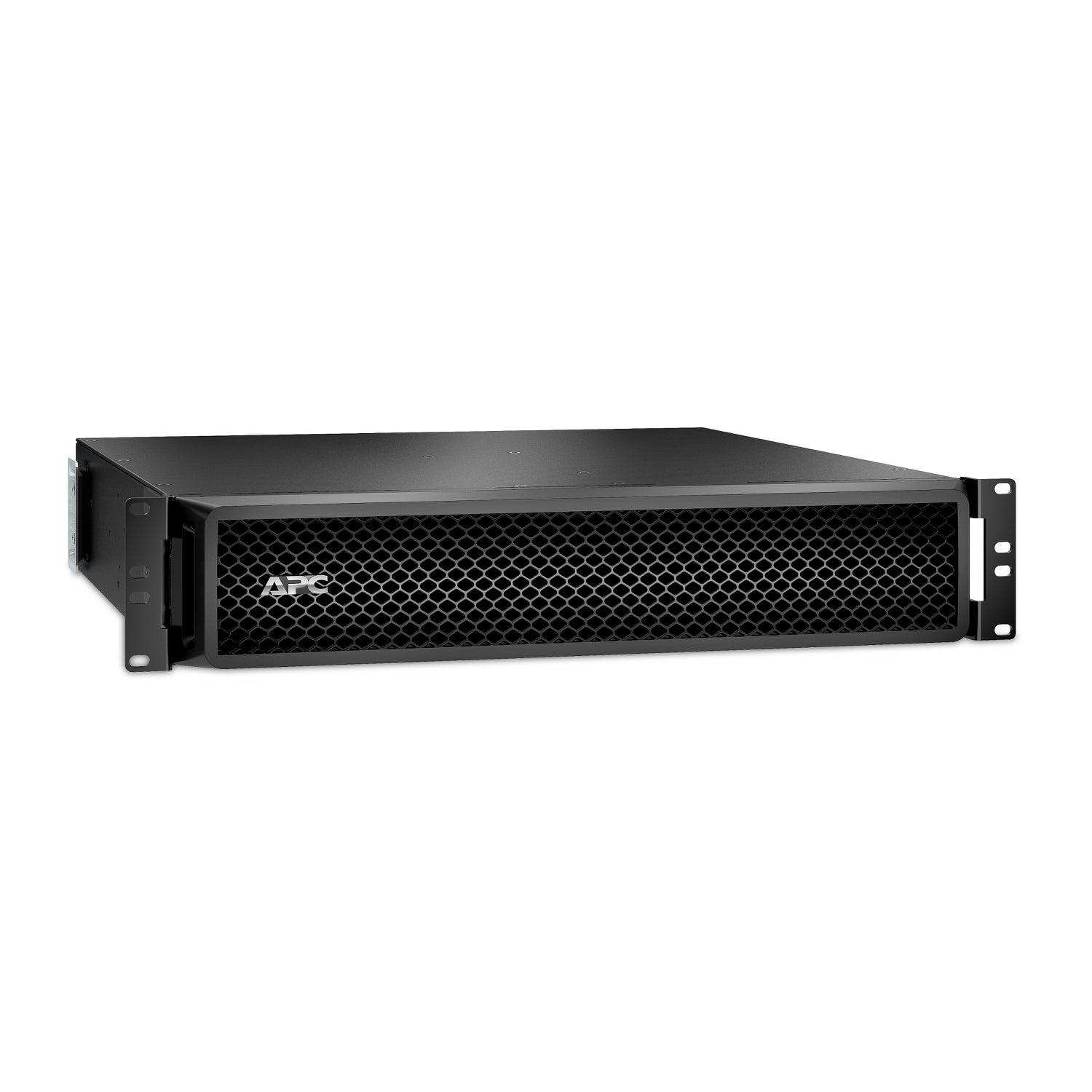

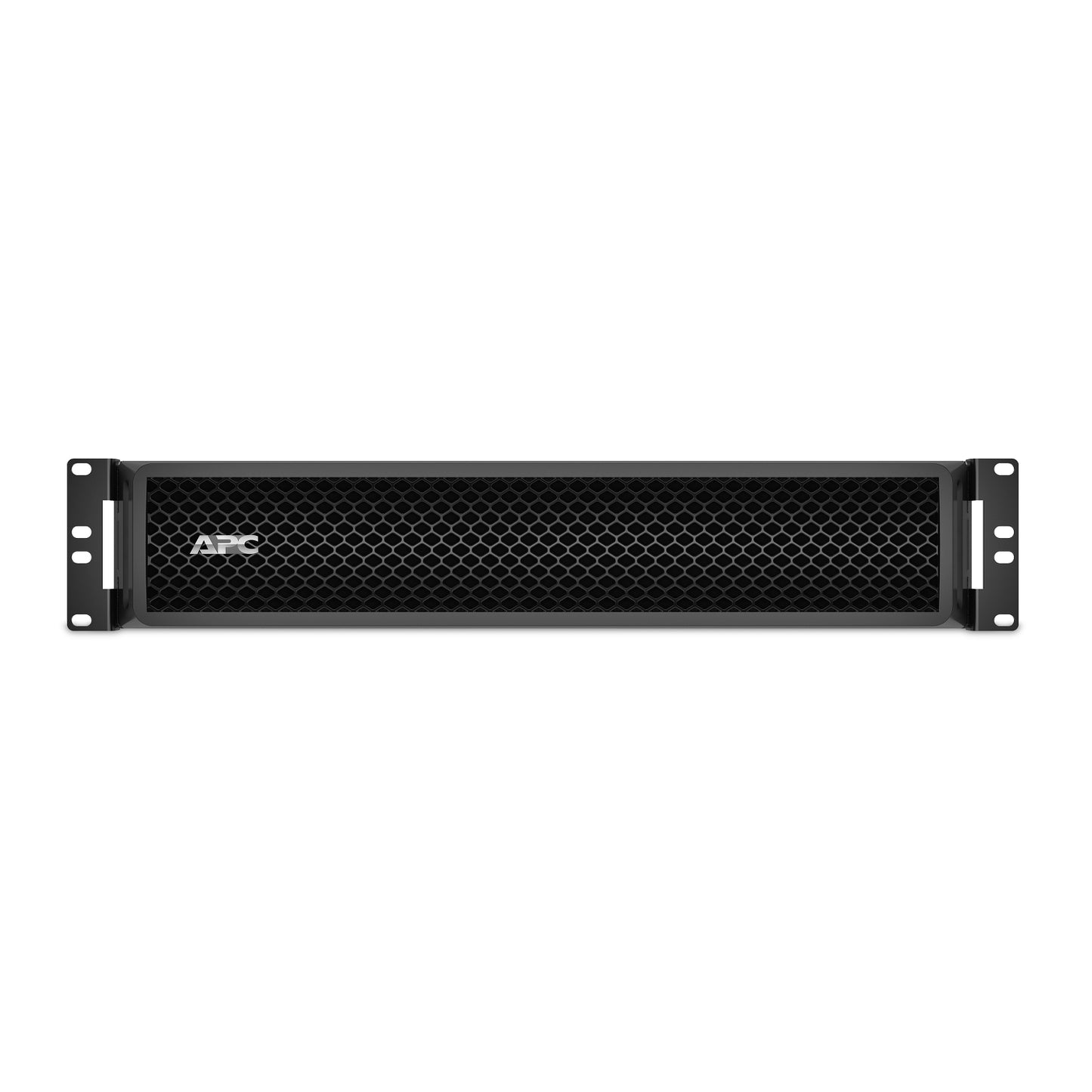

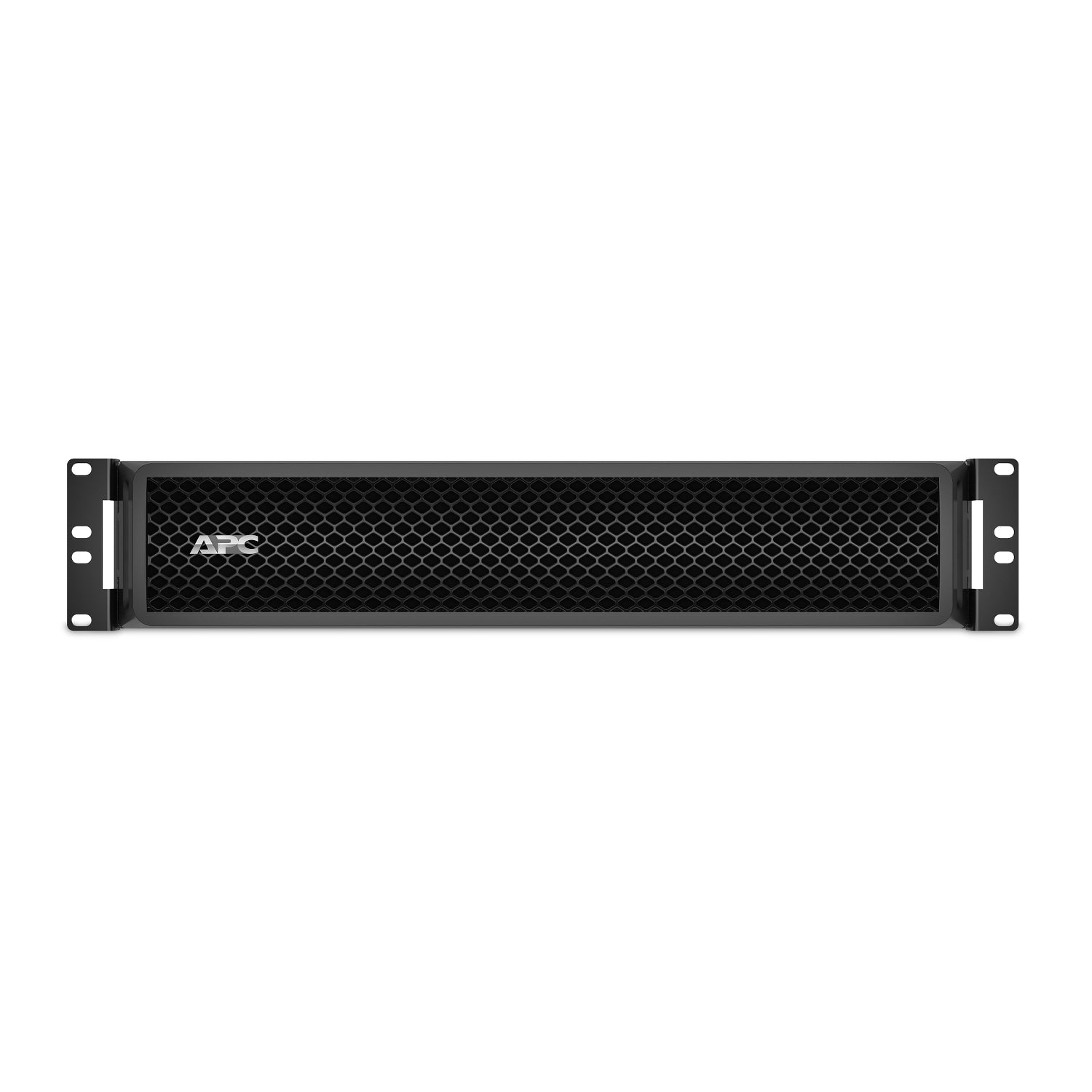

APC Smart-UPS SRT External Battery Pack — 72V, Extended Runtime for 2.2kVA
The SRT72RMBP is an external battery pack that extends the backup runtime of compatible APC Smart-UPS SRT on-line UPS units. Where the SRT's internal battery delivers minutes of runtime under typical load, attaching external battery packs extends that to hours — critical for environments without standby generators or where transfer time exceeds the standard runtime envelope.
Compatibility
- APC Smart-UPS SRT series at the 72V battery voltage
- Compatible with 2.2kVA SRT models
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 72V |
| Form Factor | Rackmount |
| Compatibility | 2.2kVA SRT UPS |
| Hot-Swap | Yes — no UPS downtime to add or replace |
| Warranty | 2-year |
Right-Sizing Runtime — Talk to a Questyme Specialist
The right number of external battery packs depends on actual connected load, runtime target, and generator coordination plans. Adding too many packs is expensive overhead; too few defeats the purpose. Questyme builds a runtime model for your specific environment before recommending pack count. Contact Questyme for a runtime assessment.
Specifications
Overview
Model
APC Smart-UPS SRT 72V 2.2kVA RM Battery Pack
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Physical
Color
Black
Mounting Mode
Rack-mounted
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 9.41Width: 23.58Length: 32.72
Shipping Weight
89.993 lb
UPC Code
731304317715
Lead time
Usually in Stock
Provided Equipment
Documentation CD
Installation guide
Rack Mounting brackets
Warranty card
Installation guide
Rack Mounting brackets
Warranty card
Standards
OSHPD
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance
