- External 96V battery pack for APC Smart-UPS SRT series — extends backup runtime well beyond the standard internal battery
- Rackmount form factor matching the host SRT UPS chassis
- Hot-pluggable — connect or replace without taking the UPS offline
- Questyme can run runtime calculations to determine the right battery pack count for your connected load
Product Highlights
Documents
Description

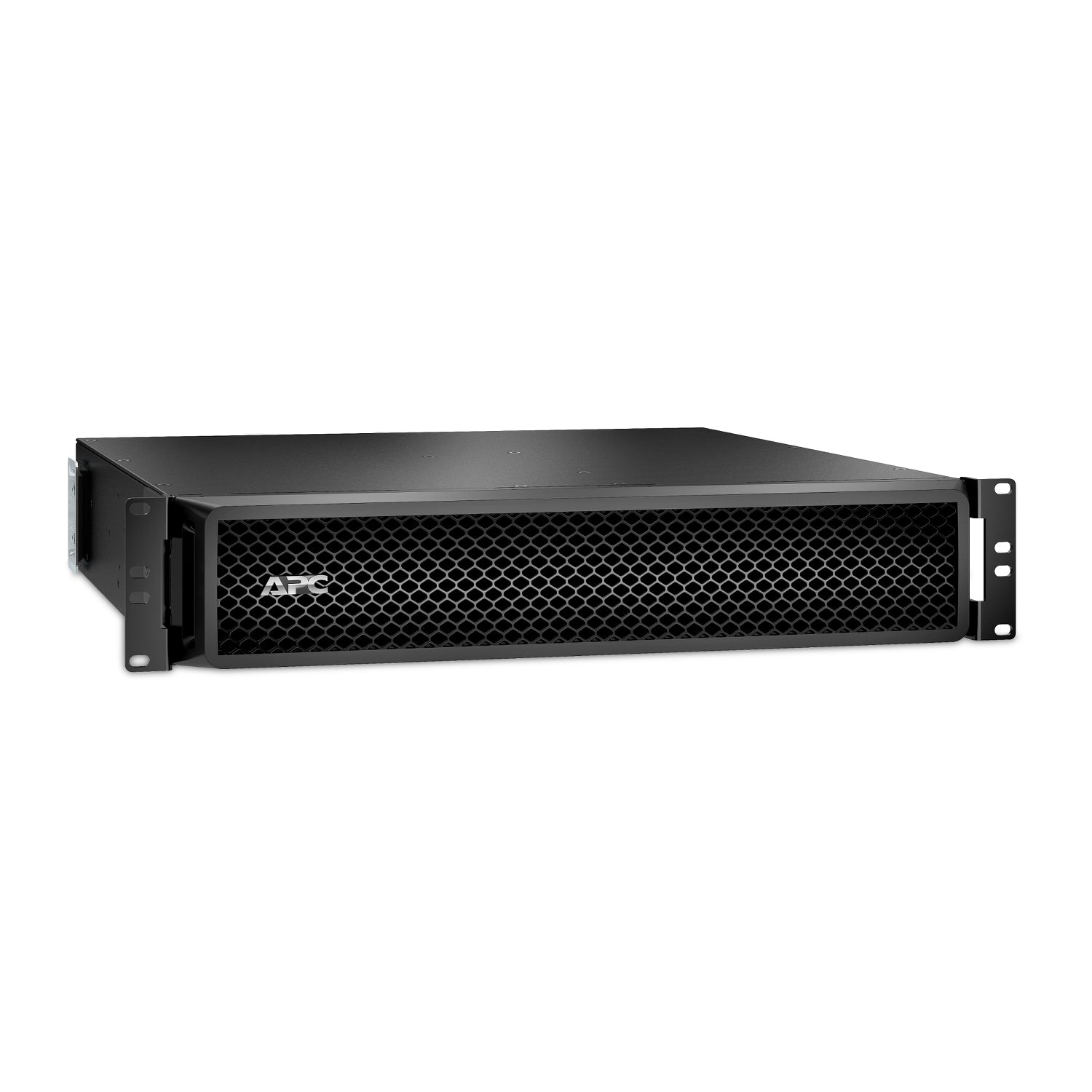

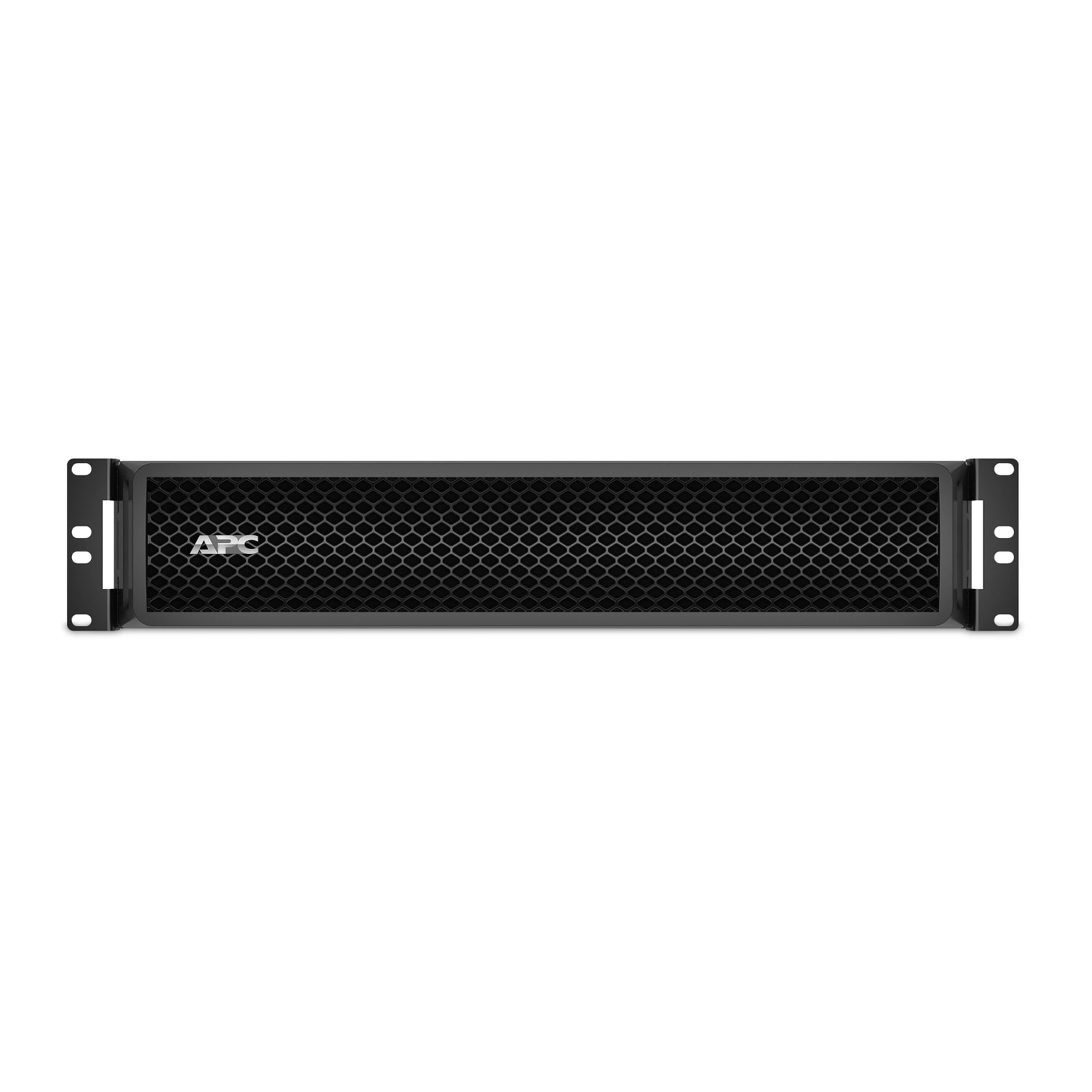

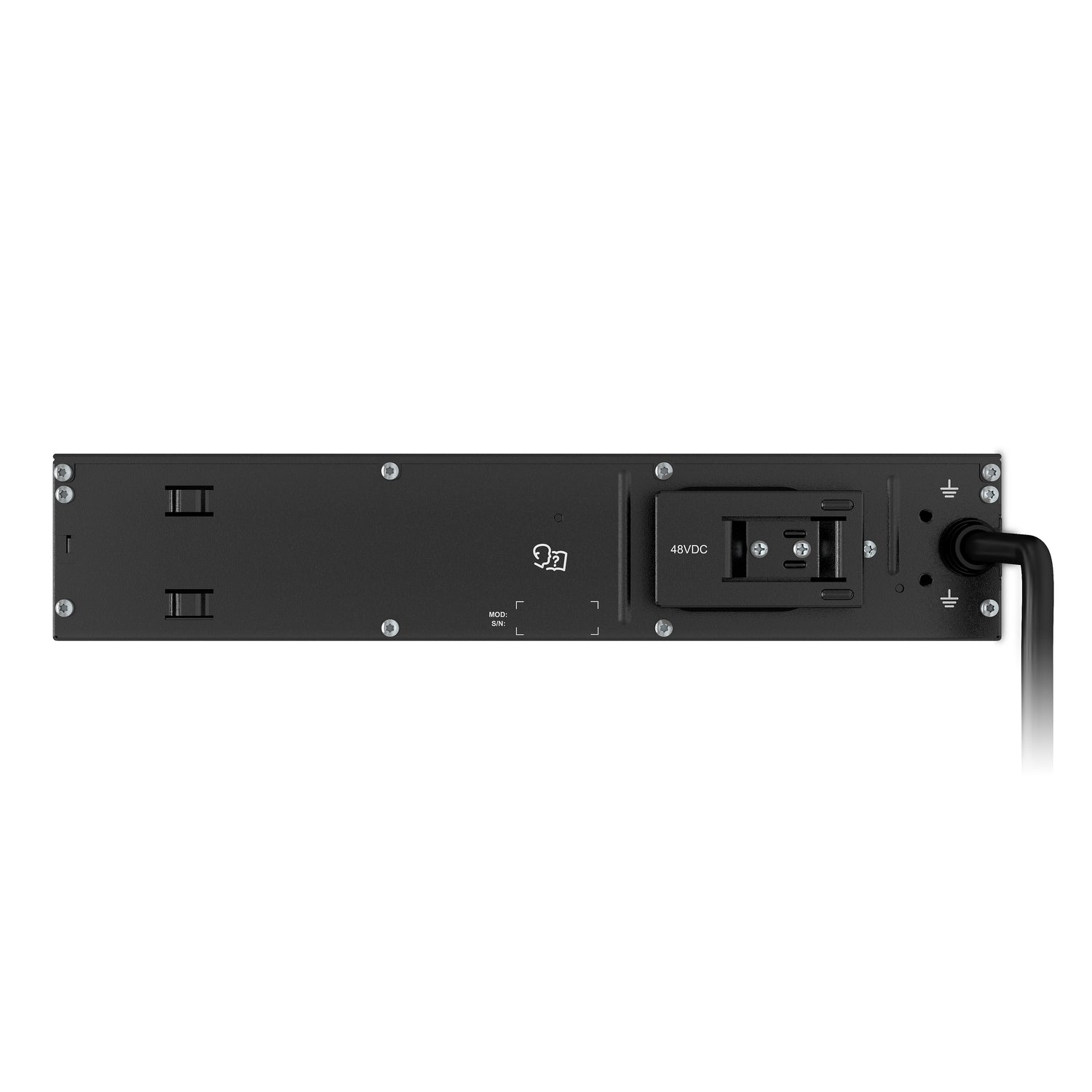

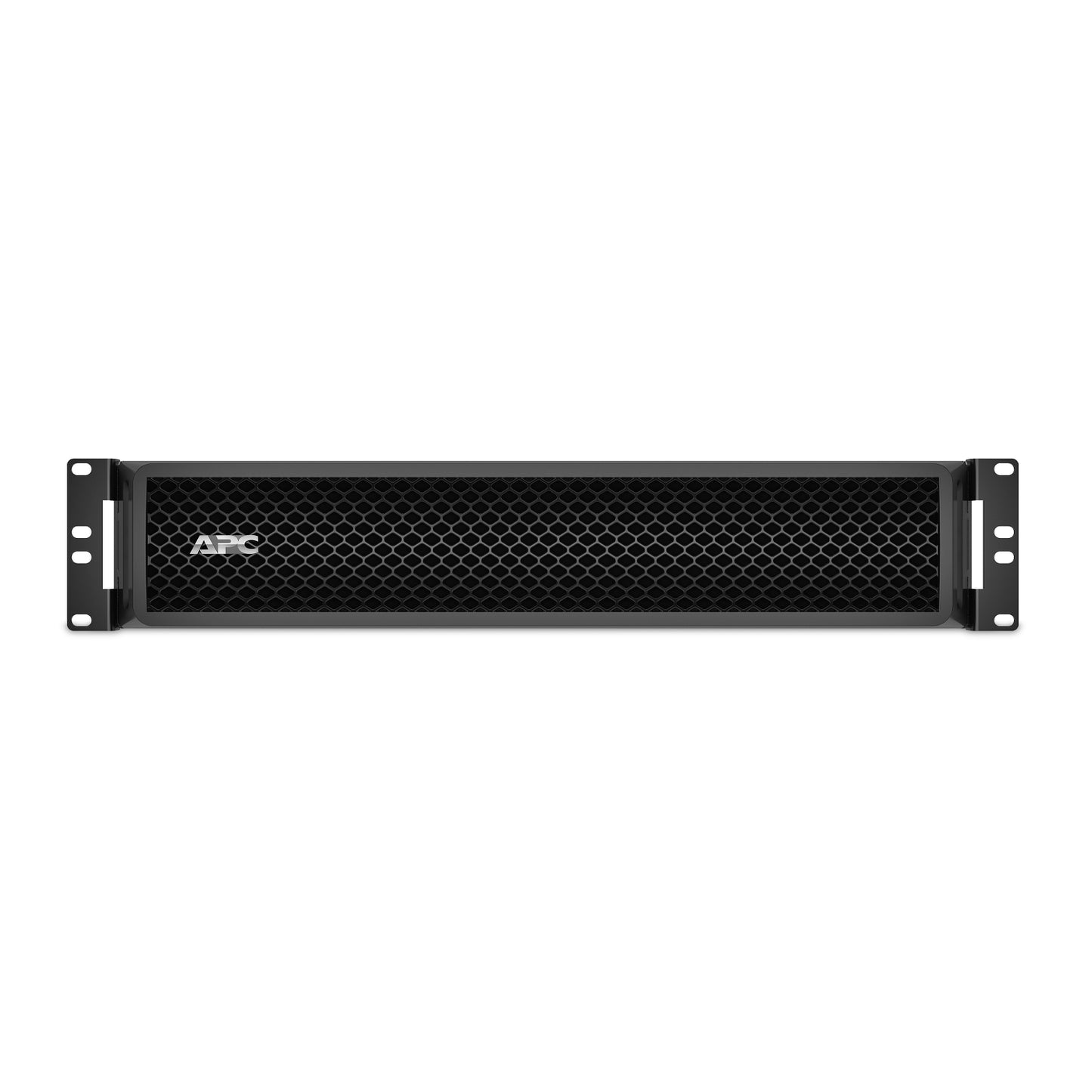

APC Smart-UPS SRT External Battery Pack — 96V, Extended Runtime for 3kVA
The SRT96RMBP is an external battery pack that extends the backup runtime of compatible APC Smart-UPS SRT on-line UPS units. Where the SRT's internal battery delivers minutes of runtime under typical load, attaching external battery packs extends that to hours — critical for environments without standby generators or where transfer time exceeds the standard runtime envelope.
Compatibility
- APC Smart-UPS SRT series at the 96V battery voltage
- Compatible with 3kVA SRT models
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 96V |
| Form Factor | Rackmount |
| Compatibility | 3kVA SRT UPS |
| Hot-Swap | Yes — no UPS downtime to add or replace |
| Warranty | 2-year |
Right-Sizing Runtime — Talk to a Questyme Specialist
The right number of external battery packs depends on actual connected load, runtime target, and generator coordination plans. Adding too many packs is expensive overhead; too few defeats the purpose. Questyme builds a runtime model for your specific environment before recommending pack count. Contact Questyme for a runtime assessment.
Specifications
Overview
Model
APC Smart-UPS SRT 96V 3kVA RM Battery Pack
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Physical
Color
Black
Mounting Mode
Rack-mounted
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 9.41Width: 23.58Length: 32.72
Shipping Weight
98.106 lb
UPC Code
731304317739
Lead time
Usually in Stock
Provided Equipment
Rack Mounting bracketsUser ManualWarranty card
Standards
OSHPD
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
204
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance
