- 8kVA step-down transformer for APC Smart-UPS SRT — converts 208V UPS output to 120V outlets
- Allows 208V SRT UPS deployments to power 120V equipment without separate distribution hardware
- Multiple NEMA 5-20R and L5-30R outlets for flexible equipment connections
- Designed for rack-mount integration alongside the host SRT UPS
Product Highlights
Documents
Description
APC Smart-UPS SRT Step-Down Transformer — 8kVA, Tower Form Factor
The SRT8KXLT-5KTF is a step-down transformer accessory for APC Smart-UPS SRT on-line UPS deployments. It converts the SRT's 208V output to 120V for outlets like NEMA 5-20R and L5-30R — solving a common problem in environments where the upstream power and UPS are 208V but the connected equipment requires 120V circuits.
When You Need a Step-Down Transformer
SRT UPS units in the 5kVA-10kVA class are typically specified at 208V to match upstream PDU and panel feeds. But many connected loads — servers, workstations, network gear — require 120V outlets. The step-down transformer bridges this by providing 120V outlets downstream of the 208V UPS, eliminating the need for separate panel work or external transformer hardware.
Specifications
| Specification | Value |
|---|---|
| Transformer Rating | 8kVA |
| Input | 208V from host SRT UPS |
| Output | 120V via NEMA outlets |
| Form Factor | Tower |
Questyme Helps Match Transformer to UPS
Transformer sizing must match UPS output and outlet demand. Questyme verifies the right transformer/UPS pairing before shipment. Contact our team to confirm fit.
Specifications
Overview
Model
APC Smart-UPS SRT 8000VA with 208/240V to 120V Step-Down Transformer
Main
Input Voltage
208
Output Voltage
120 ,208
Rated Power in W
8000 W
Rated Power in VA
8000
Input Connection Type
Hard Wire 3-wire (2PH + G)
Output Connection Type

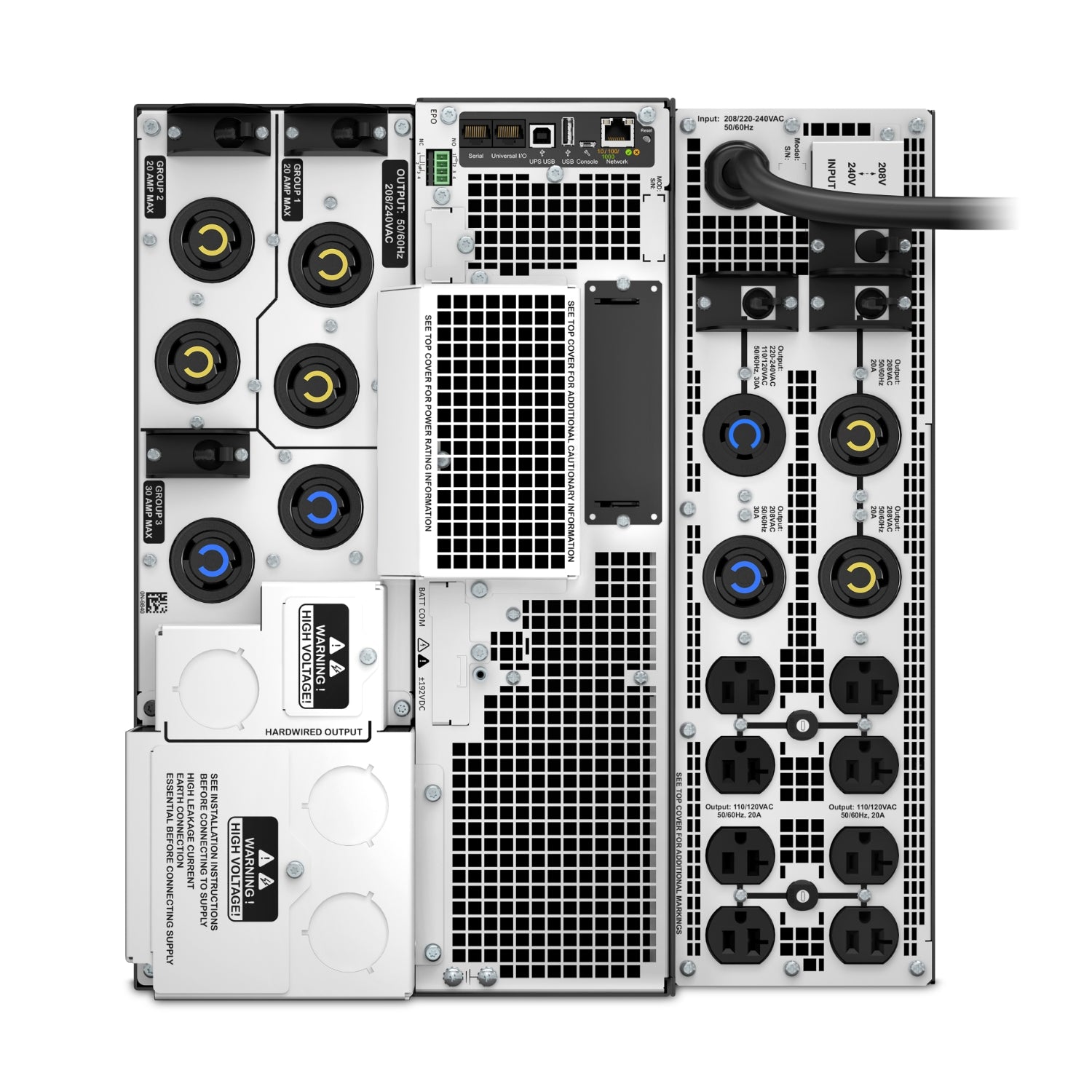

8 NEMA 5-20R, 6 NEMA L6-20R, 2 NEMA L6-30R, 1 NEMA L14-30R, Hard Wire 3-wire (2PH + G)
Max Configurable Power in VA
8000 VA
Max Configurable Power in W
8000 W
Topology
Double Conversion Online
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Physical
Color
Black
Mounting Mode
Rack-mounted with kit
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 31.81Width: 39.37Length: 23.74
Shipping Weight
419.01 lb
UPC Code
731304732983
Lead time
Usually in Stock
Provided Equipment
CD with software
Documentation CD
Installation guide
Temperature Probe
USB cable
Warranty card
Web/SNMP Management Card
Documentation CD
Installation guide
Temperature Probe
USB cable
Warranty card
Web/SNMP Management Card
Product Certifications
ENERGY STAR V2.0 (USA)
FCC part 15 class A
UL 1778
FCC part 15 class A
UL 1778
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
19475
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Acoustic Level
55 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
