Replacement battery (1) is available

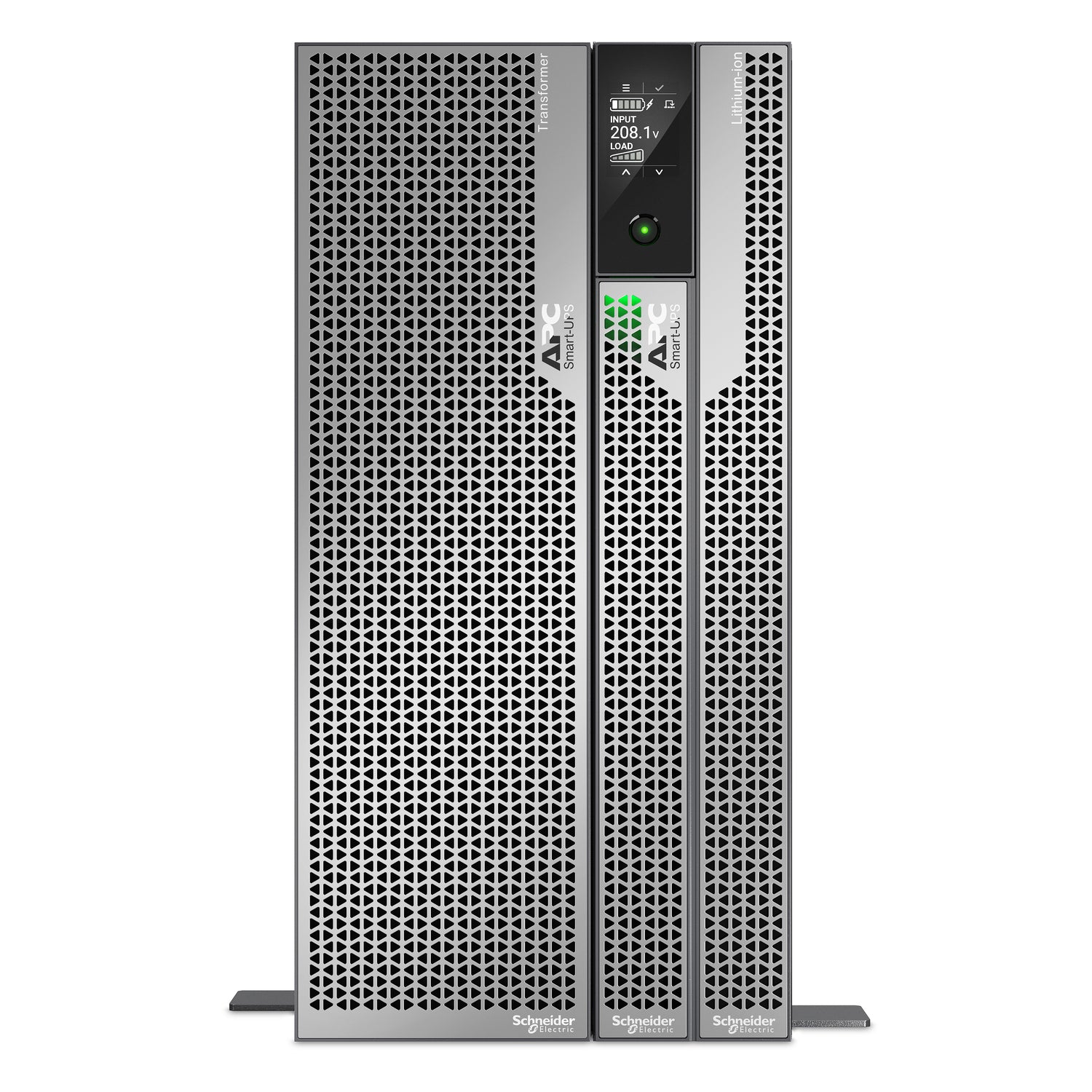

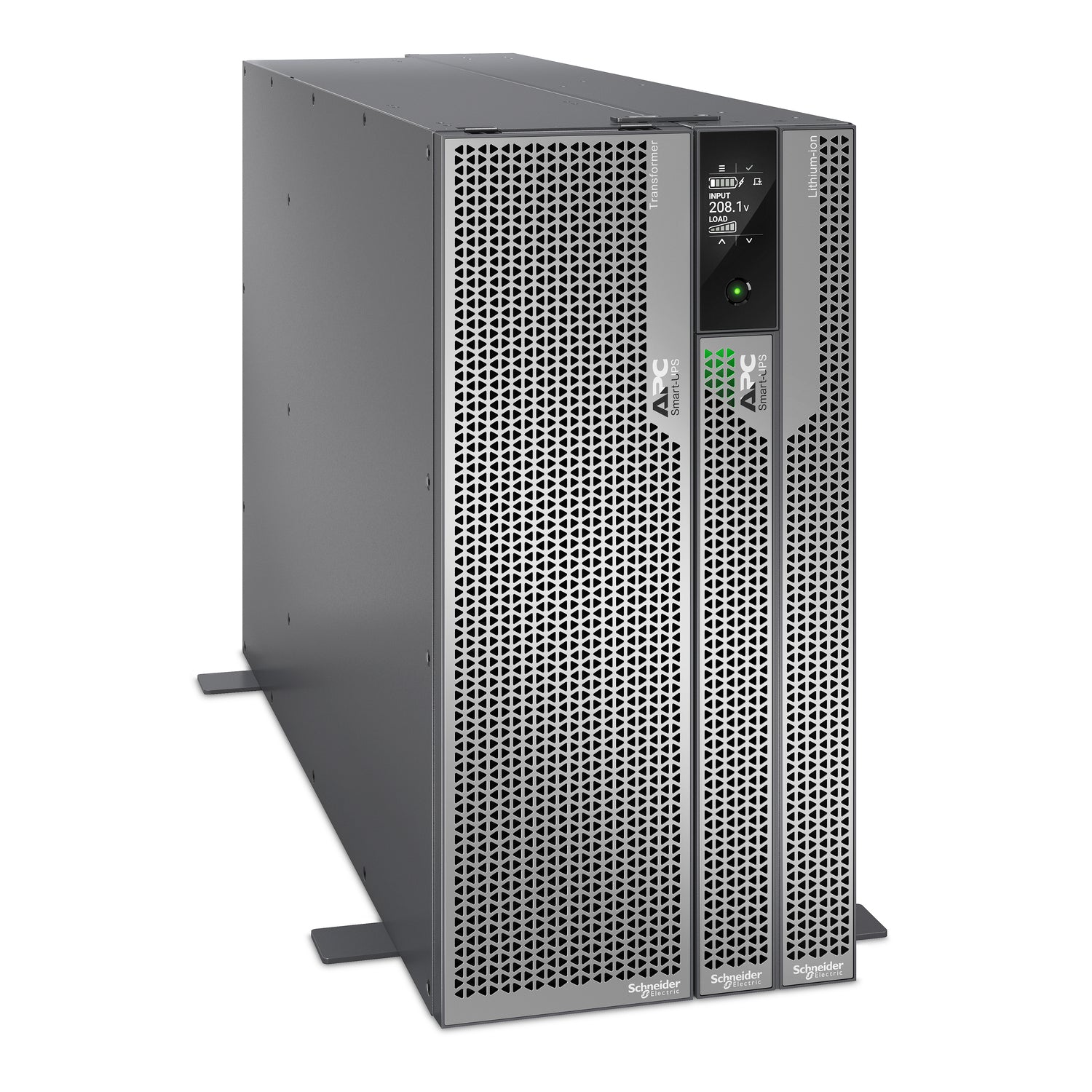

Smart-UPS Ultra 5kW UPS & stepdown transformer
2U UPS and 3U height stepdown transformer
Provides 120V output for 208V UPS

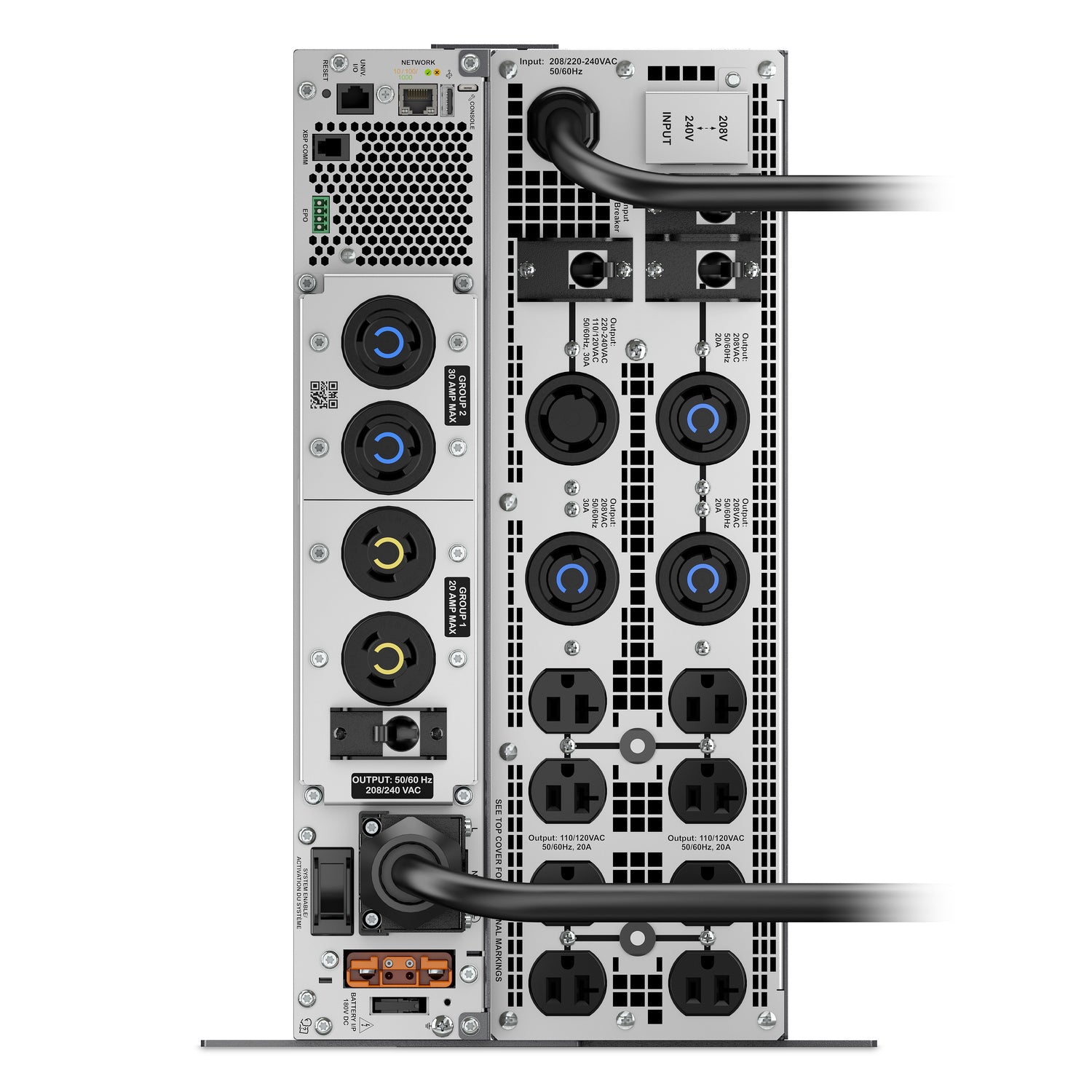

(2) L6-30R (1)L5-13R (2)5-20R
1-Year Secure Network Management Card subscription included
Product Highlights
Documents
Description
Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Standard warranty, 5 years repair or replace.
Specifications
Overview
Model
APC Smart-UPS SRTL 5KVA Tower 208V to 120V 2U Step-Down Transformer
Main
Input Voltage
208
Output Voltage
120
Rated Power in W
4900 W
Rated Power in VA
4900
Input Connection Type
NEMA L6-30P
Output Connection Type
8 NEMA 5-20R, 1 NEMA L14-30R, 3 NEMA L6-30R, 4 NEMA L6-20R
Max Configurable Power in VA
4900 VA
Max Configurable Power in W
4900 W
Topology
Double Conversion Online
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Physical
Color
Silver grey
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 10.94Width: 38.58Length: 24.02
Shipping Weight
204.4 lb
UPC Code
731304437079
Lead time
Usually in Stock
Provided Equipment
1 CD (software and documentation)
Product Certifications
ENERGY STAR V2.0 (USA)
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
12697
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
