Replacement battery (1) is available

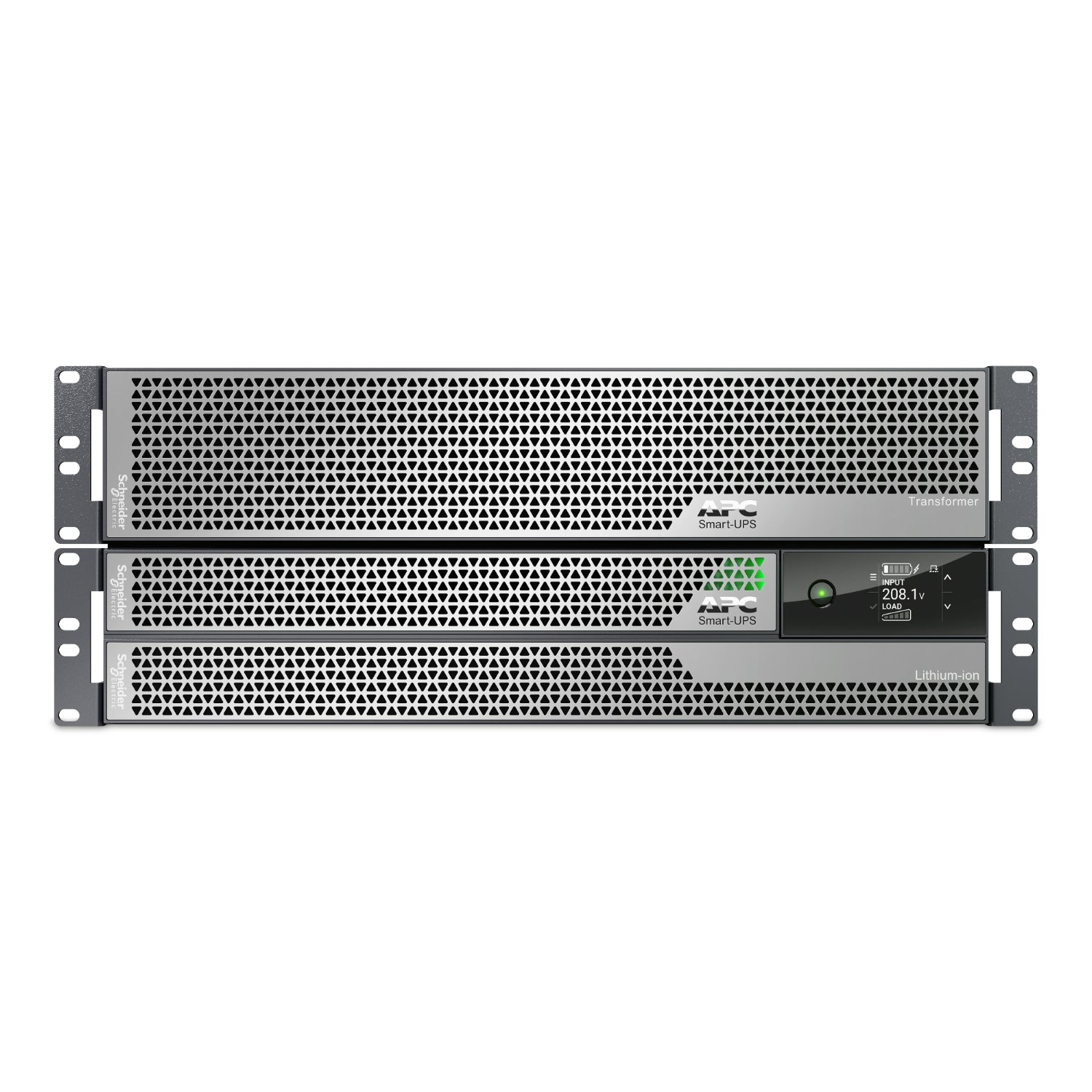

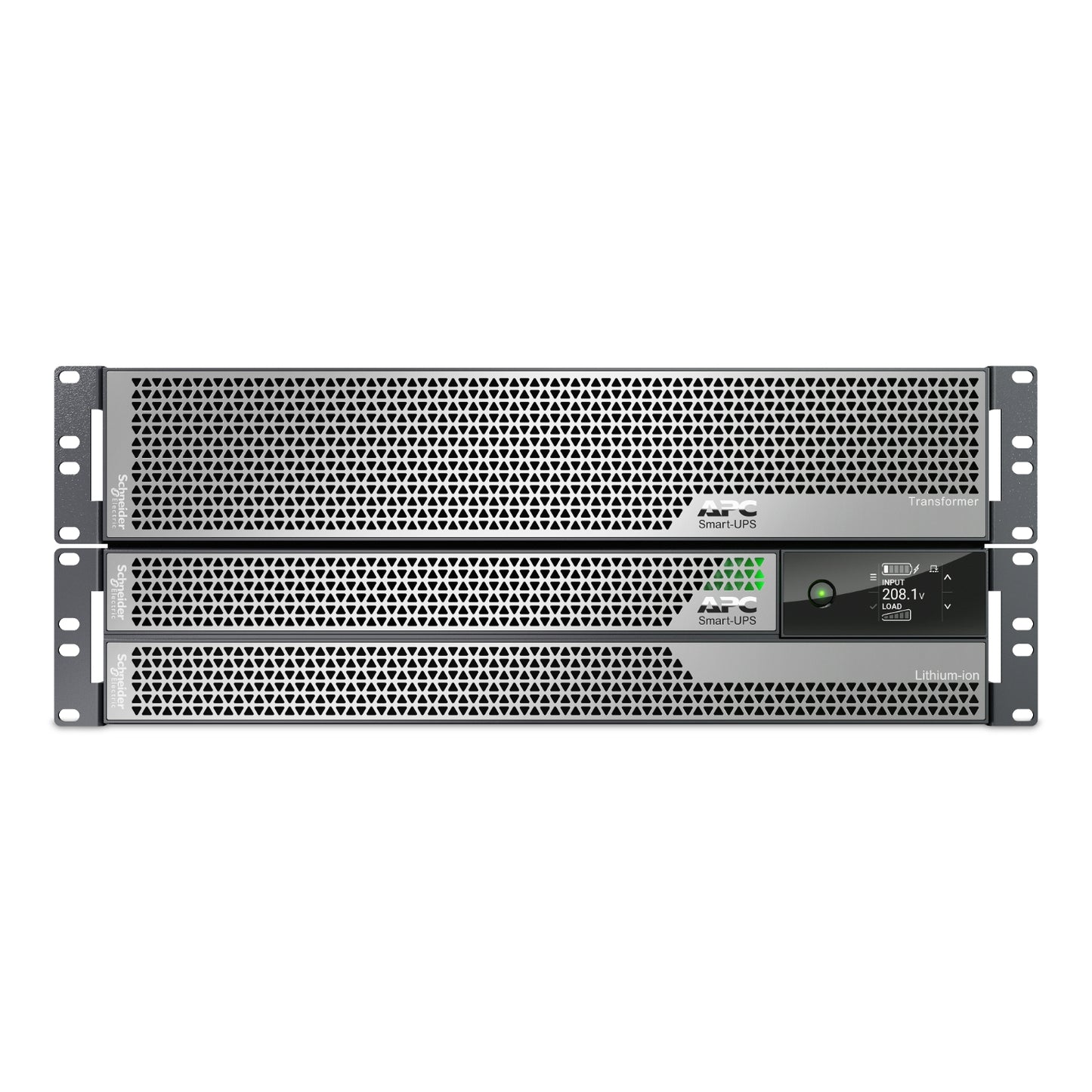

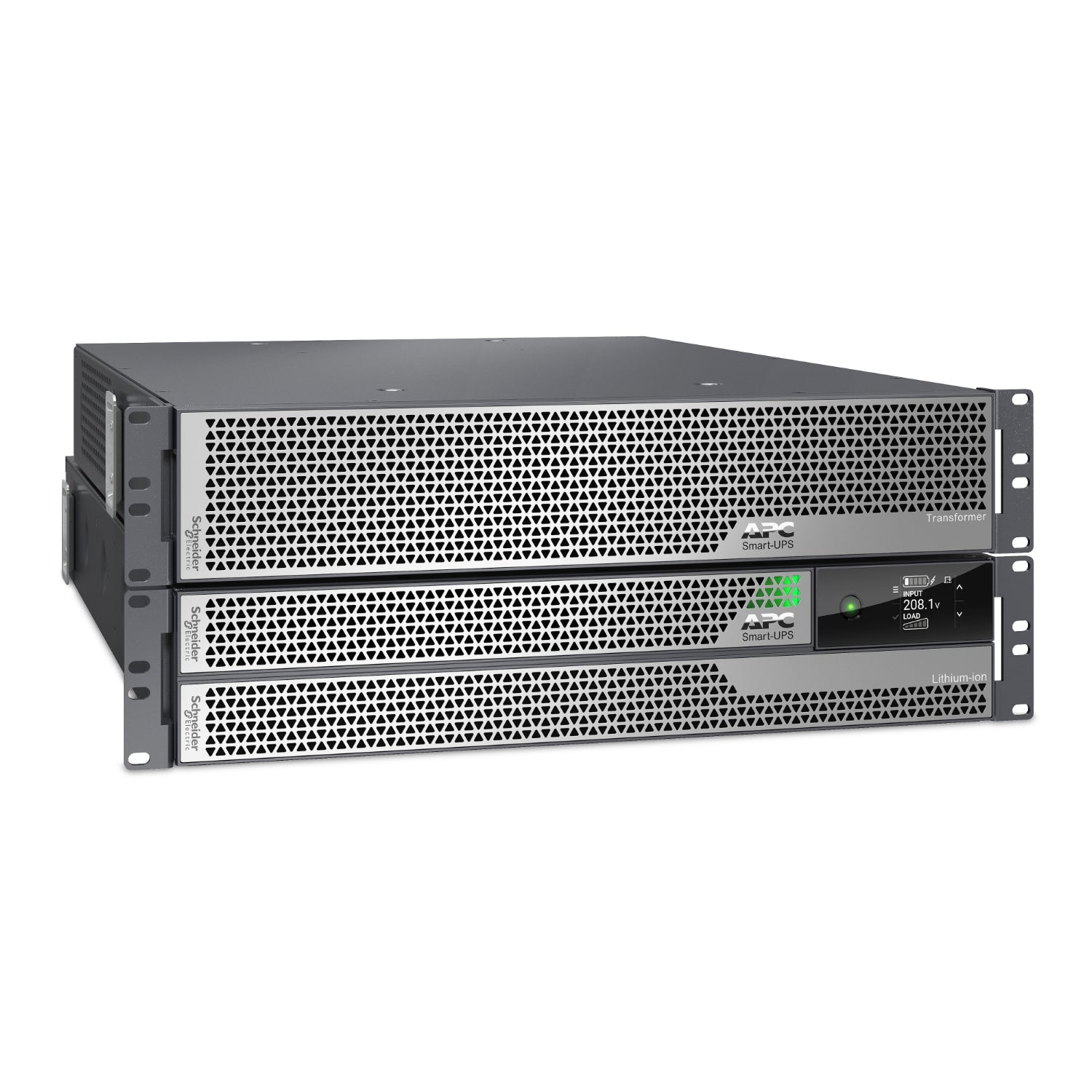

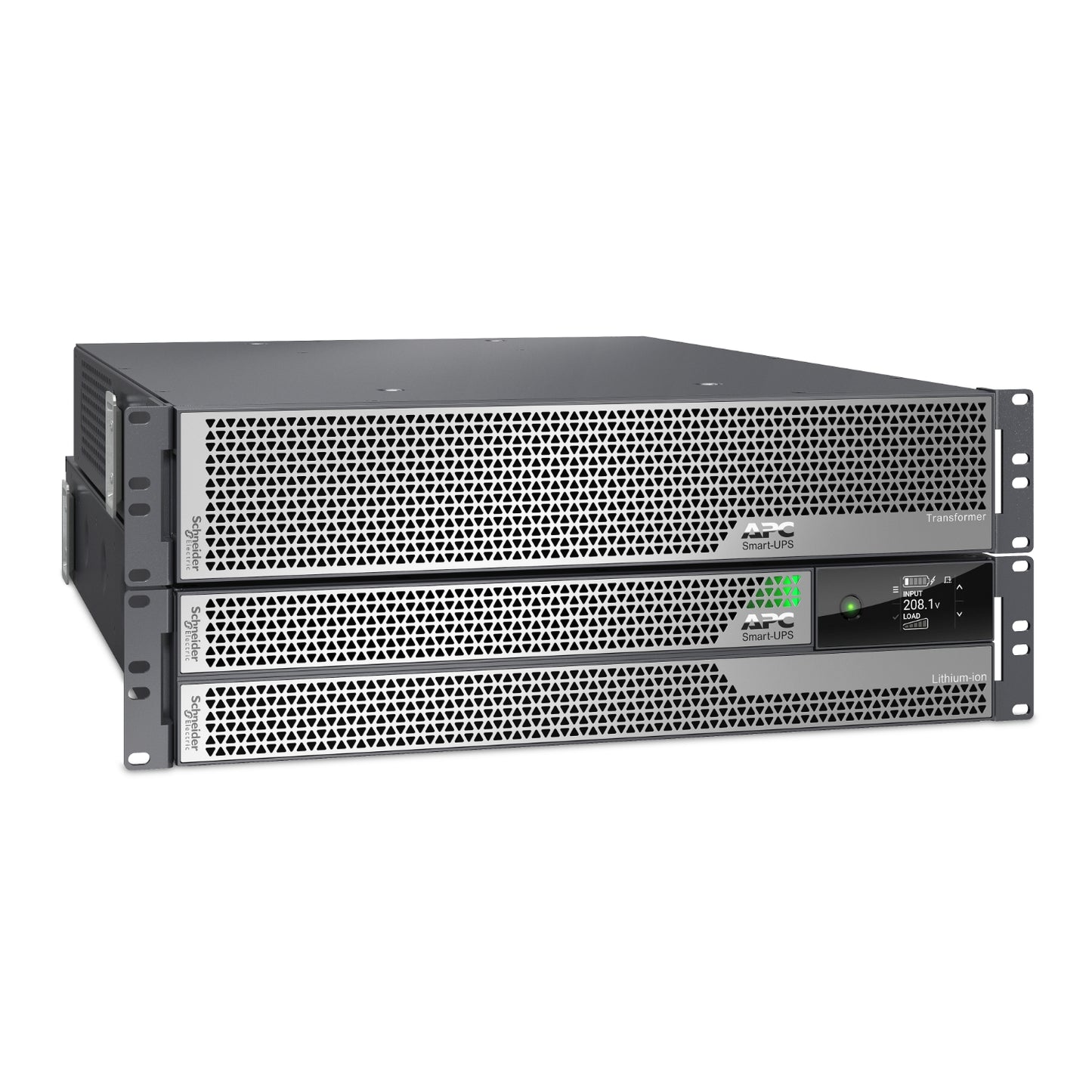

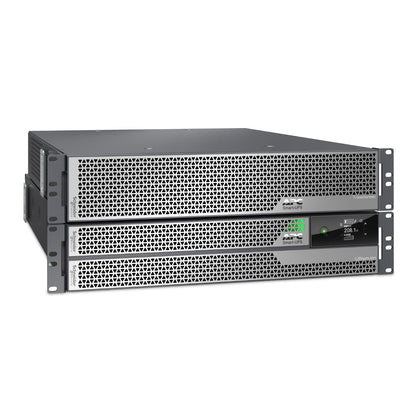

Smart-UPS Ultra 5kW UPS & stepdown transformer
2U UPS and 2U height stepdown transformer
Provides 120V output for 208V UPS
1-Year Secure Network Management Card subscription included
Standard warranty 5 years repair or replace
Product Highlights
Documents
Description

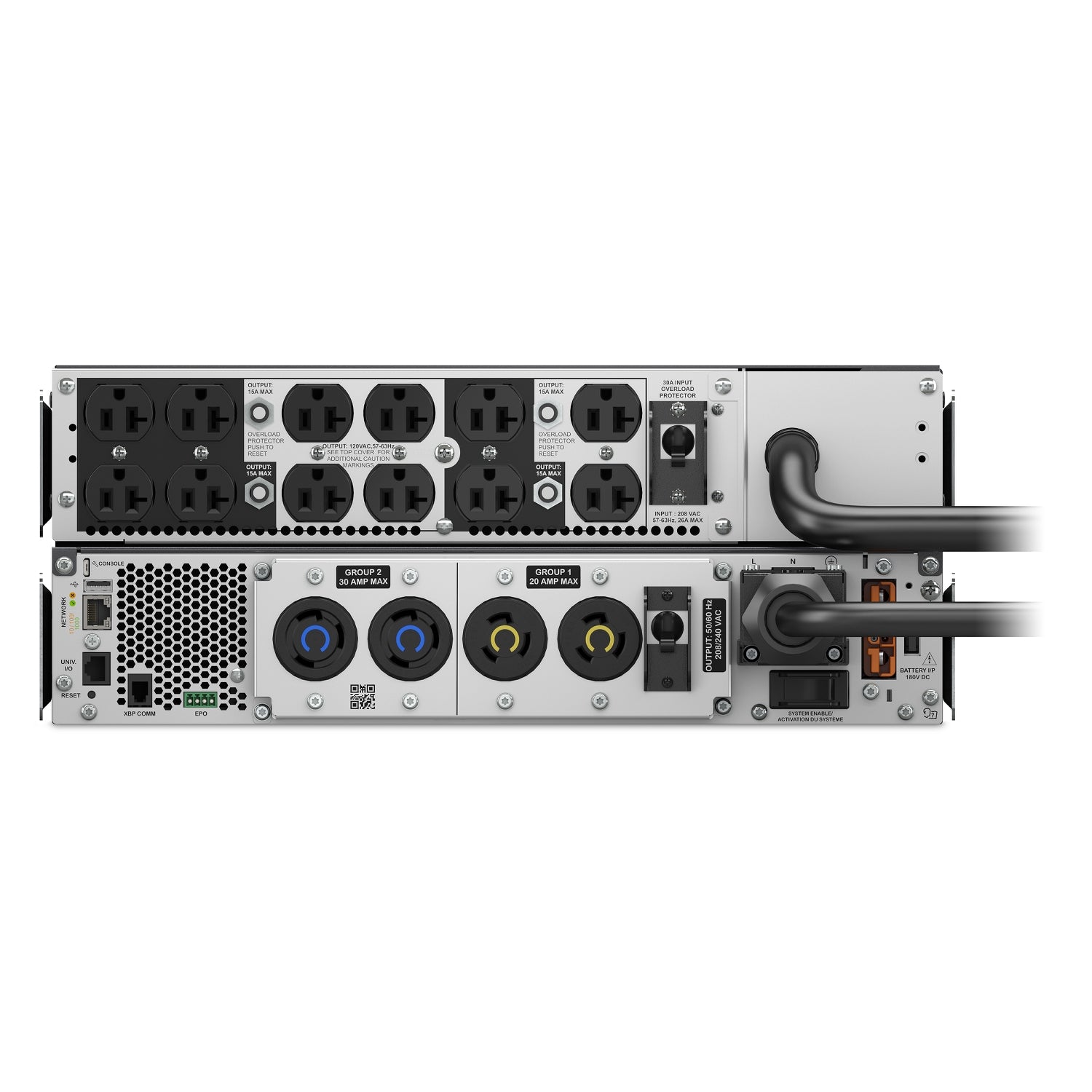

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker Standard warranty, 5 years repair or replace.
Specifications
Overview
Model
APC Smart-UPS SRTL 5KVA RM 208V to 120V 2U Step-Down Transformer
Main
Input Voltage
208
Output Voltage
120
Rated Power in W
4900 W
Rated Power in VA
4900
Input Connection Type
NEMA L6-30P
Output Connection Type
12 NEMA 5-20R, 2 NEMA L6-20R, 2 NEMA L6-30R
Max Configurable Power in VA
4900 VA
Max Configurable Power in W
4900 W
Topology
On-Line
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 20Width: 37.8Length: 24.49
Shipping Weight
174.4 lb
UPC Code
731304437086
Lead time
Usually in Stock
Provided Equipment
Rack Mounting brackets
Stabilization feet
Rack Mounting support rails
USB cable
Temperature Probe
Strain relief
Battery
Stabilization feet
Rack Mounting support rails
USB cable
Temperature Probe
Strain relief
Battery
Product Certifications
ENERGY STAR V2.0 (USA)
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
11953
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
