- 8kVA/8kW double-conversion online lithium-ion UPS bundled with one 5kVA step-down transformer
- Provides both 208V native output and 120V stepped-down output for mixed-voltage rack environments
- 4U rack/tower convertible UPS with auto-rotating LCD display
- Step-down transformer adds NEMA 5-20R 120V outlets alongside native 208V UPS outlets
- 5-year warranty on UPS and lithium-ion batteries
Product Highlights
Documents
Description

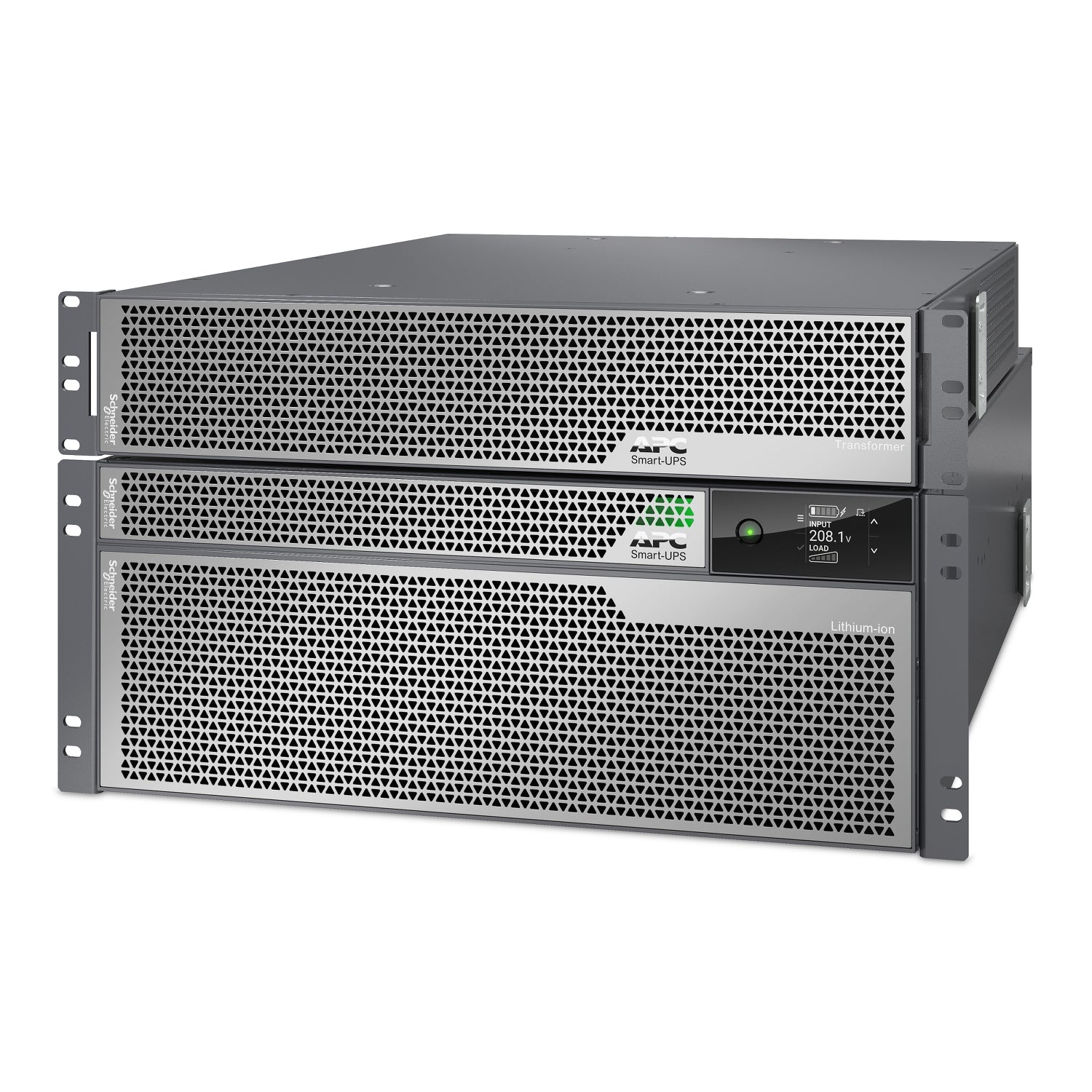

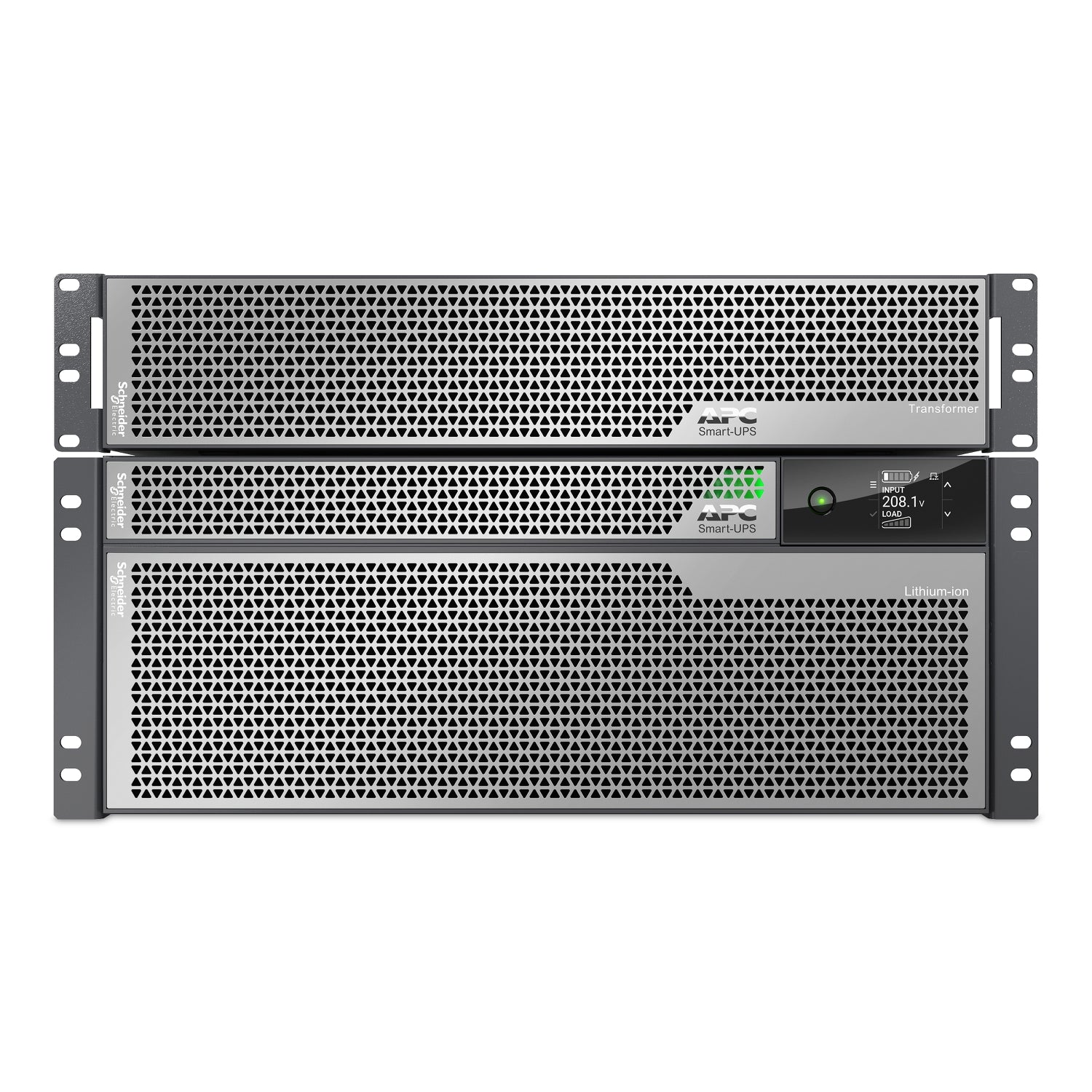

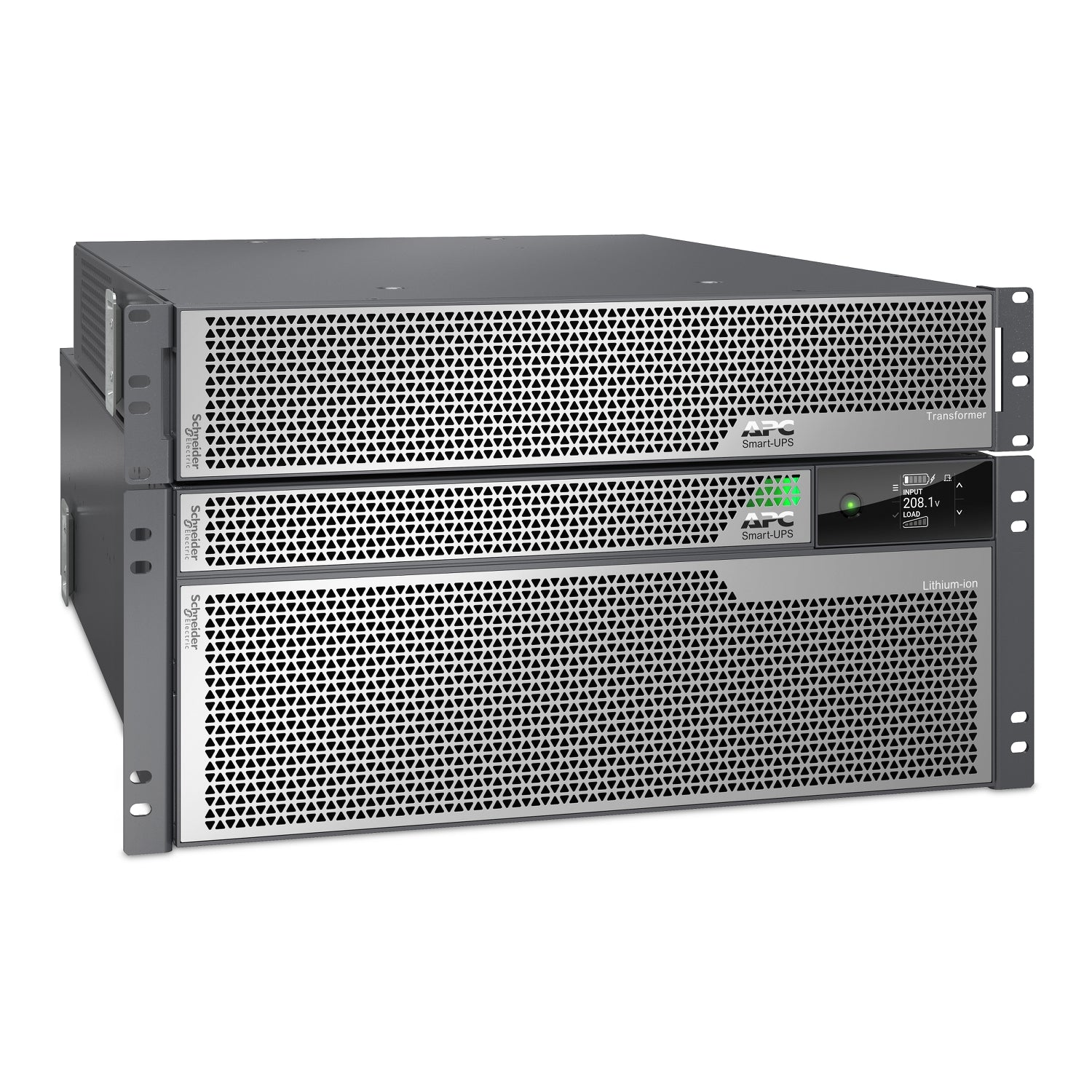

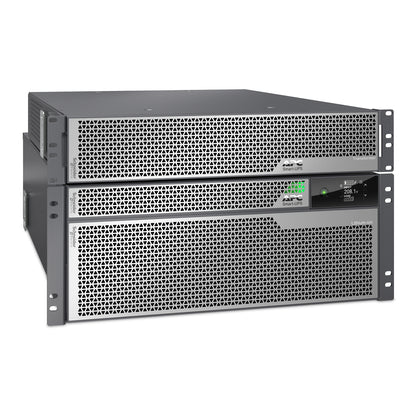

APC Smart-UPS Ultra 8kVA Li-Ion with 5kVA Step-Down Transformer — SRTL8KRM4UT-5KTF
The SRTL8KRM4UT-5KTF pairs the APC Smart-UPS Ultra 8kW lithium-ion double-conversion UPS with a single SRTL 5kVA step-down transformer. This bundle is the right choice for 208V rack environments that need to protect a mix of 208V and 120V equipment — without adding a separate UPS or sourcing independent voltage conversion hardware. The 8kW UPS provides true online double-conversion power with the maintenance advantages of lithium-ion chemistry, while the bundled transformer adds protected 120V output capacity for standard NEMA 5-20R devices.
Why Lithium-Ion vs. Lead-Acid UPS?
| Factor | Lead-Acid (SRT) | Lithium-Ion (SRTL) |
|---|---|---|
| Battery Lifespan | 3–5 years | Up to 10 years |
| Weight | Significantly heavier | Up to 40–60% lighter |
| Recharge Time | 4–8 hours | Approximately 3 hours |
| Battery Replacement Cycles | 2–3x over 10 years | 0–1x over 10 years |
| Temperature Range | Narrow | Wider operating range |
Key Features
- 8,000VA/8,000W double-conversion online UPS — continuous power conditioning, zero transfer time
- Lithium-ion battery — up to 10-year lifespan, 30%+ lighter than comparable lead-acid UPS
- 4U rack/tower convertible chassis with auto-rotating LCD touch display
- Bundled 5kVA step-down transformer delivers protected 120V output from 208V UPS for mixed-voltage environments
- UPS outlets: 2x NEMA L6-20R, 2x NEMA L6-30R (208V); transformer adds: 8x NEMA 5-20R, 2x L6-20R, 1x L6-30R, 1x L14-30R
- Up to 10 SRTL180RM2UBP external battery packs supported for extended runtime
- EcoStruxure IT compatible for remote monitoring and centralized management
Technical Specifications
| Specification | Detail |
|---|---|
| Output Capacity | 8,000VA / 8,000W |
| Topology | Double-conversion online |
| Input Voltage | 208V |
| UPS Outlets | 2x NEMA L6-20R, 2x NEMA L6-30R (208V) |
| Transformer Outlets | 8x NEMA 5-20R, 2x L6-20R, 1x L6-30R, 1x L14-30R (120V stepped down) |
| Battery Type | Lithium-ion |
| Form Factor | 4U Rack/Tower convertible (UPS) + 2U (transformer) |
| Extended Battery | Up to 10x SRTL180RM2UBP |
| Warranty | 5 years repair or replace (UPS and battery) |
Ideal Applications and Industries
The SRTL8KRM4UT-5KTF bundle suits mid-size data centers and server rooms where a single 208V feed powers both high-density compute (208V) and standard network equipment or workstations (120V). Healthcare organizations protecting EMR servers alongside 120V medical workstations benefit from this single-UPS, dual-voltage approach. Manufacturing and industrial facilities running PLCs, industrial PCs, and 120V instrumentation from the same UPS feed reduce cabling complexity and battery management overhead compared to deploying two separate UPS units.
Reduce Battery Maintenance Across Your Fleet
Questyme helps IT managers and facilities teams evaluate whether the bundled transformer configuration or separate component procurement better suits their rack layout and budget. We provide honest TCO comparisons between lead-acid SRT and lithium-ion SRTL deployments and help plan multi-site power protection strategies. Contact Questyme to speak with a power infrastructure specialist.
Specifications
Overview
Model
APC Smart-UPS Ultra Li-ion 8KVA 208V RM UPS with 1 of 5KVA Step Down Transformer
Main
Input Voltage
208 AC
Output Voltage
208 AC
Rated Power in VA
8000
Max Configurable Power in VA
8000 VA
Max Configurable Power in W
8000 W
Topology
Double Conversion Online
Battery Type
Li-Ion (Lithium Ion)
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Silver grey
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 33.15Width: 25.59Length: 39.37
Shipping Weight
296.5 lb
UPC Code
731304735953
Lead time
Usually in Stock
Provided Equipment
RJ45 Cable
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
19544
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dB
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
