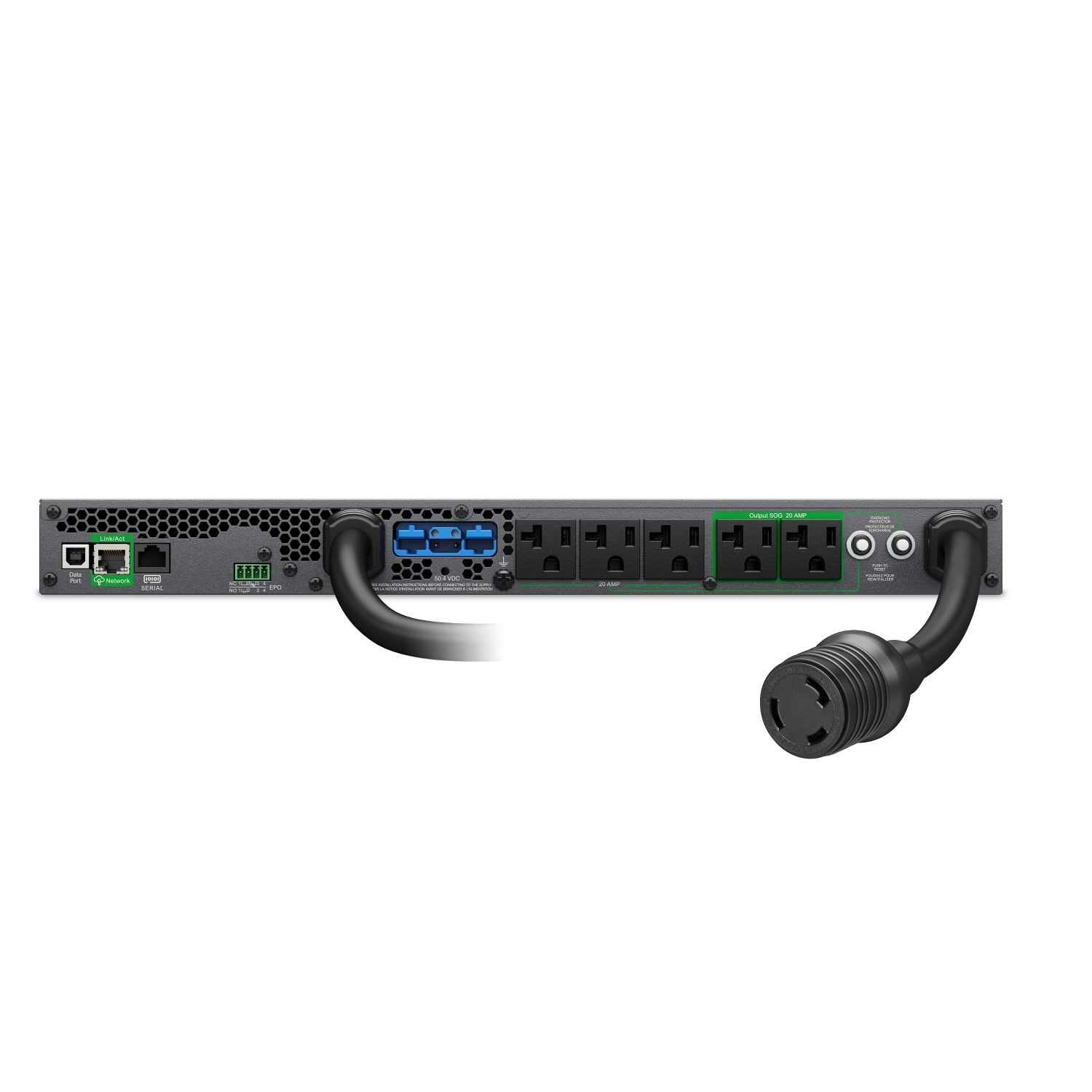

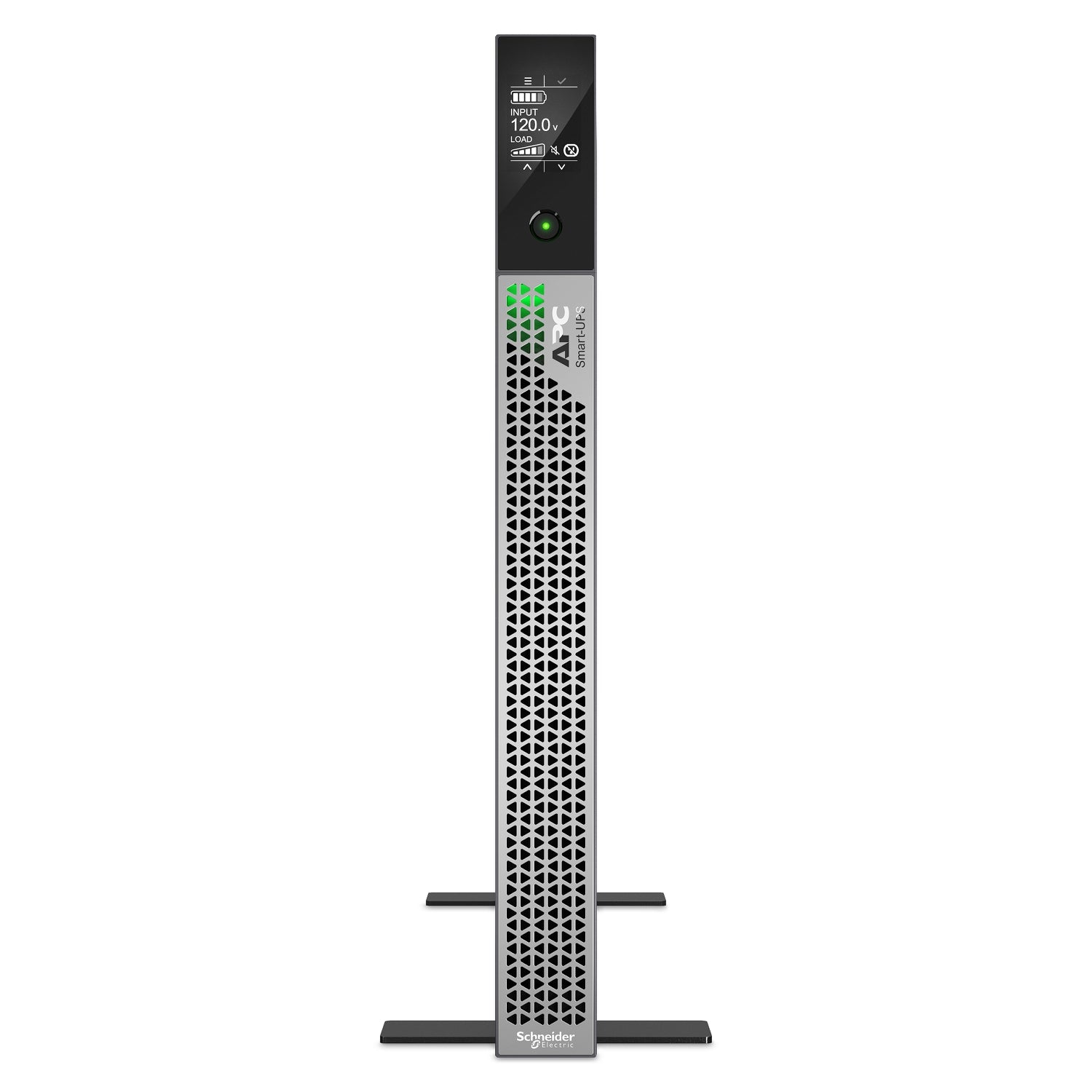

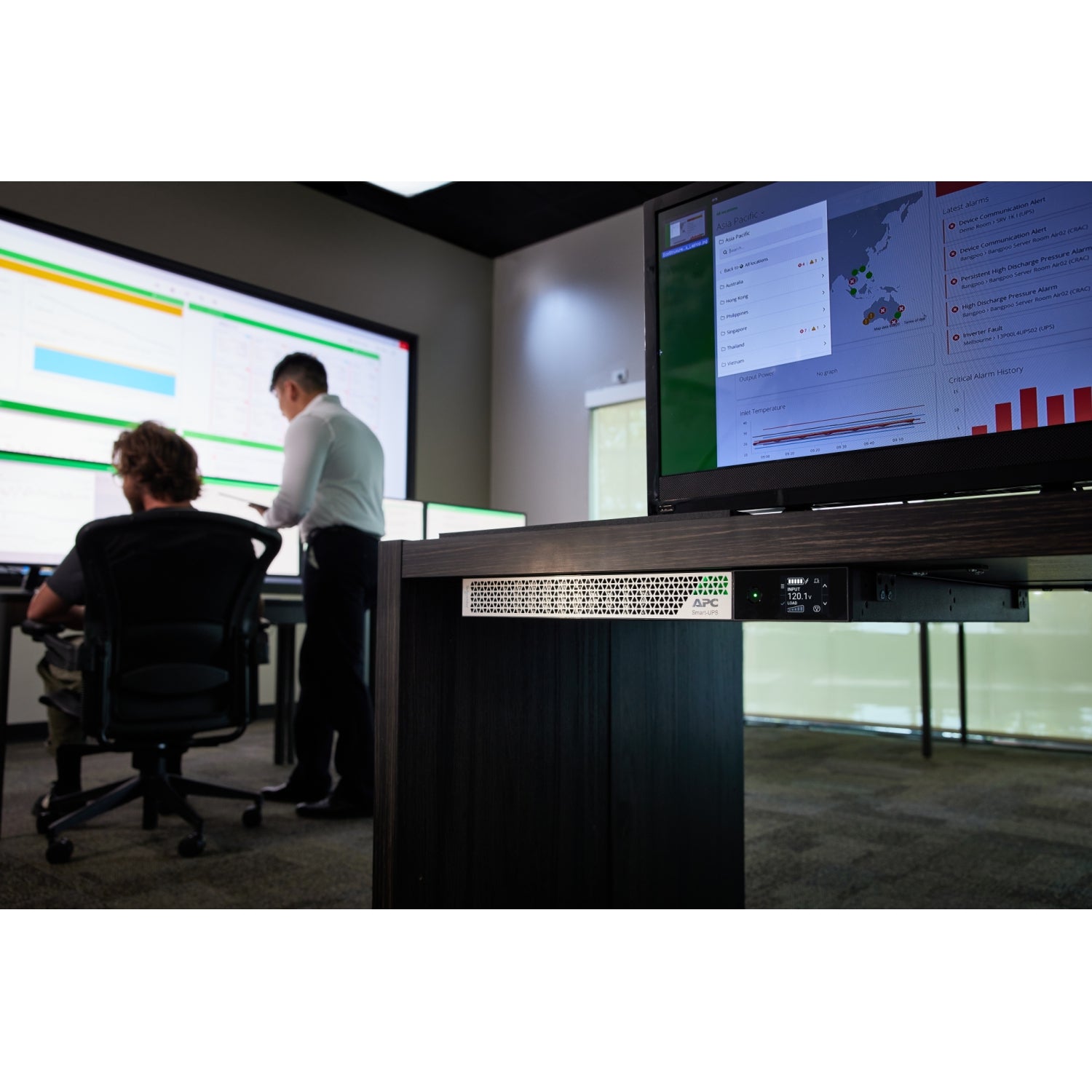

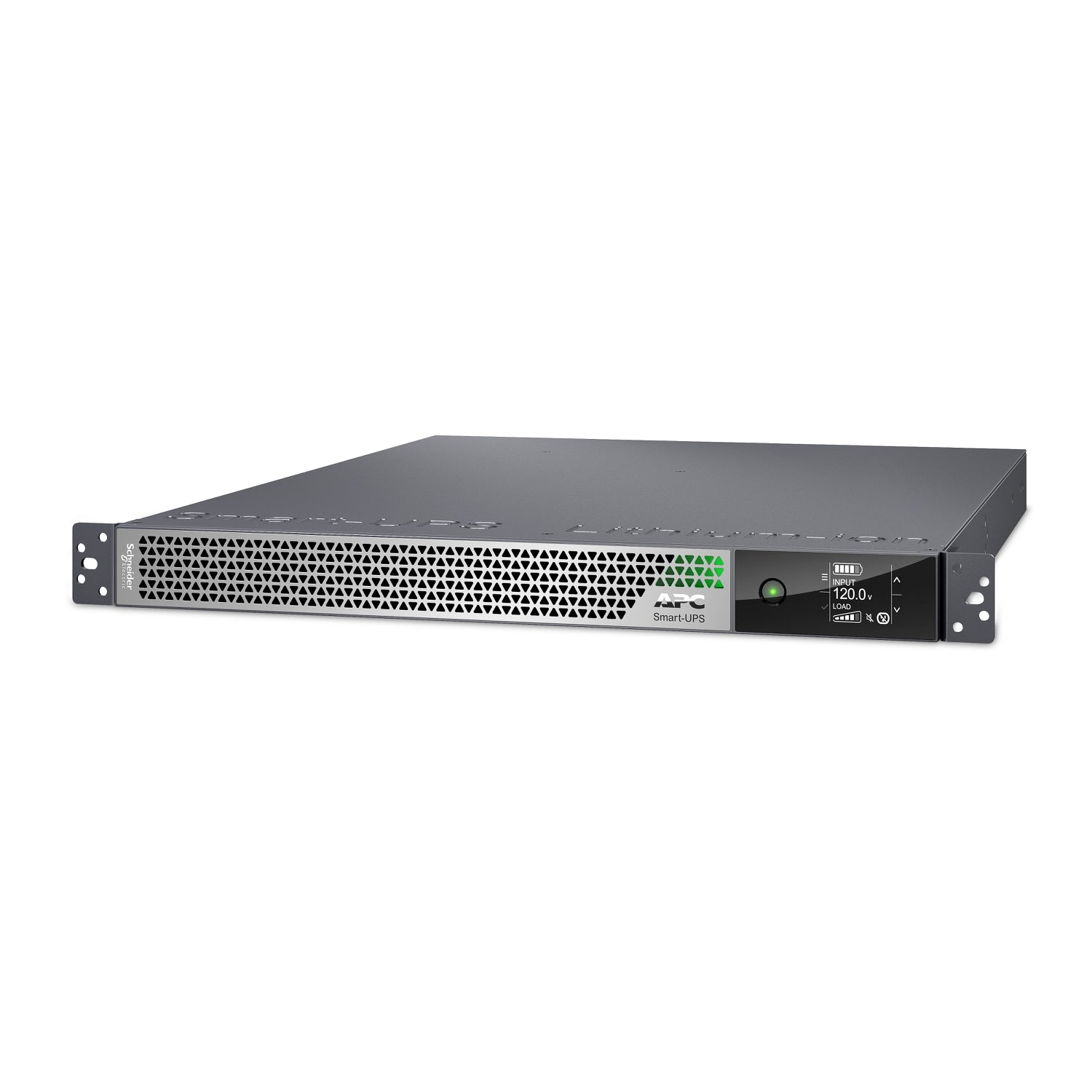

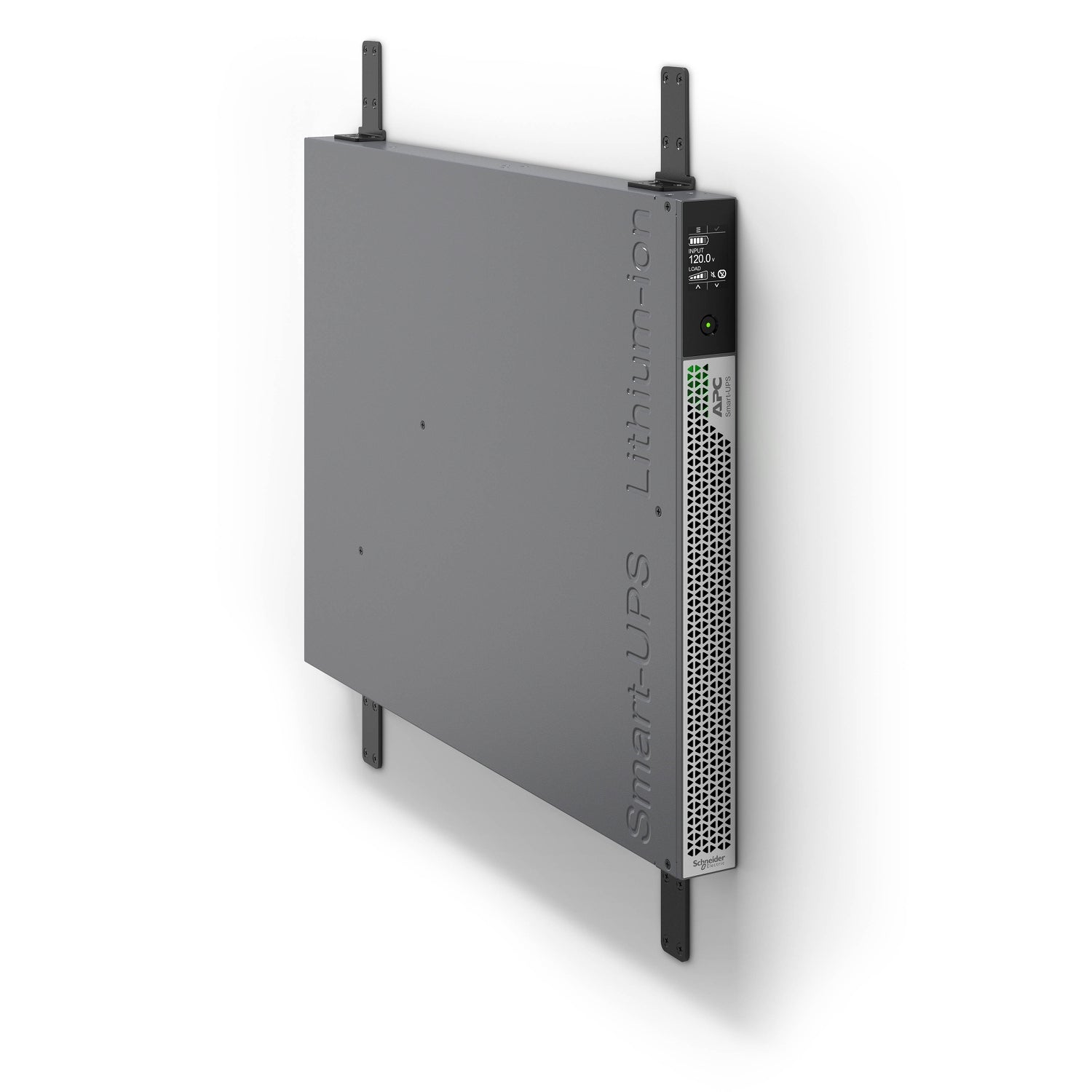

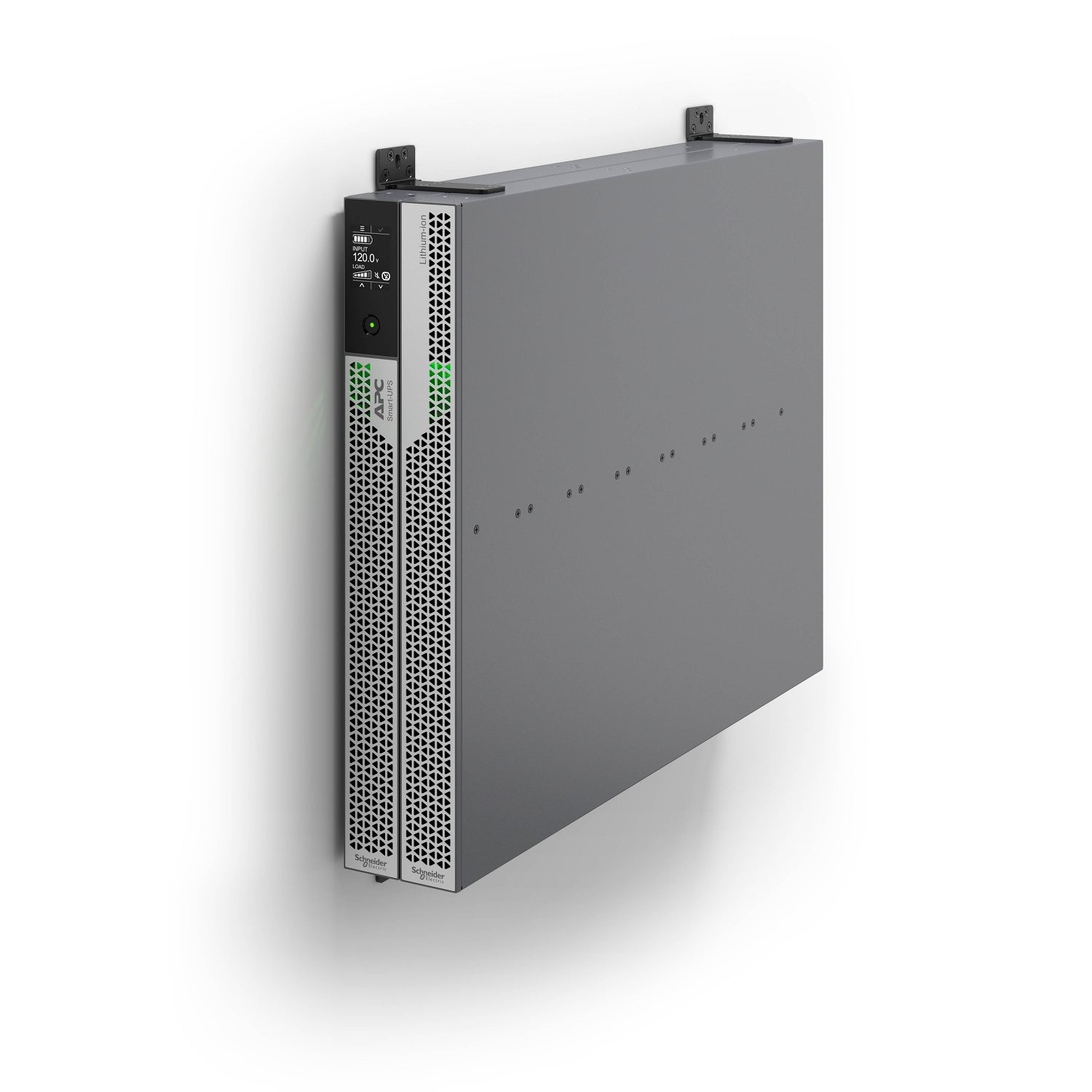

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Highlights
Documents
Description
APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Overview
Model
APC Smart-UPS SRT, Lithium-Ion, 2200VA 120V with SmartConnect
Main
Input Voltage
120 12
Output Voltage
120
Rated Power in W
1950 W
Rated Power in VA
2200

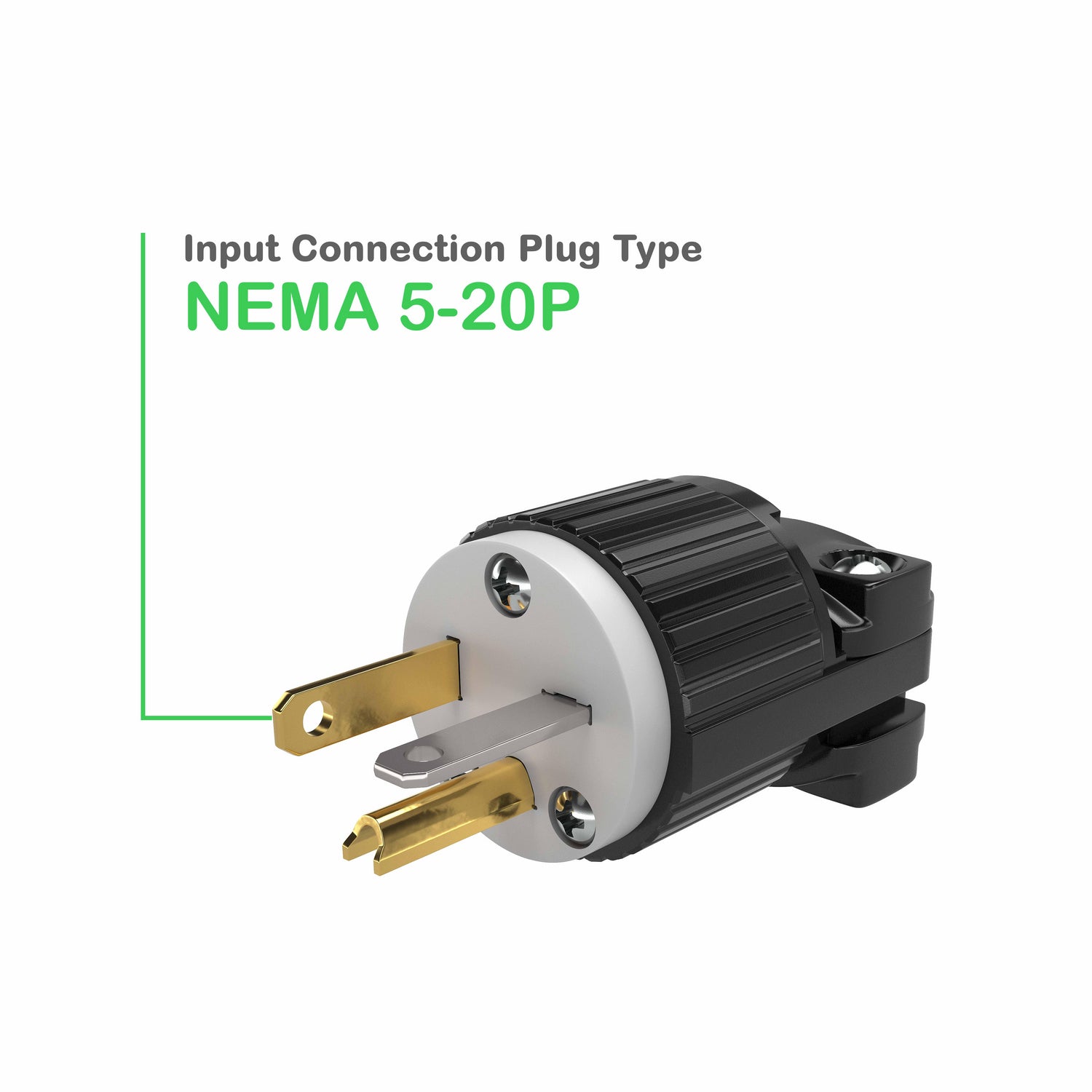

Input Connection Type
NEMA 5-20P
Output Connection Type
5 NEMA 5-20R, 1 NEMA L5-20R
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
1950 W
Topology
On-Line
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Silver grey

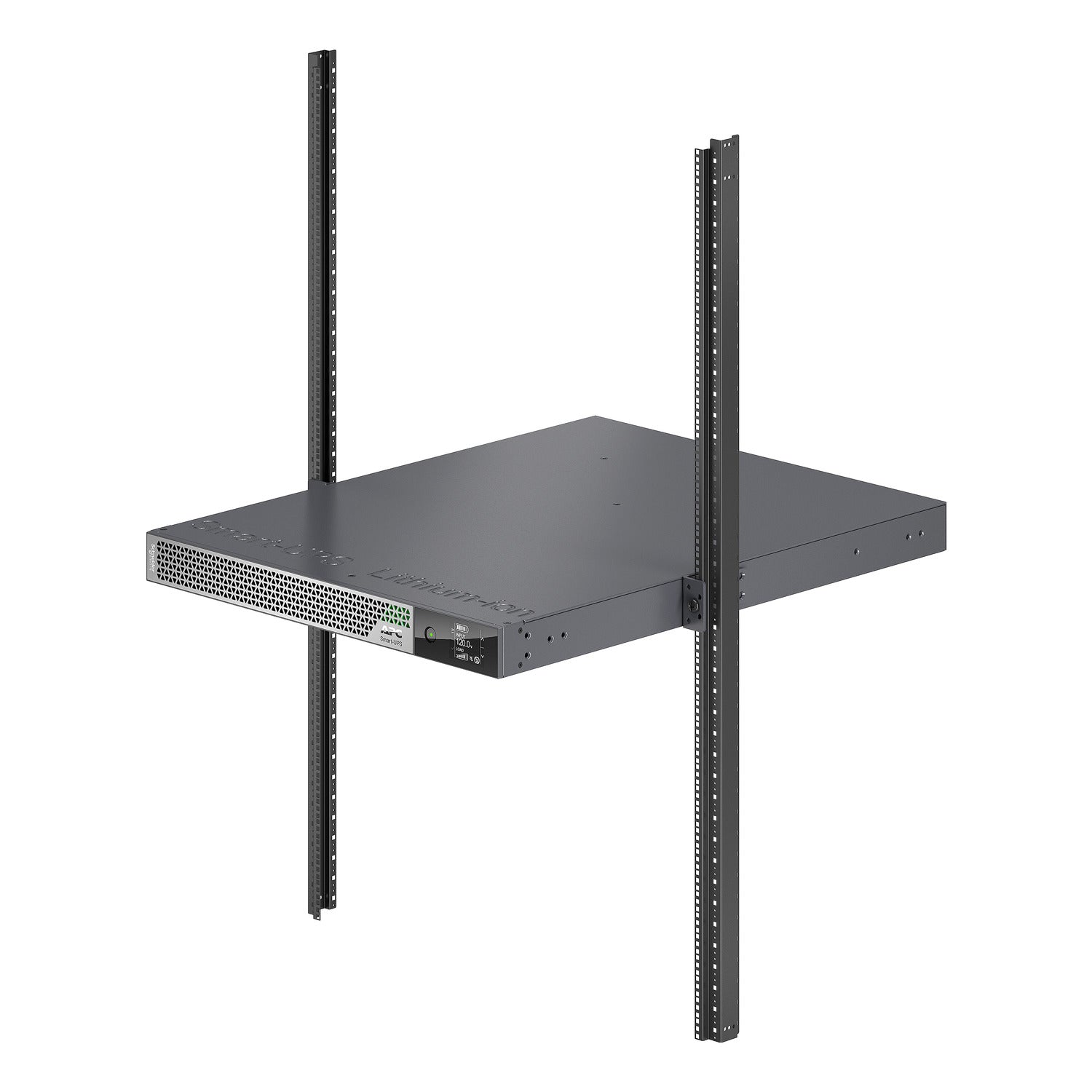

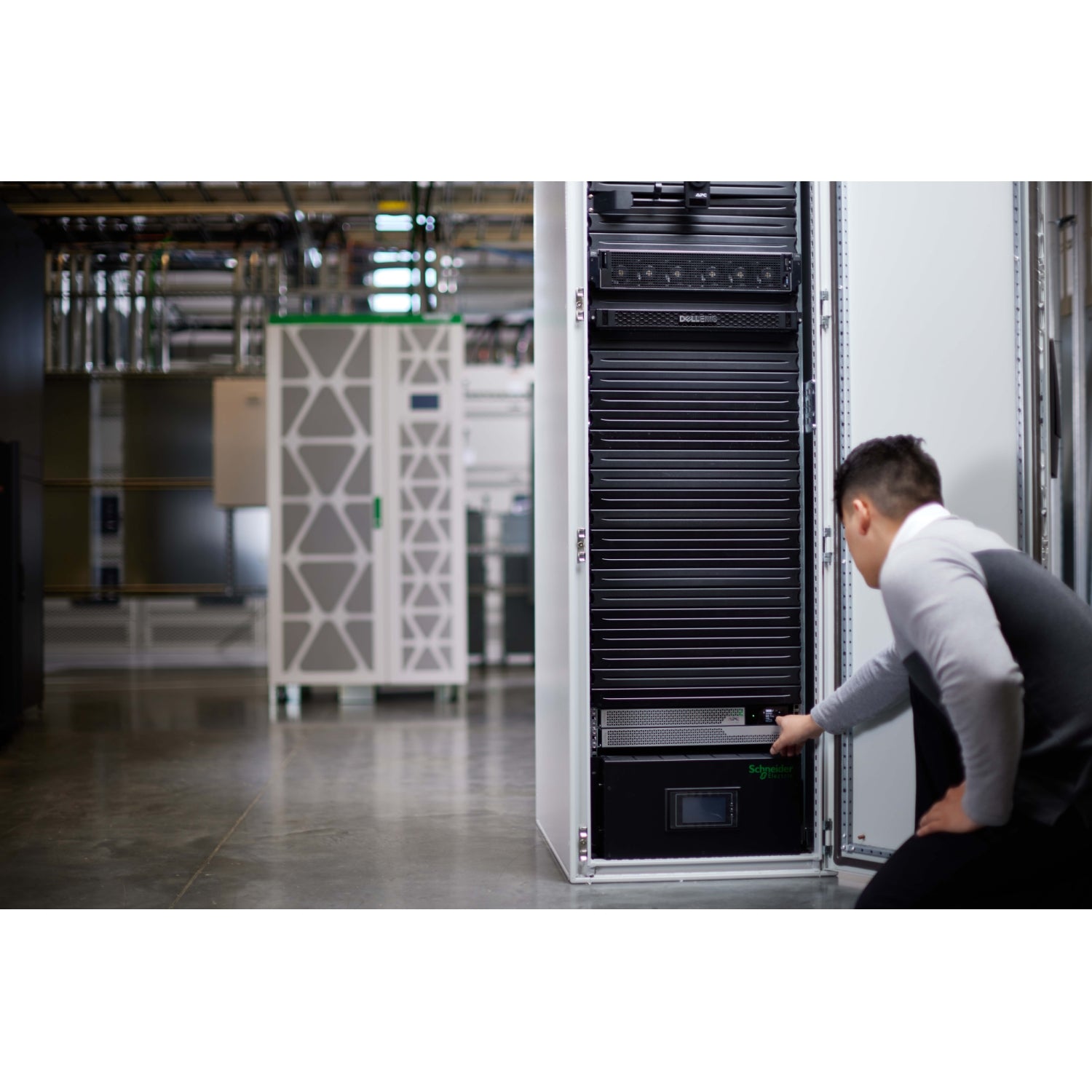

Mounting Mode
Rack-mounted with kit, Tower-mounted with kit
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE

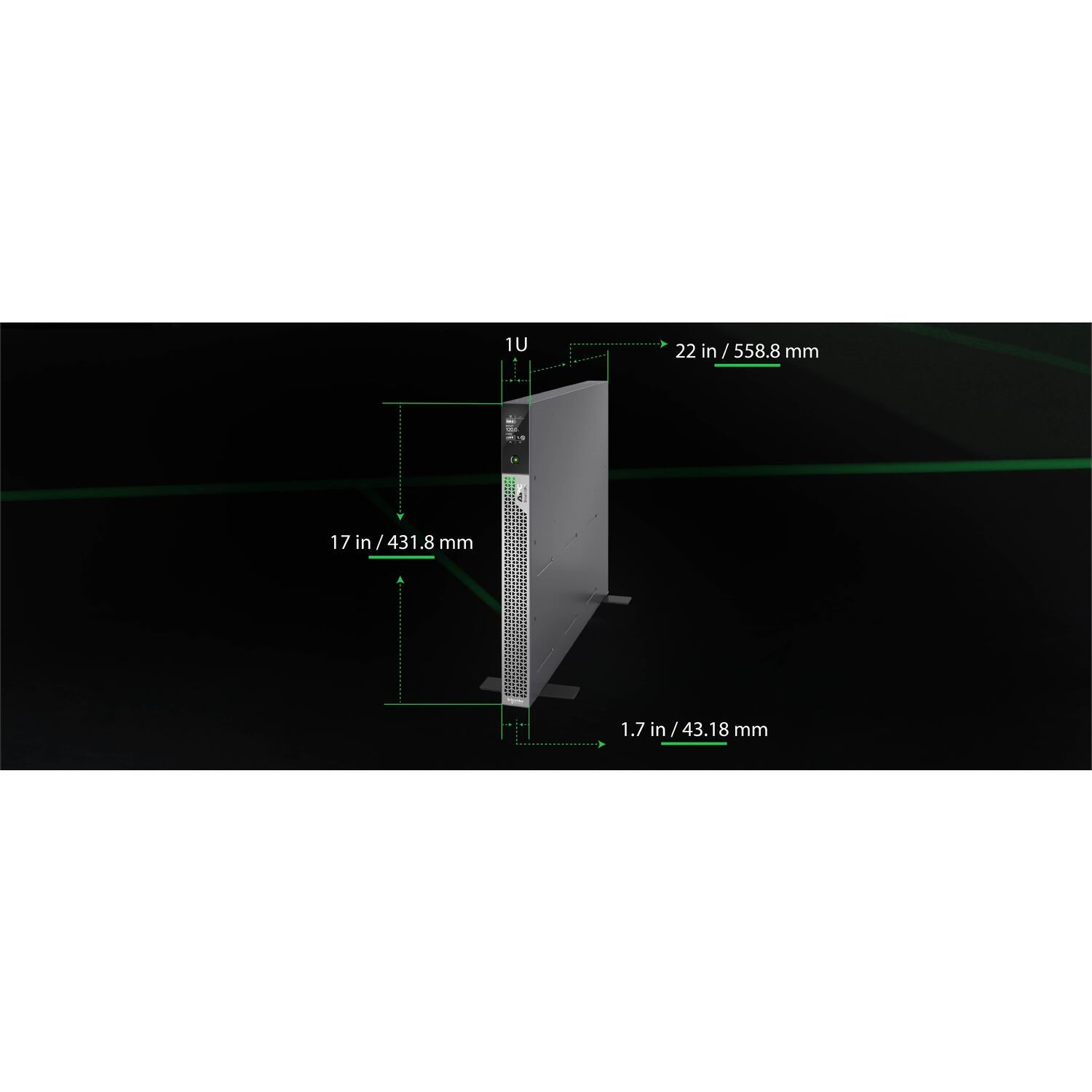

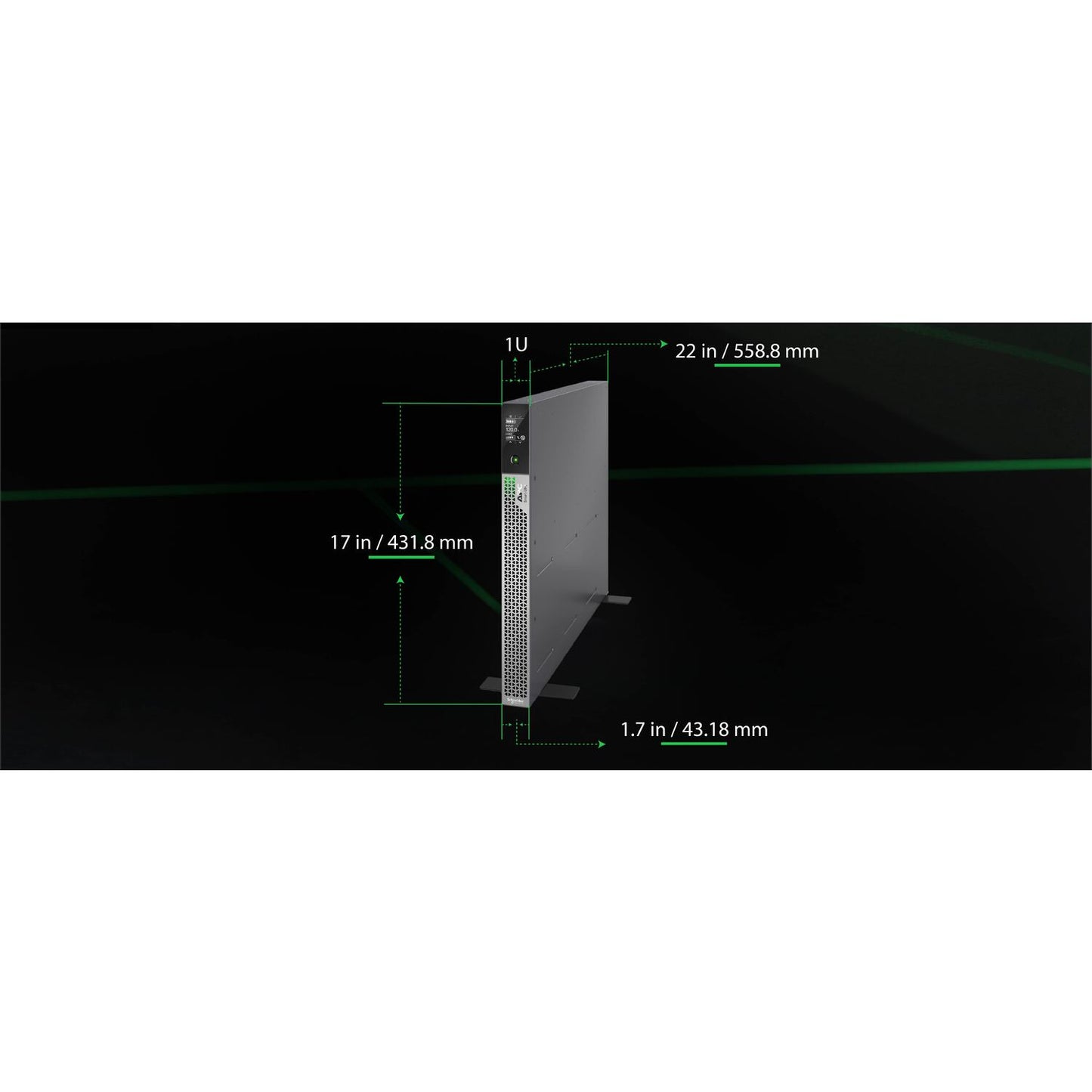

Shipping Dimensions
Height: 10.94Width: 22.2Length: 30.08
Shipping Weight
53.31 lb
UPC Code
731304435556
Lead time
Usually in Stock
Provided Equipment
RJ45 Cable
USB cable
Country-specific detachable power cord
Rack Mounting brackets
Rack Mounting support rails
Installation guide
Warranty card
USB cable
Country-specific detachable power cord
Rack Mounting brackets
Rack Mounting support rails
Installation guide
Warranty card
Product Certifications
UL/cUL listed
FCC
FCC
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
5818
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dB
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
