Replacement battery (1) is available
1U, 2200VA/2200W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
230V and 208V user selectable output.
Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
EcoStruxure™ Ready Network Management port. Connect to EcoStruxure IT for remote monitoring and management
Wireless communication capable with optional WiFi Device accessory (AP9834)
Product Highlights
Documents
Description

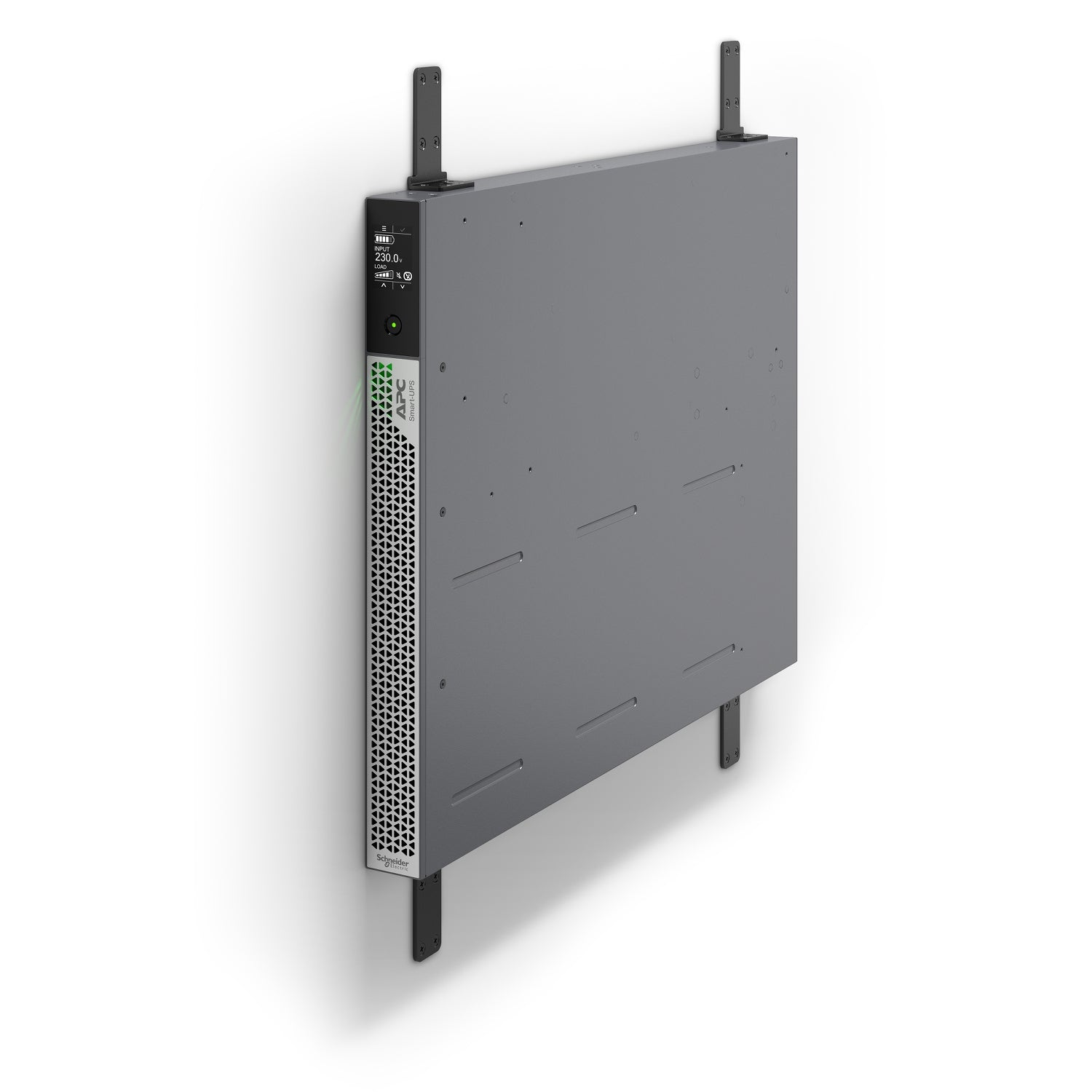

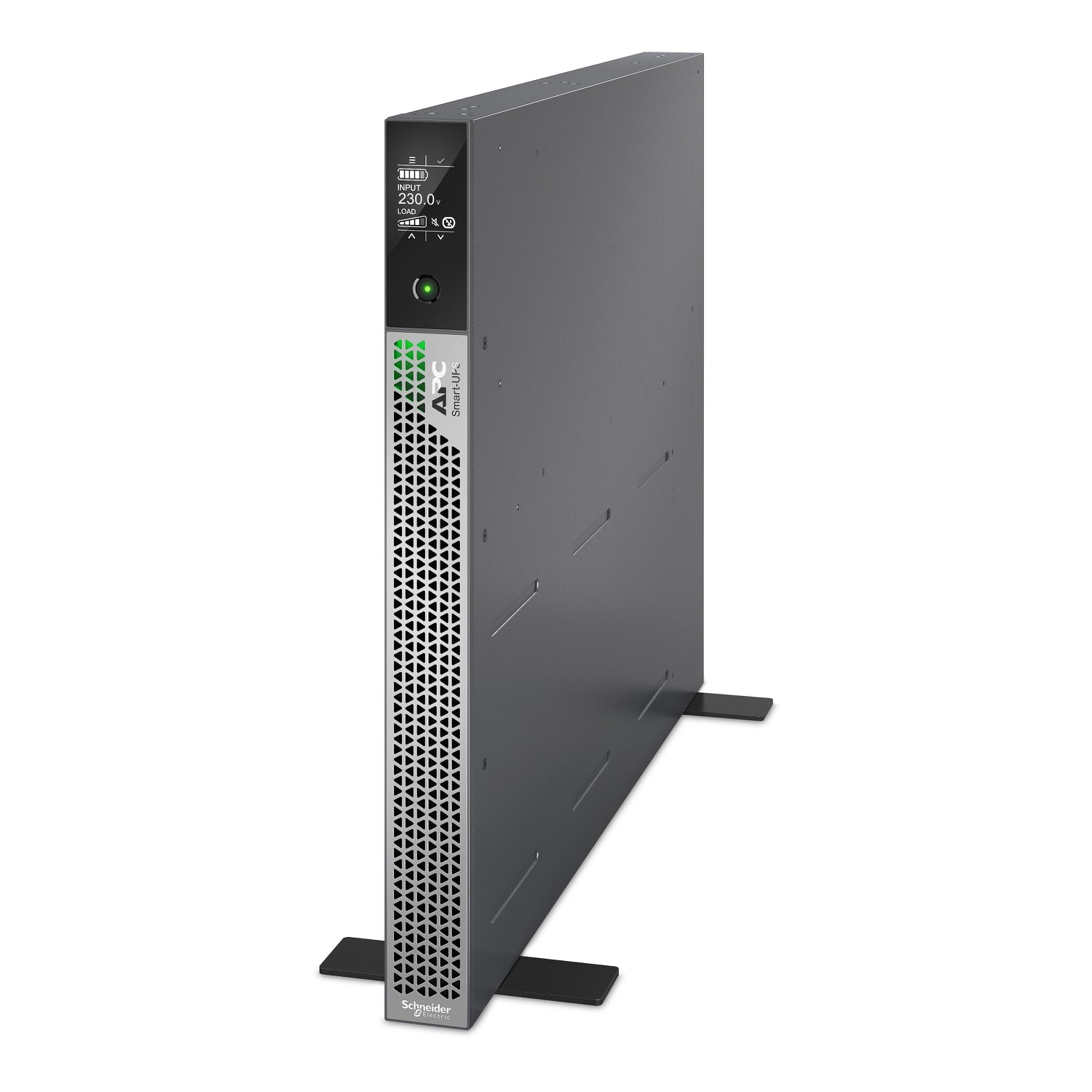

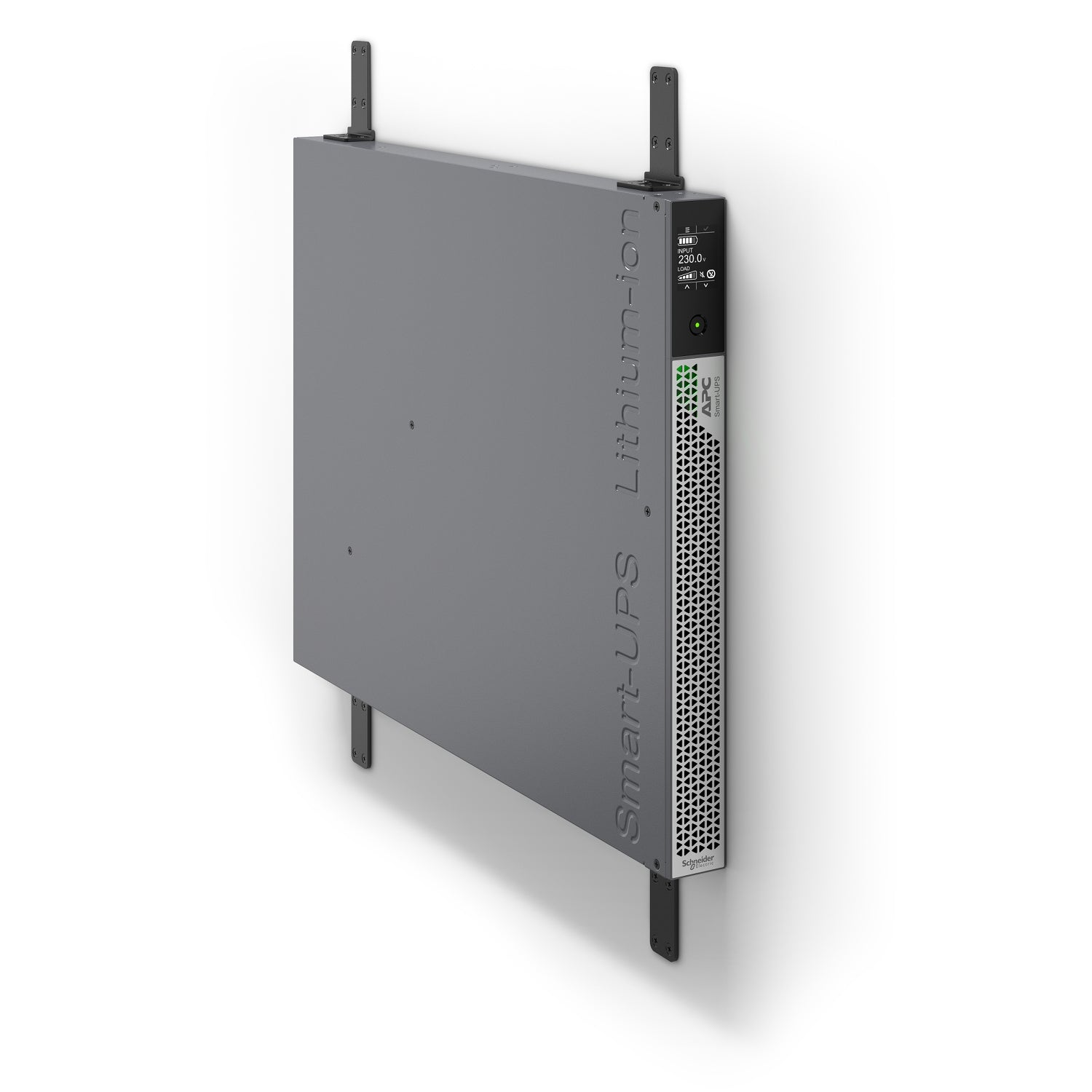

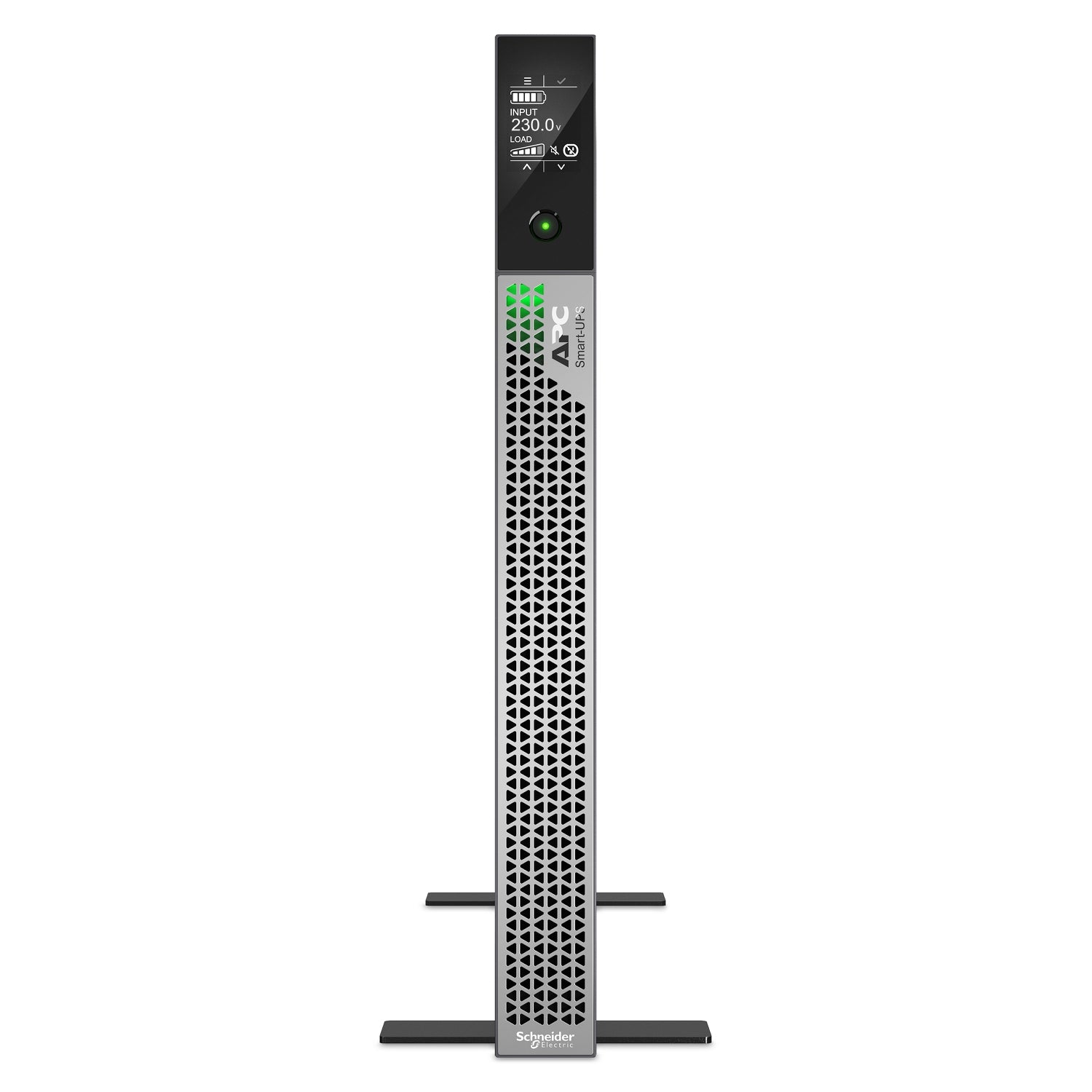

With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
Specifications
Overview
Model

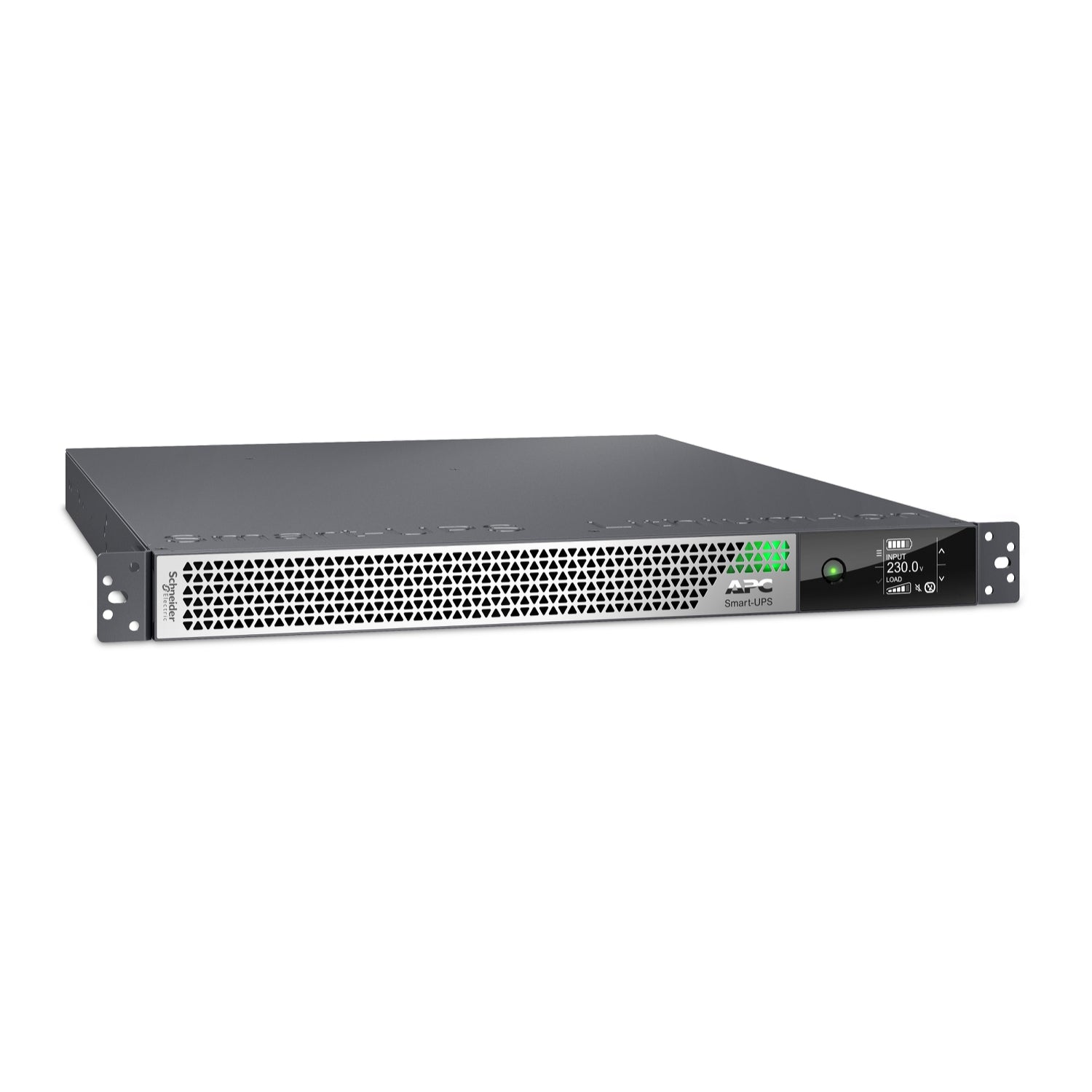

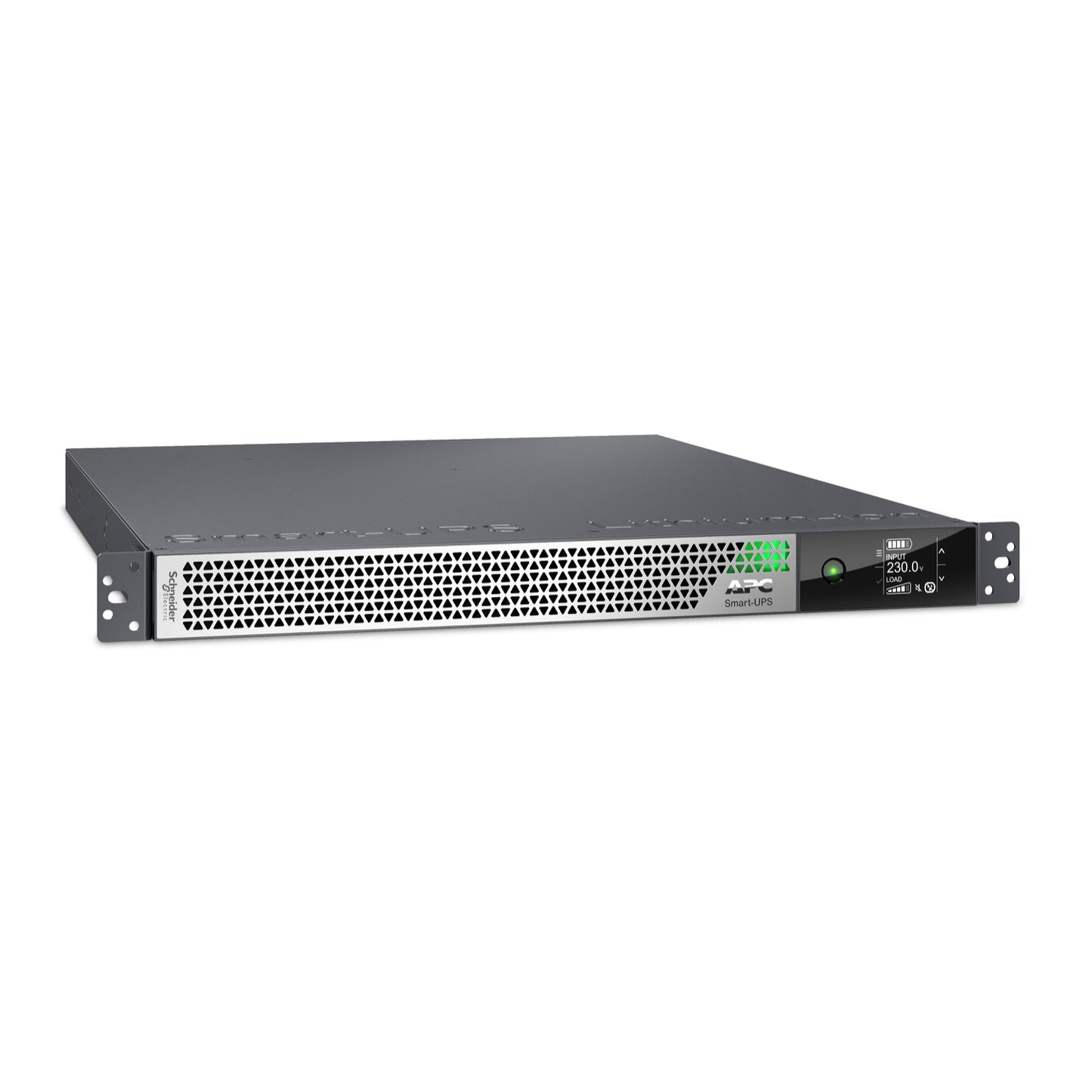

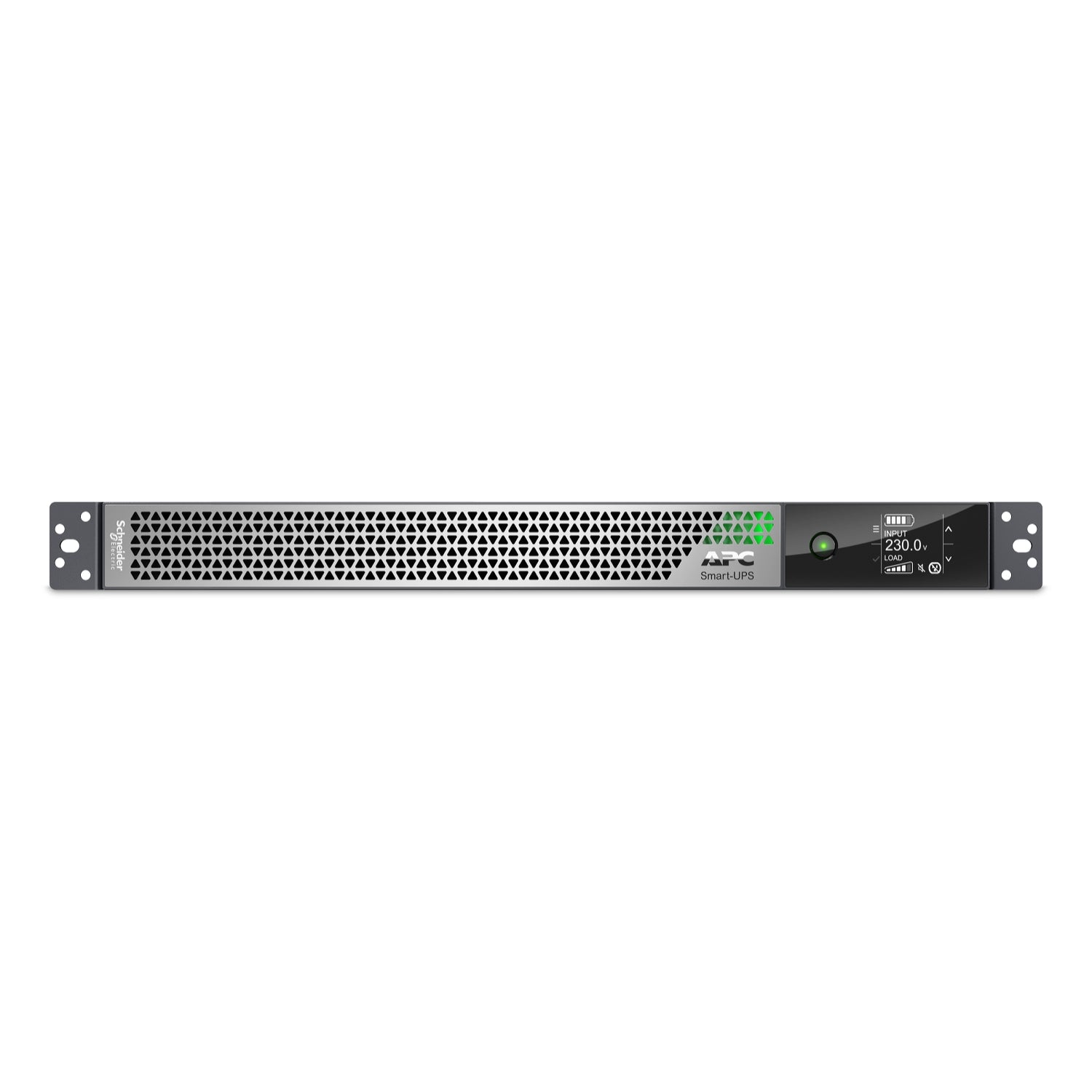

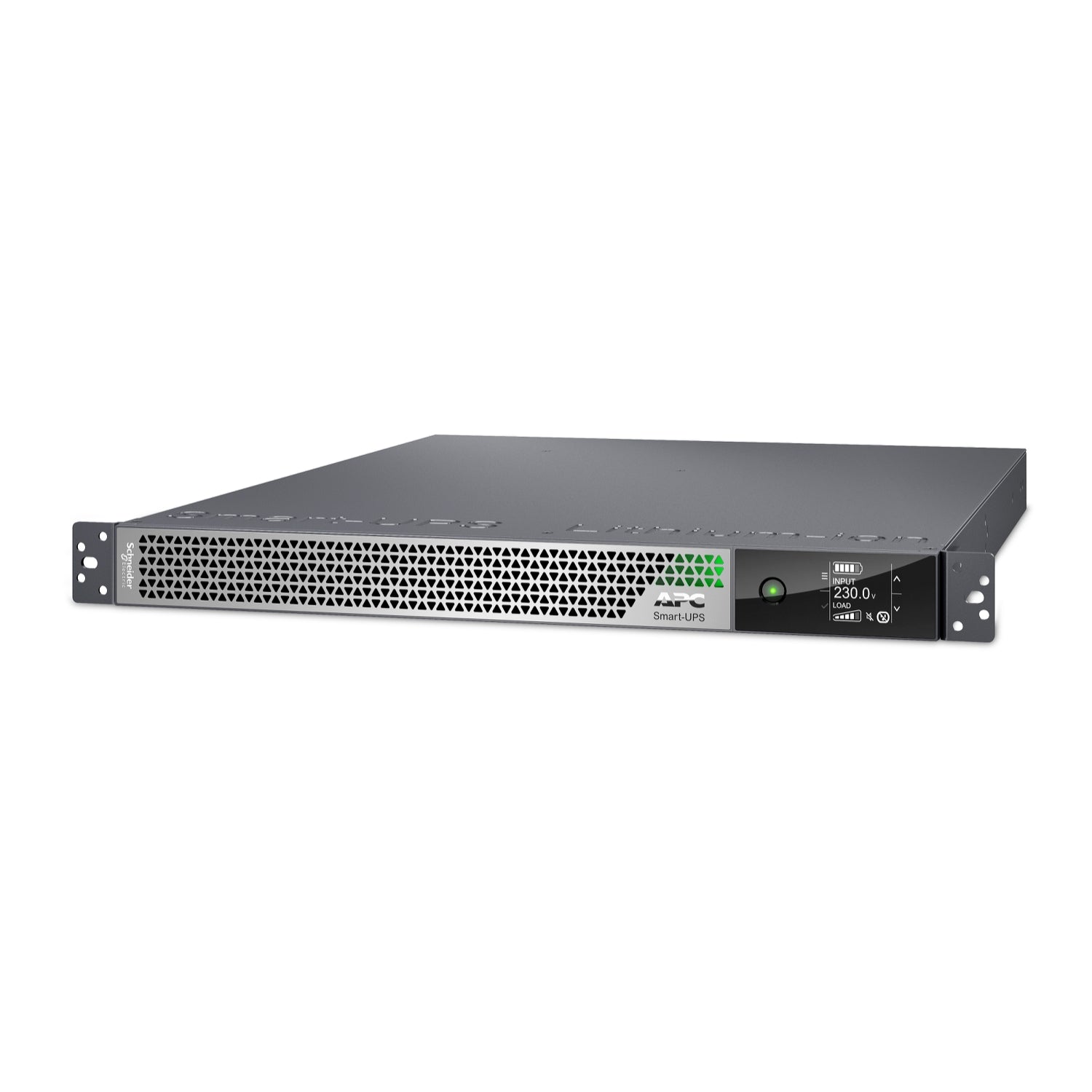

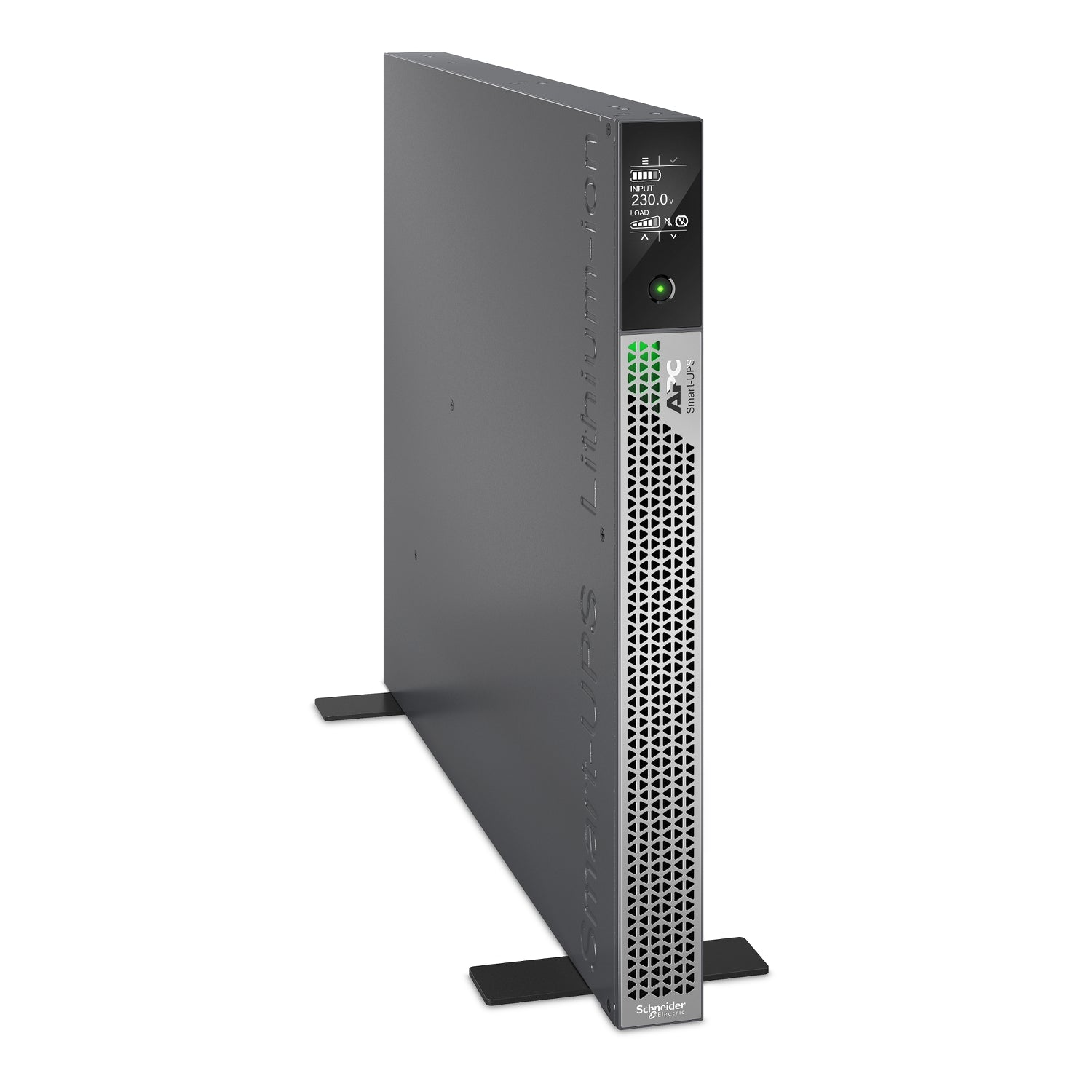

APC Smart-UPS Ultra, 2200VA 208+230V 1U, with Lithium-Ion Battery, with Network Management Card Embedded
Main
Input Voltage
208-240 AC
Output Voltage
208-240 AC
Rated Power in W
2200 W
Rated Power in VA
2200
Input Connection Type
BS1363A British
Output Connection Type
3 IEC 320 C13, 2 IEC 320 C19
Max Configurable Power in VA
2200 VA
Max Configurable Power in W
2200 W
Topology
On-Line
Battery Type
Li-Ion (Lithium Ion)
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Silver grey
Mounting Mode
Rack-mounted with kit
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 10.95Width: 22.2Length: 30.08
Shipping Weight
53.31 lb
UPC Code
731304573593
Lead time
Usually in Stock
Provided Equipment
RJ45 Cable
Rack Mounting brackets
Network cable
Terminal
Stabilization feet
Safety guide
Rail extension
Washer
USB cable
Screws
Rack Mounting brackets
Network cable
Terminal
Stabilization feet
Safety guide
Rail extension
Washer
USB cable
Screws
Standards
EN/IEC 62040-1
FCC CFR 47 part 15 class A
IEC 62040-2
EN/IEC 61000-4-8
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-5 level 3
EN/IEC 61000-4-4 level 4
FCC CFR 47 part 15 class A
IEC 62040-2
EN/IEC 61000-4-8
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-5 level 3
EN/IEC 61000-4-4 level 4
Product Certifications
CE
EAC
RCM
VDE
UKCA
UK PSTI
EAC
RCM
VDE
UKCA
UK PSTI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
5818
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dB
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
No
EU RoHS Directive
Compliant with Exemptions
