2U height stepdown transformer
Provides 120V output for 208V UPS
(4) 5-20R outlets
Standard warranty 5 years repair or replace
1-Year Secure Network Management Card subscription included
Product Highlights
Documents
Description

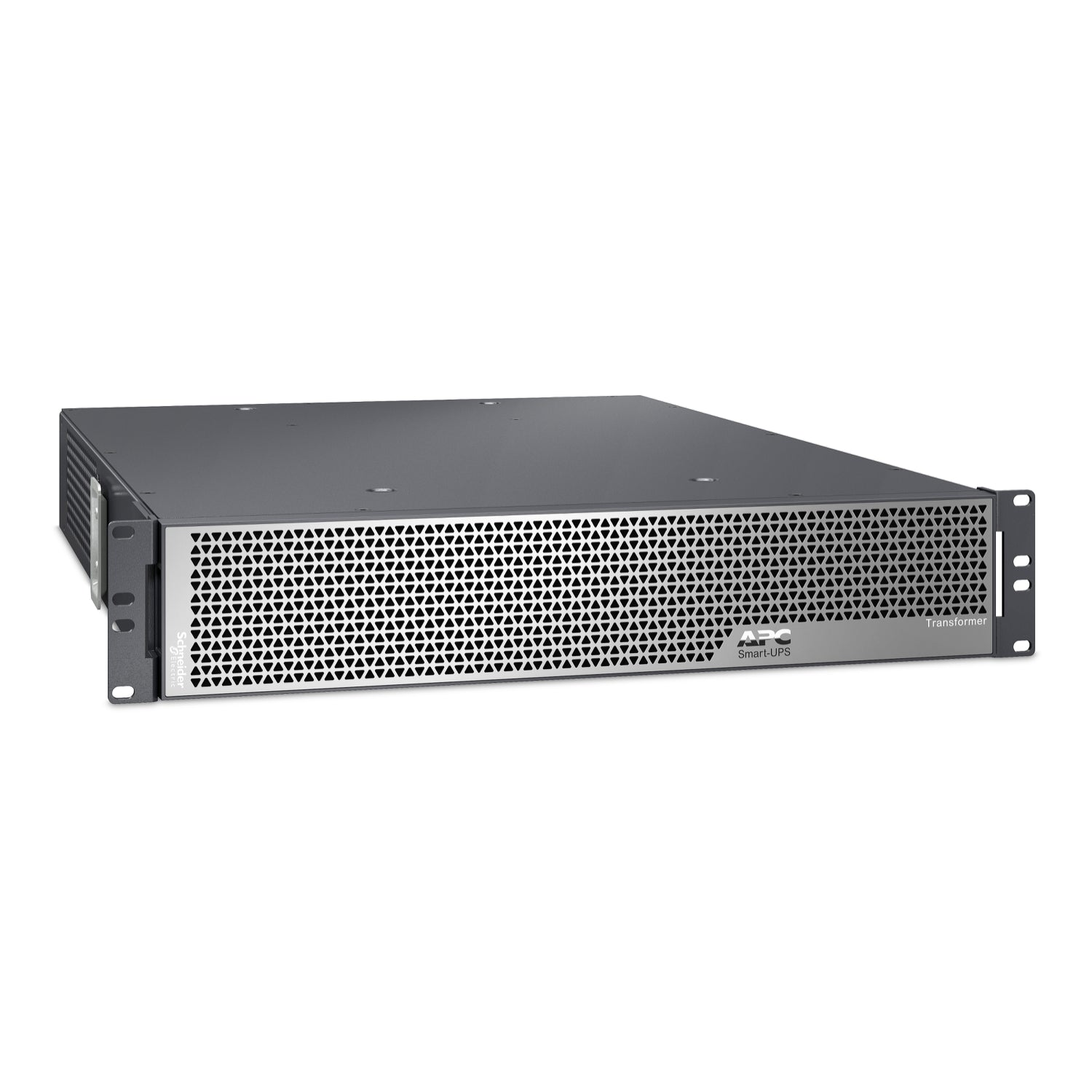

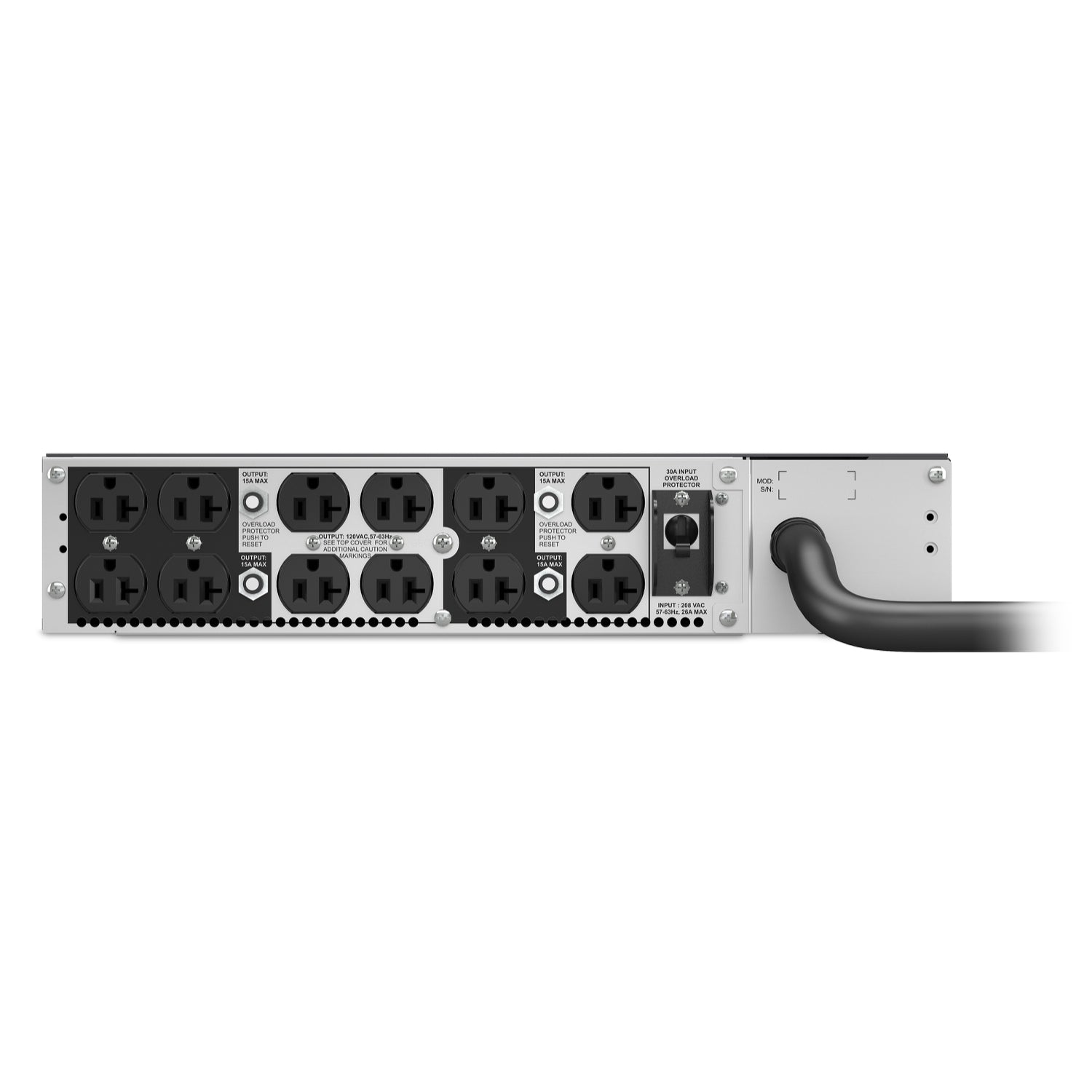

The Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. Rackmount or tower installation, install the step-down transformer above the compatible STLR 5kW UPS. 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker Standard warranty, 5 years repair or replace.
Specifications
Overview
Model
APC Smart-UPS Ultra On Line SRTL 5kVA RM Isolation/Step-Down Transformer
Main
Input Voltage
208
Output Voltage
120
Rated Power in W
5000 W
Rated Power in VA
5 kVA
Input Connection Type
NEMA L6-30P
Removable Battery
User replaceable
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 10Width: 37.48Length: 24.49
Shipping Weight
110.01 lb
UPC Code
731304437055
Lead time
Usually in Stock
Provided Equipment
Mounting Hardware
Standards
UL 1778
Product Certifications
CSA
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant with Exemptions
