3U height stepdown transformer
Provides 120V output for 208V UPS
(2) L6-30R (1)L5-13R (2)5-20R
Standard warranty 5 years repair or replace
1-Year Secure Network Management Card subscription included
Product Highlights
Description

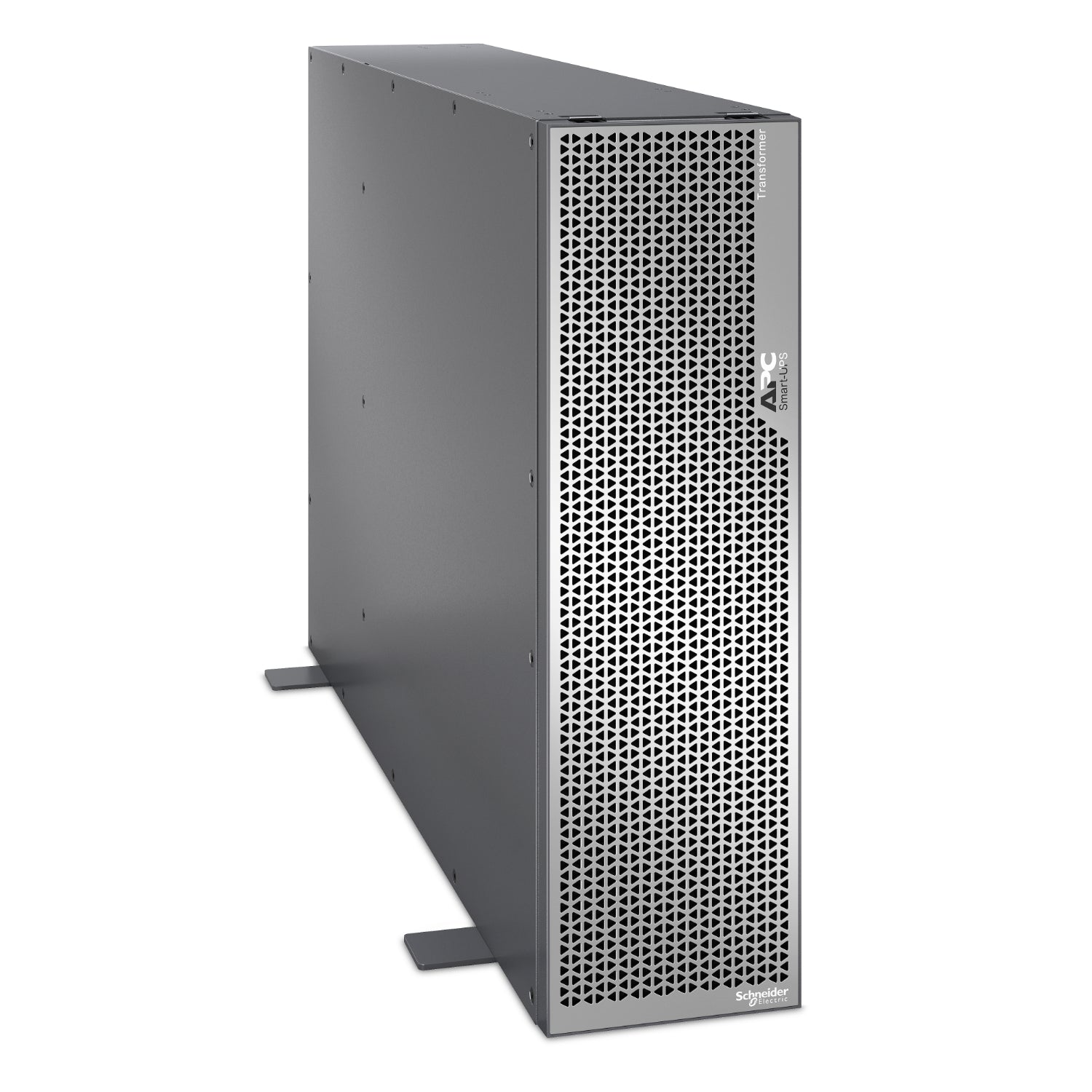

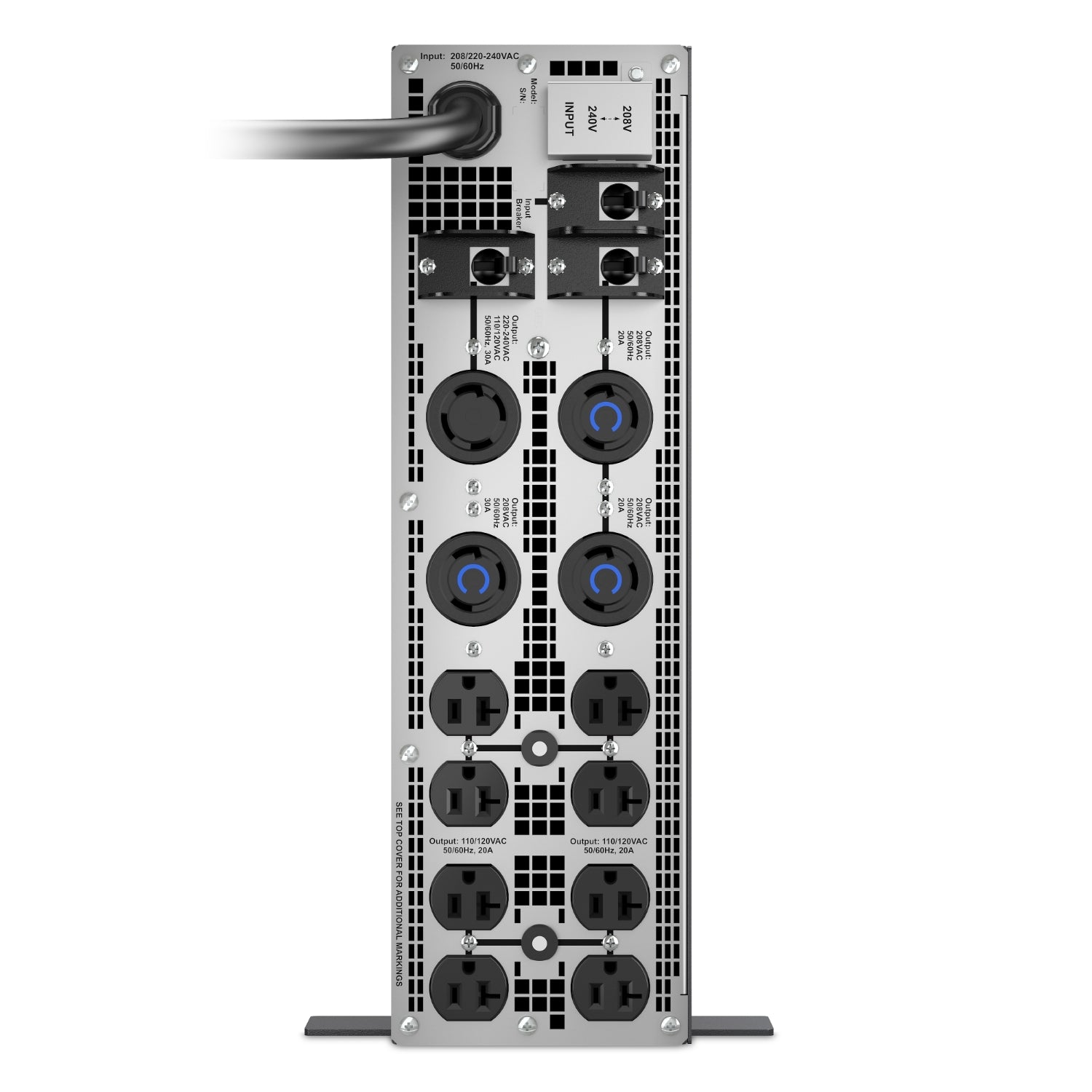

The Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. User Selectable: 110V/ 120V/ 208V/ 240V, depending on the UPS output voltage and the Switch position. Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Ships as tower Configuration. Install the step-down transformer to the left/above the compatible STLR 5kW UPS. Rackmount configuration is available with SRTRK2 rail kit accessory, sold separately. Standard warranty, 5 years repair or replace.
Specifications
Overview
Model
APC Smart-UPS Ultra On Line SRTL 5kVA Tower Isolation/Step-Down Transformer
Main
Input Voltage
208
Output Voltage
120
Rated Power in VA
5 kVA
Input Connection Type
NEMA L6-30P
Removable Battery
User replaceable
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted with kit
Mounting Preference
No preference
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 13.66Width: 38.58Length: 23.74
Shipping Weight
140 lb
UPC Code
731304437048
Lead time
Usually in Stock
Provided Equipment
User Manual
Standards
UL 1778
Product Certifications
CSA
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant with Exemptions
