- 3000VA pure sine wave SHIPBOARD-certified Smart-UPS X — marine environments and naval applications
- Shipboard-certified for vibration, EMI, and saltwater environment resistance
- 120V — Tower chassis fits standard 19-inch racks or deploys as tower (rail kit may be required)
- SmartSlot bay accepts optional Network Management Card and environmental monitoring accessories
- Compatible with PowerChute Network Shutdown for graceful shutdown of physical servers, virtual machines, and HCI clusters
- 3-year UPS warranty; external battery packs and replacement cartridges available from Questyme
Product Highlights
Documents
Description

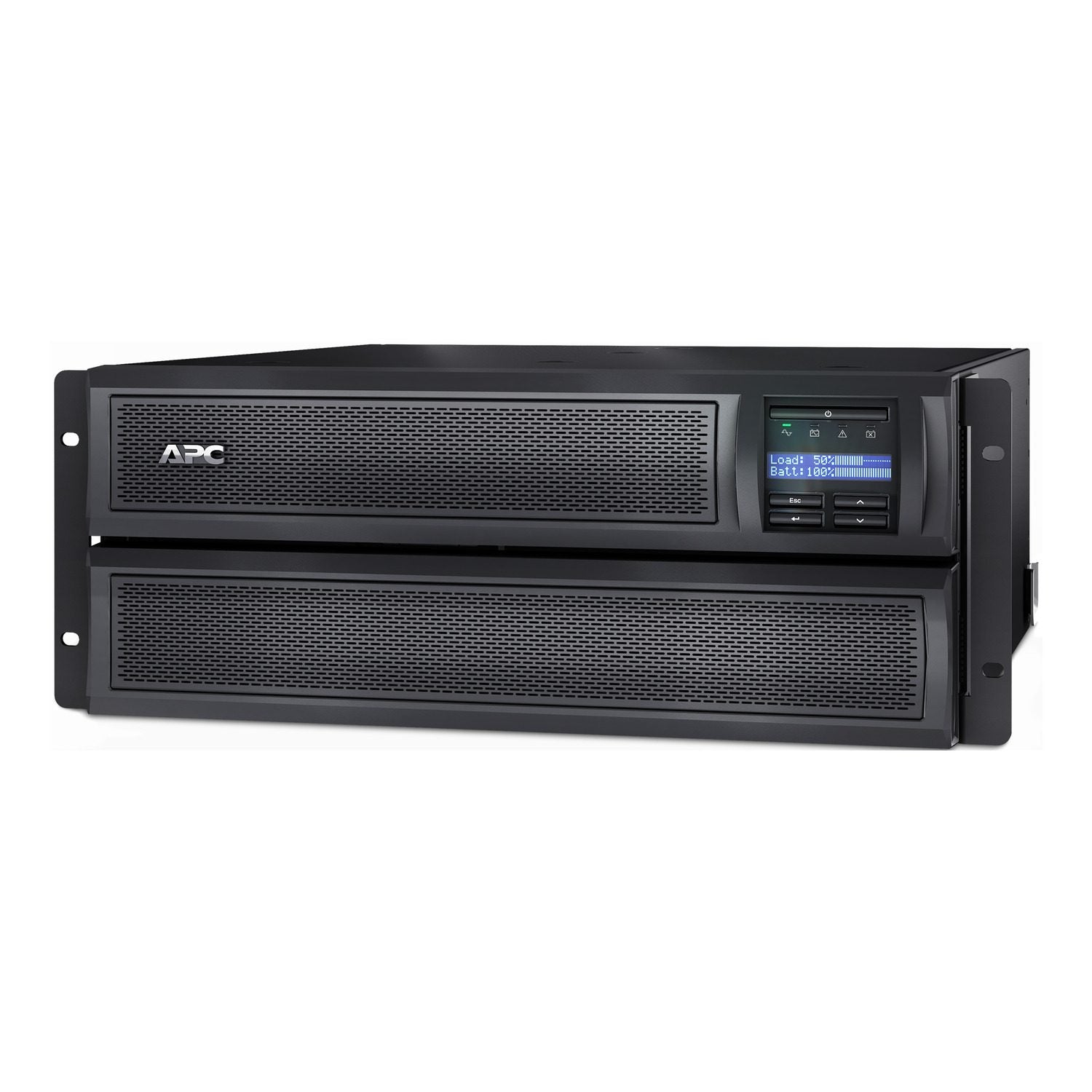

APC Smart-UPS X SMX3000RMX93 — Marine and Shipboard-Certified Extended Runtime UPS
The SMX3000RMX93 is a SHIPBOARD-certified Smart-UPS X providing extended runtime power protection for naval, offshore, and commercial marine environments. The SMX platform's external battery pack architecture allows post-purchase runtime expansion, while shipboard certification ensures the unit meets vibration, EMI, and environmental standards required for marine installation.
Built for Marine Environments
SHIPBOARD certification places this UPS in a category distinct from standard commercial units. It is appropriate for installation on naval combat vessels, support ships, drilling platforms, and shore-side military facilities specifying marine-rated equipment.
Specifications
| Specification | Value |
|---|---|
| VA | 3000VA |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Voltage | 120V |
| Form Factor | Tower |
| Certification | SHIPBOARD |
| Extended Runtime | Supports SMX external battery packs |
Talk to a Questyme Power Specialist Before You Buy
UPS sizing involves more than matching VA ratings to nameplate loads. Power factor, future expansion, generator coordination, and acceptable runtime windows all factor in. Questyme's team builds a sizing model for your specific environment — not a generic recommendation. Get a power assessment from Questyme.
Specifications
Overview
Model
APC Smart-UPS 3000VA RM 4U 120V Shipboard
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
2700 W
Rated Power in VA
2880
Input Connection Type
NEMA L5-30P

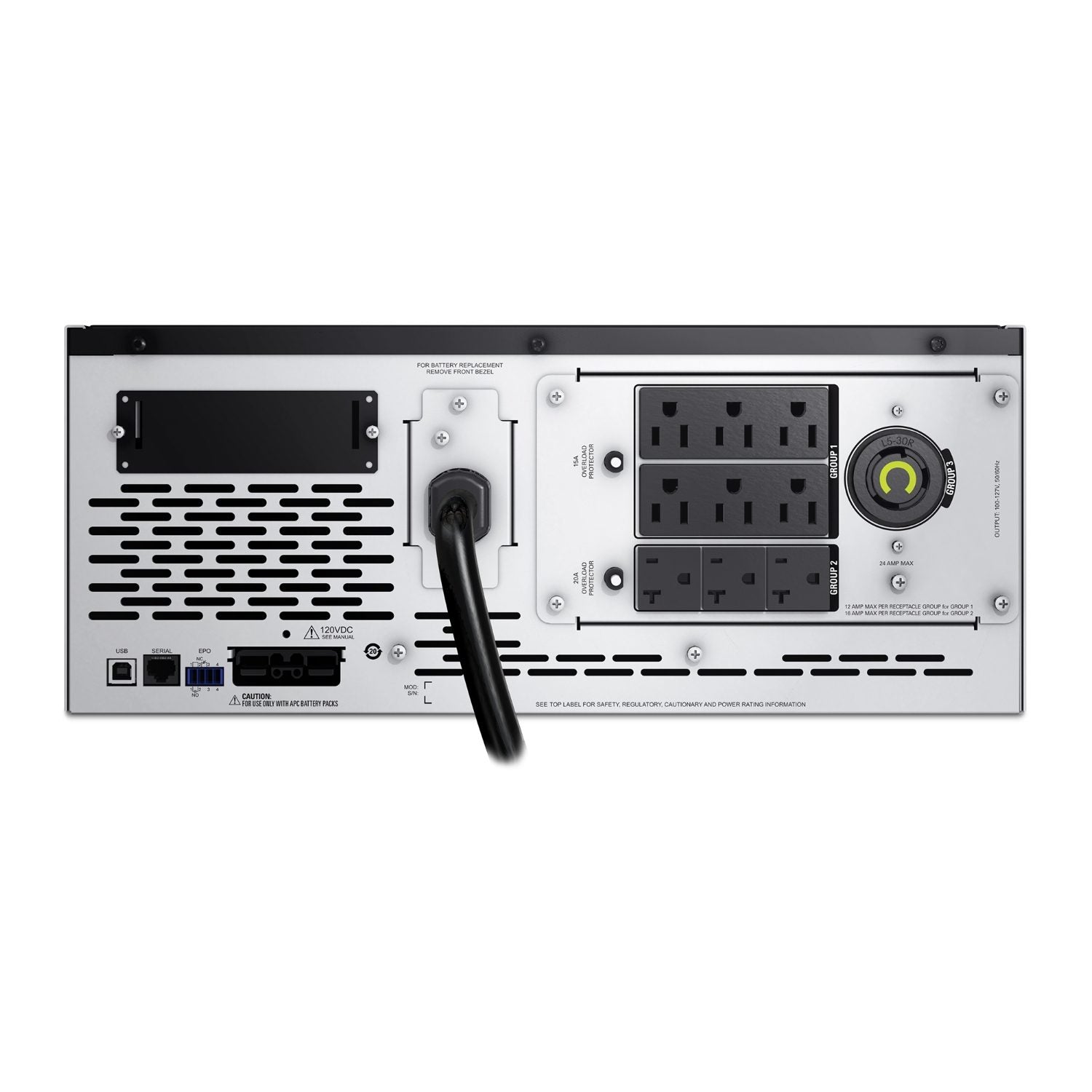

Output Connection Type
3 NEMA 5-15R
Max Configurable Power in VA
2880 VA
Max Configurable Power in W
2700 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
OEM & SPECIAL PRODUCTS
Shipping Dimensions
Height: 12.99Width: 23.15Length: 26.1
Shipping Weight
105.006 lb
UPC Code
731304433668
Lead time
Usually in Stock
Provided Equipment
User's documentation in electronic format
Product Certifications
BSMI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
2803
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Acoustic Level
55 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
