- 750VA / 500W line-interactive pure sine wave UPS with support for up to 10 external battery packs for extended runtime
- 120V — 2U Rack/Tower Convertible chassis fits standard 19-inch racks or deploys as tower (rail kit may be required)
- AP9641 Network Management Card 3 included for SNMP, web, and EcoStruxure IT management
- Compatible with PowerChute Network Shutdown for graceful shutdown of physical servers, virtual machines, and HCI clusters
- 3-year UPS warranty; external battery packs and replacement cartridges available from Questyme
Product Highlights
Documents
Description

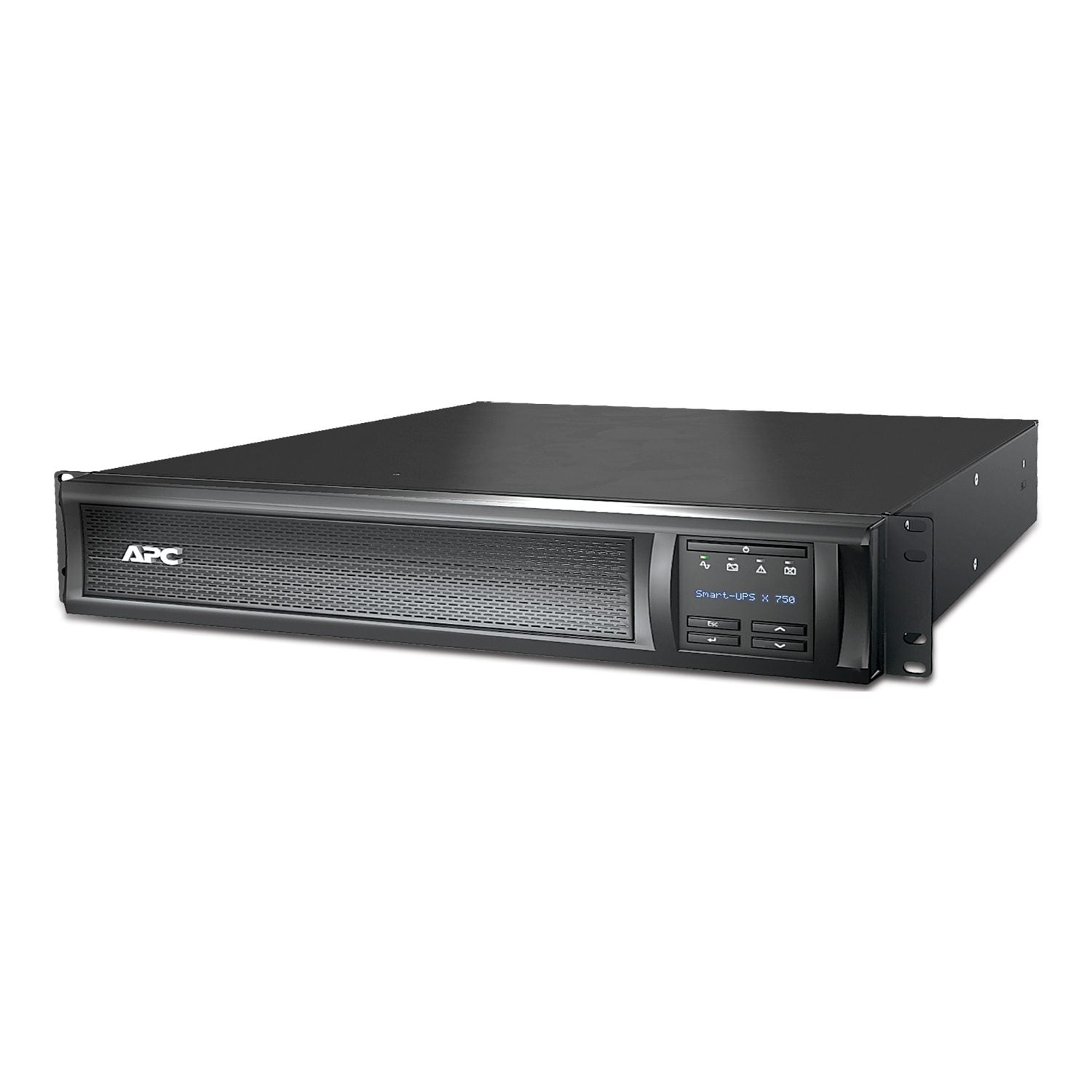

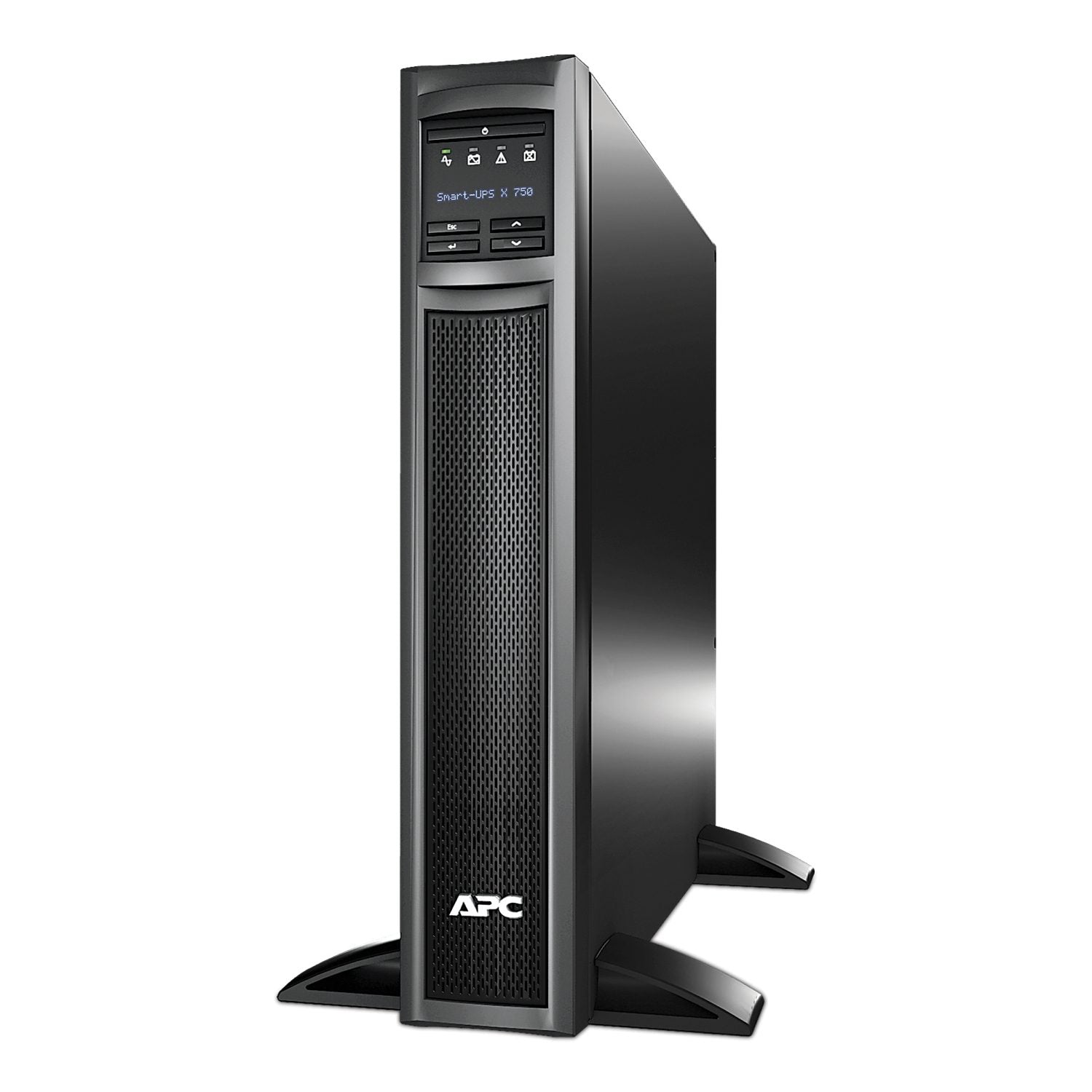

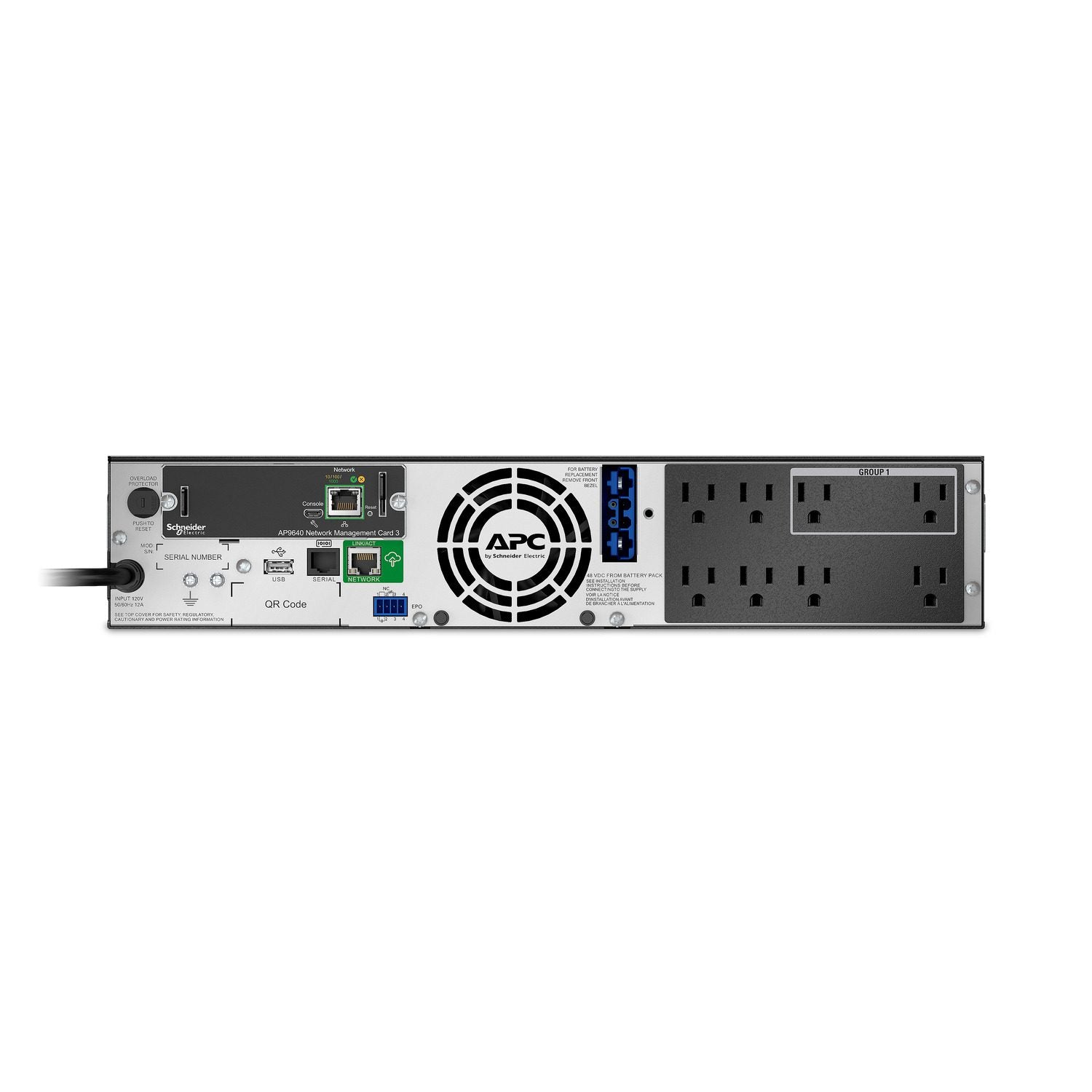

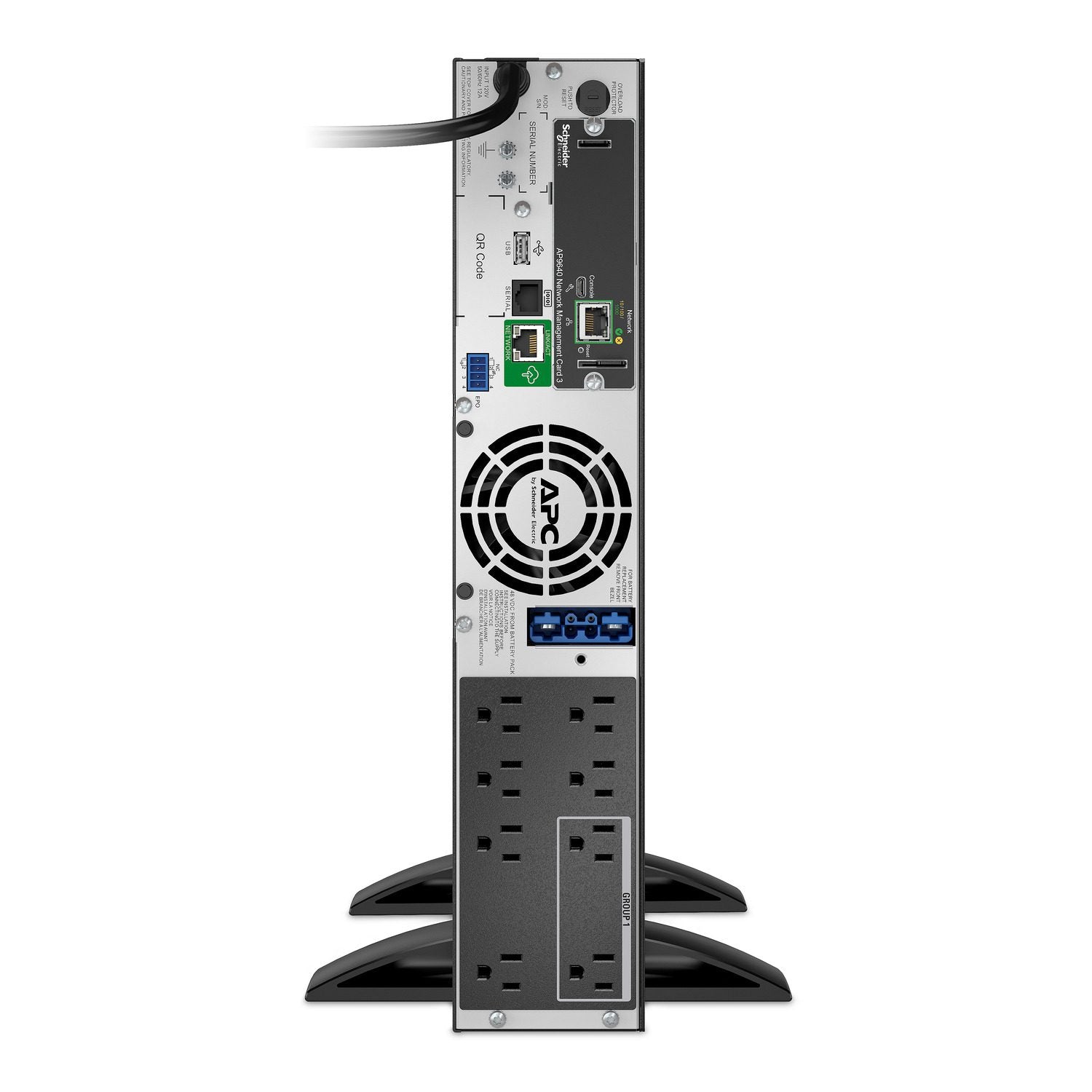

APC Smart-UPS X SMX750CNC — 750VA Rack/Tower Convertible with Extended Runtime Architecture
The SMX750CNC is a 750VA / 500W line-interactive UPS with a defining capability: support for up to 10 external battery packs. Where most UPS units lock you into the runtime they ship with, the Smart-UPS X (SMX) platform separates runtime from the base unit — letting you size the UPS for your load today and add runtime tomorrow as requirements evolve.
The Extended Runtime Architecture
Standard internal battery runtime sits in the minutes range under typical load. For data centers with reliable generator backup and 30-second transfer time, that is enough. For sites without generators, or with longer transfer windows, internal-only runtime is the wrong question. The SMX architecture solves this by allowing post-purchase runtime scaling — add packs as your runtime target grows without replacing the UPS itself.
Key Features

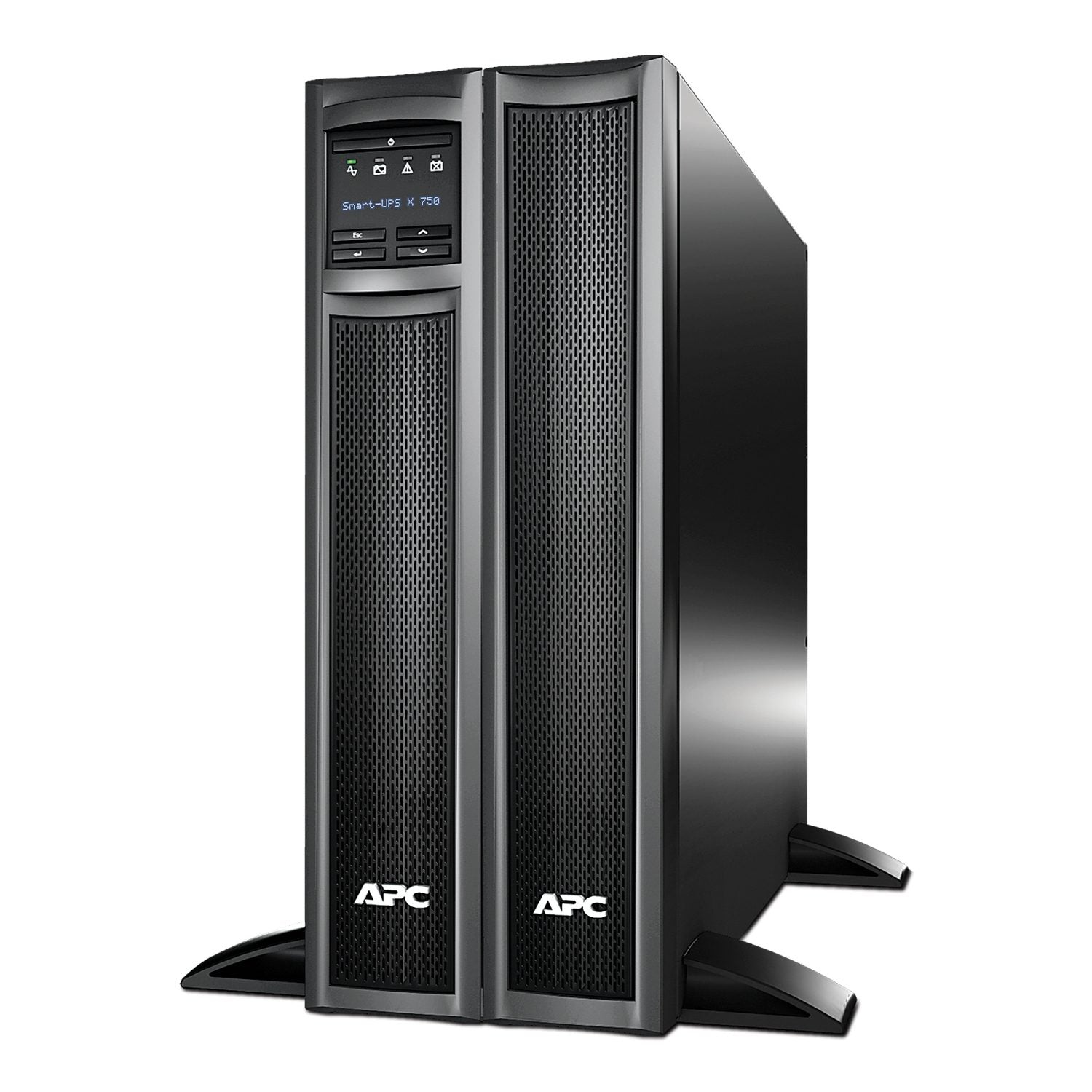

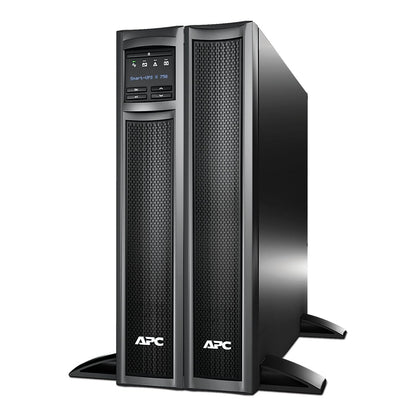

- External Battery Pack Support: Up to 10 SMX battery packs in series — runtime scales linearly with pack count.
- Rack/Tower Convertible: 2U Rack/Tower Convertible chassis fits standard 19-inch racks or deploys as a tower without rail kit modification.
- Pure Sine Wave Output: Delivers a clean pure sine wave to connected equipment. Active PFC power supplies common in modern servers and storage arrays will throw errors or shut down on the simulated/stepped-wave output produced by entry-level UPS units; pure sine eliminates that risk.
- Automatic Voltage Regulation: AVR uses a buck-and-boost transformer stage to bring out-of-range utility voltage back to nominal levels in real time. The UPS only transitions to battery for true outages, which significantly extends battery service life.
- AP9641 NMC3 Included: Out-of-box SNMP/web management and EcoStruxure IT integration. No accessory purchase required.
- PowerChute Network Shutdown: Graceful shutdown coordination for physical servers, hypervisors (VMware, Hyper-V, KVM), and HCI clusters.
Technical Specifications
| Specification | Value |
|---|---|
| VA / Watts | 750VA / 500W |
| Topology | Line Interactive |
| Output Waveform | Pure Sine Wave |
| Voltage | 120V |
| Form Factor | 2U Rack/Tower Convertible |
| External Battery Support | Up to 10 SMX battery packs |
| Management | AP9641 NMC3 included |
| TAA Compliance | Standard model (TAA variant available) |
| Warranty | 3-year UPS / 2-year battery |
Ideal Applications and Industries
- Enterprise IT and Virtualization Hosts: Coordinates graceful shutdown of physical and virtual servers through PowerChute Network Shutdown when extended outages exceed runtime.
- Healthcare Diagnostic Equipment: Reliable backup power for imaging workstations, telemetry hubs, and lab analyzers where data integrity depends on clean shutdowns.
- Federal, State, and Local Government: Meets specification requirements for U.S.-aligned procurement programs; TAA-compliant variants available where required.
- Manufacturing and Industrial Controls: Powers PLCs, HMIs, and supervisory control workstations that cannot tolerate the brief voltage dips common to industrial environments.
- Retail Point-of-Sale and Hospitality: Keeps POS terminals, payment processors, and front-of-house systems online during transient power disturbances.
Power Expert Consultation Available
Questyme has been an APC authorized reseller since 2009. Our team can verify compatibility with your existing rack hardware, recommend appropriate runtime configurations, and provide TAA and procurement documentation when needed. Request a consultation before specifying.
Specifications
Overview
Model
APC Smart-UPS X 750VA Rack/Tower LCD 120V with Network Card and SmartConnect
Main
Input Voltage
120
Output Voltage
120
Rated Power in W
675 W
Rated Power in VA
750
Input Connection Type
NEMA 5-15P
Output Connection Type
8 NEMA 5-15R
Max Configurable Power in VA
750 VA
Max Configurable Power in W
675 W
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
EPO Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted with kit
Mounting Preference
Lower
Product Line
SMART-UPS UNDER 1.5 KV
Shipping Dimensions
Height: 23.19Width: 24.41Length: 9.69
Shipping Weight
58.4 lb
UPC Code
731304401117
Lead time
Usually Ships within 2 Weeks
Provided Equipment
USB cable
Smart UPS signalling RS-232 cable
Removable mobile power pack
Rack Mounting brackets
Installation guide
Cat 5 ethernet cable
Smart UPS signalling RS-232 cable
Removable mobile power pack
Rack Mounting brackets
Installation guide
Cat 5 ethernet cable
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
1072
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Acoustic Level
40 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant with Exemptions
