- APC NMC3 with built-in environmental monitoring — extends the base NMC3 with onboard temperature/humidity sensor port
- Plug an APC AP9335TH (temperature + humidity) or AP9335T (temperature only) sensor directly into the card
- USB port supports UPS firmware updates from a USB drive — useful for sites without reliable internet
- Same comprehensive management interface as AP9640: SNMPv1/v2c/v3, HTTPS, SSH, BACnet, Modbus, EcoStruxure IT
- Includes PowerChute Network Shutdown and 12-month Secure NMC Subscription
Product Highlights
Documents
Description

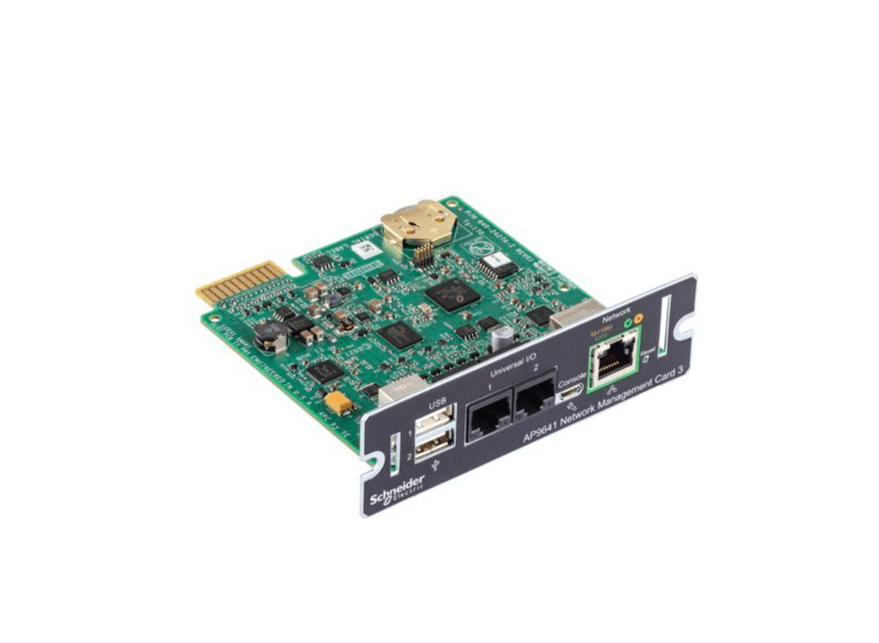

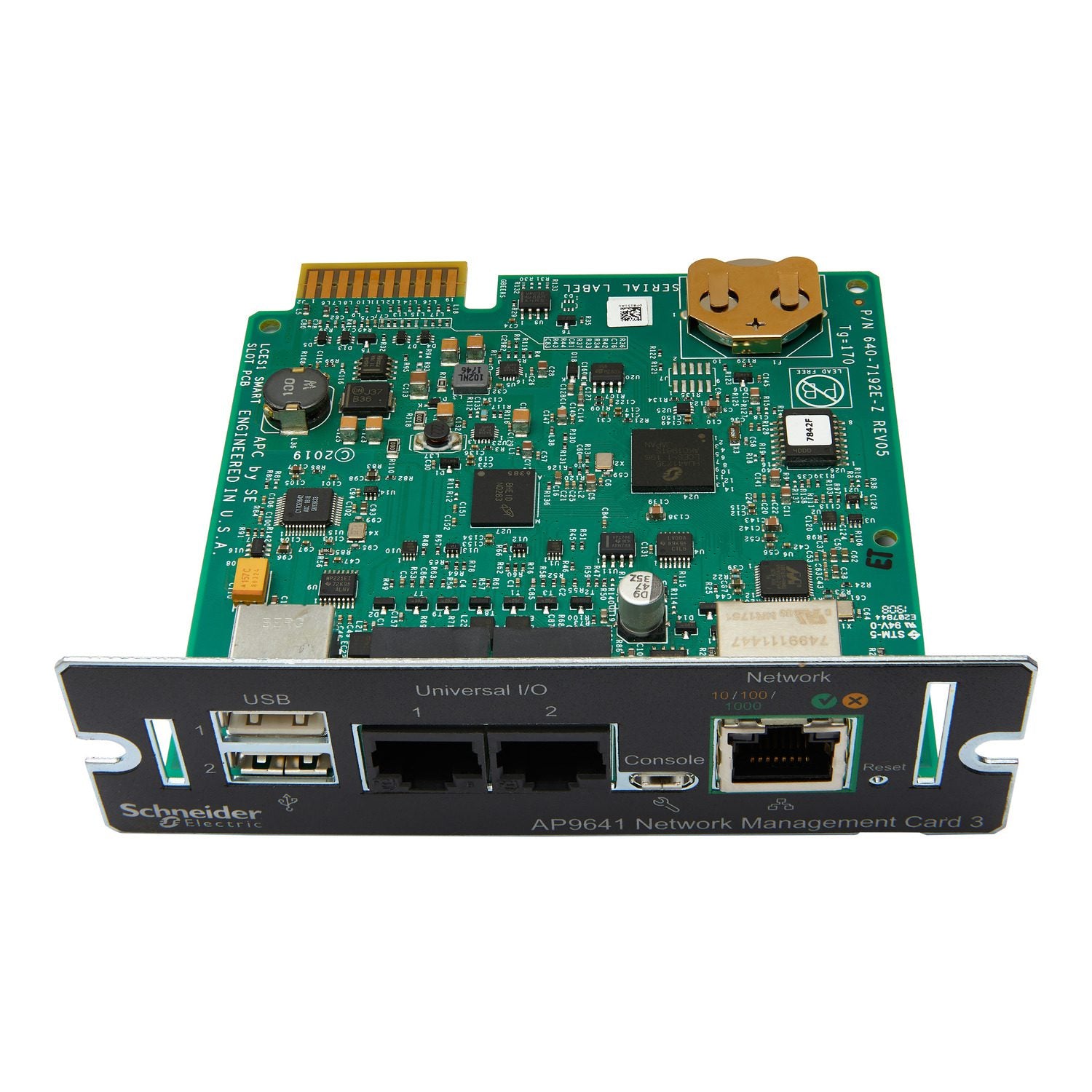

APC UPS Network Management Card 3 with Environmental Monitoring — AP9641
Full APC Specification: Device monitoring and management, Network Management Cards, NMC3 with Environmental Monitoring, secure remote UPS monitoring and management
The AP9641 builds on the base AP9640 NMC3 with two additional capabilities: a dedicated environmental sensor port and a USB port for firmware updates from a USB drive. For deployments where rack-level temperature and humidity matter — most production data center and network closet environments — the AP9641 eliminates the need for a separate environmental monitoring device.
Why Environmental Monitoring at the UPS
UPS units sit in the rack alongside the equipment they protect. Adding an environmental sensor directly to the UPS Network Management Card consolidates power and environmental visibility into a single device and a single management interface — without deploying separate NetBotz hardware or a dedicated environmental gateway.
Key Features
- Environmental Sensor Port: Direct RJ-45 connection for APC AP9335TH (temperature + humidity) or AP9335T (temperature only) sensors.
- USB Firmware Update: Update UPS and NMC firmware from a USB drive — useful for air-gapped or low-bandwidth deployments.
- Full NMC3 Management Suite: SNMPv1/v2c/v3, HTTPS, SSH, SCP, BACnet, Modbus, Syslog, RADIUS, EAPoL.
- IPv6 Ready: Dual-stack IPv4/IPv6 operation.
- PowerChute Network Shutdown Included: Coordinated shutdown of physical servers, virtual machines, and HCI clusters.
- 12-Month Secure NMC Subscription: Firmware updates and security patches included for the first year.
Technical Specifications
| Specification | Value |
|---|---|
| Generation | NMC3 (with Environmental Monitoring) |
| Form Factor | APC SmartSlot card |
| Network | 10/100/1000 Ethernet, RJ-45 |
| Environmental Port | RJ-45 for AP9335TH / AP9335T / equivalent APC sensors |
| Local Access | Console port (serial), USB port (firmware updates) |
| Management Protocols | SNMPv1/v2c/v3, HTTPS, SSH/SCP, BACnet, Modbus, Syslog, Telnet, FTP |
| IPv6 Support | Yes |
| Software Included | PowerChute Network Shutdown |
| Subscription | 12-month Secure NMC Subscription included |
| Warranty | 2-year |
Ideal Applications
- Data Center Rack-Level Environmental Monitoring: Combined power and environmental visibility in a single device installed in the existing UPS.
- Network Closets Without Active Cooling: Early-warning temperature monitoring where overheating is a recurring concern.
- Healthcare and Lab Equipment Rooms: Temperature and humidity tracking for compliance reporting (JCI, CAP, CLIA).
- Remote and Edge Sites: USB firmware update support useful for sites with intermittent connectivity.
- Compliance-Regulated Environments: Audit-grade environmental telemetry logged alongside power events.
Questyme: NMC3 + Sensor Bundle Configurations
For most production deployments, Questyme recommends pairing the AP9641 with an APC AP9335TH temperature/humidity sensor as a bundled order — single shipment, pre-tested compatibility. Contact our team to scope your environmental monitoring deployment.
Specifications
Overview
Model
UPS Network Management Card 3 with Environmental Monitoring
Main
Removable Battery
Yes
Physical
Mounting Preference
No preference
Product Line
NMC EMBEDDED SW
Shipping Dimensions
Height: 2.05Width: 6.46Length: 9.45
Shipping Weight
14.286 lb
UPC Code
731304355540
Lead time
Usually in Stock
Provided Equipment
Temperature Sensor
Micro-USB cable
Installation manual
Micro-USB cable
Installation manual
Standards
EN 55024
BS EN 55024
EN 61000-4-2
BS EN 61000-4-2
EN 61000-4-3
BS EN 61000-4-3
EN 61000-4-4
BS EN 61000-4-4
EN 61000-4-5
BS EN 61000-4-5
EN 61000-4-6
BS EN 61000-4-6
EN 61000-4-8
BS EN 61000-4-8
EN 61000-4-11
BS EN 61000-4-11
EN 55035
BS EN 55035
EN 62040-2
BS EN 62040-2
EN 61326-2
BS EN 61326-2
ICES-003 class A
VCCI class A
EN 61000-6-3
BS EN 61000-6-3
EN 55032:class A
BS EN 55032:class A
BS EN 55024
EN 61000-4-2
BS EN 61000-4-2
EN 61000-4-3
BS EN 61000-4-3
EN 61000-4-4
BS EN 61000-4-4
EN 61000-4-5
BS EN 61000-4-5
EN 61000-4-6
BS EN 61000-4-6
EN 61000-4-8
BS EN 61000-4-8
EN 61000-4-11
BS EN 61000-4-11
EN 55035
BS EN 55035
EN 62040-2
BS EN 62040-2
EN 61326-2
BS EN 61326-2
ICES-003 class A
VCCI class A
EN 61000-6-3
BS EN 61000-6-3
EN 55032:class A
BS EN 55032:class A
Product Certifications
FCC Class A
AS/NZS
AS/NZS 3548 (C-Tick) Class A
FCC part 15 class A
GOST
UK PSTI
AS/NZS
AS/NZS 3548 (C-Tick) Class A
FCC part 15 class A
GOST
UK PSTI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
123
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
23-113 ?F (-5-45 ?C)
Ambient Air Temperature for Storage
5-149 ?F (-15-65 ?C)
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
Yes
