- 17-inch rack-mounted LCD console with integrated keyboard and touchpad — 1U slide-out form factor
- Native 1280 x 1024 resolution at 75 Hz with 16.78 million color display

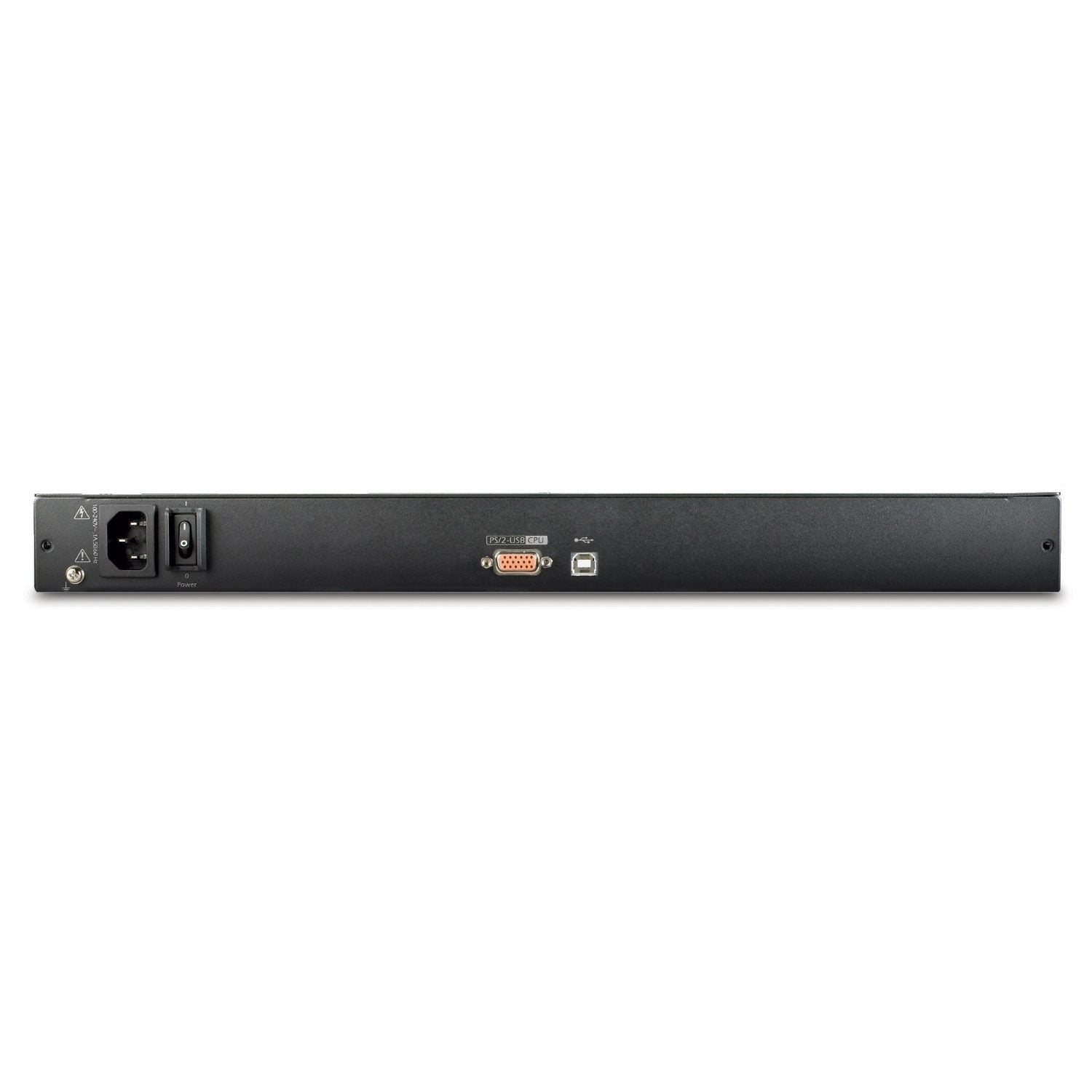

- PS/2 and USB host interfaces for connection to managed servers
- Dimensions: 19" width × 24.2" depth × 1.7" height (1U); compatible with standard 19-inch rack enclosures
- Designed for direct keyboard/video/mouse access in environments where a dedicated KVM switch is not required
Product Highlights
Documents
Description
APC 17-Inch Rack LCD Console — AP5717
Full APC Specification: APC 17" Rack LCD Console

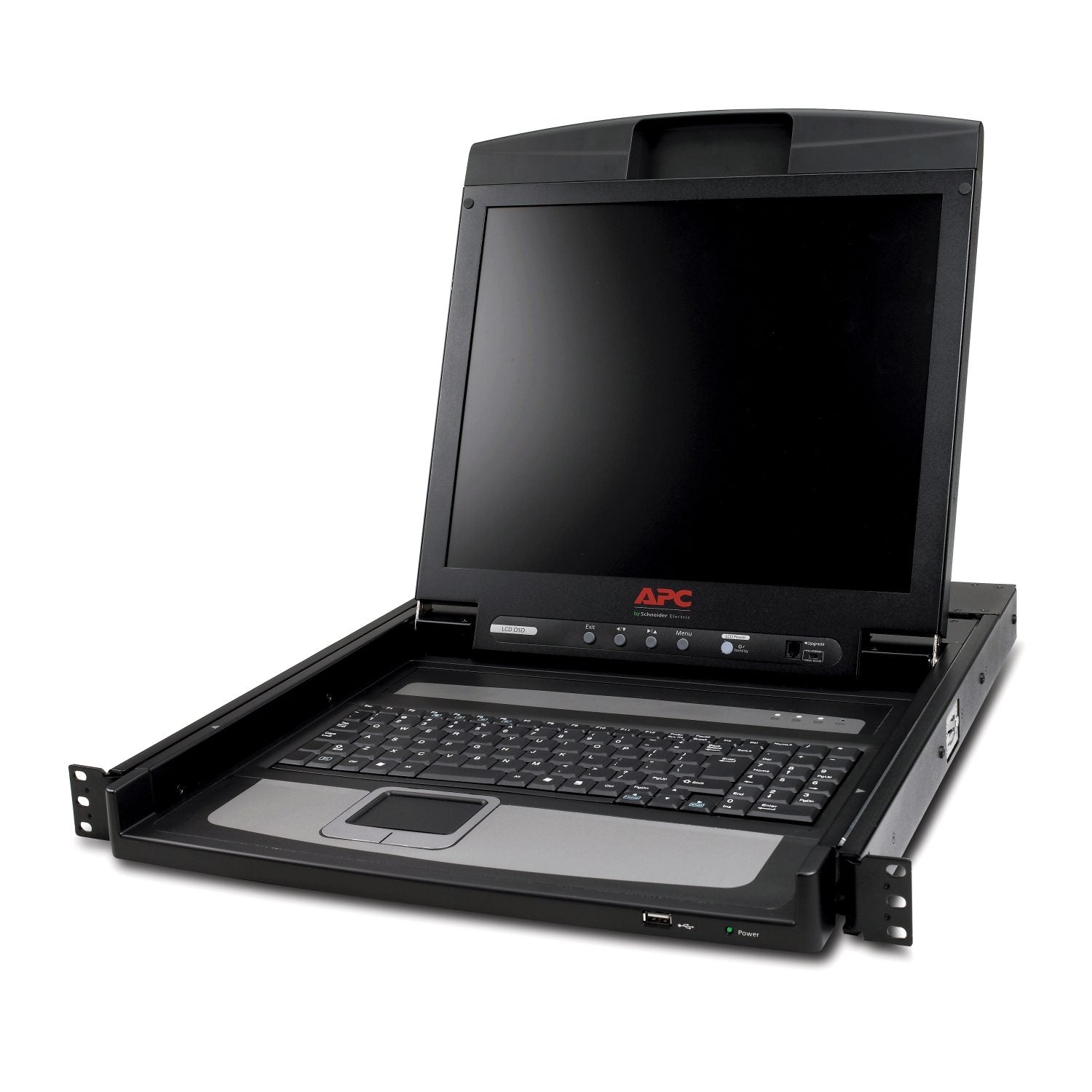

The AP5717 is a 1U rack-mounted LCD console — a slide-out display, keyboard, and touchpad combination installed directly in the server rack. For environments where a single direct keyboard/video/mouse access point per rack is sufficient (without the cost of a full KVM switch), the AP5717 provides the local-access tier in 1U of rack space.
When to Use a Local Console vs. Remote KVM
Modern data center management typically relies on iLO, iDRAC, IPMI, or KVM-over-IP for remote server access. But local console access is still required for: BIOS/UEFI configuration, OS installation, troubleshooting network-dropped servers, and any scenario where remote management has failed. The AP5717 provides this local access in a compact 1U slide-out form factor.
Key Features
- 17-Inch LCD Display: 1280 x 1024 native resolution at 75 Hz refresh, 16.78 million colors.
- 1U Slide-Out Form Factor: Minimal rack-space consumption; slides out for use, retracts for storage.
- PS/2 and USB Host Interfaces: Connects to both older PS/2 servers and current USB-only systems.

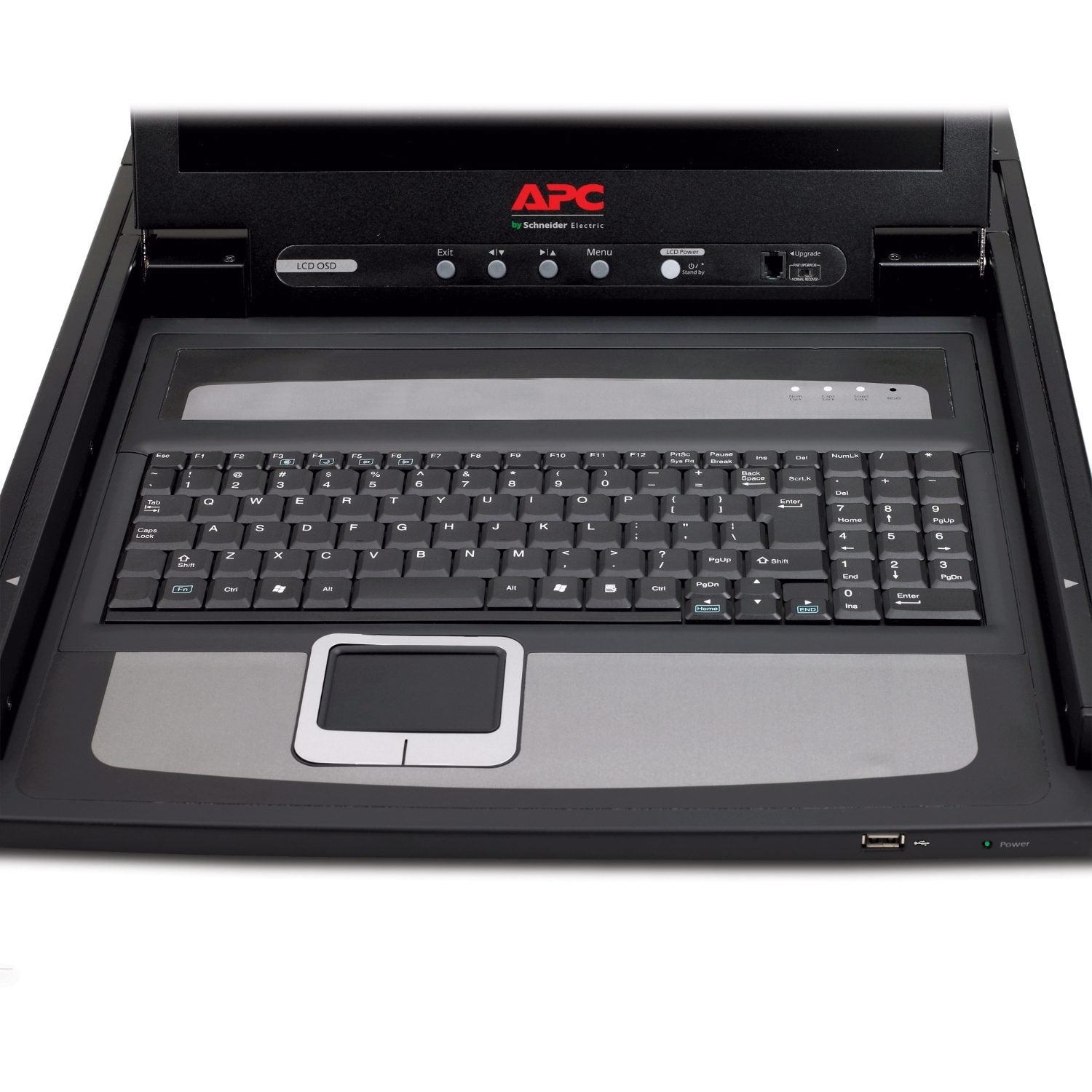

- Integrated Keyboard and Touchpad: Full-size keyboard with integrated touchpad — no separate input devices required.
- Wide Compatibility: Works with Windows, Linux, Unix, and Sun systems via standard keyboard/video/mouse interfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 17-inch LCD, 1280 x 1024 native at 75 Hz |
| Color Depth | 16.78 million colors |
| Form Factor | 1U slide-out rackmount |
| Dimensions (WxDxH) | 19" x 24.2" x 1.7" |
| Input Interfaces | PS/2 and USB host |
| Keyboard/Pointer | Integrated full-size keyboard with touchpad |
| OS Compatibility | Windows, Linux, Unix, Sun |
| Warranty | 2-year |
Ideal Applications
- Server Room Local Console Access: Single shared console for occasional direct server access.
- BIOS/UEFI Configuration and OS Install: Tasks that require local console access regardless of remote management capability.
- Network Closet Switch Configuration: Console access to networking equipment via USB or serial console interfaces.
- Legacy Server Environments: Older servers without integrated remote management still require local console access.
Questyme: KVM Console Cable Bundling
The AP5717 typically pairs with APC KVM cables (AP5821 6ft, AP5822 10ft, AP5823 17ft) and optionally with an APC KVM switch (AP5808 8-port, AP5816 16-port) for multi-server access. Questyme can scope the complete console + cable bundle for your rack environment. Contact our team.
Specifications
Overview
Model
APC 17" Rack LCD Console
Main
Input Voltage
100 10
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
KVM LCD AND SWITCHES
Shipping Dimensions
Height: 5.98Width: 32.52Length: 26.5
Shipping Weight
42.9 lb
UPC Code
731304283232
Lead time
Usually in Stock
Provided Equipment
C13-C14 power cord
Documentation CD
Firmware upgrade cable
Installation guide
NEMA 5-15 power cord
PS2 KVM cable
Single user rack mount kit
USB cable
USB KVM cable
Documentation CD
Firmware upgrade cable
Installation guide
NEMA 5-15 power cord
PS2 KVM cable
Single user rack mount kit
USB cable
USB KVM cable
Standards
EN 55022 Class A
EN 55024
EN 60950
FCC Part 15 class A
IEC 60950
EN 55024
EN 60950
FCC Part 15 class A
IEC 60950
Product Certifications
C-tick
CE
Industry Canada
KCC
NOM
UL Listed
VDE
TAA compliance
CE
Industry Canada
KCC
NOM
UL Listed
VDE
TAA compliance
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
59
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
