- 17-inch rack LCD console with integrated 8-port analog KVM switch — local console access to up to 8 connected servers from a single device
- 1U slide-out form factor with 1280 x 1024 LCD, integrated keyboard, and touchpad
- Multiple KVM switching options: hotkey, on-screen display (OSD), and pushbutton control
- Pairs with APC KVM cables (AP5821 6ft, AP5822 10ft, AP5823 17ft) for server connections
- Designed for small-to-mid server rooms where 8 directly-connected servers need local console access from a single unit
Product Highlights
Documents
Description

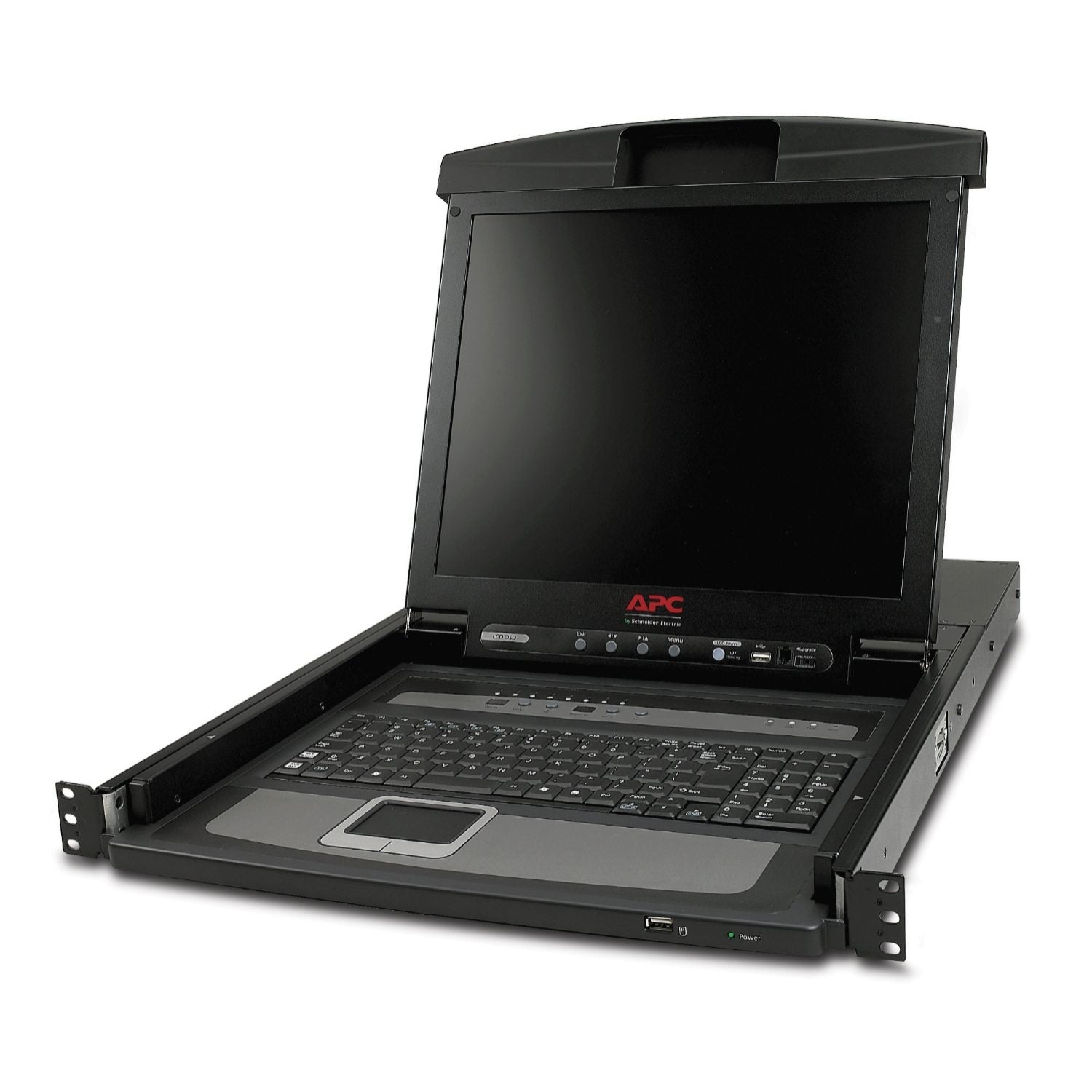

APC 17-Inch Rack LCD Console with 8-Port Analog KVM Switch — AP5808
Full APC Specification: 17" Rack LCD Console with Integrated 8 Port Analog KVM Switch
The AP5808 combines the 1U slide-out LCD console of the AP5717 with an integrated 8-port analog KVM switch. Where the standalone console provides direct access to one server at a time, the AP5808 lets a single console serve up to 8 connected servers — useful for small server rooms, branch office racks, and environments where 8 servers concentrated in one rack need shared local console access.
Analog KVM vs. KVM-over-IP
The AP5808 is an analog KVM — switching happens locally, console access is local. For remote-only access, KVM-over-IP is the right answer; for local-only access with multi-server convenience, analog KVM is simpler, cheaper, and more reliable. Many environments deploy both: analog KVM in the rack for on-site work, KVM-over-IP for remote.
Key Features
- 8-Port Integrated KVM: Switch between up to 8 connected servers from a single console.
- Multiple Switching Methods: Hotkey shortcuts, on-screen display (OSD), and physical pushbutton control.
- 17-Inch LCD: 1280 x 1024 native resolution with 1U slide-out form factor.

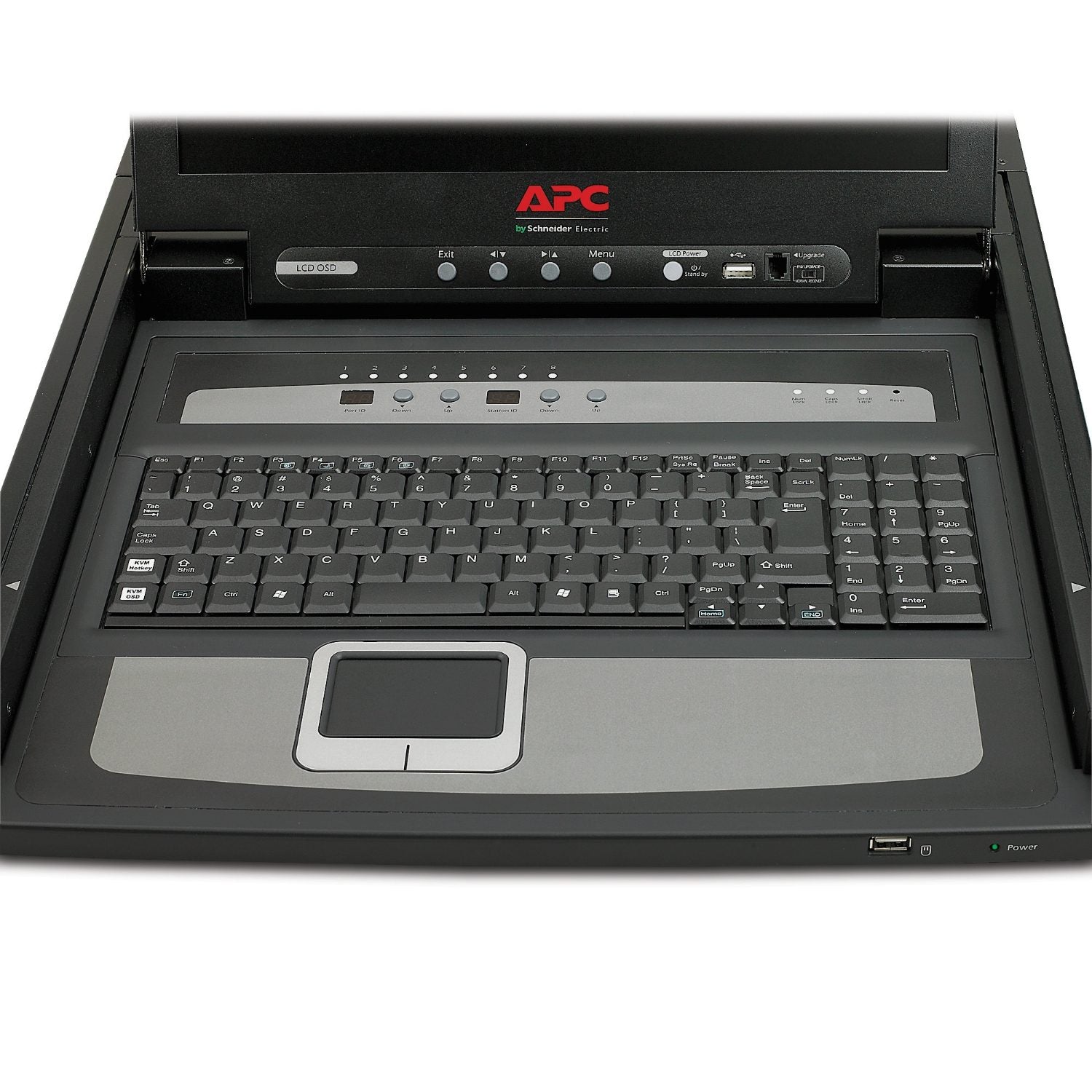

- Integrated Keyboard and Touchpad: Full-size keyboard with integrated touchpad.
- OSD-Based Server Naming: Label connected servers and select by name through the on-screen display.
- Compatible KVM Cables: Uses APC KVM cables AP5821 (6ft), AP5822 (10ft), AP5823 (17ft) for server connections.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 17-inch LCD, 1280 x 1024 native |

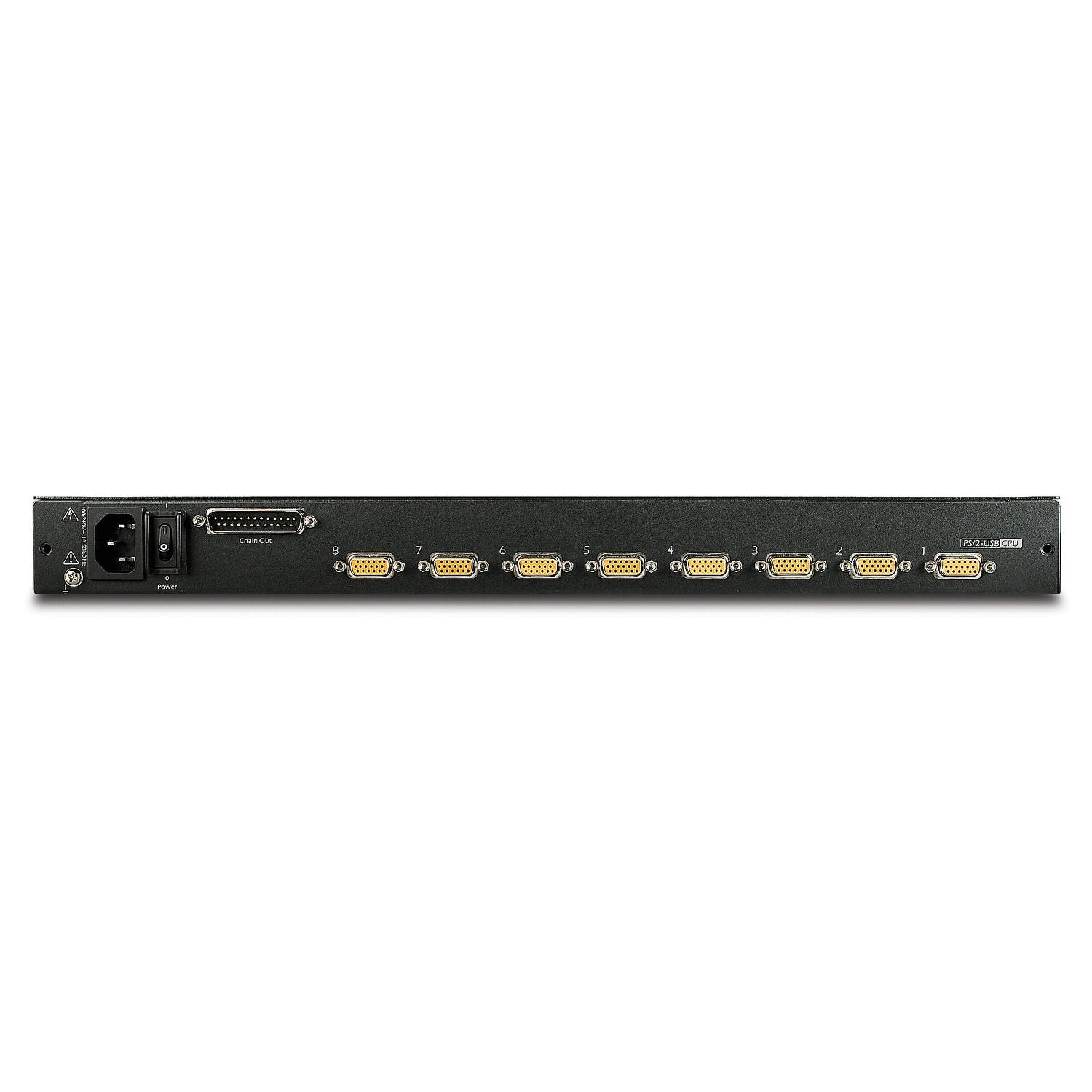

| KVM Ports | 8-port analog KVM |
| Switching Methods | Hotkey, OSD, Pushbutton |

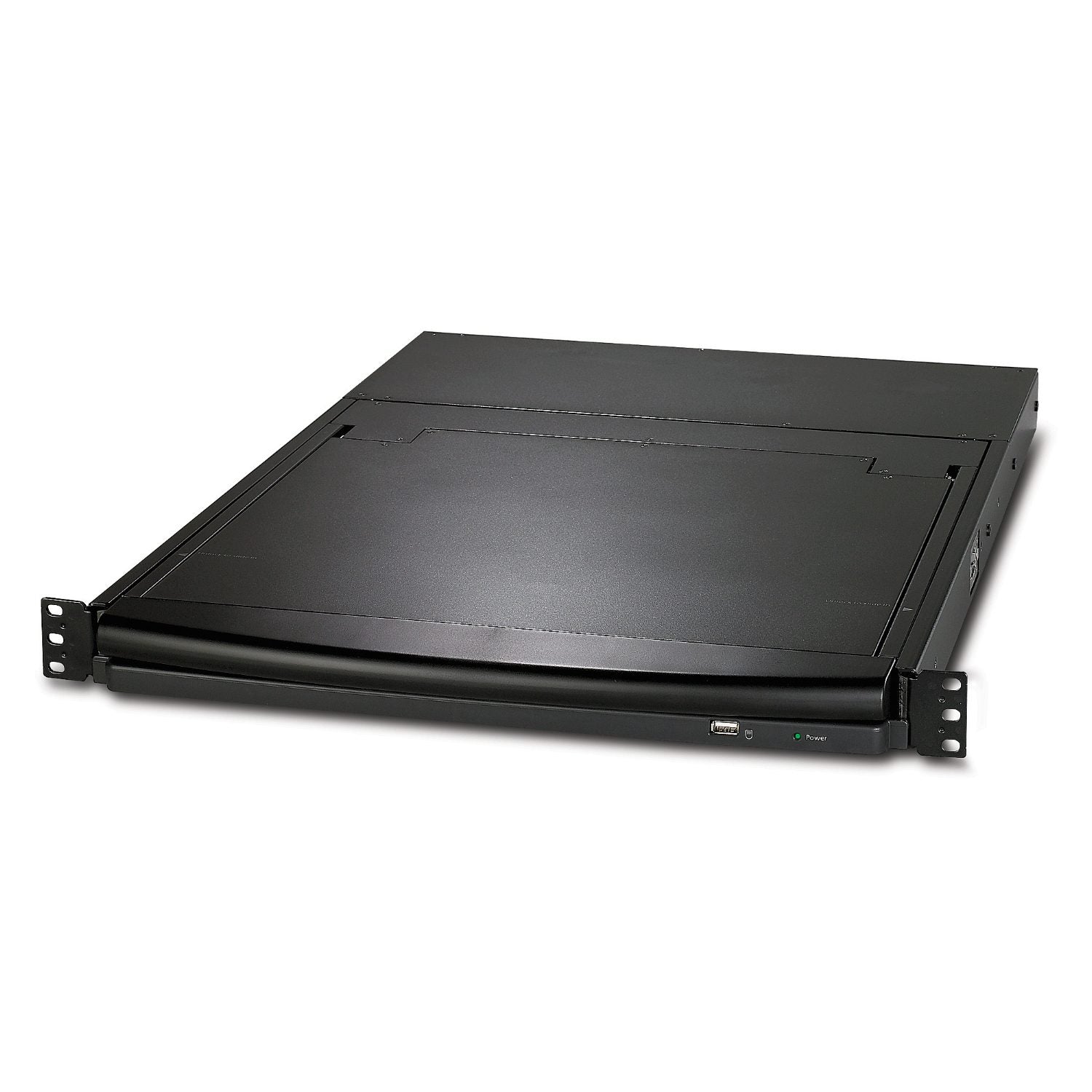

| Form Factor | 1U slide-out rackmount |
| Keyboard/Pointer | Integrated full-size keyboard with touchpad |
| Server Cables | Requires AP5821/AP5822/AP5823 KVM cables (sold separately) |
| Warranty | 2-year |
Ideal Applications
- Small Server Rooms (5-8 Servers): Single console for the full rack of locally-managed servers.
- Branch Office Rack Consolidation: One console + KVM serves all local servers without separate per-server console hardware.
- Edge Compute Sites: Local console access to small distributed compute deployments.
- Lab and Test Environments: Switching between test servers without re-cabling.
Questyme: Console + KVM Cable Bundle Pricing
The AP5808 requires separate KVM cables (AP5821/22/23) for each connected server. Questyme can quote the complete bundle — console plus the right cable mix for your server distances — as a single line item. Contact our team.
Specifications
Overview
Model
17" Rack LCD Console with Integrated 8 Port Analog KVM Switch
Main
Input Voltage
120 12
Input Connection Type
IEC 60320 C14
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
KVM LCD AND SWITCHES
Shipping Dimensions
Height: 5.12Width: 32.52Length: 26.5
Shipping Weight
43.78 lb
UPC Code
731304278801
Lead time
Usually in Stock
Provided Equipment
USB KVM cable
Single user rack mount kit
PS2 KVM cable
NEMA 5-15 power cord
Installation guide
Firmware upgrade cable
Documentation CD
C13-C14 power cord
Single user rack mount kit
PS2 KVM cable
NEMA 5-15 power cord
Installation guide
Firmware upgrade cable
Documentation CD
C13-C14 power cord
Standards
EN 60950
FCC Part 15 class A
IEC 60950
FCC Part 15 class A
IEC 60950
Product Certifications
cUL Listed
C-tick
CE
Industry Canada
KCC
UL Listed
VDE
TAA compliance
C-tick
CE
Industry Canada
KCC
UL Listed
VDE
TAA compliance
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
60
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Packaging / Certifications
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
