- 19-inch rack-mounted LCD console with integrated keyboard and touchpad — 1U slide-out form factor
- Native 1280 x 1024 resolution with 0.26 mm pixel pitch; TFT active matrix display
- VGA input; US English keyboard layout; supports input voltages 100-240V at 50/60 Hz
- Dimensions: 19" width × 26.2" depth × 1.7" height (1U), 38.36 lbs
- CE, VDE, and TAA compliant — eligible for U.S. federal procurement
Product Highlights
Documents
Description

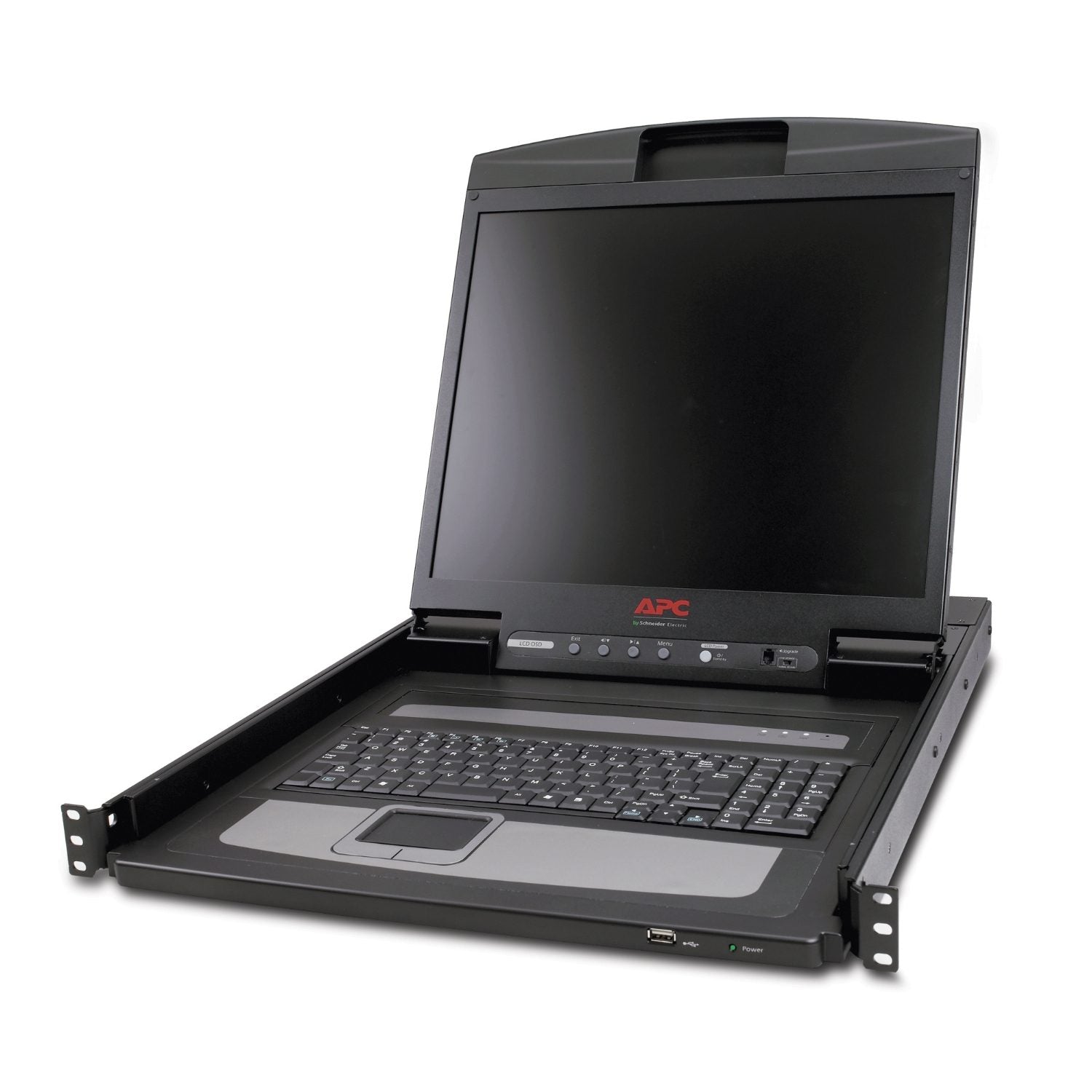

APC 19-Inch Rack LCD Console — AP5719
Full APC Specification: APC 19" Rack LCD Console
The AP5719 is APC's larger-display rack LCD console — a 1U slide-out 19-inch monitor with integrated keyboard and touchpad. For environments where the standard 17-inch console (AP5717) display area is insufficient for the workflow — typically systems with denser console output, complex troubleshooting workflows, or operator workstation use cases — the 19-inch display provides additional working area in the same 1U form factor.
17-Inch vs. 19-Inch Console Selection
Both displays share the same 1280 x 1024 native resolution and 1U form factor. The 19-inch variant trades depth (26.2" vs. 24.2") for larger display area — relevant when console access happens frequently or for extended periods. For occasional access (BIOS configuration, troubleshooting), the 17-inch is usually adequate; for operator workstations and frequent direct console use, the 19-inch is the better fit.
Key Features
- 19-Inch LCD Display: 1280 x 1024 native resolution, 0.26 mm pixel pitch, TFT active matrix.
- 1U Slide-Out Form Factor: Slides out for use, retracts into the rack for storage.

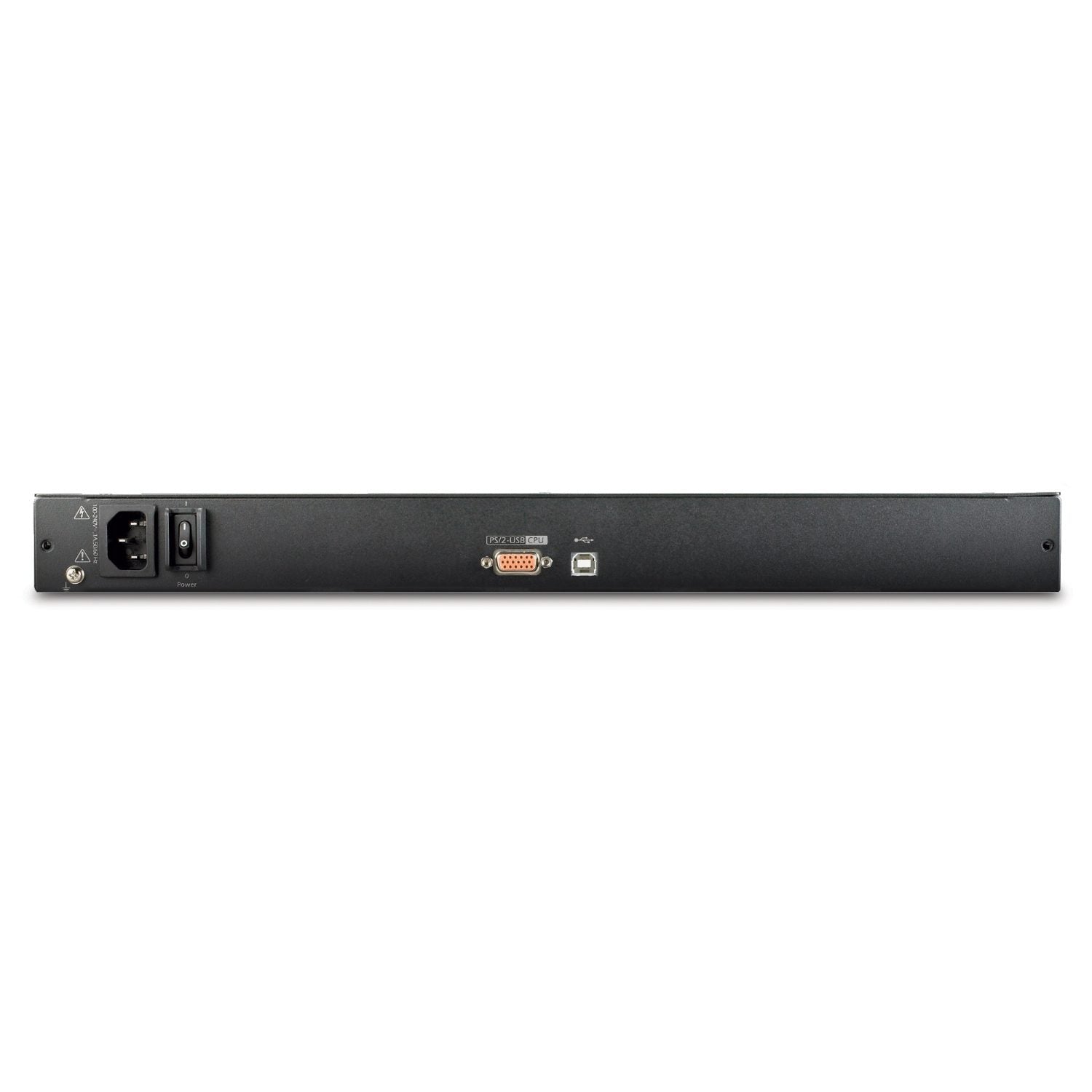

- VGA Input: Standard 15-pin VGA connection.

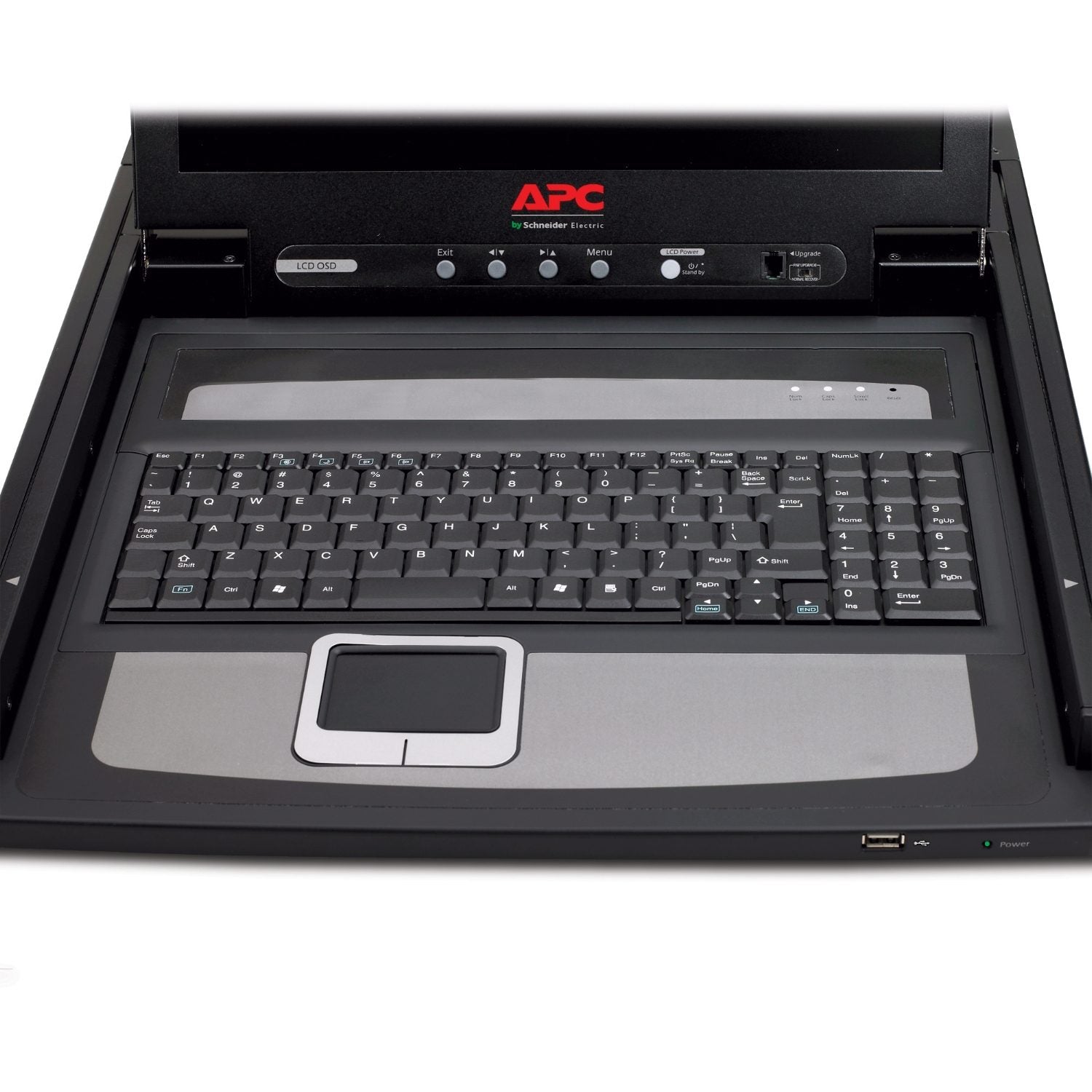

- Integrated Keyboard and Touchpad: Full US English keyboard with touchpad.
- Wide Input Voltage Range: 100-240V at 50/60 Hz — operates anywhere globally.
- TAA Compliant: Eligible for U.S. federal procurement under TAA-aligned acquisition programs.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 19-inch LCD, 1280 x 1024 native |
| Pixel Pitch | 0.26 mm |
| Display Type | TFT active matrix |
| Form Factor | 1U slide-out rackmount |
| Dimensions (WxDxH) | 19" x 26.2" x 1.7" |
| Weight | 38.36 lbs |
| Input | VGA |
| Keyboard Layout | US English |
| Power | 100-240V, 50/60 Hz |
| Compliance | CE, VDE, TAA |
| Warranty | 2-year |
Ideal Applications
- Operator Workstation Console: Environments where rack console access happens frequently or for extended periods.
- Federal IT and TAA-Compliant Procurement: Government IT environments specifying TAA-compliant console hardware.
- Server Rooms with Direct Console Workflow: Sites where local console access remains part of the operational model.
- Network Operations Centers: NOC racks where the larger display area improves operator effectiveness.
Questyme: TAA-Compliant Console Procurement
For federal procurement, Questyme provides TAA documentation, GSA Schedule pricing where applicable, and verification that the AP5719 meets your specific acquisition program requirements. Contact our team.
Specifications
Overview
Model
APC 19" Rack LCD Console
Main
Input Voltage
100 10
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
No preference
Product Line
KVM LCD AND SWITCHES
Shipping Dimensions
Height: 5.98Width: 32.52Length: 26.5
Shipping Weight
42.9 lb
UPC Code
731304283294
Lead time
Usually in Stock
Provided Equipment
C13-C14 power cord
Documentation CD
Firmware upgrade cable
Installation guide
NEMA 5-15 power cord
PS2 KVM cable
Rack mounting hardware
Single user rack mount kit
USB cable
USB KVM cable
Documentation CD
Firmware upgrade cable
Installation guide
NEMA 5-15 power cord
PS2 KVM cable
Rack mounting hardware
Single user rack mount kit
USB cable
USB KVM cable
Standards
EN 55022 Class A
EN 55024
EN 60950
FCC Part 15 class A
IEC 60950
EN 55024
EN 60950
FCC Part 15 class A
IEC 60950
Product Certifications
C-tick
CE
Industry Canada
KCC
NOM
UL Listed
VCCI Class A
VDE
TAA compliance
CE
Industry Canada
KCC
NOM
UL Listed
VCCI Class A
VDE
TAA compliance
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
64
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
