- Expansion accessory for the AP9613 Dry Contact I/O SmartSlot Card — adds 2 additional output relays and 4 additional input contacts
- Expands AP9613 from 6 relays / 4 inputs to 8 relays / 8 inputs total via the universal input/output port
- Required when the base AP9613 contact count is insufficient for the integration target
- Designed for environments where multiple UPS conditions or control inputs must be exposed via dry contacts
- Standard sensing voltage of 5 VDC at less than 1 mA, compatible with most BMS, PLC, and alarm panel inputs
Product Highlights
Documents
Description

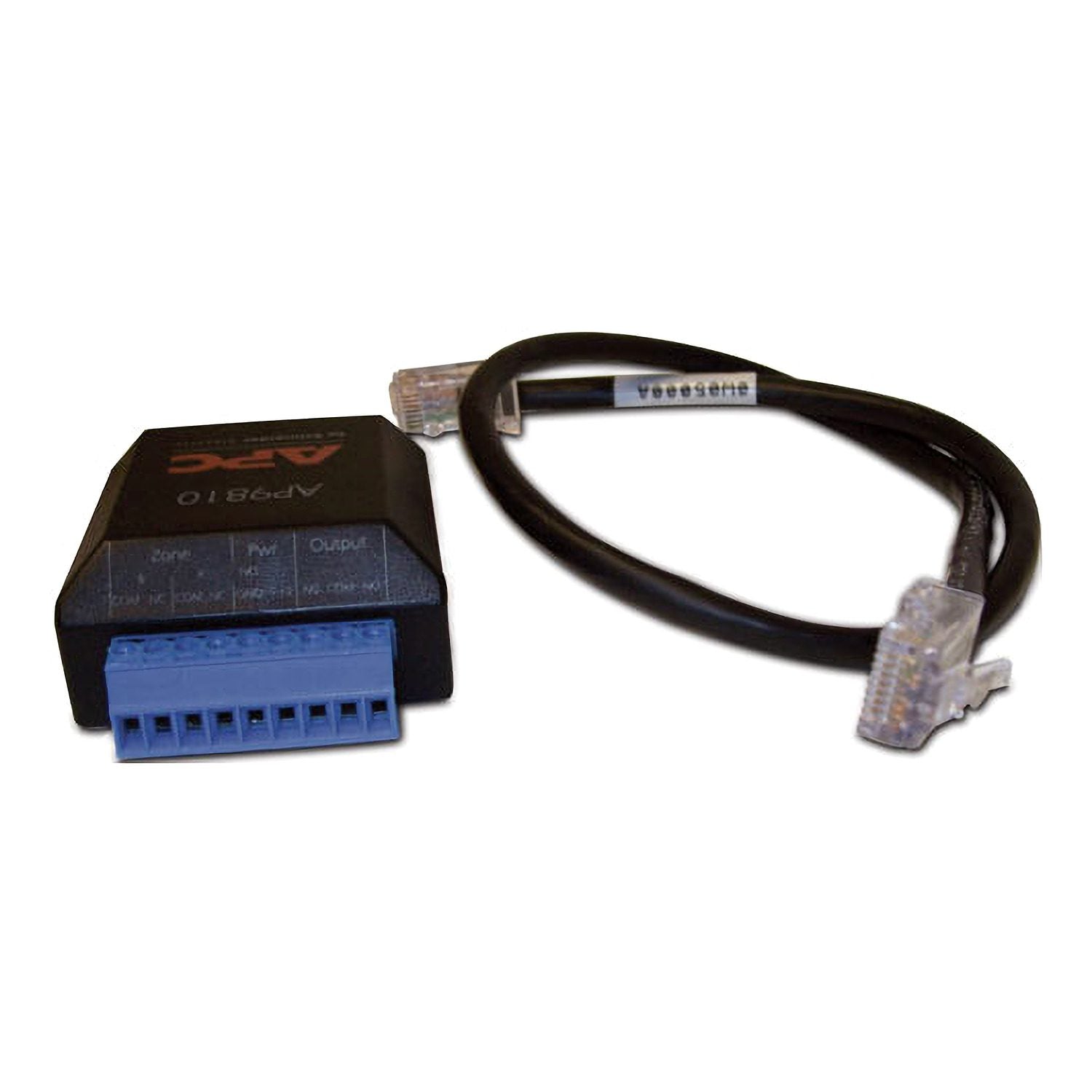

APC Dry Contact I/O Accessory — AP9810
Full APC Specification: Dry contact, Management Options, Dry Contact I/O Accessory, additional dry contact input and relay outputs
The AP9810 is an expansion module for the AP9613 Dry Contact I/O SmartSlot Card. The base AP9613 provides 6 output relays and 4 input contacts; the AP9810 expands that to 8 output relays and 8 input contacts by connecting to the AP9613's universal input/output ports. For deployments where the base AP9613 contact count is insufficient — typically multi-UPS sites or installations requiring fine-grained status signaling — the AP9810 is the matched expansion.
When You Need the AP9810
The AP9613 alone covers most basic dry-contact integration scenarios. The AP9810 becomes necessary when:
- The receiving BMS or PLC requires more than 6 UPS status mappings to function properly
- Multiple control inputs are required (test/calibrate, remote shutdown, bypass control, etc.) beyond the 4 base inputs
- The integration target uses non-standard or non-opto-isolated contact requirements that benefit from the AP9810's additional input options
Key Features
- +2 Output Relays: Adds two output relays to the AP9613's base 6 (8 total).
- +4 Input Contacts: Adds four input contacts to the AP9613's base 4 (8 total). Additional inputs are non-opto-isolated.
- Universal I/O Port Connection: Connects through the AP9613's universal input/output ports.
- Standard Sensing Voltage: 5 VDC at less than 1 mA, matching the AP9613 specification.
- Compatible with All AP9613 Deployments: Works across the same UPS compatibility envelope as the base card.
Technical Specifications
| Specification | Value |
|---|---|
| Type | AP9613 expansion accessory |
| Additional Output Relays | 2 (total with AP9613: 8) |
| Additional Input Contacts | 4 (total with AP9613: 8) |
| Sensing Voltage | 5 VDC at less than 1 mA (nominal) |
| Connection | Universal I/O port on AP9613 |
| Compatibility | AP9613 Dry Contact I/O SmartSlot Card |
| Warranty | 2-year |
Ideal Applications
- Large Facility BMS Integration: Where many UPS conditions need individual mapping to BMS alarm points.
- Industrial Plant UPS Status Signaling: Process facilities with detailed PLC-based UPS status monitoring requirements.
- Critical Healthcare and Government Deployments: Facilities with code-required dry-contact UPS status detail.
Questyme: Bundle AP9613 + AP9810 Before Shipment
If your dry-contact integration plan requires the expanded relay/input count, Questyme can ship the AP9613 and AP9810 as a coordinated bundle and verify compatibility with your specific UPS model before shipment. Contact our team.
Specifications
Overview
Model
APC Dry Contact I/O Accessory
Main
Input Voltage
24 V
Output Voltage
12 V 25 mA DC
Physical
Mounting Preference
No preference
Product Line
NMC EMBEDDED SW
Shipping Dimensions
Height: 1.3Width: 10Length: 5
Shipping Weight
4.938 lb
UPC Code
731304274032
Lead time
Usually in Stock
Provided Equipment
Cat 5 ethernet cable
User Manual
User Manual
Standards
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
68
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-149 ?F (-15-65 ?C)
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
0-50000 ft
0-50000 ft
Storage Altitude
0-15000 ft (0.0000000000-4572.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
EU RoHS Directive
Compliant
