- APC Integrated Rack LCD/KVM USB cable — 6 feet (1.8 meters) for short-distance server connections to APC KVM consoles
- USB 2.0 Type A male + 15-pin SUB-D HD (VGA) male connectors — single cable carries both video and USB
- Required for connecting servers to APC AP5808 (8-port KVM console) and AP5816 (16-port KVM console)
- 6ft length appropriate for servers within the same rack as the console
- Stocked by Questyme for fast shipment as part of KVM console deployments
Product Highlights
Documents
Description

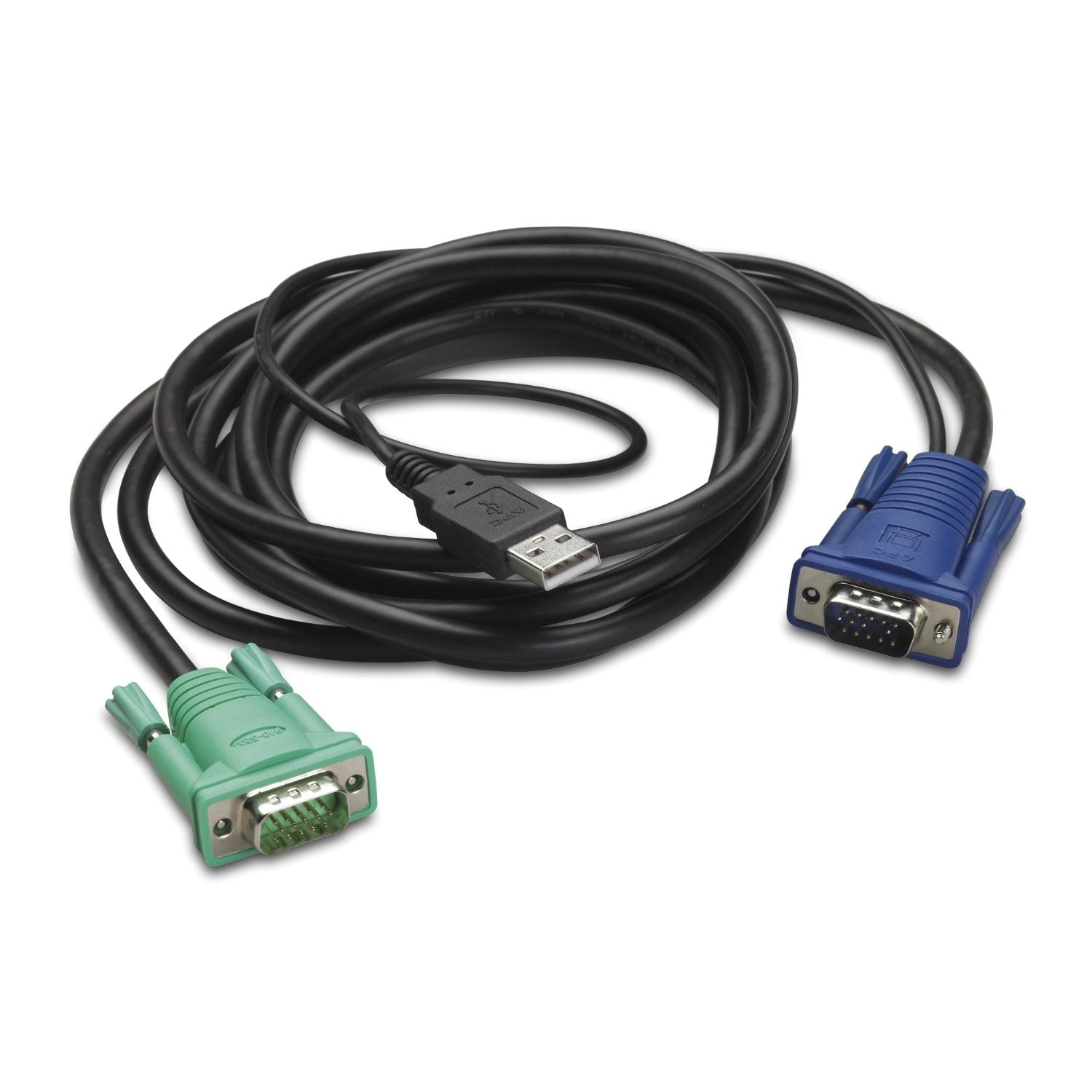

APC Integrated Rack LCD/KVM USB Cable — 6ft / 1.8m (AP5821)
Full APC Specification: APC Integrated Rack LCD/KVM USB Cable - 6ft (1.8m)
The AP5821 is the 6-foot (1.8m) variant of APC's integrated KVM USB cable. Each cable connects one server to an APC KVM console (AP5808 8-port or AP5816 16-port) via a single cable that carries both USB keyboard/mouse and VGA video signals.
Cable Length Selection
The 6ft length is the shortest in APC's KVM cable lineup. It is sized for servers in the same rack as the KVM console — typically the console at the top of the rack with servers below within 6 feet of cable run. For servers in adjacent racks or longer cable runs, the 10ft (AP5822) or 17ft (AP5823) variants are appropriate.
Key Features
- 6ft (1.8m) Cable Length: Sized for same-rack server-to-console connections.
- Integrated Video + USB: Single cable carries 15-pin VGA video and USB 2.0 keyboard/mouse.
- USB 2.0 Type A Male: Standard USB connector for keyboard/mouse signaling.
- SUB-D 15HD Male VGA: Standard 15-pin high-density VGA connector for video.
- APC KVM Switch Compatibility: Designed for AP5808 and AP5816 KVM consoles.
Technical Specifications
| Specification | Value |
|---|---|
| Cable Length | 6 feet (1.8 meters) |
| Console-Side Connector | APC KVM console proprietary |
| Server-Side Video | 15-pin SUB-D HD (VGA) male |
| Server-Side USB | USB 2.0 Type A male |
| KVM Compatibility | APC AP5808, AP5816 |
Questyme: Bundle KVM Cables with the Console Order
For new KVM console deployments, Questyme can bundle the right cable mix (AP5821 6ft, AP5822 10ft, AP5823 17ft) based on actual server-to-console distances. Avoids the typical issue of ordering all 6ft cables and discovering some servers are too far for that length. Contact our team.
Specifications
Overview
Model
APC Integrated Rack LCD/KVM USB Cable - 6ft (1.8m)
Physical
Color
Black, Blue, Green
Mounting Mode
Not rack-mountable
Product Line
KVM LCD AND SWITCHES
Shipping Dimensions
Height: 1.97Width: 9.25Length: 6.5
Shipping Weight
0.18 lb
UPC Code
731304278825
Lead time
Usually in Stock
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
1
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
