- APC NMC3 designed for 3-phase Easy UPS (3S, 3M, 3L) and Galaxy 3L / Galaxy PW models
- Same enterprise-grade NMC3 management interface as Smart-UPS NMCs, adapted for 3-phase Easy UPS / Galaxy compatibility
- Secure remote monitoring via web browser, EcoStruxure IT, or SNMP-enabled NMS
- HTTPS, SSH, SNMPv1/v2c/v3, Modbus, BACnet, RADIUS, 10/100/1000 Ethernet, USB port
- 12-month Secure NMC Subscription included; not interchangeable with Smart-UPS or 1-phase Easy UPS NMC cards
Product Highlights
Documents
Description

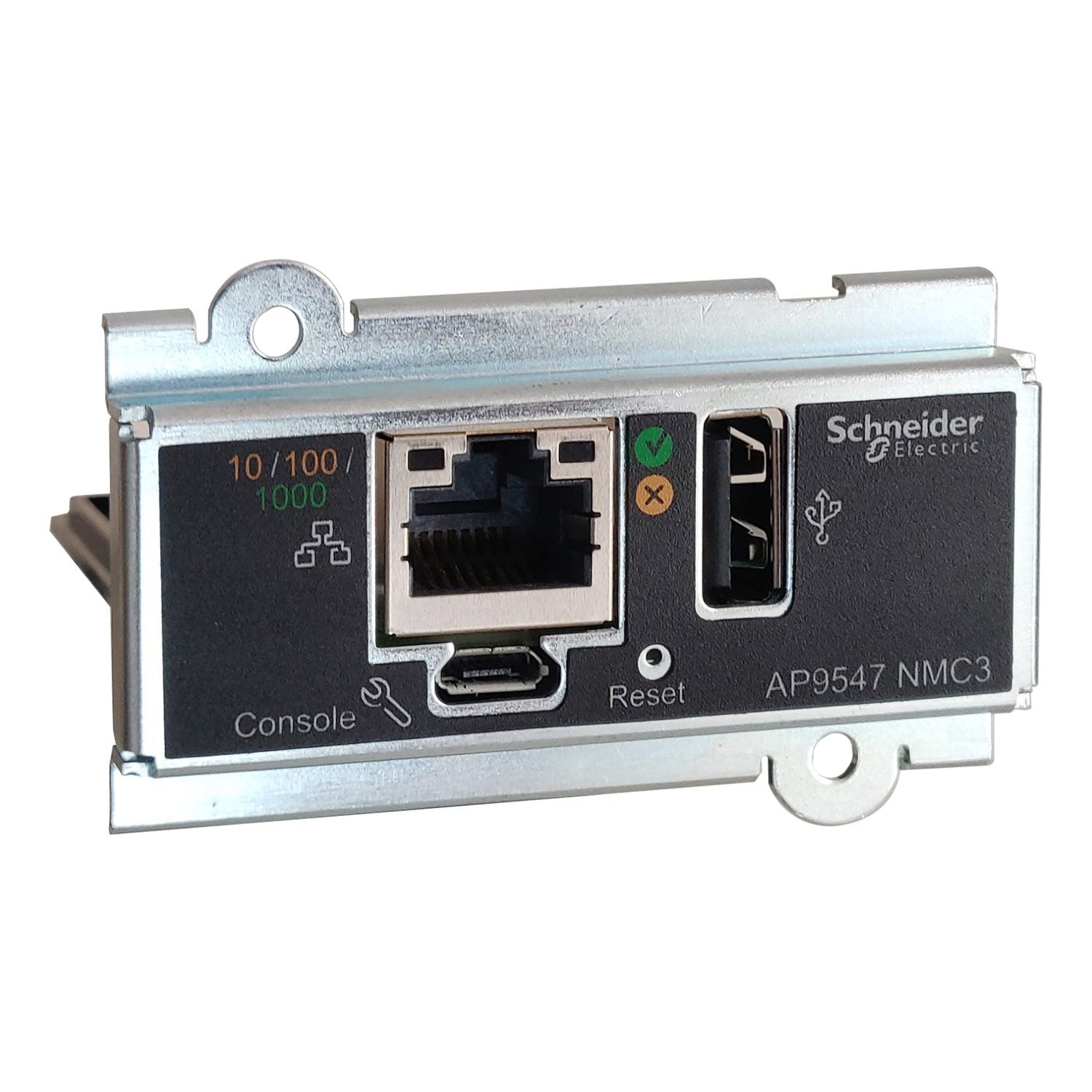

APC NMC3 for Easy UPS 3S/3M/3L and Galaxy 3L/PW — AP9547
Full APC Specification: Device monitoring and management, Network Management Cards, NMC3 for Easy UPS 3S, 3M, 3L, Galaxy 3L & Galaxy PW, remote UPS monitoring and management
The AP9547 is the dedicated NMC3 variant for 3-phase APC UPS systems in the Easy UPS 3-Phase (Easy UPS 3S, 3M, 3L) and Galaxy lineup (Galaxy 3L, Galaxy PW). It delivers the same enterprise management interface as Smart-UPS NMC cards, but with firmware tailored to the operational characteristics of 3-phase UPS systems — including 3-phase-specific telemetry, status mapping, and event handling.
3-Phase UPS NMC Considerations
3-phase UPS systems require an NMC that understands phase-balance, per-phase load reporting, and the operational modes specific to larger UPS architectures (such as static bypass, manual bypass, and parallel operation). The AP9547 firmware addresses all of these in ways that Smart-UPS NMCs cannot.
Key Features
- 3-Phase UPS Native: Per-phase voltage, current, and load reporting matched to the operational model of 3-phase UPS systems.
- Web Browser Management: Secure HTTPS web UI with 3-phase status displays.
- EcoStruxure IT Integration: Out-of-the-box compatibility for centralized management of 3-phase UPS infrastructure.
- SNMPv1/v2c/v3: Integration with NMS platforms via the APC PowerNet MIB (3-phase OIDs).
- 10/100/1000 Ethernet: Gigabit Ethernet management interface.
- 12-Month Secure NMC Subscription: Firmware updates and security patches included.
Technical Specifications
| Specification | Value |
|---|---|
| Generation | NMC3 (3-Phase Easy UPS / Galaxy variant) |
| UPS Compatibility | APC Easy UPS 3S, 3M, 3L; Galaxy 3L; Galaxy PW |
| Network | 10/100/1000 Ethernet, RJ-45 |
| Local Access | Console port (serial), USB port |
| Management Protocols | HTTPS, SSH, SNMPv1/v2c/v3, Modbus, BACnet, RADIUS, Syslog |
| Subscription | 12-month Secure NMC Subscription included |
| Warranty | 2-year |
Ideal Applications
- Mid-to-Large Enterprise Data Centers: Easy UPS 3M and 3L deployments at 30-200kVA capacity ranges.
- Large Facility Power Protection: Galaxy 3L and Galaxy PW UPS systems in enterprise data centers and large industrial facilities.
- 3-Phase UPS Fleet Standardization: Centralized EcoStruxure IT management of 3-phase UPS infrastructure.
- Industrial and Manufacturing Facilities: Large process facilities running 3-phase UPS for plant-floor compute and control systems.
Questyme: 3-Phase UPS Management Planning
Larger 3-phase UPS systems often run in parallel or redundant configurations, which adds complexity to NMC deployment. Questyme can scope NMC configuration for your specific 3-phase UPS topology before shipment. Contact our team.
Specifications
Overview
Model
Network Management Card for Easy UPS, 3-Phase
Physical
Product Line
NMC EMBEDDED SW
Shipping Dimensions
Height: 1.97Width: 6.5Length: 9.45
Shipping Weight
11.711 lb
UPC Code
731304422495
Lead time
Usually in Stock
Provided Equipment
Micro-USB cable
Installation manual
Installation manual
Standards
CISPR 32
VCCI class A
ICES-003
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-6-2
EN/IEC 62040-2
VCCI class A
ICES-003
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-6-2
EN/IEC 62040-2
Product Certifications
FCC Class A
AS/NZS
AS/NZS
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
69
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
5-149 ?F (-15-65 ?C)
Ambient Air Temperature for Storage
5-149 ?F (-15-65 ?C)
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
No
