- APC NMC3 specifically designed for the Easy UPS On-Line series — secure remote monitoring and control of one Easy UPS through a web browser, EcoStruxure IT, or SNMP-enabled NMS
- 10/100/1000 Ethernet, console port for direct serial access, USB port for future expansion
- Full APC management protocol suite: HTTPS, SSH, SNMPv1/v2c/v3, Modbus, BACnet, RADIUS
- 12-month Secure NMC Subscription included for firmware updates and security patches
- Compatible specifically with APC Easy UPS On-Line 1-Phase models — not interchangeable with Smart-UPS NMC cards
Product Highlights
Documents
Description

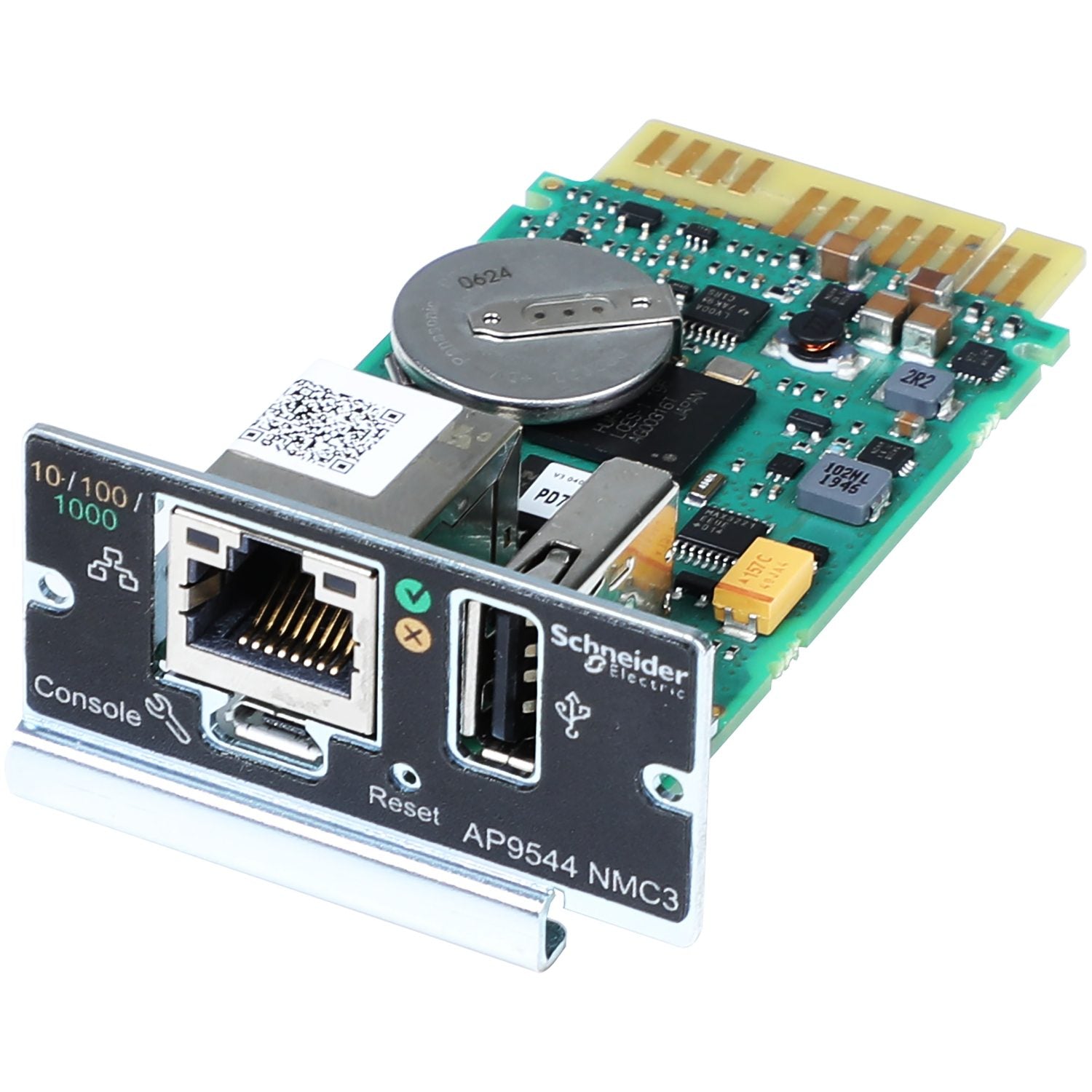

APC Network Management Card for Easy UPS On-Line, 1-Phase — AP9544
Full APC Specification: Device monitoring and management, Network Management Cards, NMC3 for Easy UPS On-Line, secure remote UPS monitoring and management
The AP9544 is the dedicated NMC3 variant for the APC Easy UPS On-Line series. While the Easy UPS line is positioned for cost-sensitive deployments below the Smart-UPS tier, the AP9544 brings full enterprise-grade network management to those installations — SNMPv3, HTTPS, EcoStruxure IT integration, and SmartSlot-compatible installation.
Easy UPS Family Compatibility
The AP9544 is specifically engineered for the APC Easy UPS On-Line 1-Phase series. It is not interchangeable with NMC cards for Smart-UPS (AP9640/41/43) or 3-phase Easy UPS (AP9547). Confirming the right NMC for your specific UPS model is a common pre-purchase verification point.
Key Features
- Web Browser Management: Secure HTTPS web UI for status, configuration, and event log review.
- EcoStruxure IT Integration: Out-of-the-box compatibility with APC's centralized management platform.
- SNMPv1/v2c/v3: Integration with NMS platforms via the APC PowerNet MIB.
- 10/100/1000 Ethernet: Gigabit Ethernet for high-speed management traffic.
- Console Port: Direct serial access for initial configuration and troubleshooting.
- USB Port: Future expansion capability.
- 12-Month Secure NMC Subscription: Firmware updates and security patches included.
Technical Specifications
| Specification | Value |
|---|---|
| Generation | NMC3 (Easy UPS On-Line variant) |
| UPS Compatibility | APC Easy UPS On-Line, 1-Phase models |
| Network | 10/100/1000 Ethernet, RJ-45 |
| Local Access | Console port (serial), USB port |
| Management Protocols | HTTPS, SSH, SNMPv1/v2c/v3, Modbus, BACnet, RADIUS, Syslog |
| Subscription | 12-month Secure NMC Subscription included |
| Warranty | 2-year |
Ideal Applications
- Easy UPS On-Line Deployments Needing Remote Management: SMB and mid-market environments where Easy UPS is the right tier but centralized monitoring is required.
- Cost-Sensitive Multi-Site Rollouts: Branch office and remote site deployments where the Easy UPS price point matters but network management is non-negotiable.
- EcoStruxure IT Standardization: Facilities standardizing all UPS monitoring on EcoStruxure regardless of UPS tier.
Questyme: Verify NMC Compatibility Before Ordering
NMC compatibility with specific UPS models is the most common pre-purchase verification request. Questyme cross-references your Easy UPS model against the AP9544 compatibility matrix before shipment. Contact our team.
Specifications
Overview
Model
Network Management Card for Easy UPS, 1-Phase
Physical
Product Line
NMC EMBEDDED SW
Shipping Dimensions
Height: 1.81Width: 6.5Length: 9.06
Shipping Weight
10.653 lb
UPC Code
731304440161
Lead time
Usually in Stock
Provided Equipment
Micro-USB cable
Installation manual
Installation manual
Standards
CISPR 32
VCCI class A
ICES-003
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-6-2
EN/IEC 62040-2
VCCI class A
ICES-003
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-6-2
EN/IEC 62040-2
Product Certifications
FCC Class A
AS/NZS
UK PSTI
AS/NZS
UK PSTI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
69
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
23-113 ?F (-5-45 ?C)
Ambient Air Temperature for Storage
5-149 ?F (-15-65 ?C)
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Take-back
No
EU RoHS Directive
Compliant with Exemptions
