- APC Smart-UPS 5000VA 5U rackmount/tower — 208V double-conversion legacy enterprise UPS
- Includes step-down transformer for 120V outlet support from 208V UPS
- Stocked by Questyme for facilities maintaining existing SUA-series infrastructure
- Replacement battery packs and accessories available
Product Highlights
Documents
Description

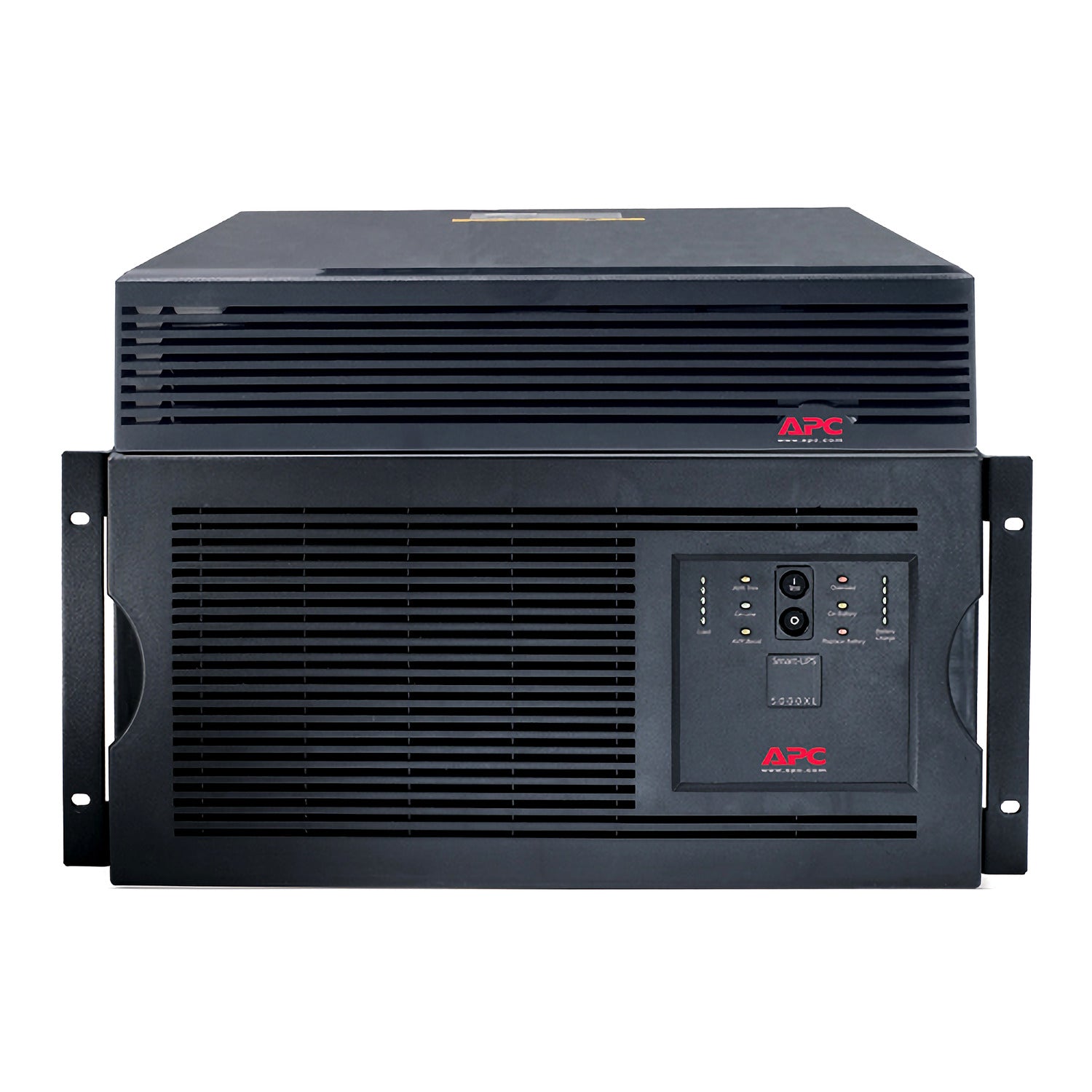

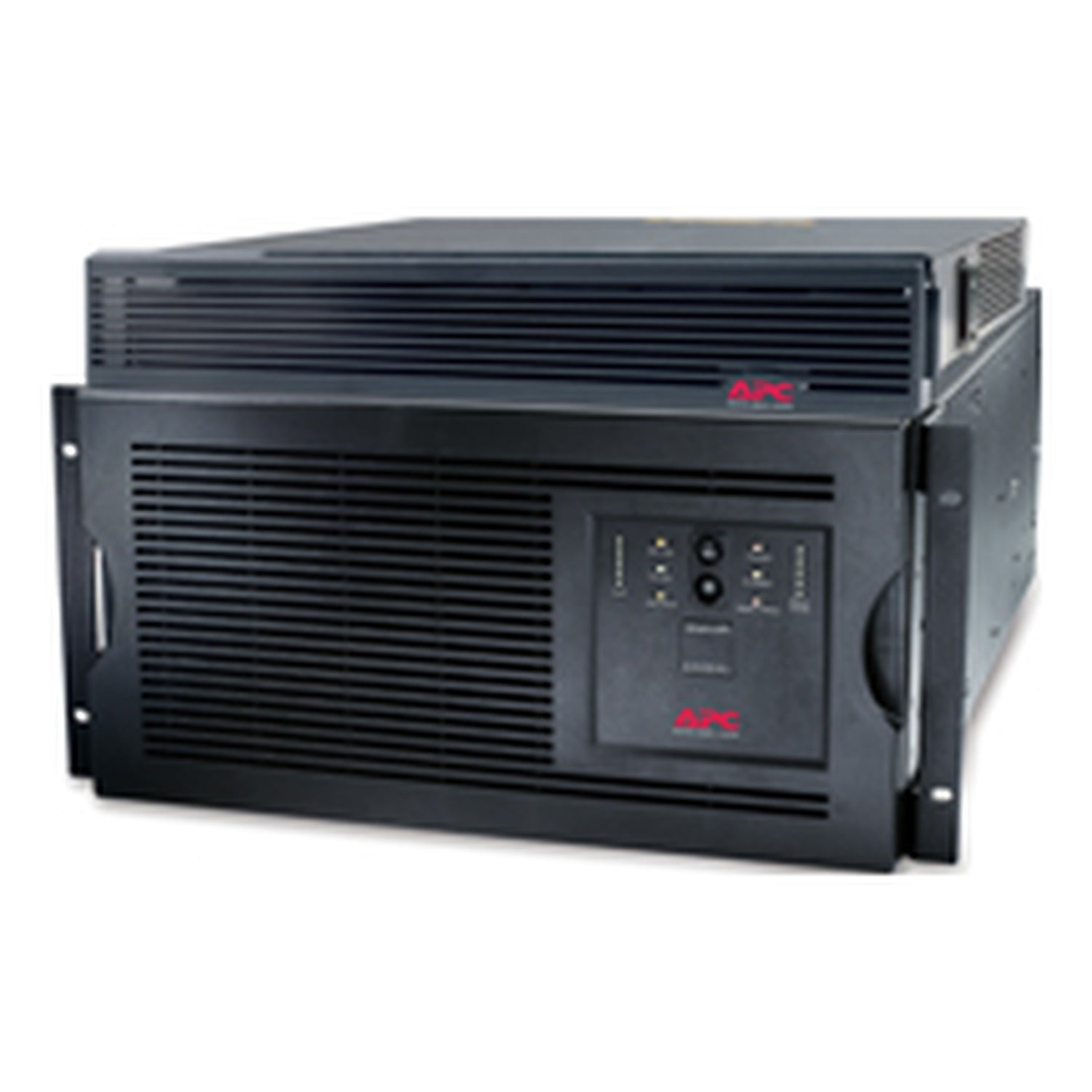

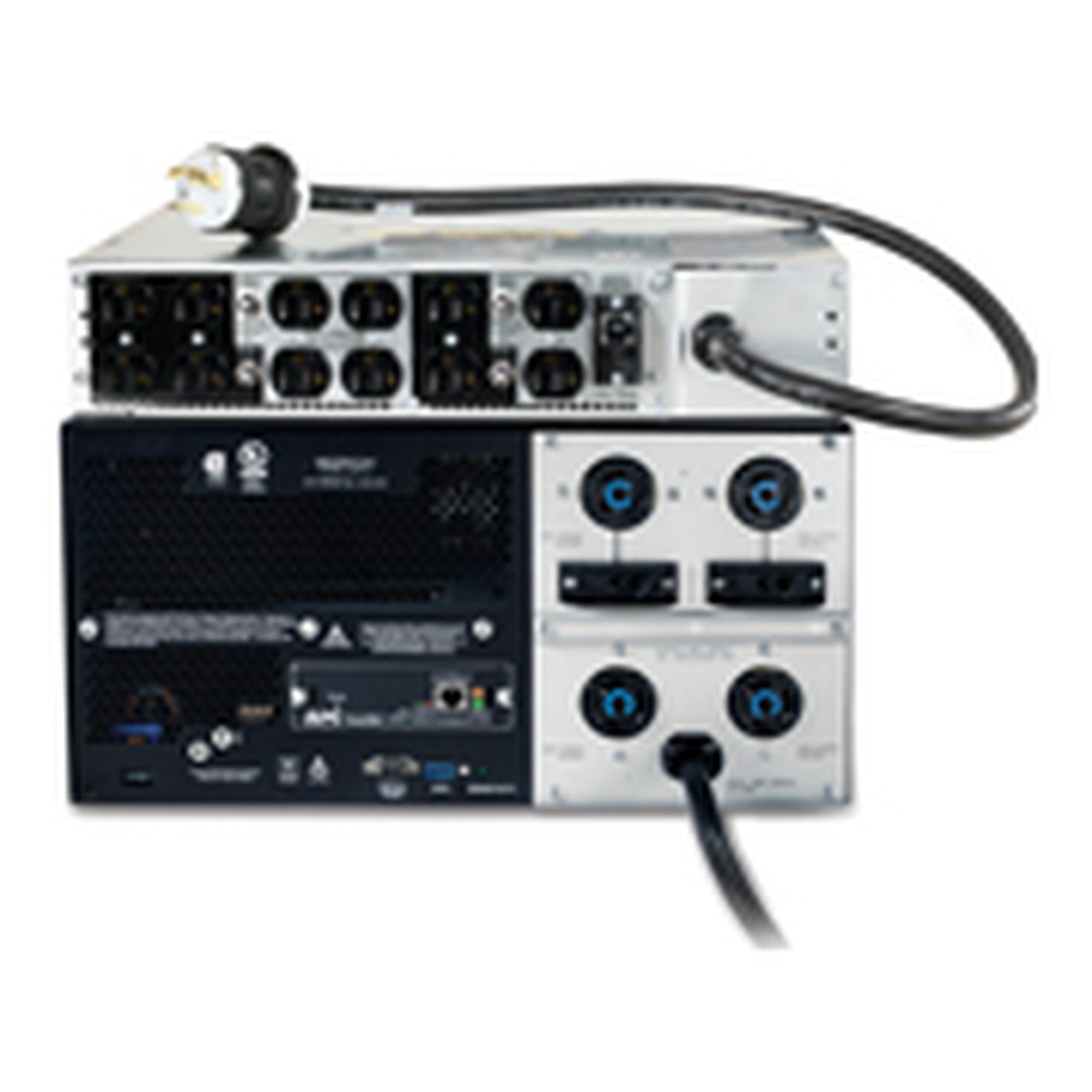

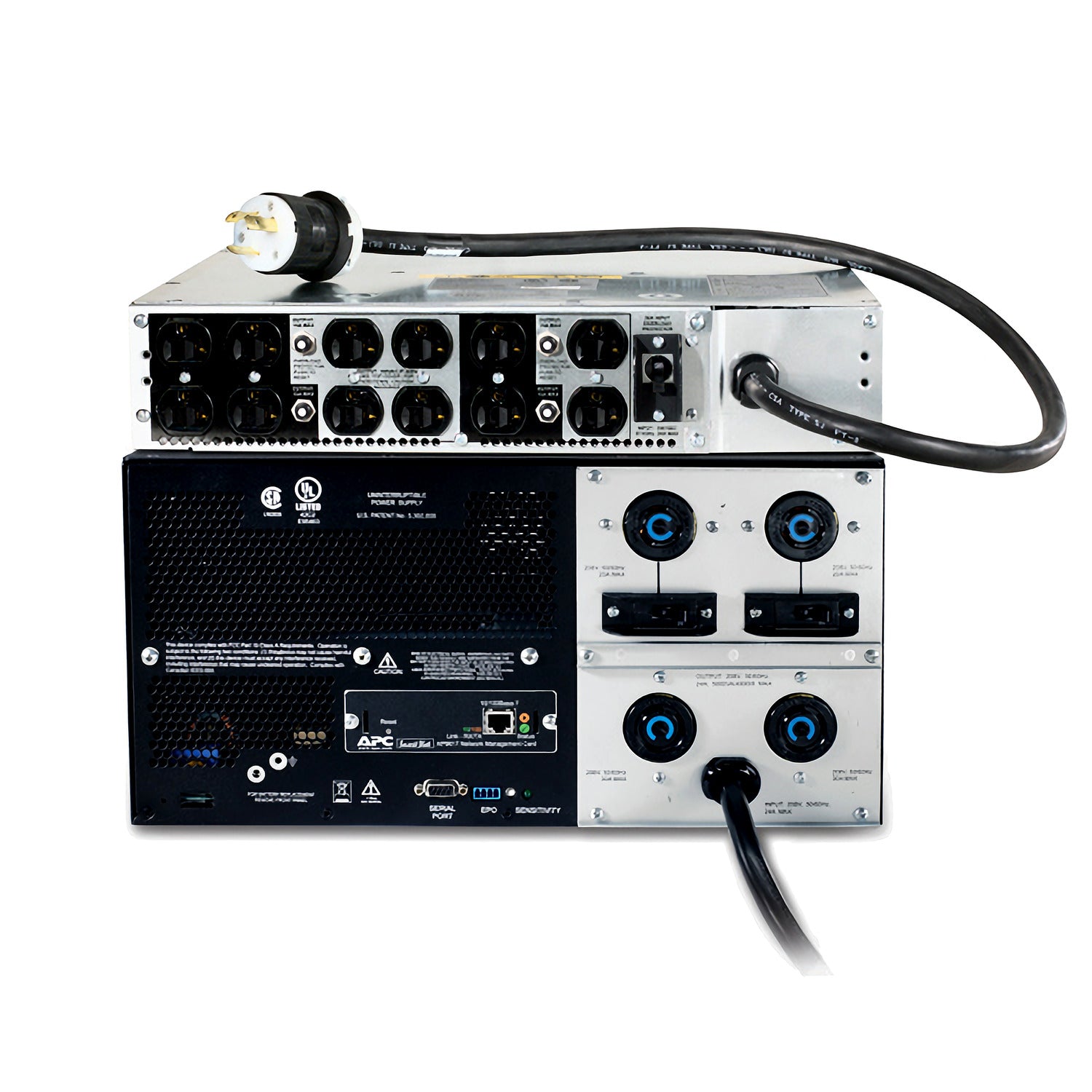

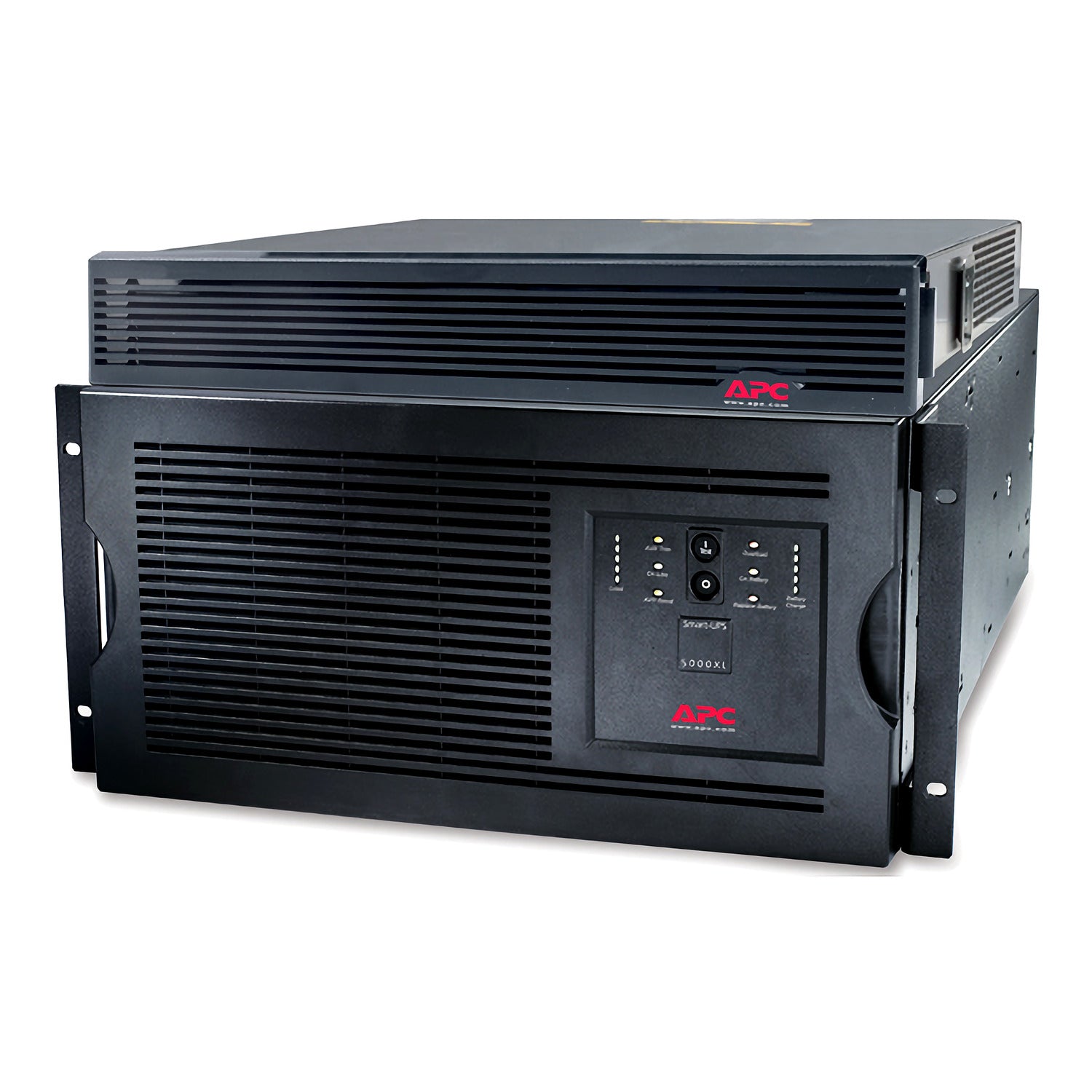

APC Smart-UPS SUA5000R5TXFMR — 5kVA 208V with Step-Down Transformer (Legacy)
The SUA5000R5TXFMR is a 5kVA APC Smart-UPS at 208V with integrated step-down transformer for 120V output. This is a legacy product that Questyme stocks for facilities maintaining existing SUA-series UPS infrastructure.
Legacy Product Support
Facilities operating older SUA-series UPS often face replacement decisions: refresh with current-generation SRT or SMX series, or replace in-kind to match existing infrastructure. Questyme stocks legacy SUA products and accessories to support in-kind replacement when that's the right operational choice.
Specifications
| Specification | Value |
|---|---|
| VA | 5000VA |
| Voltage | 208V |
| Form Factor | Rack/Tower with Step-Down Transformer |
| Output | 208V to 120/240V step-down |
Legacy Refresh or In-Kind Replacement — Questyme Can Help
If you're operating SUA-series UPS at end of service life, Questyme can scope both an in-kind replacement (matching your existing infrastructure) and a current-generation refresh (SRT or SMX series with modern management). Contact our team to discuss replacement strategy.
Specifications
Overview
Model
APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
Main
Input Voltage
208
Output Voltage
120 ,208
Rated Power in W
4000 W
Rated Power in VA
5000
Input Connection Type
NEMA L6-30P
Output Connection Type
12 NEMA 5-20R, 2 NEMA L6-20R, 1 NEMA L6-30R
Max Configurable Power in VA
5000 VA
Topology
Line Interactive
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
EPO Optional
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS OVER 1.5 KVA
Shipping Dimensions
Height: 25Width: 30Length: 24.02
Shipping Weight
355.74 lb
UPC Code
731304733003
Lead time
Usually Ships within 3 Weeks
Provided Equipment
User Manual
Smart UPS signalling RS-232 cable
Rack Mounting support rails
CD with software
Smart UPS signalling RS-232 cable
Rack Mounting support rails
CD with software
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
6789
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
53 dBA
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
