- 48V external battery pack for APC Smart-UPS RT / SURT series — extends backup runtime for critical loads
- Tower chassis matching the host SURT UPS form factor
- Hot-swappable; add or replace without taking the UPS offline
- Designed for environments where standard internal battery runtime is insufficient
- Questyme can calculate the right number of battery packs for your specific runtime requirement
Product Highlights
Documents
Description

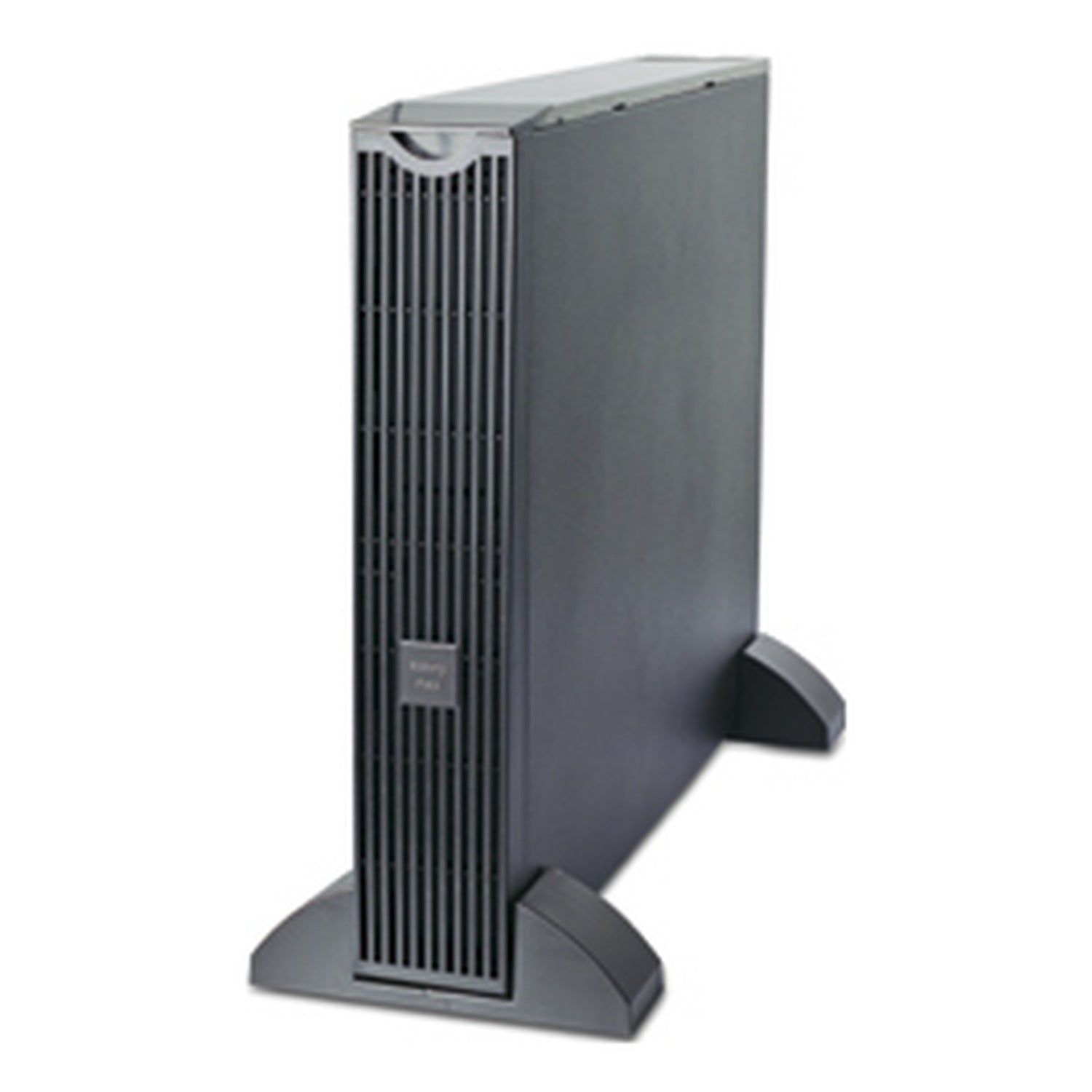

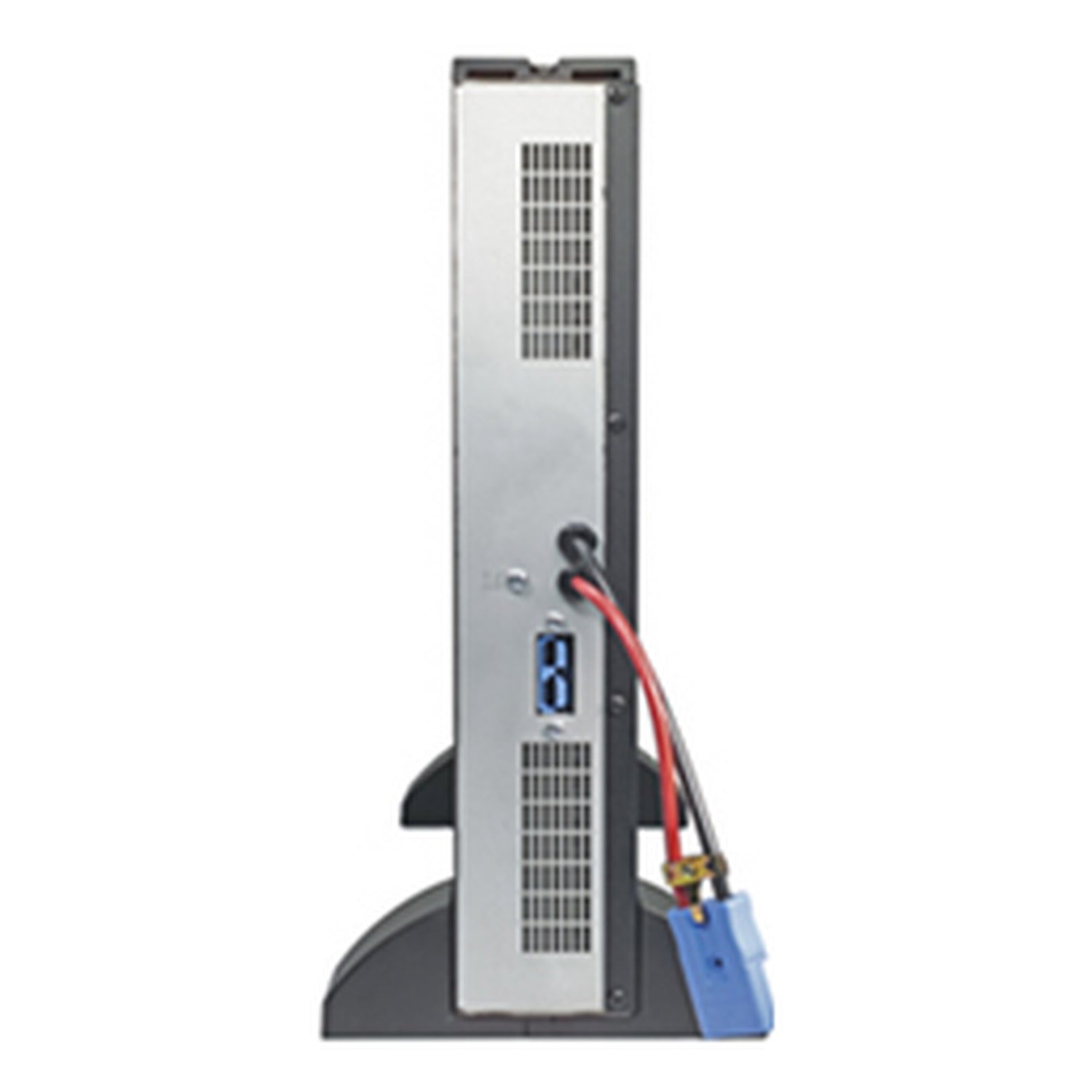

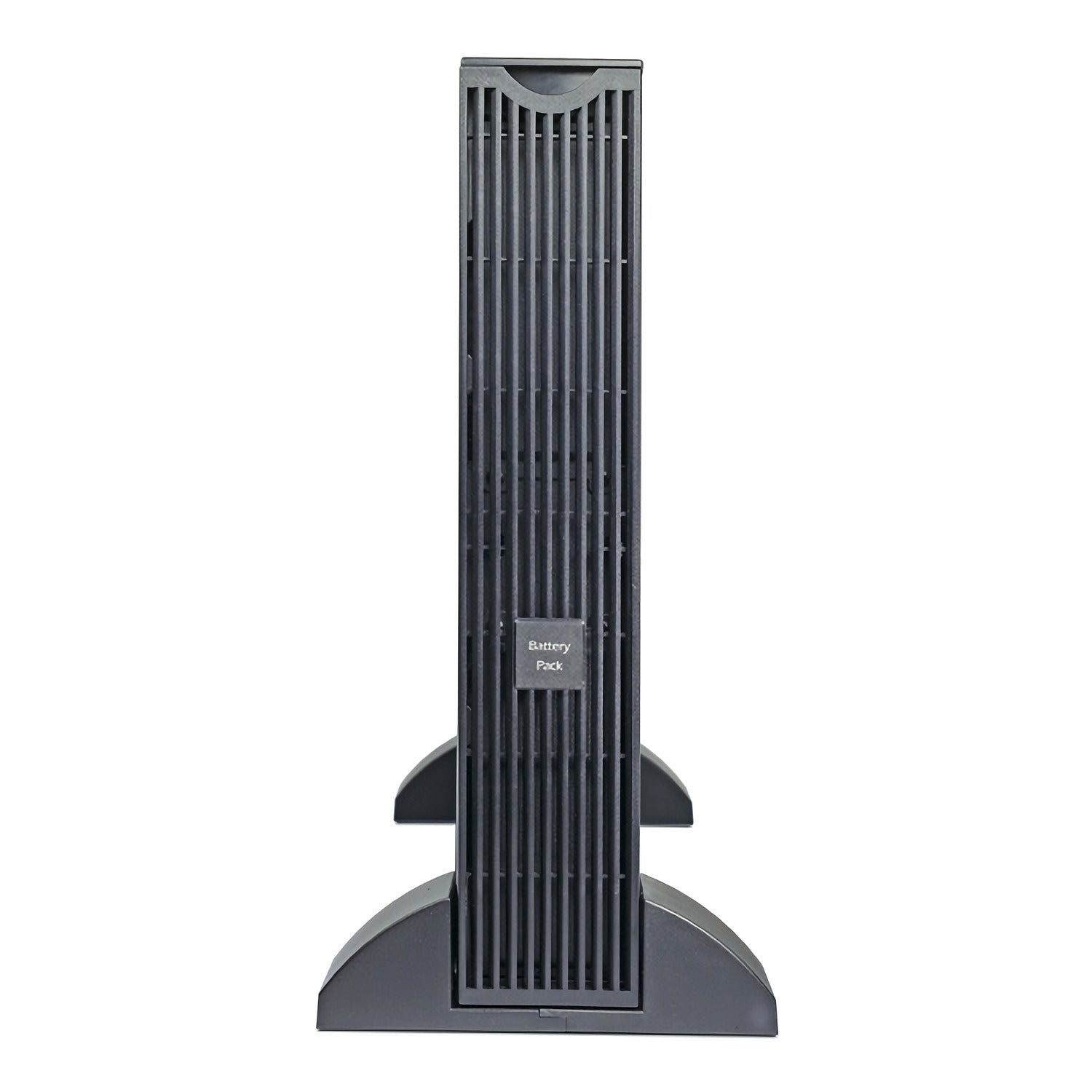

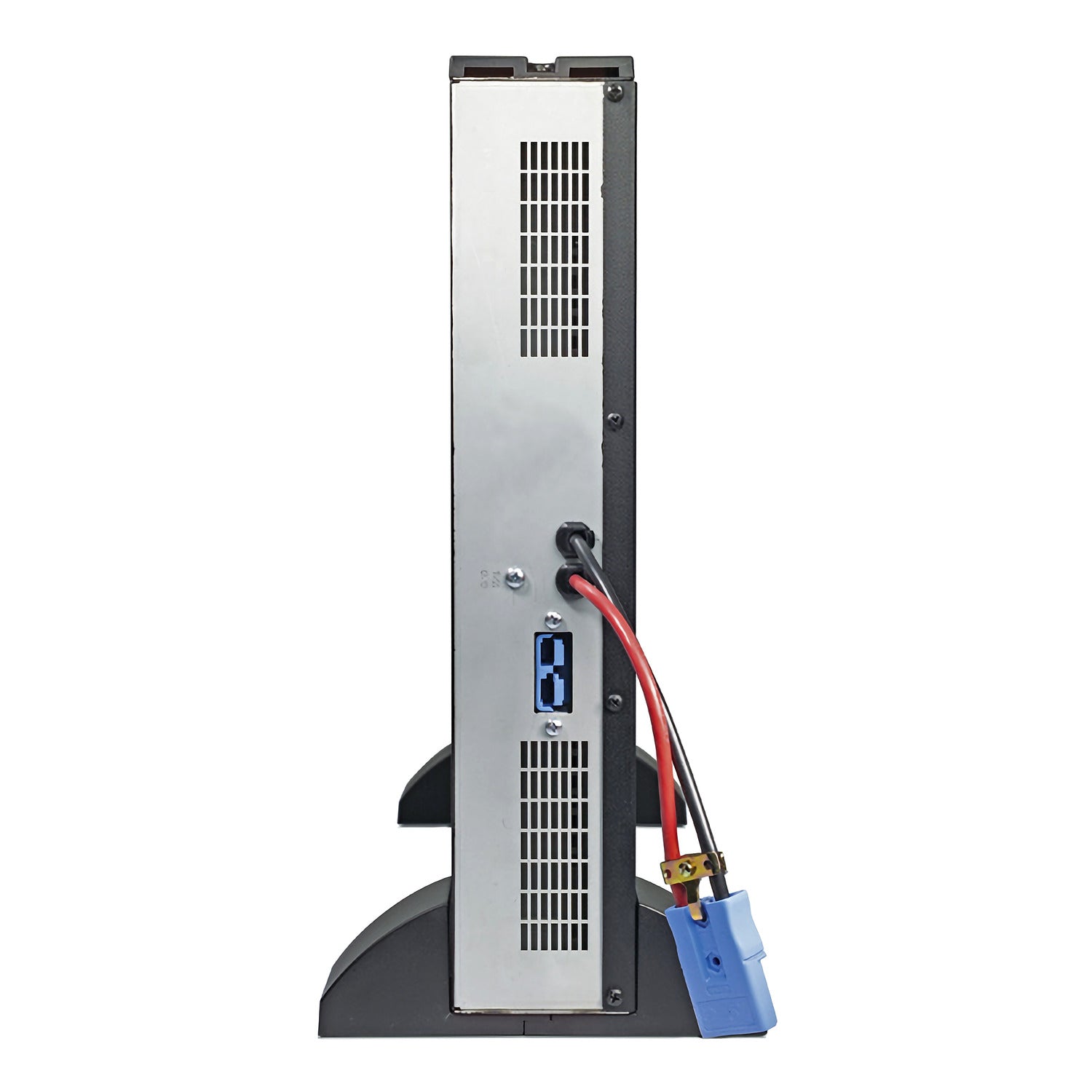

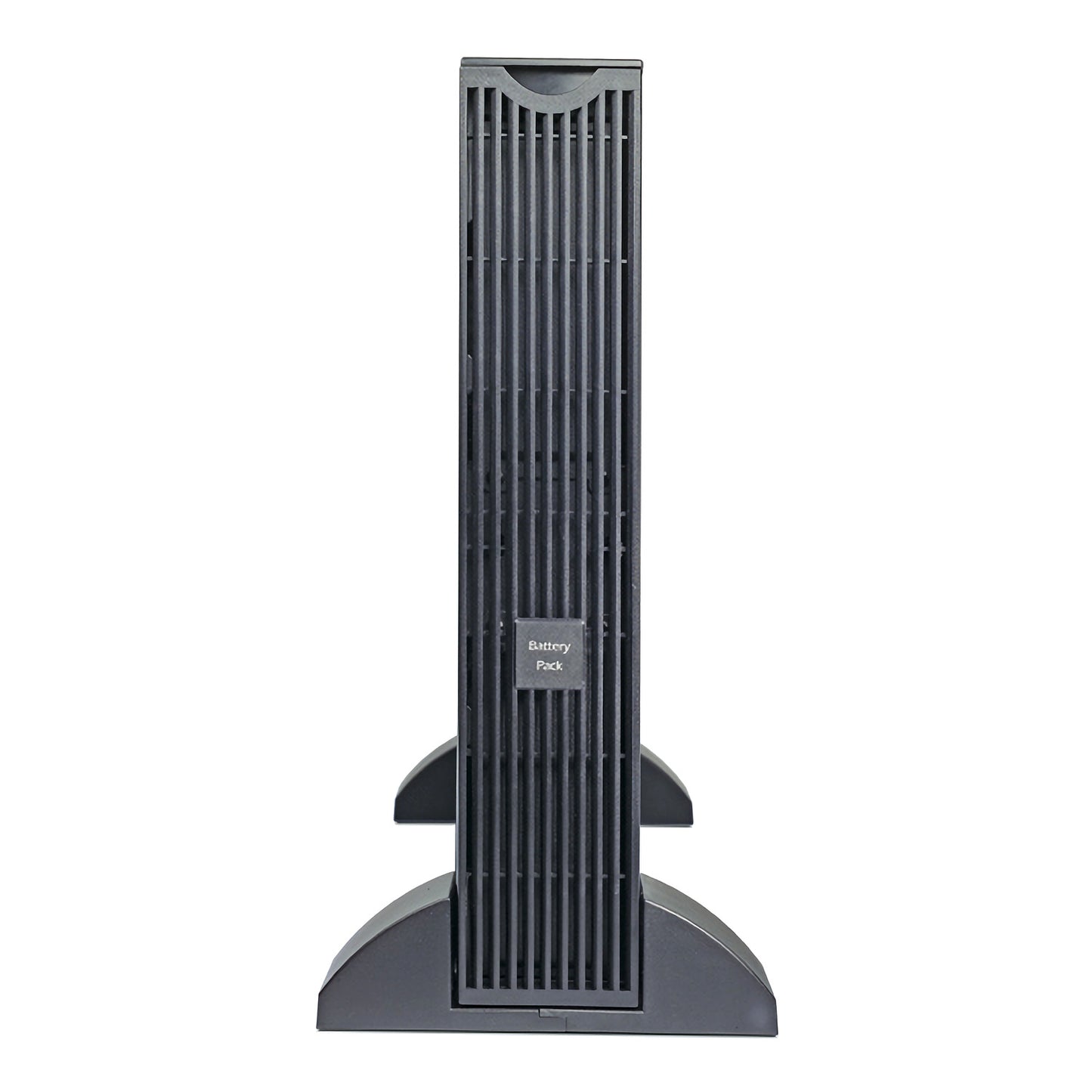

APC Smart-UPS RT External Battery Pack — 48V Tower
The SURTA48XLBP external battery pack extends backup runtime for compatible APC Smart-UPS RT / SURT on-line UPS units. Where the SURT internal battery delivers minutes of runtime, attached external battery packs extend that to hours — appropriate for environments without standby generators or with longer generator transfer windows.
Compatibility
Compatible with APC Smart-UPS RT / SURT series UPS at the 48V battery voltage. Questyme verifies host UPS compatibility before shipment.
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 48V |
| Form Factor | Tower |
| Compatibility | APC SURT series |
| Hot-Swap | Yes |
Runtime Planning for Legacy SURT Deployments
For facilities maintaining existing SURT UPS infrastructure, Questyme can model runtime extension scenarios — current connected load, target runtime, and pack count required. Contact our team for runtime modeling.
Specifications
Overview
Model
APC Smart-UPS RT 48V Battery Pack
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted with kit
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 10Width: 28.74Length: 24.02
Shipping Weight
81.77 lb
UPC Code
731304226352
Lead time
Usually in Stock
Provided Equipment
Documentation CD
User Manual
User Manual
Environmental
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
'-4-122 ?F (-20-50 ?C)
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
