- APC Smart-UPS RT / Symmetra component — contact Questyme for compatibility guidance
Product Highlights
Documents
Description

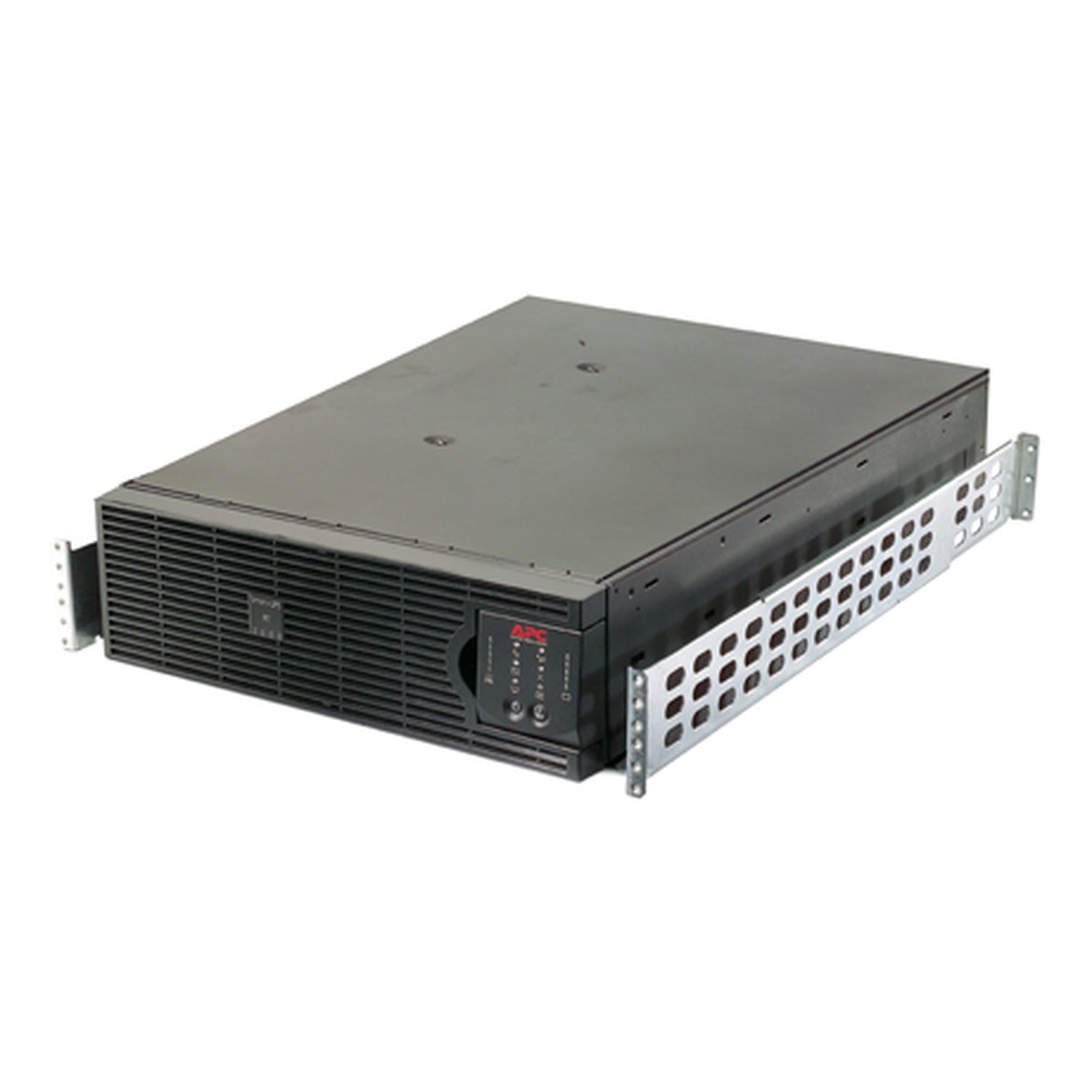

APC Smart-UPS RT SURTD5000RMXLP3U — 5kVA On-Line UPS, 3U Rackmount
The SURTD5000RMXLP3U is a 5kVA double-conversion on-line UPS in a 3U rackmount form factor, part of the APC Smart-UPS RT (SURT) legacy product line. Questyme stocks SURT models for facilities maintaining existing infrastructure and for organizations that have standardized on the SURT platform.
About SURT Series
The SURT series provides true double-conversion on-line protection with zero transfer time — same topology as the current-generation SRT series but in the earlier APC product line. Many enterprise data centers, healthcare facilities, and government IT sites have standardized on SURT and continue to deploy in-kind for replacement and expansion.
Specifications
| Specification | Value |
|---|---|
| kVA | 5kVA |
| Topology | Double-Conversion On-Line |
| Form Factor | 3U Rackmount |
| Voltage | 208V |
SURT Lifecycle Planning
For facilities operating SURT infrastructure at end of service life, Questyme can scope replacement strategy: in-kind SURT to match existing systems, or migration to current-generation SRT (lead-acid) or SRTL (lithium-ion). Contact our team for lifecycle planning.
Specifications
Overview
Model
APC Smart-UPS RT 5000VA RM 208/240 (Split-Phase) to 120, 208/240
Main
Input Voltage
208
Output Voltage
120 ,208
Rated Power in W
4000 W
Rated Power in VA
5000
Input Connection Type
NEMA L14-30P
Output Connection Type

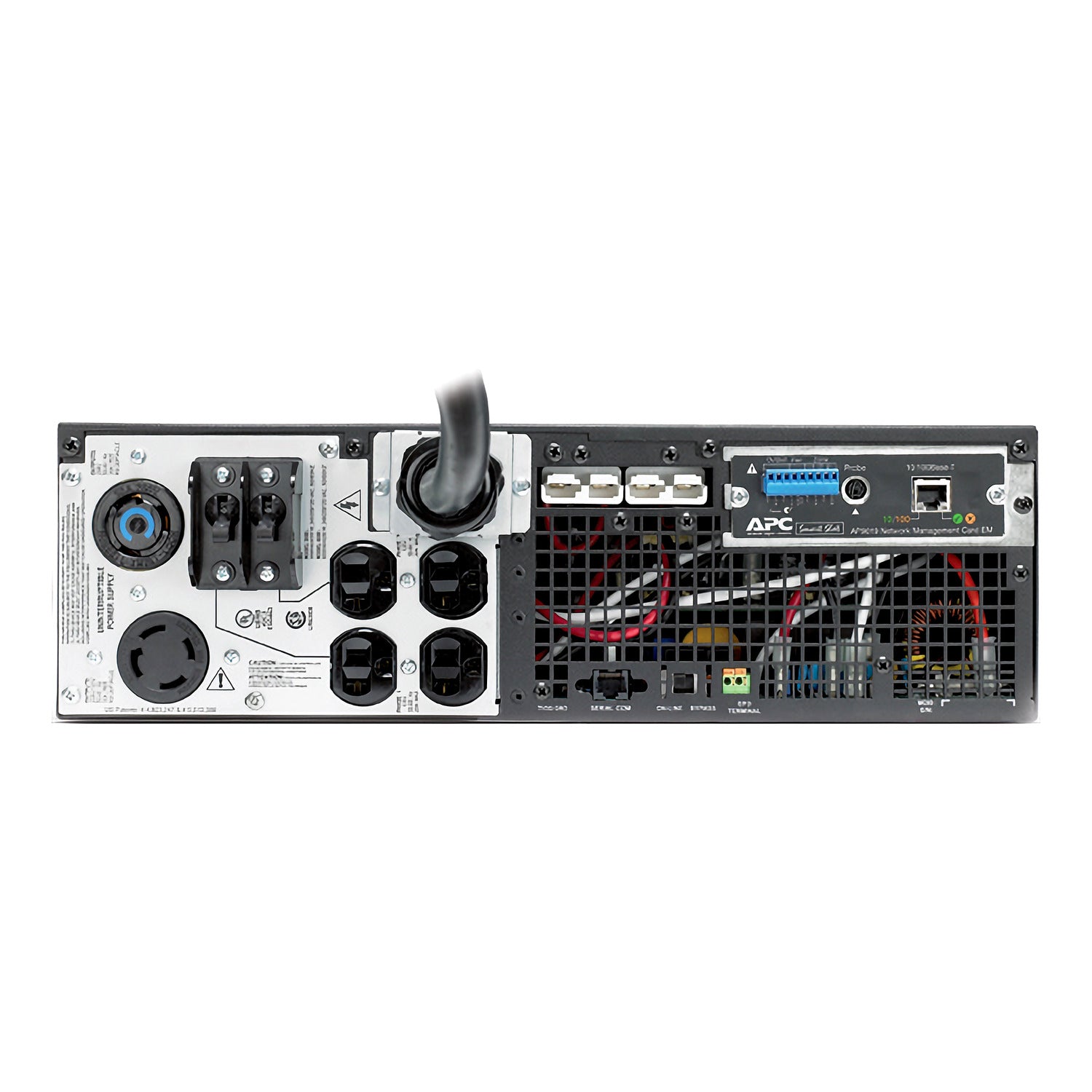

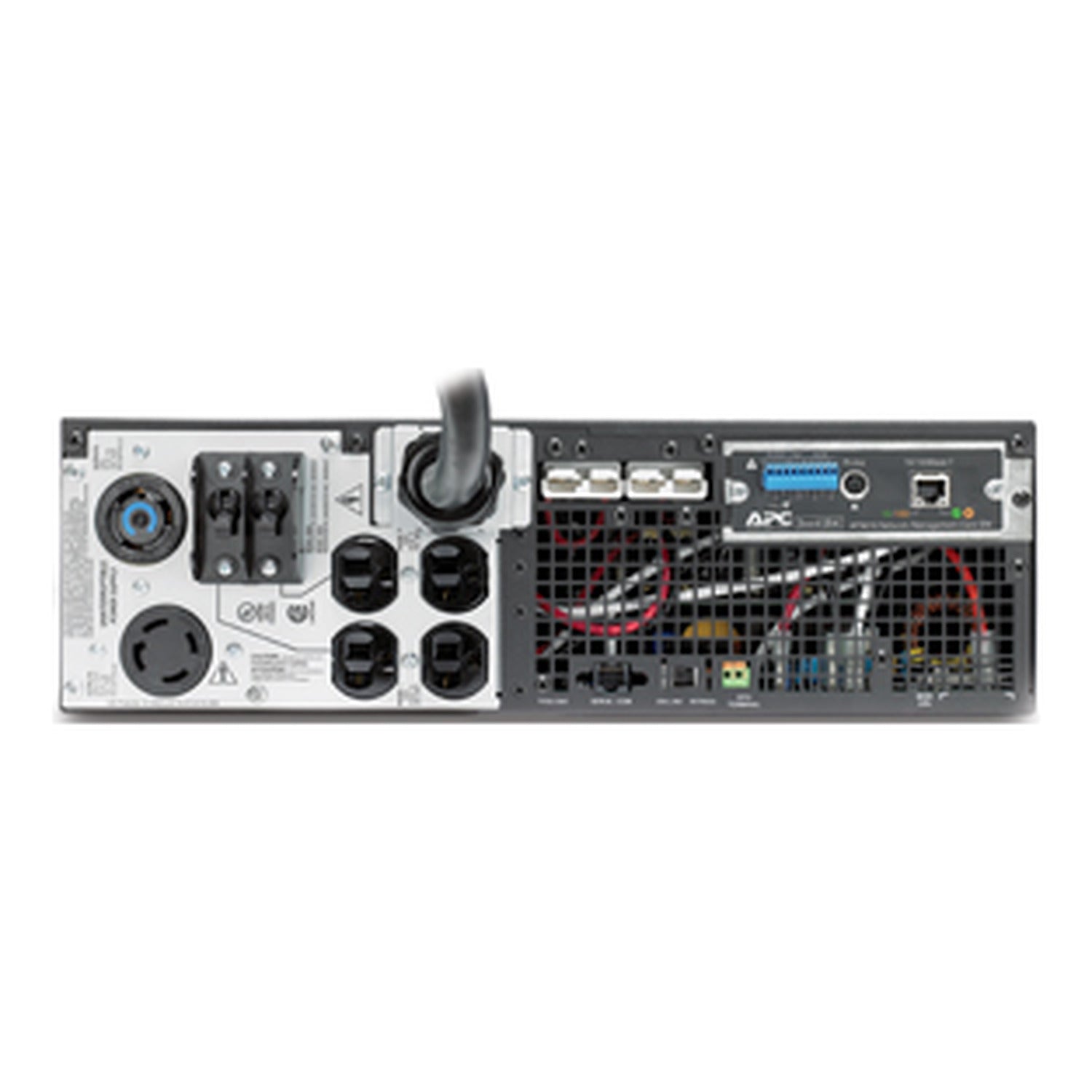

4 NEMA 5-20R, 1 NEMA L6-30R, 1 NEMA L14-30R
Max Configurable Power in VA
5000 VA
Max Configurable Power in W
4000 W
Topology
Double Conversion Online
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Wave Type
Sine wave
Emergency Power Off
Yes
Number of Cables
1
Physical
Color
Black
Mounting Mode
Rack-mounted
Mounting Preference
Lower
Product Line
SMART-UPS ON-LINE
Shipping Dimensions
Height: 13.66Width: 38.58Length: 23.74
Shipping Weight
159 lb
UPC Code
731304258810
Lead time
Usually in Stock
Provided Equipment
CD with software
Rack Mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
User Manual
Rack Mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
User Manual
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
13018
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F (0-40 ?C)
Ambient Air Temperature for Storage
5-113 ?F (-15-45 ?C)
Acoustic Level
55 dBA
Relative Humidity
0-95 % non-condensing
Storage Relative Humidity
0-95 % non-condensing
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant with Exemptions
