- External battery pack for APC Smart-UPS X (SMX) series — extends runtime without replacing the UPS
- Compatible with select SMX UPS units (Questyme verifies compatibility before shipment)
- Hot-swap capable; no UPS downtime when adding or replacing the pack
- Rackmount or tower deployment — matches host UPS chassis
Product Highlights
Documents
Description

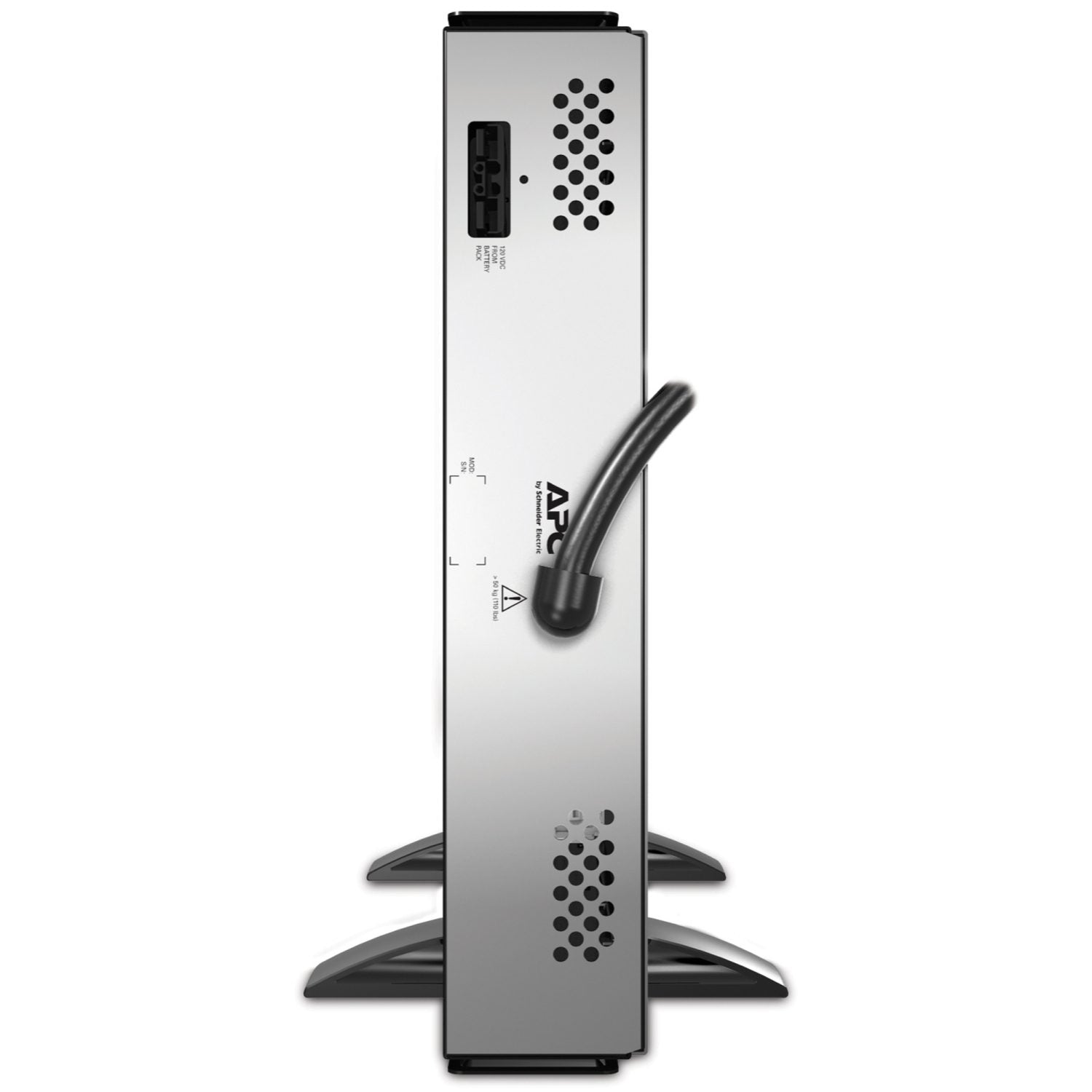

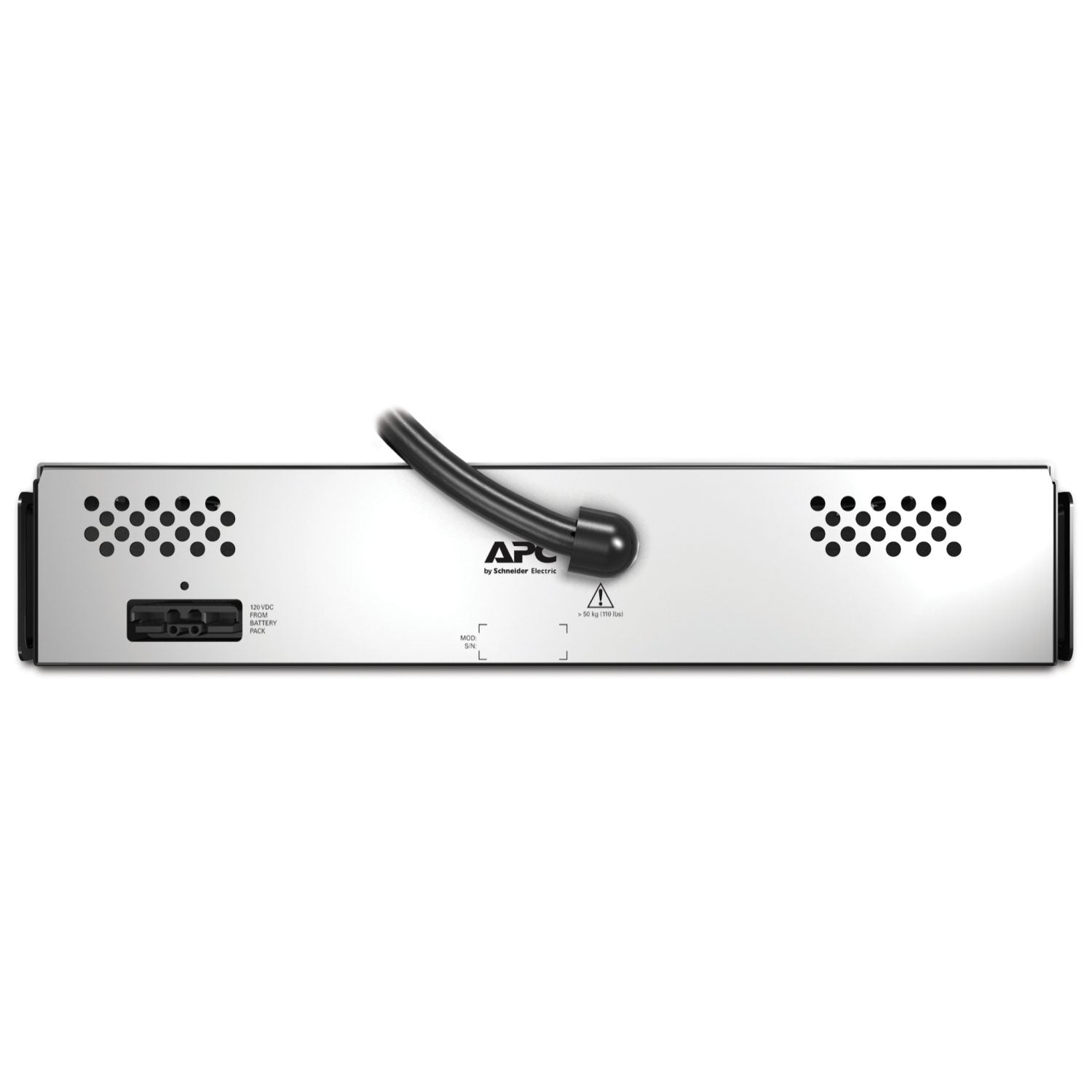

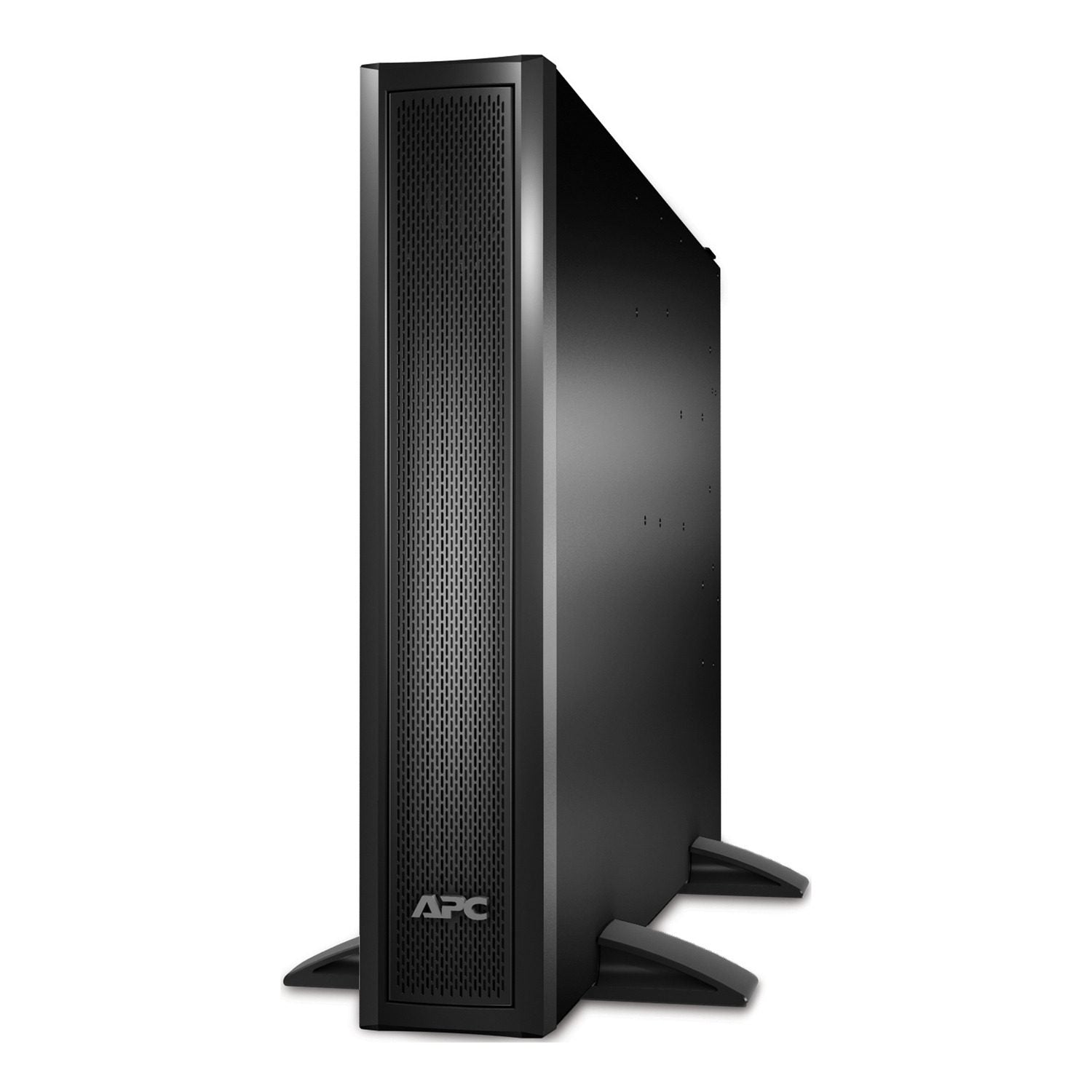

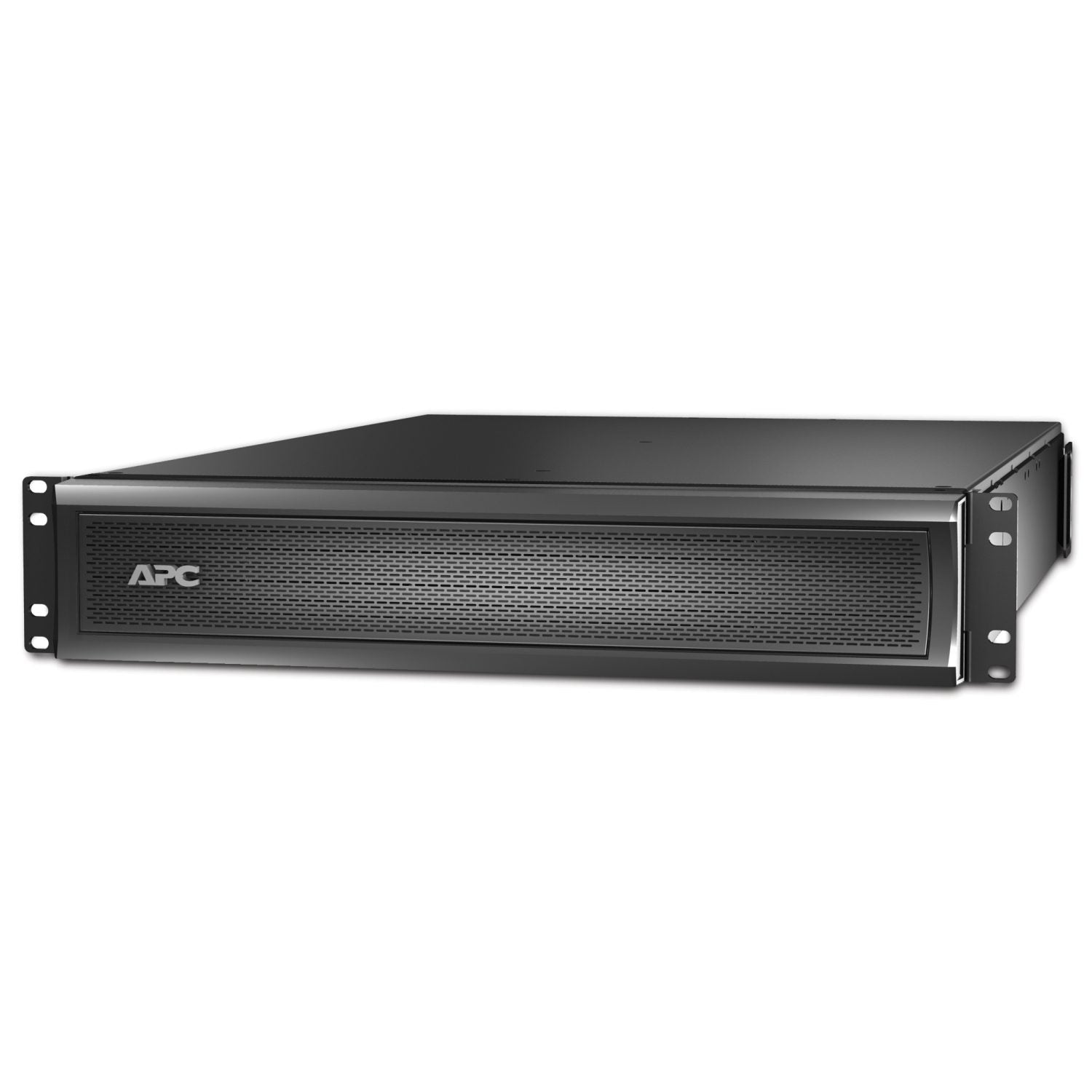

APC Smart-UPS X External Battery Pack — SMX120RMBP2U
The SMX120RMBP2U external battery pack extends backup runtime for APC Smart-UPS X (SMX) series UPS units. Where the internal battery delivers minutes of runtime under typical loads, adding external battery packs extends that to hours — useful for sites without standby generators, or where generator transfer time exceeds the standard SMX runtime envelope.
How External Battery Packs Work
The SMX series is designed to accept up to 10 external battery packs in series, connected through APC's standard battery extension cables. Runtime scales linearly with the number of packs attached. Hot-swappable design means packs can be added or replaced without taking the UPS offline.
Compatibility
Compatible with APC Smart-UPS X (SMX) UPS units sharing the same battery voltage. Questyme verifies model compatibility before shipment — contact our team with your host UPS model to confirm fit.
Specifications
| Specification | Value |
|---|---|
| Product Type | External Battery Pack |
| Form Factor | 2U Rack/Tower Convertible |
| Compatibility | APC Smart-UPS X (SMX) Series |
| Hot-Swap | Yes — no UPS downtime to add or replace |
| Warranty | 2-year |
Runtime Planning Starts with a Load Profile
Calculating the right number of external battery packs requires knowing your actual connected load, runtime target, and whether a generator is in the picture. Questyme's team models runtime against your specific environment before recommending a pack count. Contact Questyme for a runtime assessment.
Specifications
Overview
Model
APC Smart-UPS X 120V External Battery Pack Rack/Tower
Main
Battery Type
Lead-Acid battery
Removable Battery
User replaceable
Physical
Color
Black
Mounting Mode
Rack-mounted
Product Line
SMART-UPS OVER 1.5 KVA
Shipping Dimensions
Height: 9.57Width: 23.46Length: 34.21
Shipping Weight
140.3 lb
UPC Code
731304295839
Lead time
Usually Ships within 2 Weeks
Provided Equipment
Installation guide
Rack Mounting brackets
Rack Mounting brackets
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
291
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
32-104 ?F
Ambient Air Temperature for Storage
5-113 ?F
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
Yes
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
