- APC Network Management Card 3 (NMC3) — secure remote monitoring and control of one APC UPS via web browser, SSH, or SNMP
- Web-based, IPv6 ready, with SNMPv1/v2c/v3, HTTPS, SSH, SCP, RADIUS, EAPoL, Syslog, Telnet, and BACnet support
- Includes PowerChute Network Shutdown software for graceful unattended shutdown (VMware Ready, Nutanix Ready, Nutanix-AHV Ready certified)
- Installs in any SmartSlot bay on compatible APC Smart-UPS and Smart-UPS RT/SRT models
- 12-month Secure NMC Subscription included with purchase for firmware updates and security patches
Product Highlights
Documents
Description

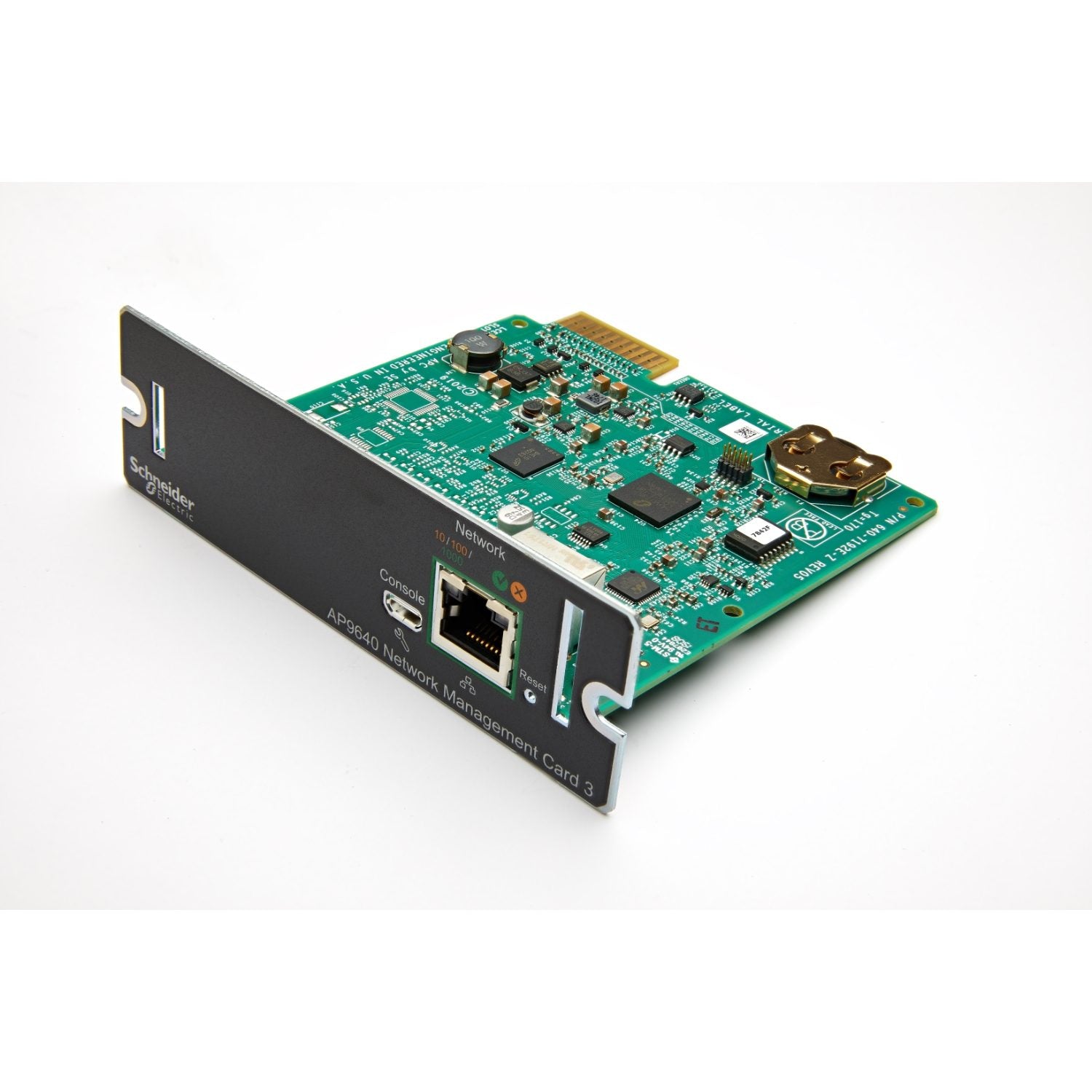

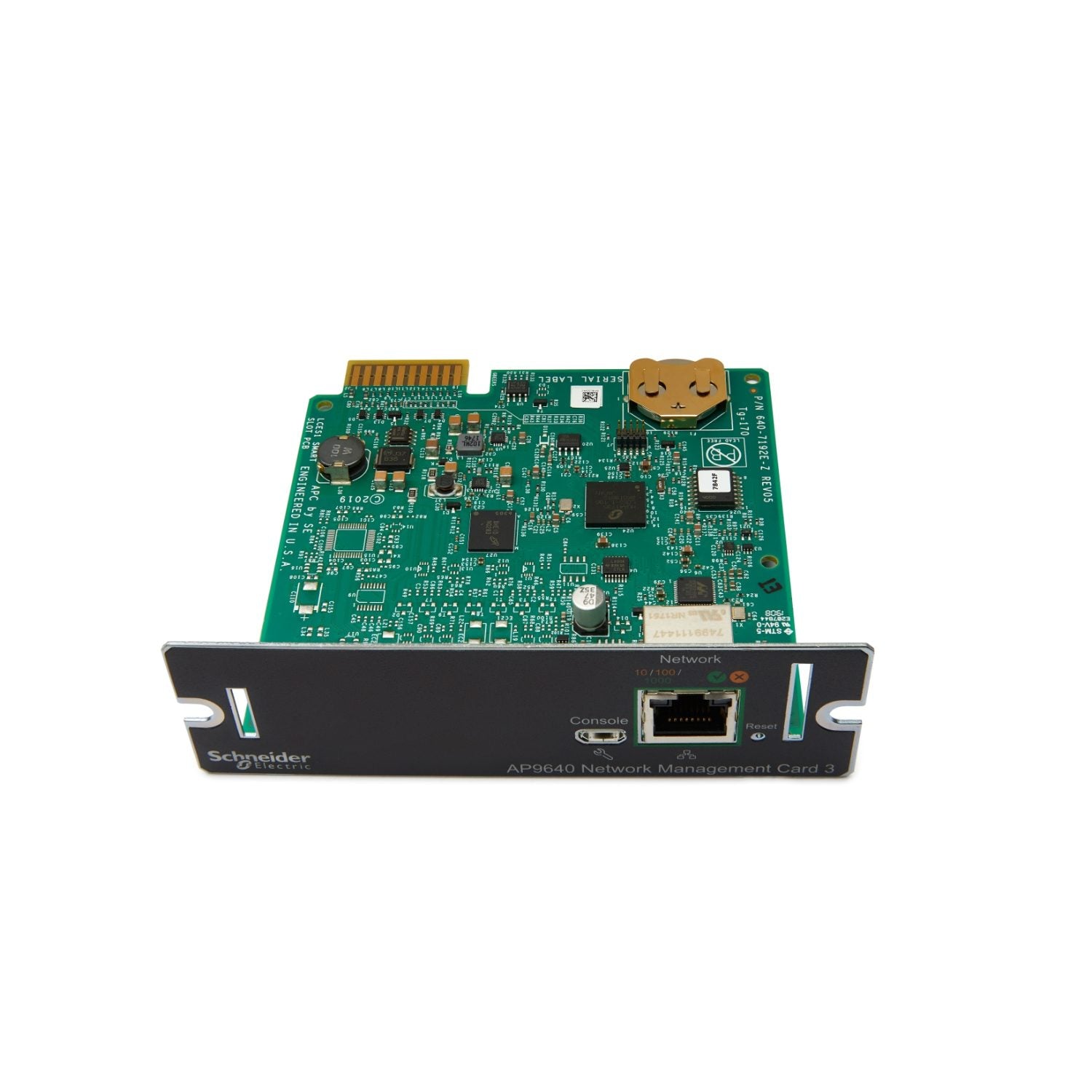

APC UPS Network Management Card 3 — AP9640
Full APC Specification: Device monitoring and management, Network Management Cards, NMC3, secure remote UPS monitoring and management
The AP9640 is APC's current-generation UPS Network Management Card (NMC3) — a SmartSlot-installable accessory card that turns any compatible Smart-UPS into a network-managed device. Web-based interface, IPv6 ready, with the full APC management interface protocol set: HTTPS, SSH, SCP, RADIUS, EAPoL, BACnet, SNMPv1/v2c/v3, Syslog, Telnet, Modbus, HTTP, and FTP.
What the NMC3 Enables
Out of the box, the AP9640 provides remote UPS status visibility, event notification, scheduled testing, and graceful shutdown coordination through PowerChute Network Shutdown. Integration with EcoStruxure IT and third-party NMS platforms (forwarding SNMP traps or polling via the APC PowerNet MIB) places the UPS in the same monitoring view as the rest of your IT infrastructure.
Key Features
- Web-Based Management: Secure HTTPS web UI for status, configuration, event log review, and remote control of UPS functions.
- Multi-Protocol Network Access: SNMPv1/v2c/v3, SSH, SCP, BACnet, Syslog, Telnet, Modbus, HTTP, FTP — fits virtually any monitoring ecosystem.
- PowerChute Network Shutdown Included: Graceful coordinated shutdown of physical servers, hypervisor hosts, and HCI clusters. VMware Ready, Nutanix Ready, Nutanix-AHV Ready certified.
- IPv6 Ready: Operates in pure IPv6 environments and dual-stack networks alongside IPv4.
- Strong Authentication and Encryption: RADIUS authentication, EAPoL network access control, TLS-encrypted management traffic, SSHv2 secure shell.
- Event Notification: Configurable email, SNMP trap, Syslog, and event log entries for UPS events.
- 12-Month Secure NMC Subscription Included: Firmware updates and security patches for the first year; renewable annually.
Technical Specifications
| Specification | Value |
|---|---|
| Generation | NMC3 (Third Generation) |
| Form Factor | APC SmartSlot card |
| Network | 10/100/1000 Ethernet, RJ-45 |
| Local Access | Console port (serial), USB port |
| Management Protocols | SNMPv1/v2c/v3, HTTPS, SSH/SCP, BACnet, Modbus, Syslog, Telnet, FTP |
| IPv6 Support | Yes |
| Authentication | Local, RADIUS, EAPoL |
| Software Included | PowerChute Network Shutdown |
| Subscription | 12-month Secure NMC Subscription included |
| Warranty | 2-year |
Ideal Applications
- Centralized UPS Fleet Monitoring: SNMP integration with existing NMS platforms (SolarWinds, Nagios, PRTG, LogicMonitor) for unified power infrastructure visibility.
- EcoStruxure IT Deployments: Out-of-the-box compatibility with APC's centralized management platform.
- Virtualized and HCI Environments: PowerChute Network Shutdown coordinates orderly shutdown of vSphere clusters, Hyper-V hosts, and Nutanix HCI nodes.
- Multi-Site Distributed IT: Branch office, clinic, and remote site UPS monitoring without dispatching personnel for status checks.
- Federal IT and Compliance-Regulated Environments: SNMPv3, TLS encryption, and RADIUS authentication meet current federal IT security baselines.
Questyme: NMC Configuration and Fleet Deployment Support
Deploying NMC3 cards across an existing UPS fleet involves more than installing the cards: network configuration, IP addressing, firmware standardization, and integration with monitoring platforms all add work. Questyme can pre-configure NMC3 cards with standardized settings before shipment and provide deployment documentation aligned with your monitoring environment. Contact Questyme for fleet NMC deployment support.
Specifications
Overview
Model
UPS Network Management Card 3
Main
Removable Battery
Yes
Physical
Mounting Preference
No preference
Product Line
NMC EMBEDDED SW
Shipping Dimensions
Height: 2.01Width: 6.26Length: 9.25
Shipping Weight
0.75 lb
UPC Code
731304355533
Lead time
Usually in Stock
Provided Equipment
Micro-USB cable
Installation manual
Installation manual
Standards
EN 55024
BS EN 55024
EN 61000-4-2
BS EN 61000-4-2
EN 61000-4-3
BS EN 61000-4-3
EN 61000-4-4
BS EN 61000-4-4
EN 61000-4-5
BS EN 61000-4-5
EN 61000-4-6
BS EN 61000-4-6
EN 61000-4-8
BS EN 61000-4-8
EN 61000-4-11
BS EN 61000-4-11
EN 55035
BS EN 55035
EN 62040-2
BS EN 62040-2
EN 61326-2
BS EN 61326-2
ICES-003 class A
VCCI class A
EN 61000-6-3
BS EN 61000-6-3
EN 55032:class A
BS EN 55032:class A
BS EN 55024
EN 61000-4-2
BS EN 61000-4-2
EN 61000-4-3
BS EN 61000-4-3
EN 61000-4-4
BS EN 61000-4-4
EN 61000-4-5
BS EN 61000-4-5
EN 61000-4-6
BS EN 61000-4-6
EN 61000-4-8
BS EN 61000-4-8
EN 61000-4-11
BS EN 61000-4-11
EN 55035
BS EN 55035
EN 62040-2
BS EN 62040-2
EN 61326-2
BS EN 61326-2
ICES-003 class A
VCCI class A
EN 61000-6-3
BS EN 61000-6-3
EN 55032:class A
BS EN 55032:class A
Product Certifications
FCC Class A
AS/NZS
AS/NZS 3548 (C-Tick) Class A
FCC part 15 class A
GOST
UK PSTI
AS/NZS
AS/NZS 3548 (C-Tick) Class A
FCC part 15 class A
GOST
UK PSTI
Environmental
Carbon Footprint (kg CO₂ eq, Total Life Cycle)
110
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Ambient Air Temperature for Operation
23-113 ?F (-5-45 ?C)
Ambient Air Temperature for Storage
5-149 ?F (-15-65 ?C)
Relative Humidity
0-95 %
Storage Relative Humidity
0-95 %
Operating Altitude
0-10000 ft
Storage Altitude
0-50000 ft (0.0000000000-15240.0000000000 m)
Packaging / Certifications
Unit Type of Package 1
PCE
Packaging Made with Recycled Cardboard
No
Packaging without Single Use Plastics
No
Take-back
Yes
EU RoHS Directive
Compliant
